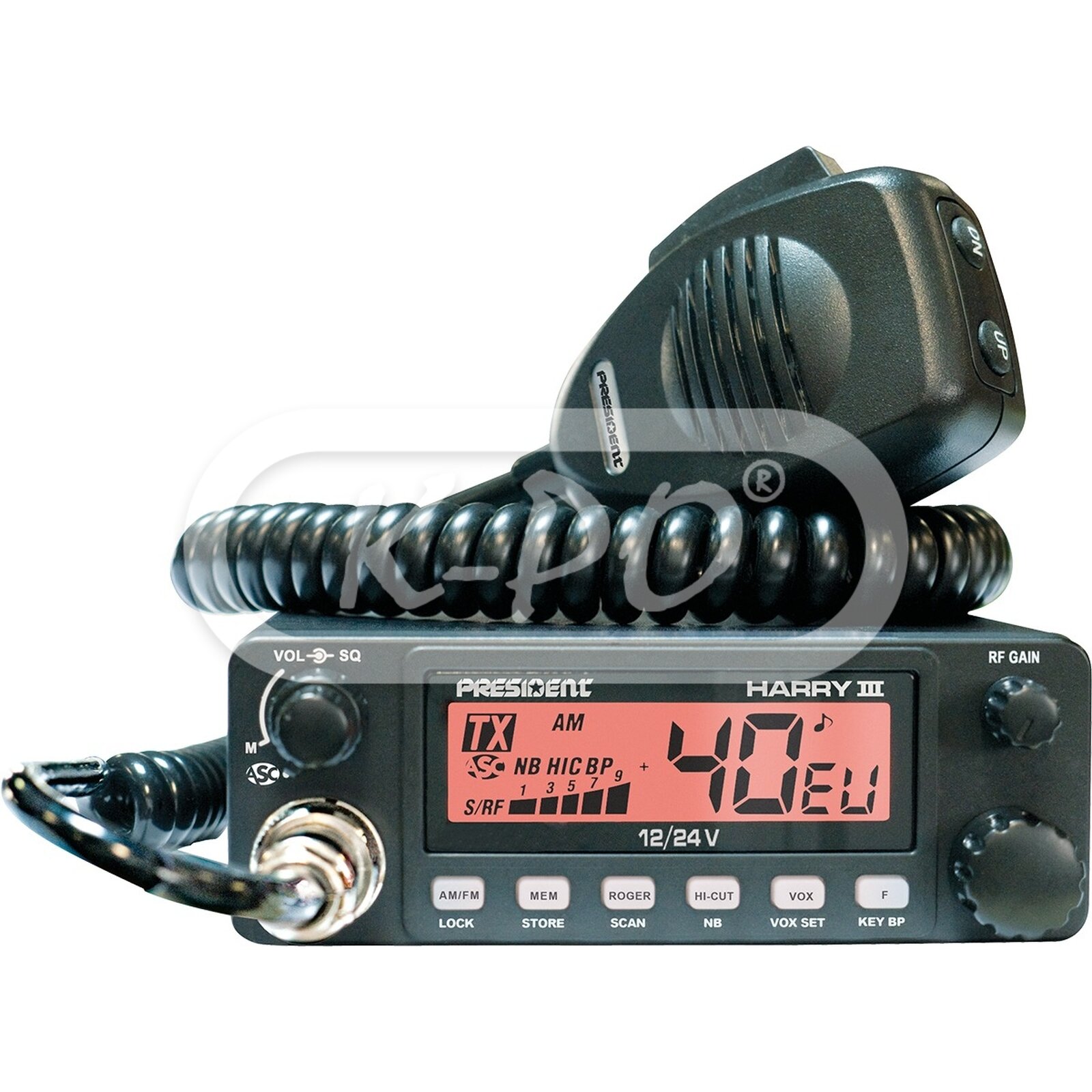

President - Harry III ASC

Product code: 30070

Factory code: TXMR668

Barcode: 3435991127066

President Harry III ASC 12/24 V is a new step in personal communication and is the surest choice for the most demanding of professional CB radio users. To ensure that you make the most of all its capacities, we advise youto read carefully this manual before installing and using your President Harry III.

Frequency range: 26.965 - 27.405 MHz

Note - Discontinued

€ -- (Discontinued)

Features

• Modulation: AM / FM
• Multi-bands: Yes
• Output power: 4 Watt
• Channels: 40 AM / FM
• Display type: LCD display
• Display colors: Orange
• VOX Function: Yes
• Noise blanker: Yes
• Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /
• Keypad lock: Yes
• Scan function: Yes
• Memory channels: Yes
• External speaker socket: Yes
• S-meter: Yes
• RF gain: Yes
• TOT (time out timer): Yes
• External VOX socket: Yes
• Roger Beep: Yes
• Hi-Cut: Yes
• More

Electrical data

• Voltage: 13,8 Volt / 24 Volt /

Transmitter

• Audio frequency response: 300 Hz - 3 kHz
• Microphone sensitivity: 7 mV
• Frequency allowance: ± 200 Hz
• Transmission interference: inferior to 4 nW (- 54 dBm)
• Emitted power in the adjacent channel: inferior a 20 μW
• Modulated signal distortion: 1.8
• Drain: 13.2 Volt: 1.7 A / 26.4 Volt: 0.85 A
• More

Receiver

• AM sensitivity: 0,5 µV - 113 dBm
• FM sensitivity: 0,5 µV - 113 dBm
• Frequency response: 300 Hz - 3 kHz
• Adjacent channel selectivity: 60 dB
• Maximum audio power: 2 Watt
• Squelch sensitivity: min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
• Frequency image rejection rate: 60 dB
• Intermediate image rejection rate: 70 dB
• Drain: min. 300 mA / max. 750 mA
• More

Mechanical data

• Length: 150 mm
• Height: 45 mm
• Width: 125 mm
• Weight: 700 gram
• Antenna connector: UHF (PL) female (SO-239)
• Mike connector: 6 pin connector
• More

Inside the box

• Transceiver: 1 pcs
• Microphone: 1 pcs
• Fixing screws: 1 set
• Mounting bracket: 1 pcs
• Power lead: 1 pcs
• User Manual: English, Spanish, French, Polish
• More

Downloads

• Datasheet: Harryiiiasc12 24v4languespolredv2 02bd 238
