President - Johnson II VOX

Product code: 3004343

Factory code: TXPR667

Barcode: 3435991129015

Replaced by the President Johnson III, product code 3004344.

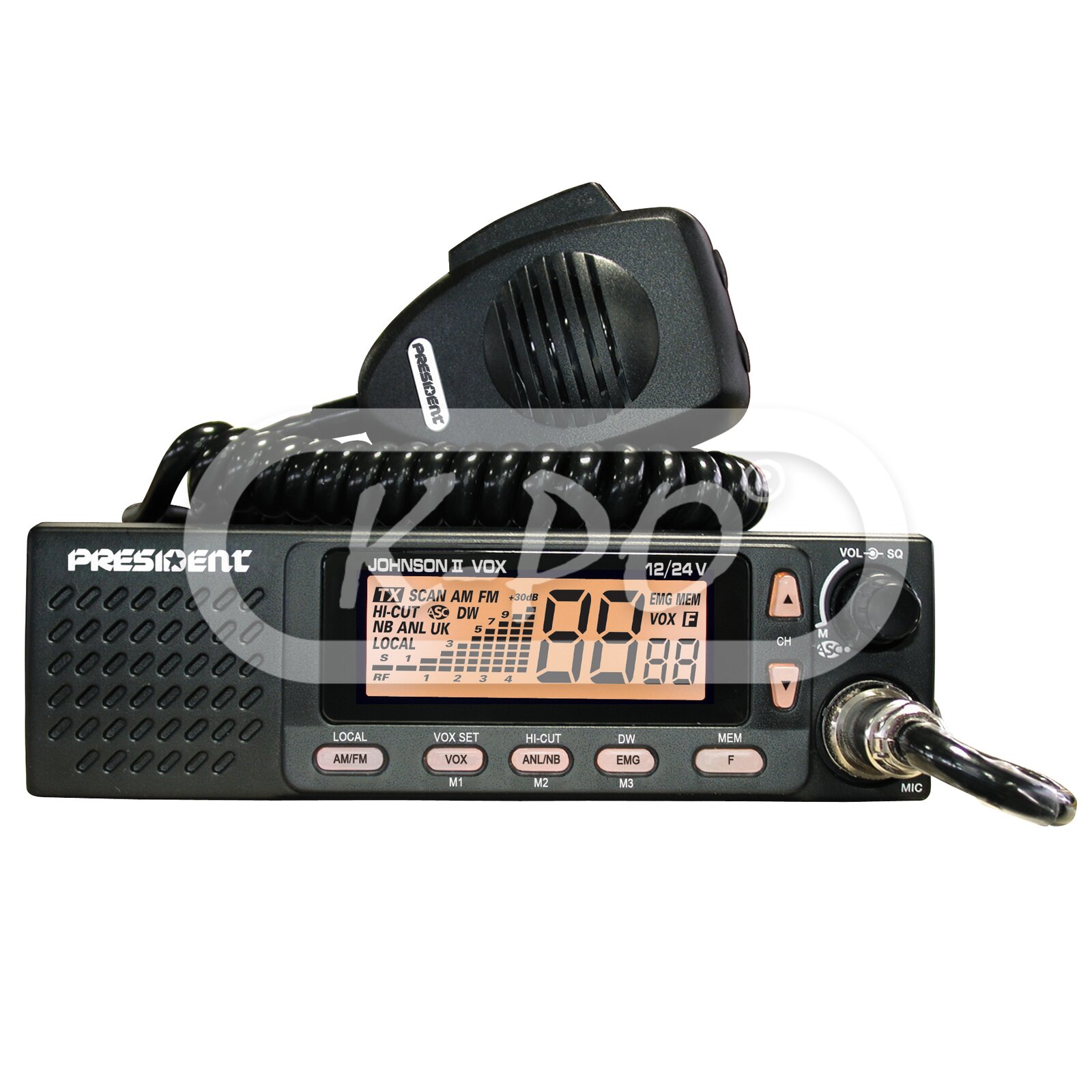

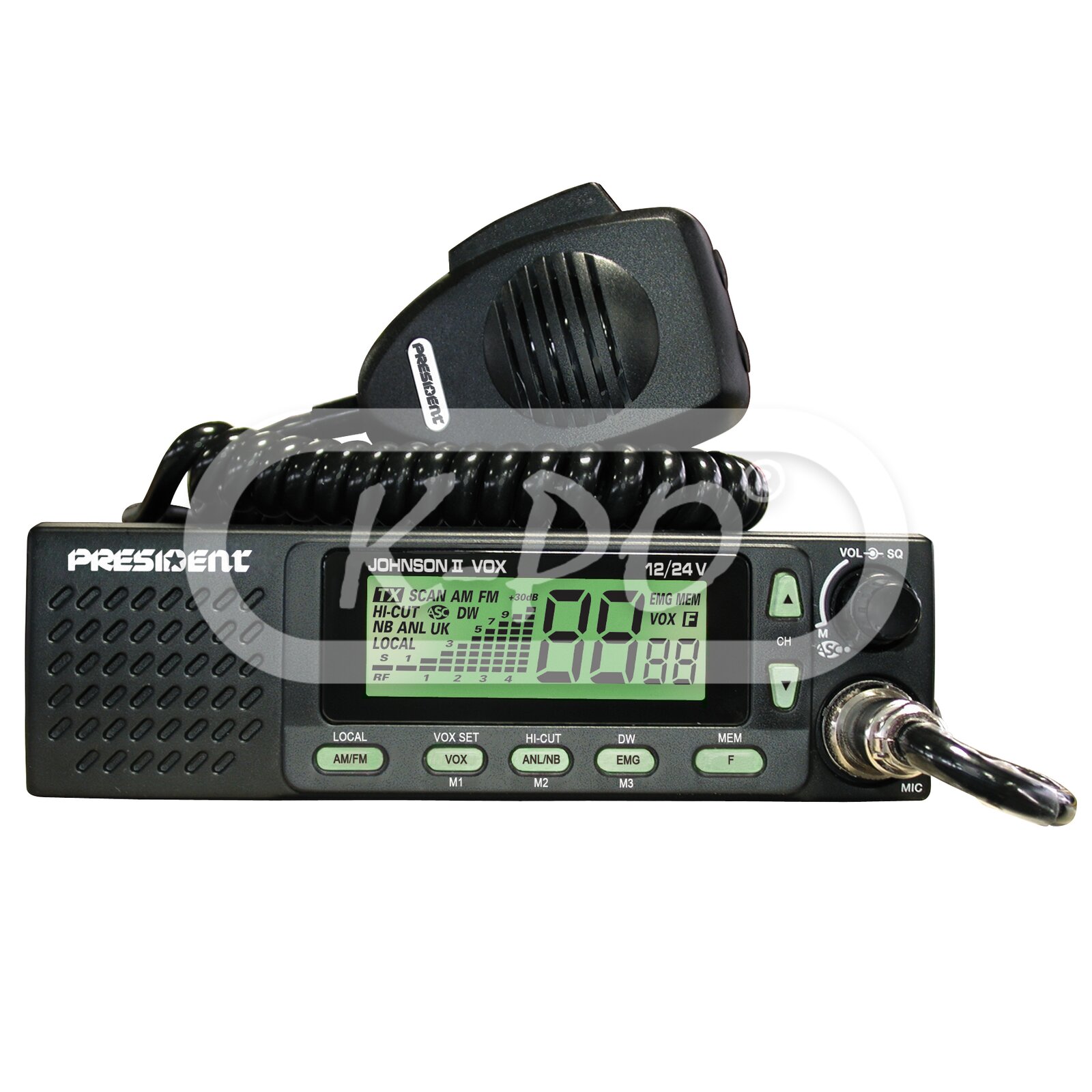

The new 2020 President Johnson II VOX 12/24 with a 3 colour display and VOX function!

Frequency range: 26.965 - 27.405 MHz

Note - Discontinued

€ -- (Discontinued)

Features

• Modulation: AM / FM
• Multi-bands: Yes
• Output power: 4 Watt
• Channels: 40 AM / FM
• Front speaker: Yes
• Display type: LCD display
• Display colors: Green / Orange / Blue
• VOX Function: Yes
• Noise blanker: Yes
• Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /
• Emergency channel: Yes
• Scan function: Yes
• Memory channels: Yes
• External speaker socket: Yes
• S-meter: Yes
• TOT (time out timer): Yes
• Dual watch: Yes
• External VOX socket: Yes
• Roger Beep: Yes

Electrical data

• Voltage: 13,8 Volt / 24 Volt /

Transmitter

• Audio frequency response: 300 Hz - 3 kHz
• Microphone sensitivity: 3.0 mV
• Frequency allowance: ± 200 Hz
• Transmission interference: inferior to 4 nW (- 54 dBm)
• Emitted power in the adjacent channel: inferior a 20 μW
• Modulated signal distortion: 1.8 %
• Drain: 13.2 Volt: <2.0 A / 26.4 Volt: <2.0 A

Receiver

• AM sensitivity: 0,5 µV - 113 dBm
• FM sensitivity: 0,5 µV - 113 dBm
• Frequency response: 300 Hz - 3 kHz
• Adjacent channel selectivity: 60 dB
• Maximum audio power: 3 Watt
• Squelch sensitivity: min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
• Frequency image rejection rate: 60 dB
• Intermediate image rejection rate: 70 dB
• Drain: min. 400 mA / max. 1000 mA

Mechanical data

• Length: 150 mm
• Height: 52 mm
• Width: 170 mm
• Weight: 1000 gram
• Antenna connector: UHF (PL) female (SO-239)
• Mike connector: 6 pin connector

Inside the box

• Transceiver: 1 pcs
• Microphone: 1 pcs
• Fixing screws: 1 set
• Mounting bracket: 1 pcs
• Power lead: 1 pcs
• User Manual: English, Spanish, French, Polish

Downloads

• Datasheet: User manual Johnson II VOX UK SP FR PL
