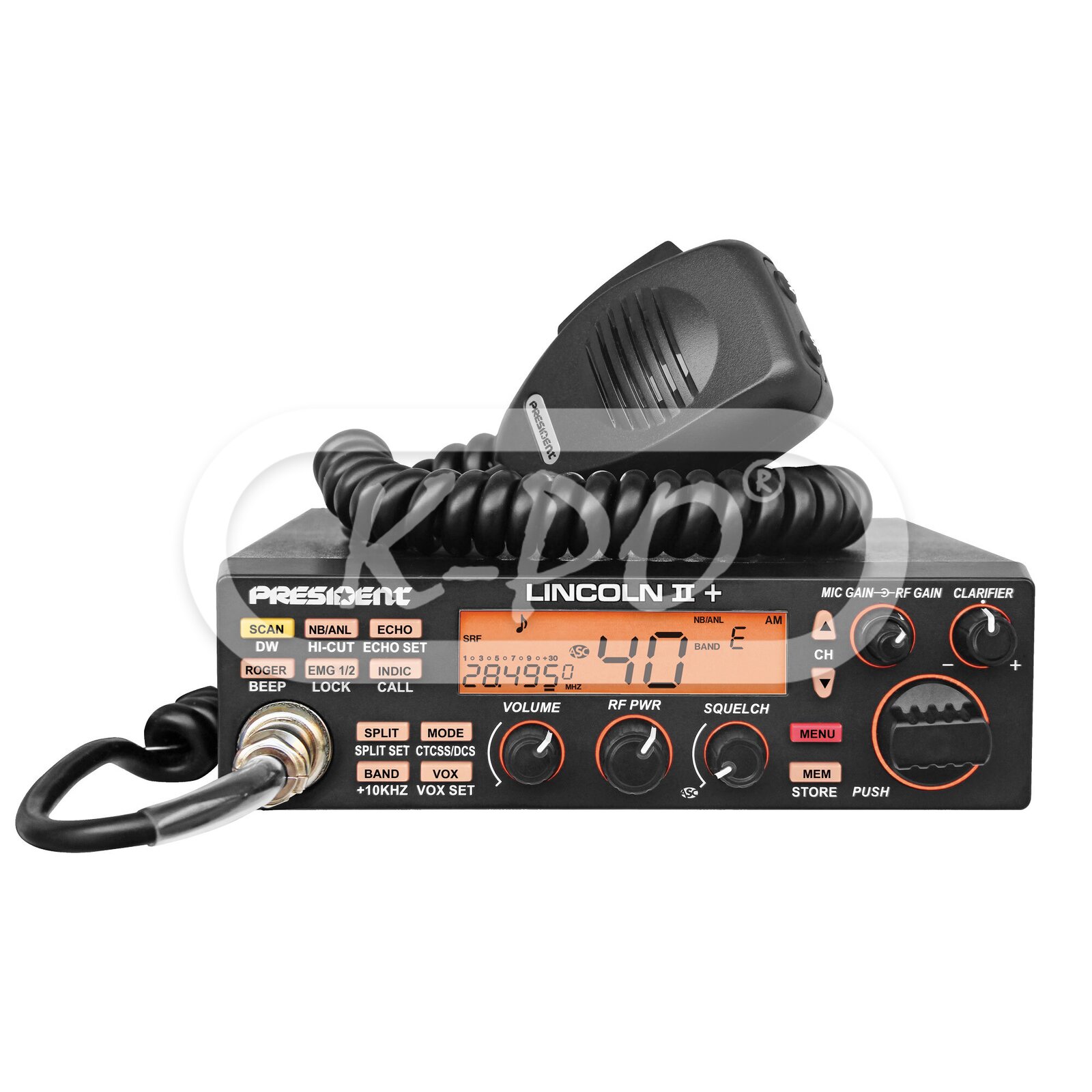

President - Lincoln II+ (V3)

Product code: 80080

Factory code: TXSR041

Barcode: 343599112051

The latest version of the Lincoln II is called the Lincoln II+ V3 and now covers the 12m band as well as 10m. The other biggest change is that this new version is now PC programmable, using the mini USB socket on the rear, allowing you to change various features on the radio. The power output has also been increased slightly.

Frequency range: 24.890 - 24.990 MHz / 28.000 - 29.700 MHz

Out of stock - Longer delivery time

€319.95 (264.42 excl. 21% VAT)

Features

• Modulation: AM / FM / LSB / USB / SSB / CW
• Output power: AM: 50 Watt / FM: 35 Watt / SSB: 35 Watt (PEP) / CW: 12 Watt
• Display type: LCD display
• Display colors: Green / Orange / Blue
• Export version: Yes
• VOX Function: Yes
• Noise blanker: Yes
• Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /
• Emergency channel: Yes
• Keypad lock: Yes
• Hi/Lo power: Yes
• Scan function: Yes
• Memory channels: Yes
• Quick channel selection: Yes
• External speaker socket: Yes
• External S-meter socket: Yes
• External PA socket: Yes
• S-meter: Yes
• MIC gain: Yes
• RF gain: Yes
• TOT (time out timer): Yes
• Dual watch: Yes
• Roger Beep: Yes
• External VOX socket: Yes
• Clarifier: Yes
• More

Electrical data

• Voltage: 13,8 Volt

Transmitter

• Audio frequency response: 300 Hz - 3 kHz
• Microphone sensitivity: 3.0 mV
• Frequency allowance: ± 300 Hz
• Transmission interference: inferior to 4 nW (- 50 dBm)
• Emitted power in the adjacent channel: inferior a 20 μW
• Modulated signal distortion: 2.0 %
• Drain: 13.2 Volt: <6.0 A
• More

Receiver

• AM sensitivity: 0,7 µV - 113 dBm
• FM sensitivity: 0,35 µV - 116 dBm
• Frequency response: 300 Hz - 3 kHz
• Adjacent channel selectivity: 60 dB
• Maximum audio power: 3 Watt
• SSB sensitivity: 0,28 µV - 118 dBm
• Squelch sensitivity: min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
• Frequency image rejection rate: 60 dB
• Intermediate image rejection rate: 70 dB
• Drain: min. 400 mA / max. 600 mA
• More

Mechanical data

• Length: 250 mm
• Height: 52 mm
• Width: 170 mm
• Weight: 1400 gram
• Antenna connector: UHF (PL) female (SO-239)
• Mike connector: 6 pin connector
• More

Inside the box

• Transceiver: 1 pcs
• Microphone: 1 pcs
• Fixing screws: 1 set
• Mounting bracket: 1 pcs
• Power lead: 1 pcs
• User Manual: English, Spanish, French, Polish
• More

Downloads

• Datasheet: User manual Lincoln II FR UK SP PL
