President - MC Kinley

Product code: 80600
Factory code: TXPR600
Barcode: 3435991128179

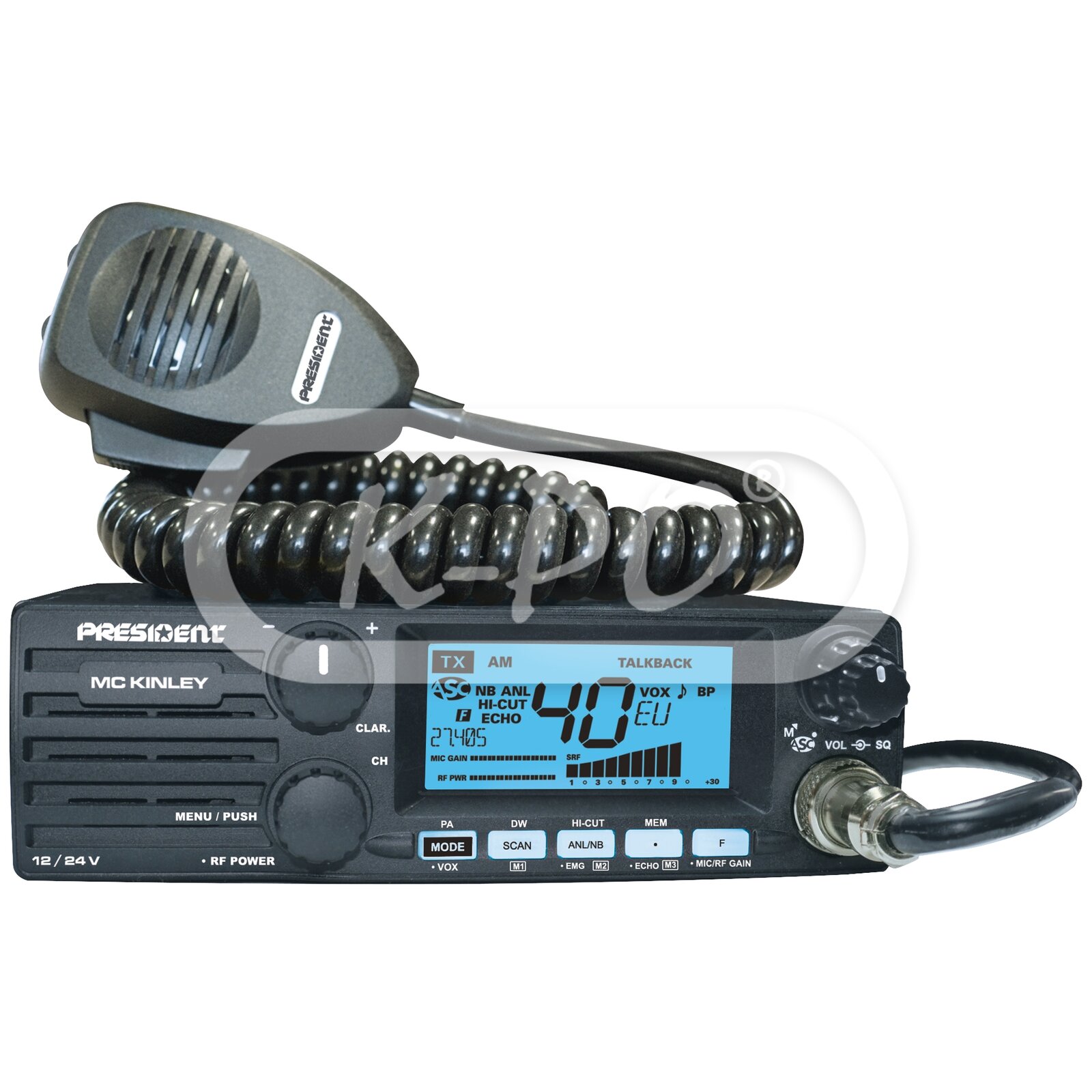

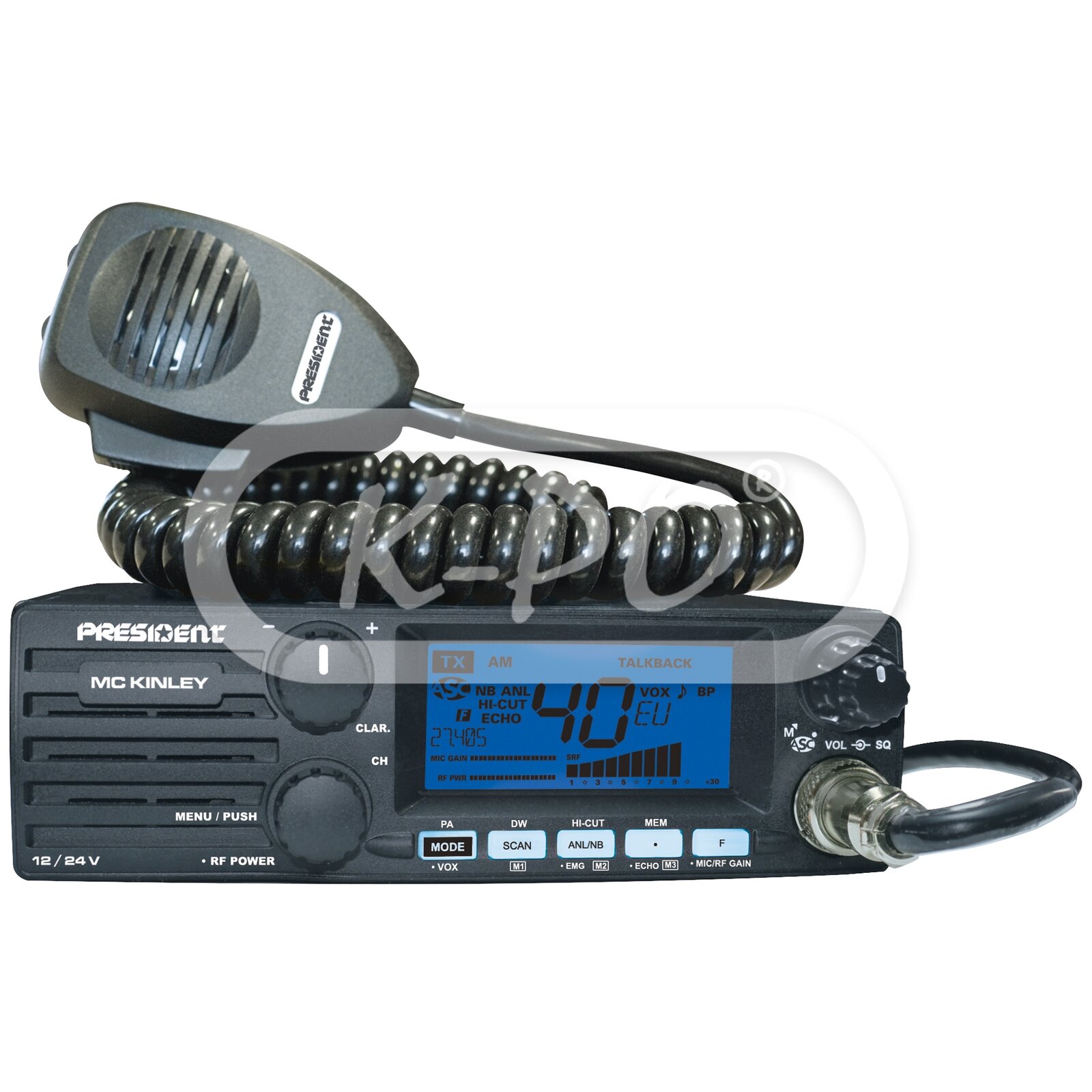

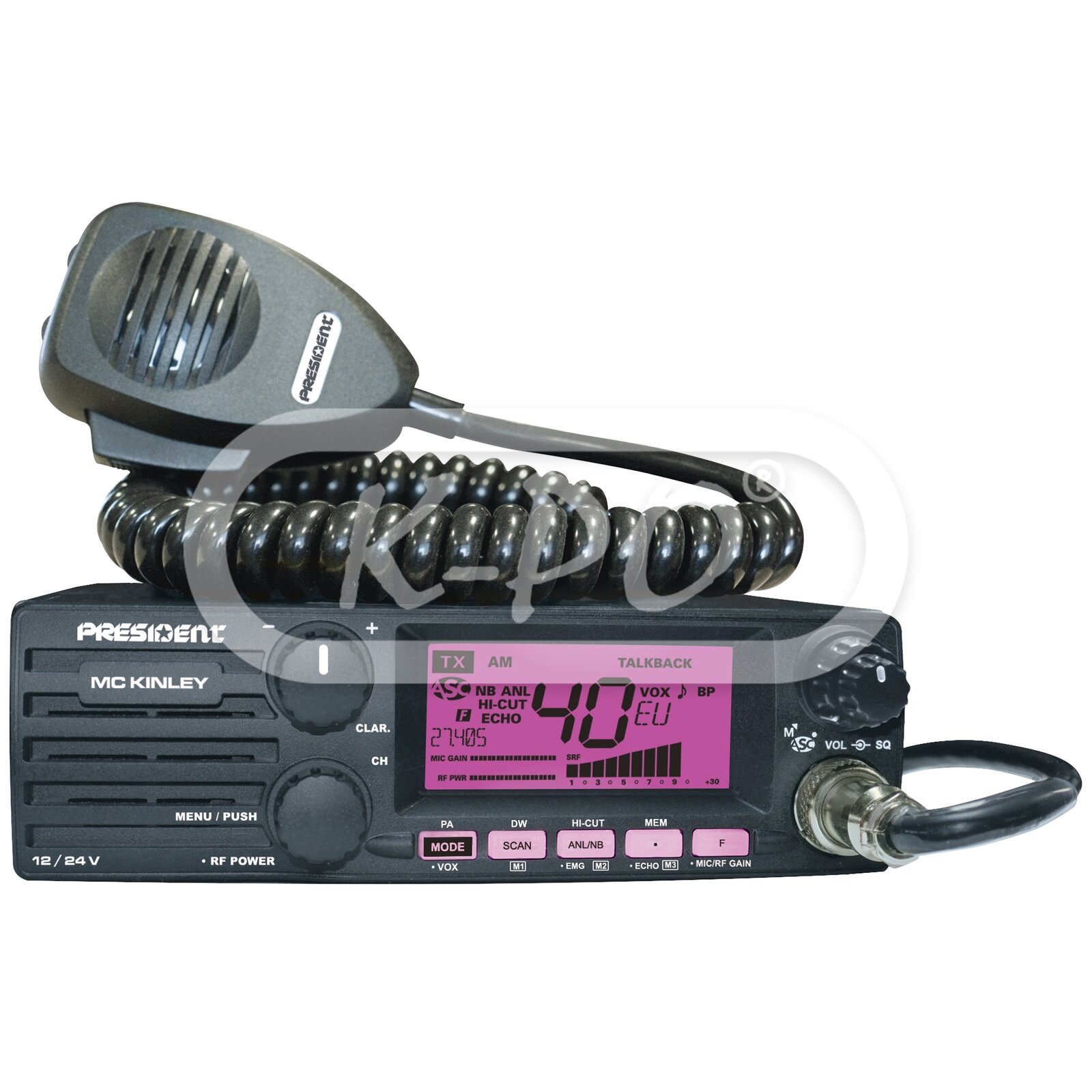

The President MC Kinley multimode CB is the first SSB radio with a front facing speaker. This is ideal for mounting in vehicles with a spare DIN radio slot.

Frequency range: 26.965 - 27.405 MHz
Shipped next business day
€349.96 (289.22 excl. 21% VAT)

Features

  • Modulation: AM / FM / LSB / USB
  • Multi-bands: Yes
  • Output power: AM/FM: 4 Watt / SSB: 12 Watt
  • Channels: 40
  • Front speaker: Yes
  • Display type: LCD display
  • Display colors: Green / Orange / Purple / Blue / Cyaan / Yellow / Clear Blue
  • VOX Function: Yes
  • Noise blanker: Yes
  • Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /
  • Emergency channel: Yes
  • Keypad lock: Yes
  • Scan function: Yes
  • Memory channels: Yes
  • External speaker socket: Yes
  • External PA socket: Yes
  • S-meter: Yes
  • MIC gain: Yes
  • RF gain: Yes
  • TOT (time out timer): Yes
  • Dual watch: Yes
  • External VOX socket: Yes
  • Roger Beep: Yes

Electrical data

  • Voltage: 13,8 Volt / 24 Volt /

Transmitter

  • Audio frequency response: 300 Hz - 3 kHz
  • Microphone sensitivity: 3.0 mV
  • Frequency allowance: ± 300 Hz
  • Transmission interference: inferior to 4 nW (- 54 dBm)
  • Emitted power in the adjacent channel: inferior a 20 μW
  • Modulated signal distortion: 1.8 %
  • Drain: 13.2 Volt: <3.0 A

Receiver

  • AM sensitivity: 0,5 µV - 113 dBm
  • FM sensitivity: 0,5 µV - 113 dBm
  • SSB sensitivity: 0,28 µV - 118 dBm
  • Frequency response: 300 Hz - 3 kHz
  • Adjacent channel selectivity: 60 dB
  • Squelch sensitivity: min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
  • Frequency image rejection rate: 60 dB
  • Intermediate image rejection rate: 70 dB
  • Drain: min. 400 mA / max. 1000 mA

Mechanical data

  • Length: 150 mm
  • Height: 52 mm
  • Width: 170 mm
  • Weight: 1100 gram
  • Antenna connector: UHF (PL) female (SO-239)
  • Mike connector: 6 pin connector

Inside the box

  • Transceiver: 1 pcs
  • Microphone: 1 pcs
  • Fixing screws: 1 set
  • Mounting bracket: 1 pcs
  • Power lead: 1 pcs
  • User Manual: English, Spanish, French, Polish
