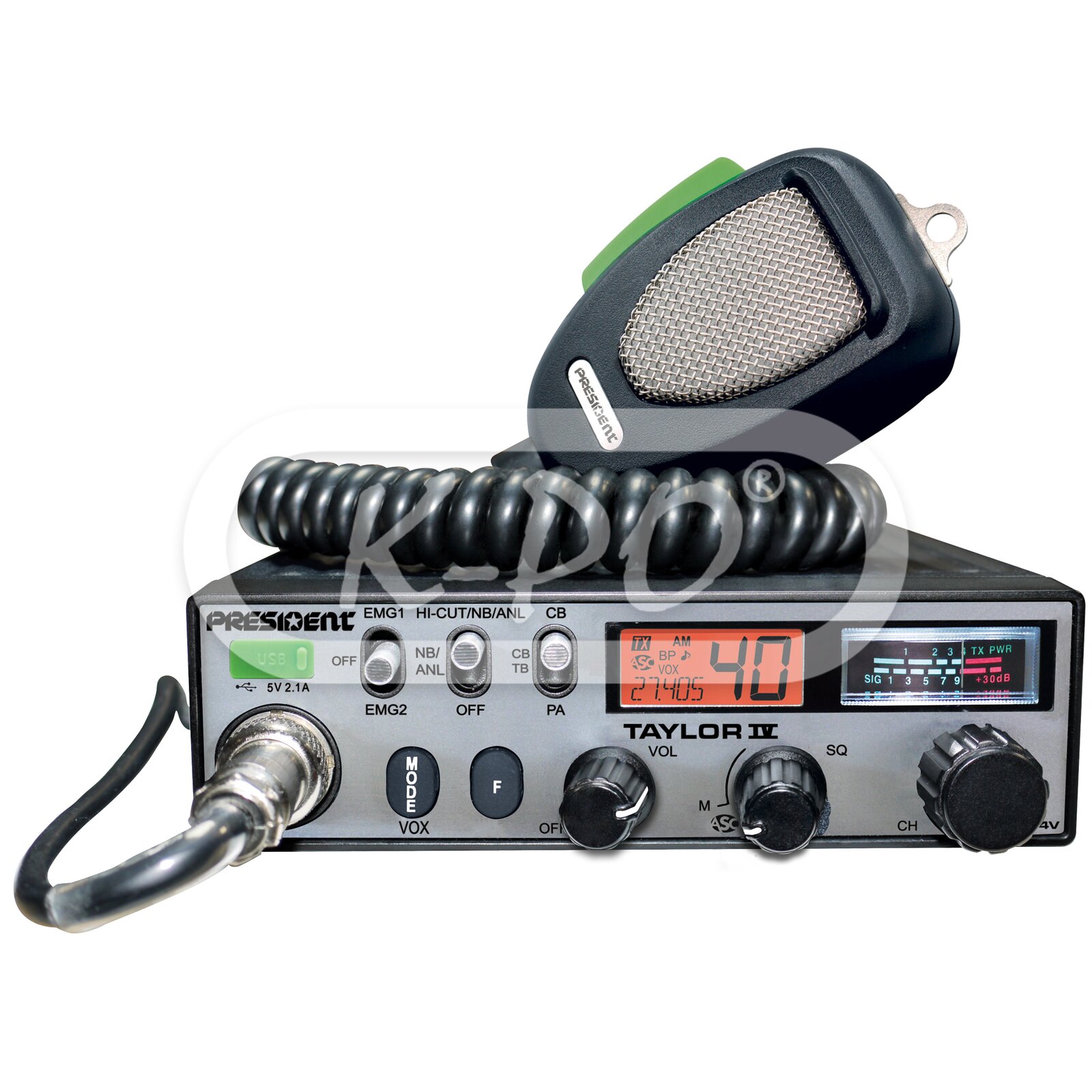

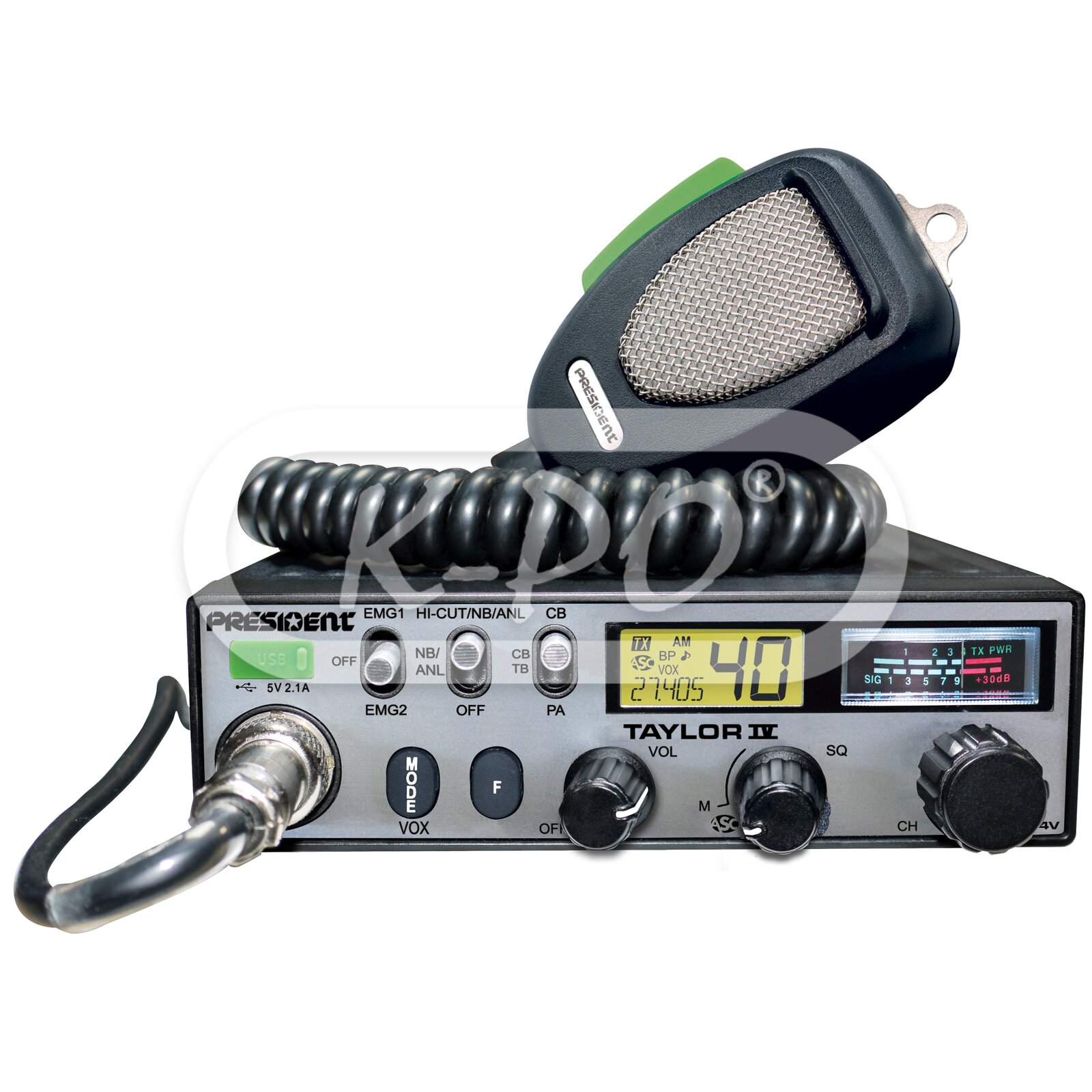

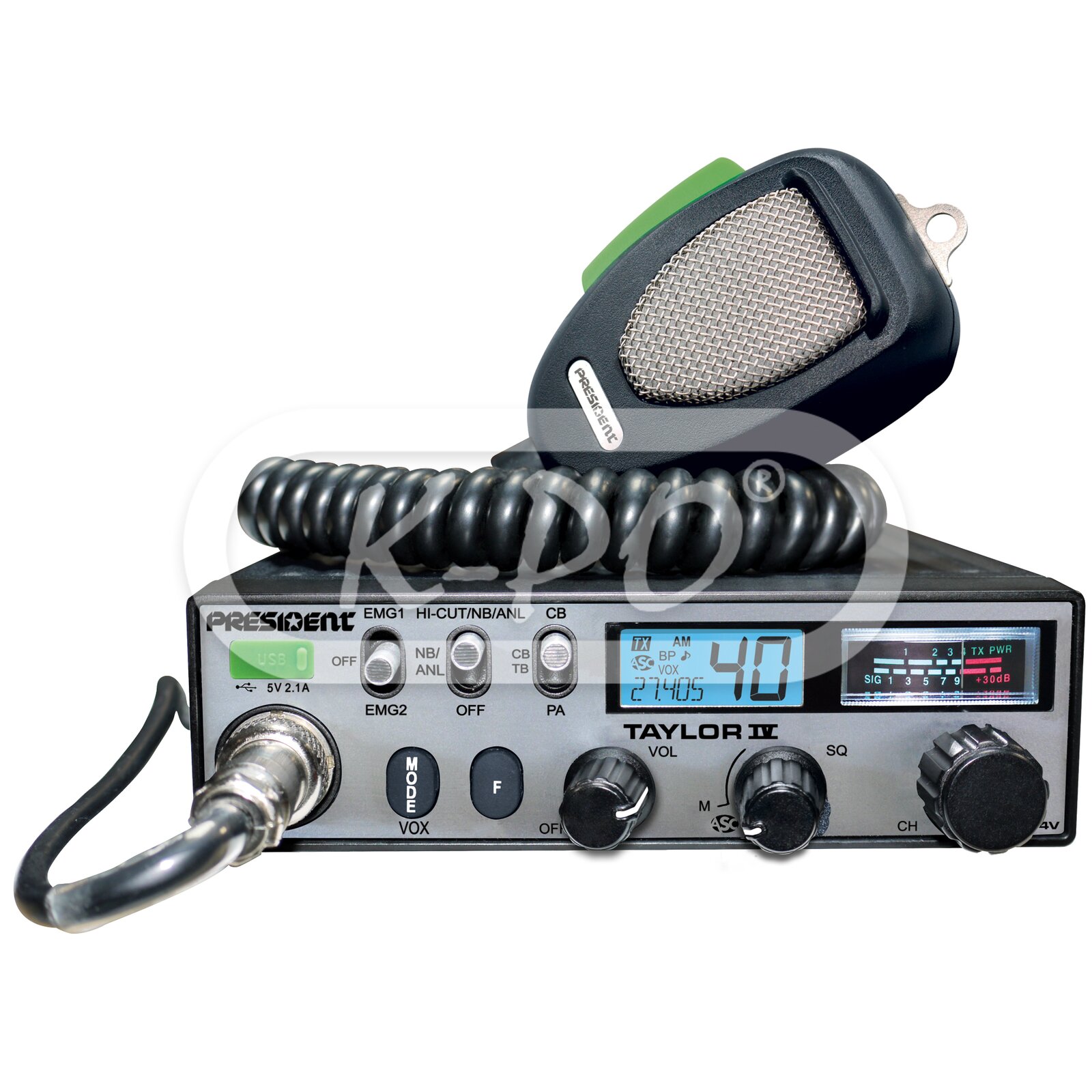

President - Taylor IV DM

Product code: 3004338

Factory code: TXPR413

Barcode: 3435991128018

A modern President radio with many features packed in a classic look. Now including President Digimike with NRC and features like 7 different display colours, USB charging point, classic analogue S-meter, menu functions, PA horn socket, 12/24 dual voltage and many more.

Frequency range: 26.965 - 27.405 MHz

Shipped next business day

€209.95 (173.51 excl. 21% VAT)

Features

• Modulation: AM / FM
• Multi-bands: Yes
• Output power: 4 Watt
• Channels: 40 AM / FM
• Display type: LCD display
• Display colors: Green / Orange / Purple / Blue / Cyaan / Yellow / Clear Blue
• VOX Function: Yes
• USB: Yes
• Noise blanker: Yes
• Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /
• Emergency channel: Yes
• Scan function: Yes
• External speaker socket: Yes
• External PA socket: Yes
• S-meter: Yes
• Digimike with NRC: Yes
• Display: Multi-functions / Frequencies
• Talkback function: Yes
• Key beep: Yes
• Roger beep: Yes
• Microphone type: Electret / Dynamic
• F / Menu function key: Yes
• SWR (Power Reading / SWR): Yes
• Filter HI-CUT: Yes
• Dimmer: Yes
• External VOX jack: Yes

Electrical data

• Voltage: 13,8 Volt / 24 Volt /

Transmitter

• Audio frequency response: 300 Hz - 3 kHz
• Microphone sensitivity: 1,0 mV
• Frequency allowance: +/- 300 Hz
• Transmission interference: inferior to 4 nW (- 54 dBm)
• Emitted power in the adjacent channel: inferior to 20 μW
• Drain: 1.7 A (with modulation)
• Modulated signal distortion: 1,8 %

Receiver

• AM sensitivity: 0.5 μV - 113 dBm
• FM sensitivity: 0.5 μV - 113 dBm
• Frequency response: 300 Hz - 3 kHz
• Adjacent channel selectivity: 60 dB
• Maximum audio power: 5 Watt
• Squelch sensitivity: minimum 0.2 μV - 120 dBm / maximum 1 mV - 47 dBm
• Frequency image rejection rate: 60 dB
• Intermediate frequency rejaction rate: 70 dB
• Drain: 500 mA nominal / 800 mA maximum

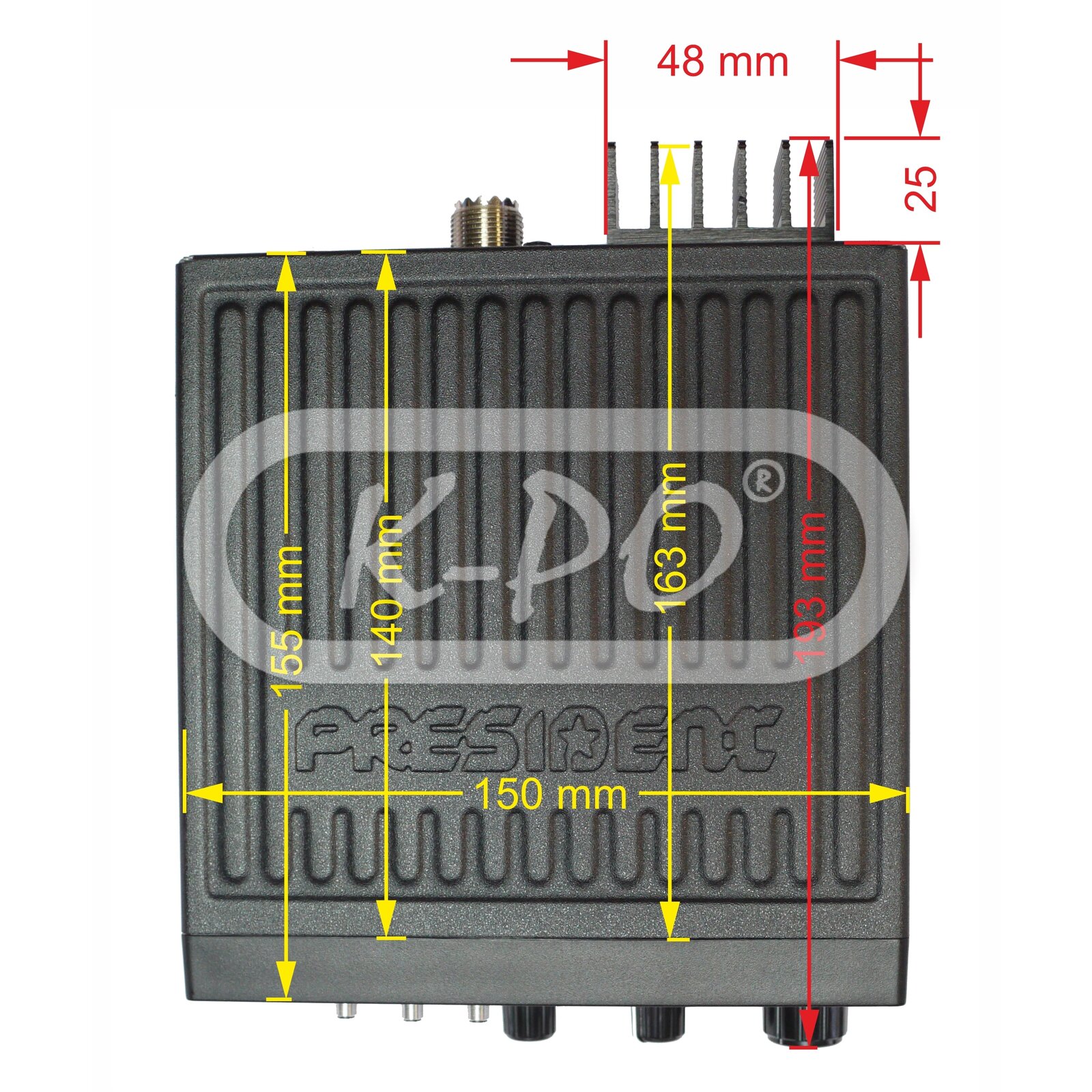

Mechanical data

• Length: 150 mm
• Height: 45 mm
• Width: 165 mm
• Weight: 750 gram
• Antenna connector: UHF (PL) female (SO-239)
• Microphone connector: 6 pin

Inside the box

• Transceiver: 1 pcs
• Fixing screws: 1 set
• Mounting bracket: 1 pcs
• Power lead: 1 pcs
• User Manual: English, Spanish, French, Polish
• Digimike NRC: 1 pcs

Downloads

• Datasheet: User manual Taylor IV
• Datasheet: Manualdigimikeen fr esv1 06 381
