RigExpert - AA-2000 ZOOM

Product code: 13005
Barcode: 4820185420310

The analyzer is designed for measuring SWR (standing wave ratio), return loss, cable loss, as well as other parameters of cable and antenna systems in the range of 100 kHz to 2000 MHz.

A built-in ZOOM capability makes graphical measurements especially effective.

An integrated Time Domain Reflectometer mode can be used to locate a fault within the feedline system.

The analyzer is equipped with a Bluetooth Low Energy module for a wireless connection with your laptop, tablet or smartphone.

The following tasks are easily accomplished by using this analyzer:

  • Rapid check-out of an antenna
  • Tuning an antenna to resonance
  • Comparing characteristics of an antenna before and after specific event (rain, hurricane, etc.)
  • Making coaxial stubs or measuring their parameters
  • Cable testing and fault location, measuring cable loss and characteristic impedance
  • Measuring capacitance or inductance of reactive loads

RigExpert AA-2000 ZOOM is made in Ukraine.

Specifications are subject to change without notice.

Frequency range: 0.1 - 2000 MHz
Shipped today - Stock: 2
€1,189.95 (983.43 excl. 21% VAT)

Features

  • Frequency range: 0.1 to 2000.0 MHz
  • Frequency entry: 1 kHz resolution
  • Directivity: 43 db (calibrated)
  • Measurement for: 25 / 50 / 75 / 100 / 150 / 200 / 300 / 450 and 600 Ohm systems
  • SWR measurement range: 1 to 100 in numerical modes, 1 to 10 in chart modes
  • SWR display: numerical or analog indicator
  • R and X range: 0…2000, -2000…2000
  • PC programming: Yes, with USB connector
  • Factory OSL: Yes
  • User OSL: 10 profiles available
  • OSL Records: 250 unified memory slots

Display modes

  • SWR: Single or multiple frequencies

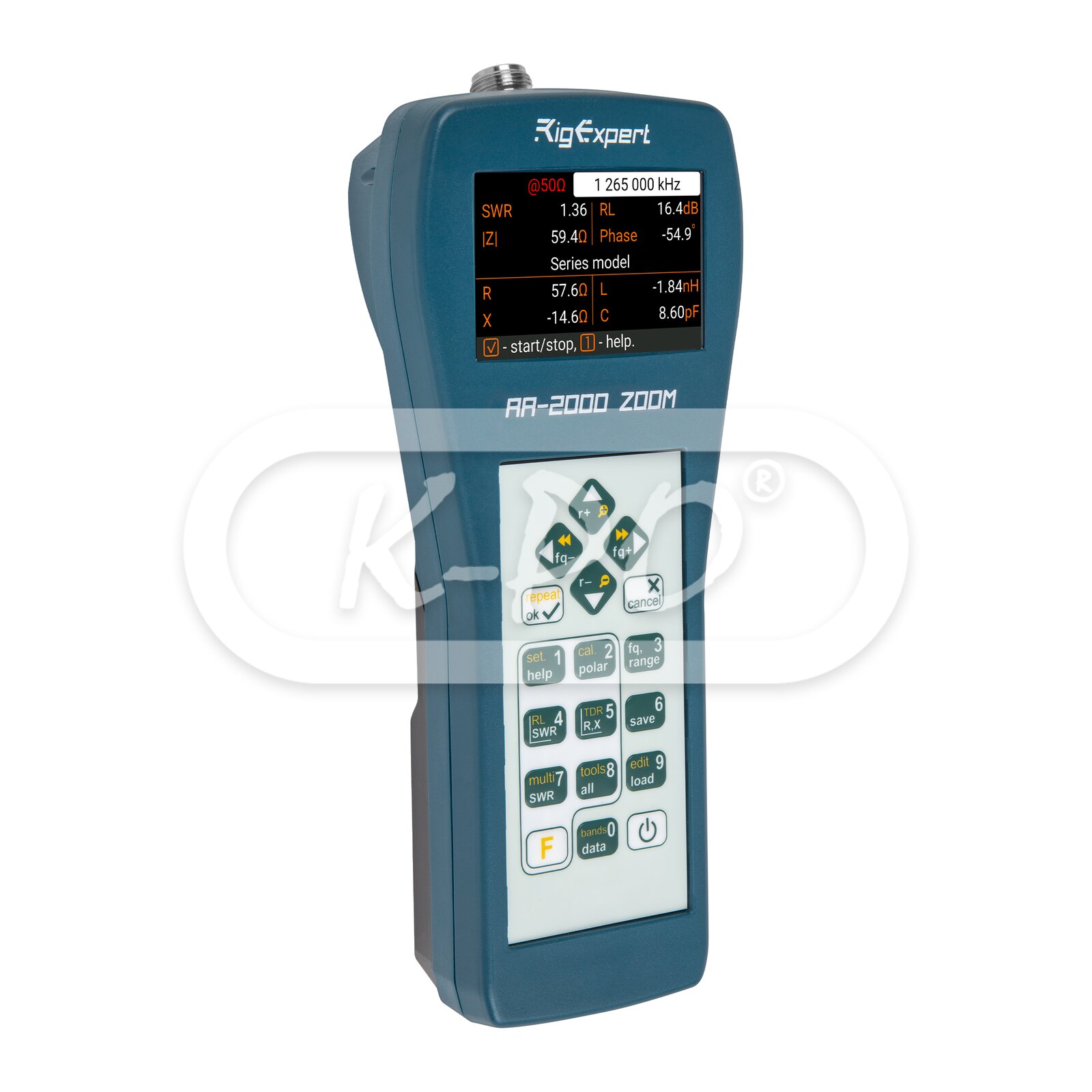

  • SWR: Return loss, R, X, Z, L, C, Magnitude, and Phase Angle at a single frequency
  • SWR chart: 100 points
  • SWR chart at fixed HAM bands by IARU Regions: 100 points
  • TDR chart: Time Domain Reflectometer
  • Cable tools: Stub tuner, length & velocity factor, cable loss and characteristic impedance measurement)

RF output

  • Output signal shape: square, 0.1 to 2000.0 MHz (0.1 to 200 MHz. For higher frequencies, harmonics of the main signal are used)
  • Output power: -10 dBm (at 50 Ohm load)

Power

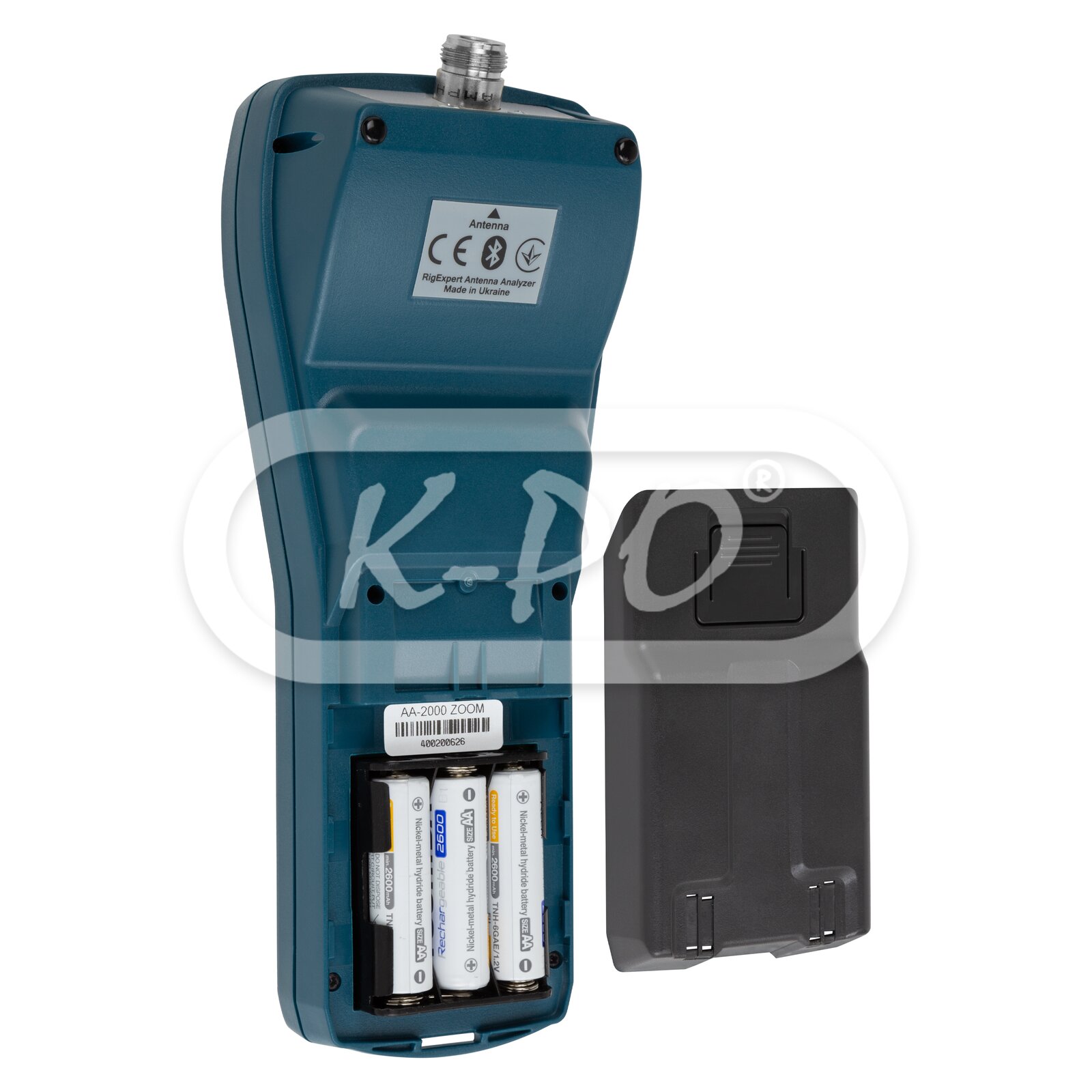

  • Batteries: Three 1.5V alkaline batteries, type AA / Three 1.2V Ni-MH batteries, type AA / Three 3.7V LiPo batteries, 14200
  • Battery life: Max. 4 hours of continuous measurement, max. 2 days in stand-by mode when fully charged batteries are used
  • Program mode: When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these source

Interface

  • Display: 800×400 color BlanView display
  • Keypad: 6×3 keys on the water-proof keypad
  • Menu: Multilingual menus and help screens

Bluetooth

  • Bluetooth Specification: v. 4.2 (Single-mode, Class B)

Mechanical data

  • Input connector: N female for 0.1 to 2000.0 MHz
  • Length: 98 mm
  • Height: 230 mm
  • Width: 53 mm
  • Weight: 442 gram

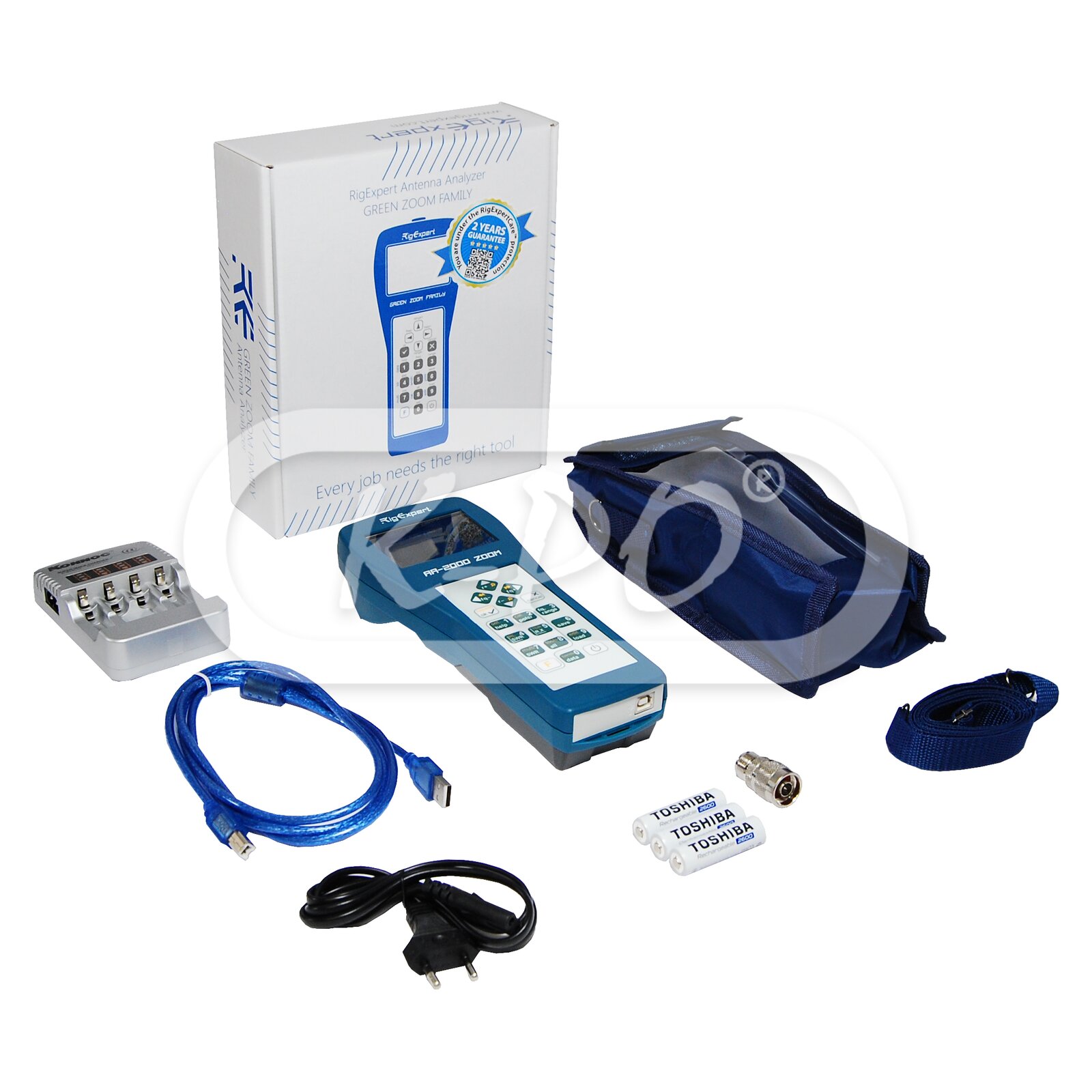

Inside the box

  • Analyzer: Yes
  • Installation manual: English
  • Battery: Yes, 3x 1.2V Ni-MH batteries, type AA (Rechargeable)
  • USB cable: Yes
  • Soft case: Yes
  • Battery charger: Yes
  • Adapter: Yes, N male to UHF (PL) female
