RigExpert - AA-35 ZOOM

Product code: 13000
Barcode: 4820185420105

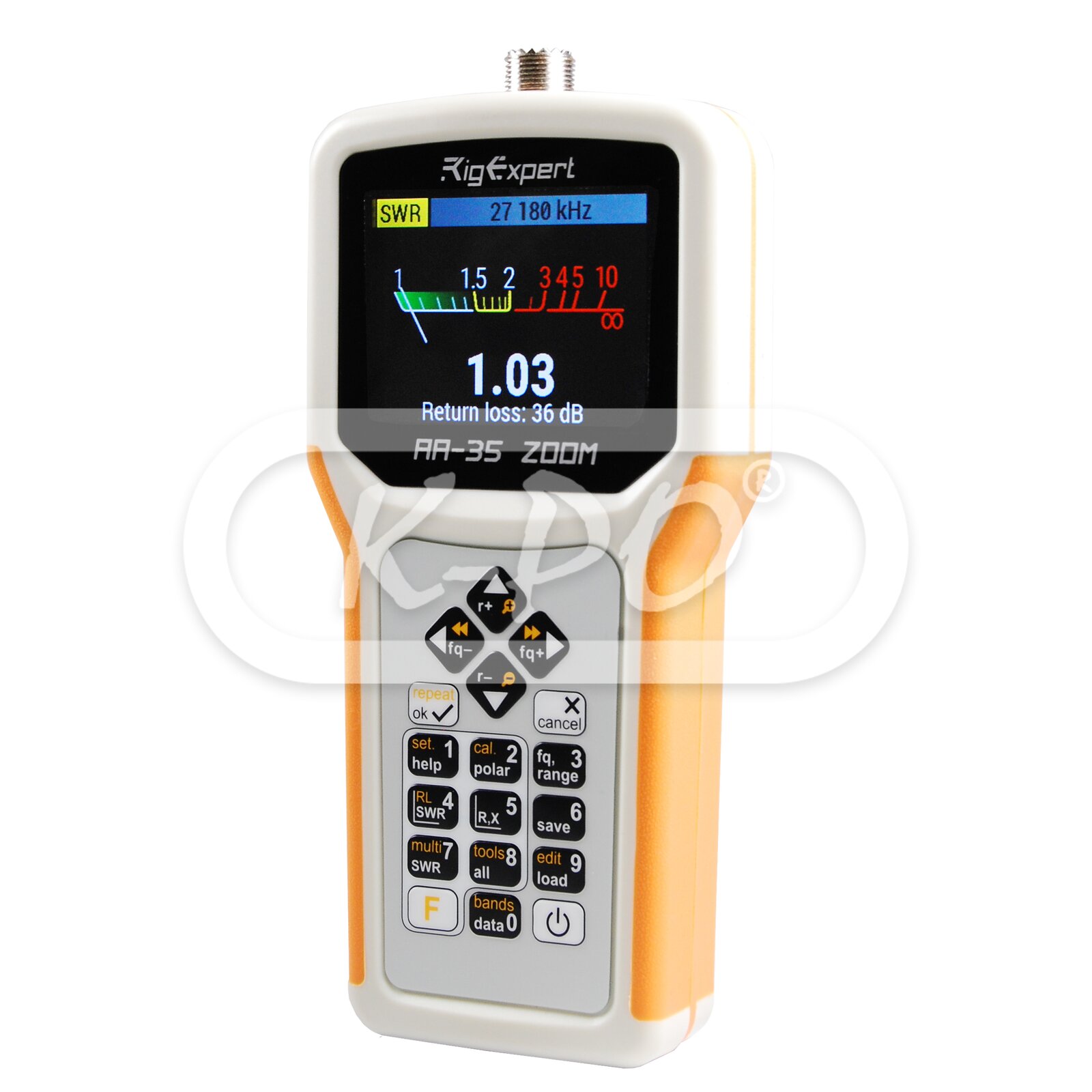

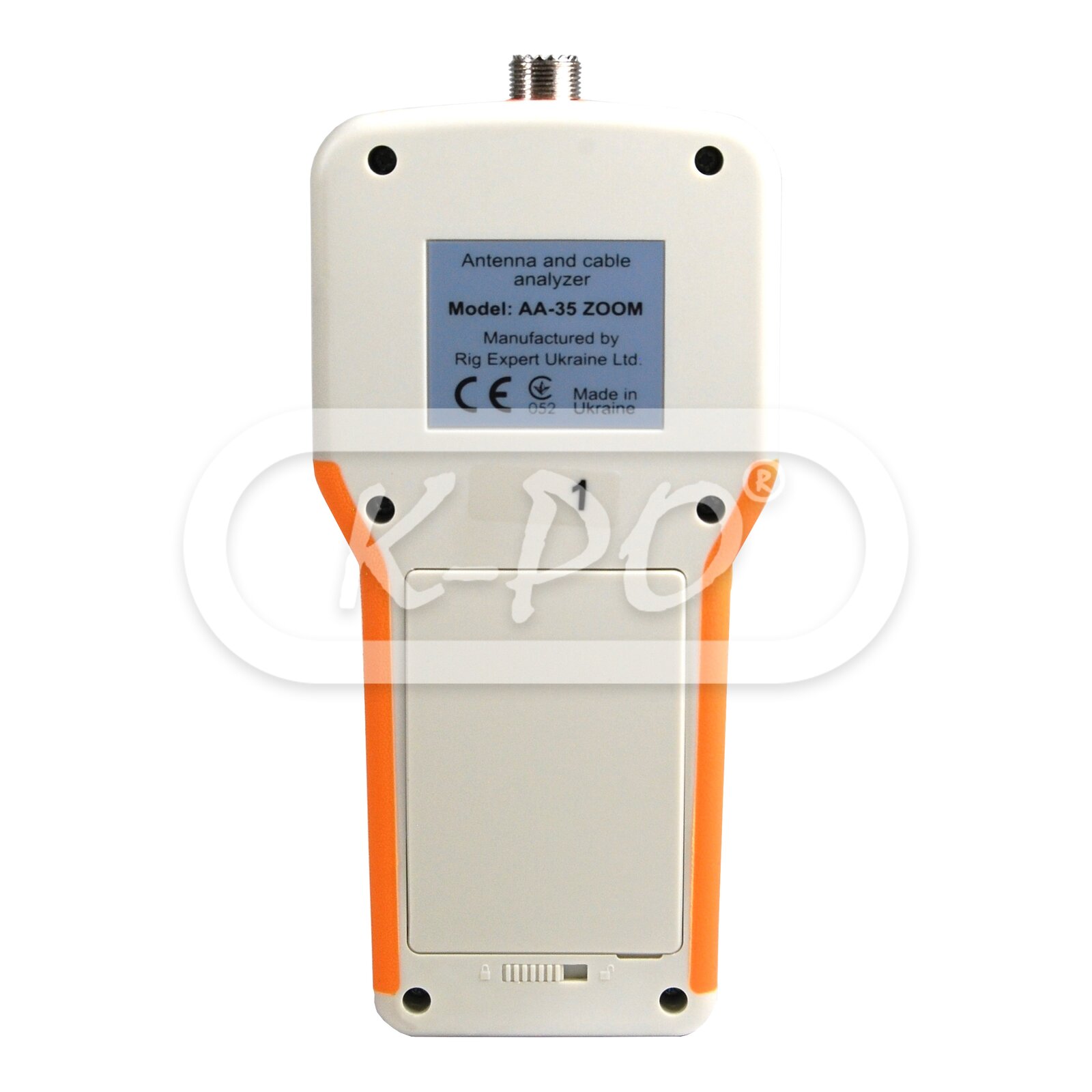

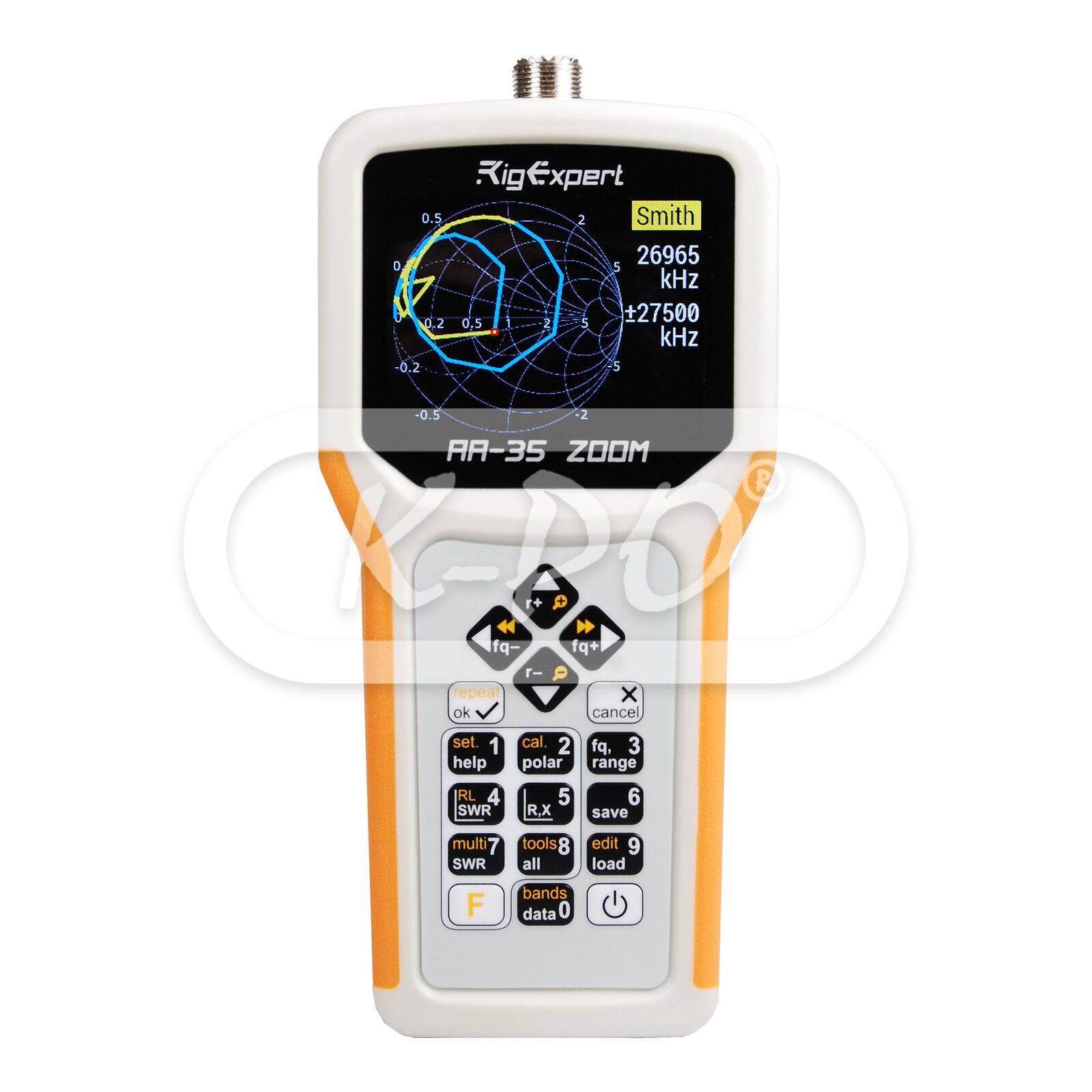

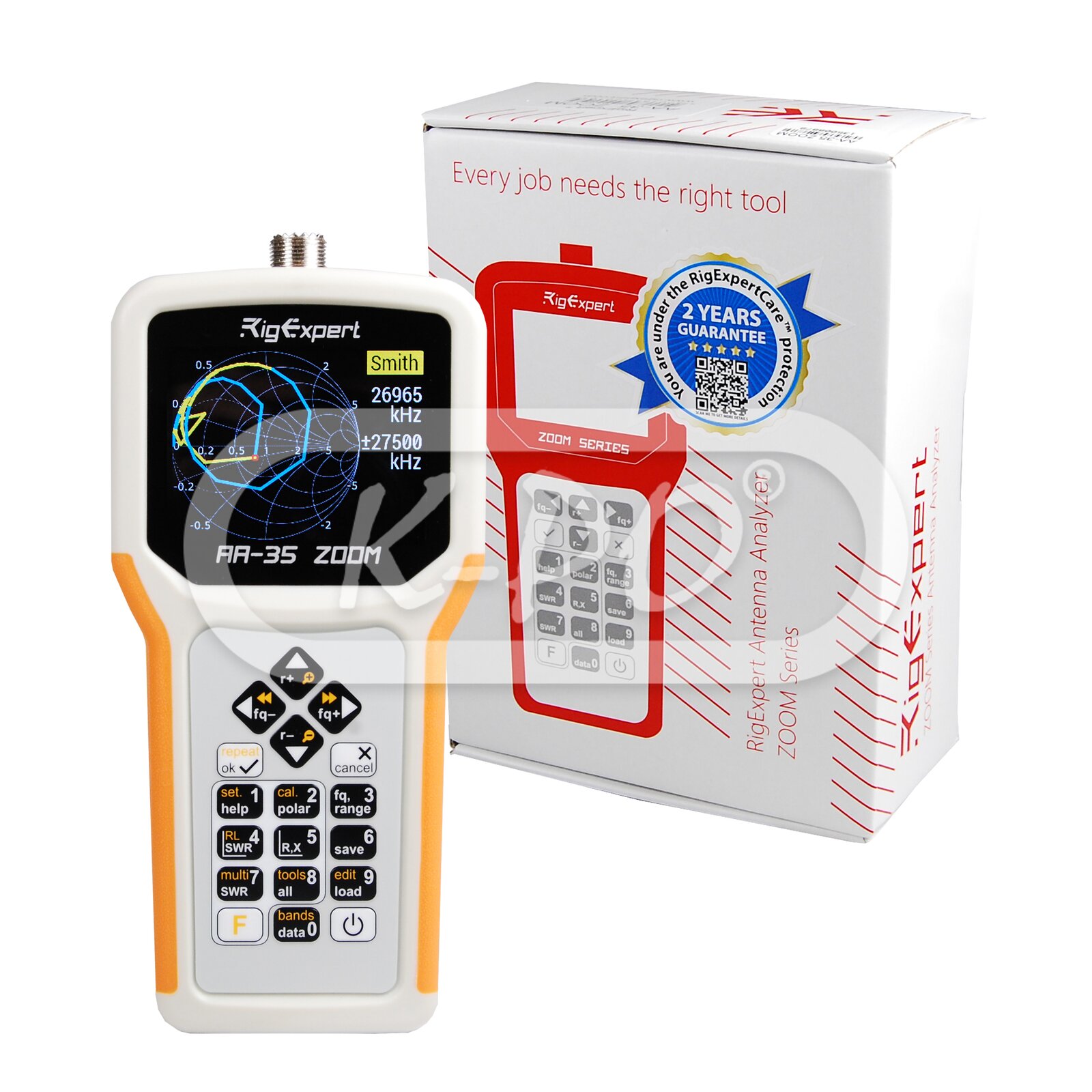

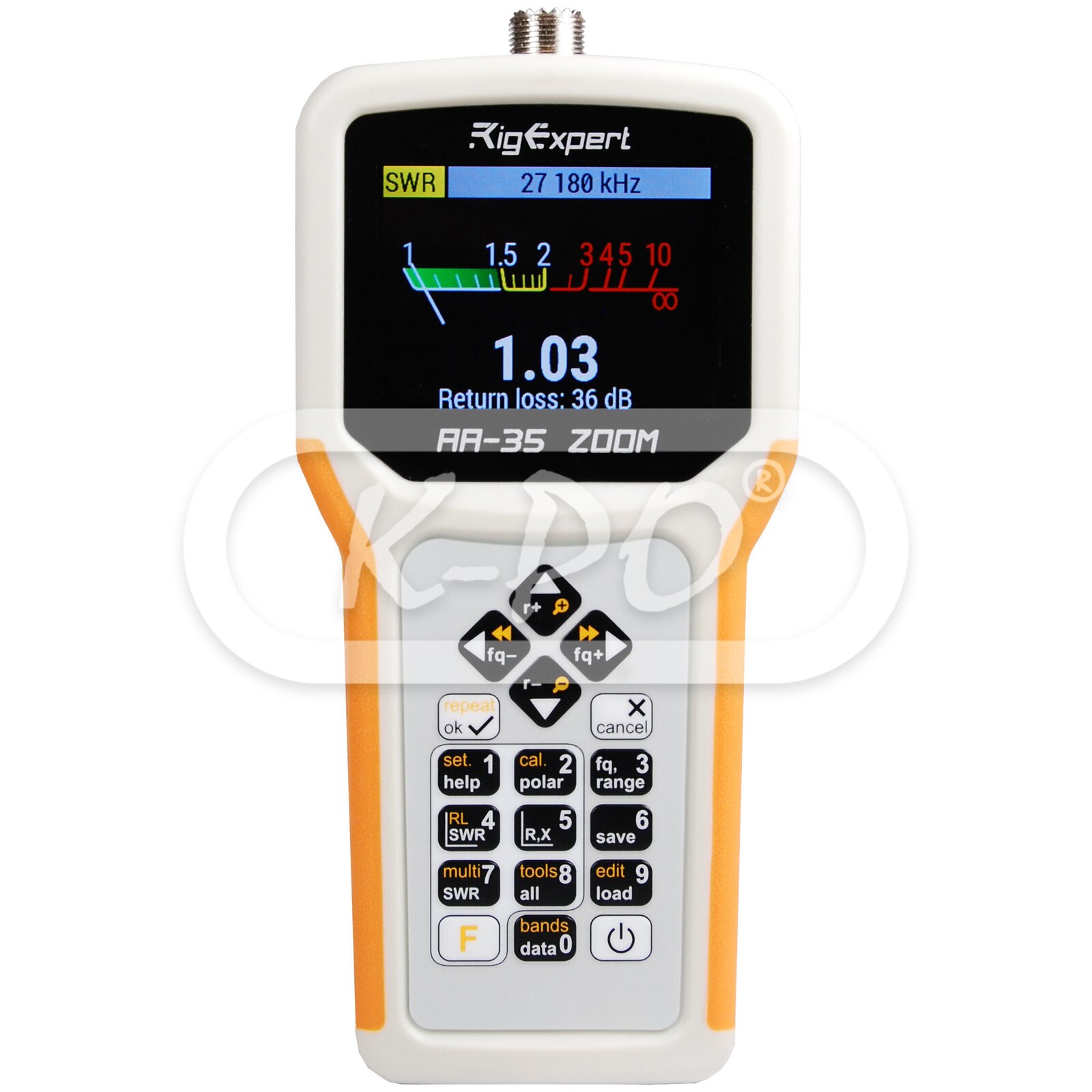

The RigExpert AA-35 ZOOM is a portable, self-calibrating analyzer, designed for measuring SWR (standing wave ratio), return loss, cable loss, as well as other parameters of cable and antenna systems in the range of 60 kHz to 35 MHz, with incredible ZOOM capability.

The following tasks are easily accomplished by using this analyzer:

  • Rapid check-out of an antenna
  • Tuning an antenna to resonance
  • Comparing characteristics of an antenna before and after specific event (rain, hurricane, etc.)
  • Making coaxial stubs or measuring their parameters
  • Cable testing and fault location, measuring cable loss and characteristic impedance
  • Measuring capacitance or inductance of reactive loads

RigExpert AA-35 ZOOM is made in Ukraine.

Specifications are subject to change without notice.

Frequency range: 0.06 - 35.00 MHz
Shipped next business day
€209.95 (173.51 excl. 21% VAT) - €309.95

Features

  • Non Volatile memory: 10 slots to save measurement results
  • Frequency range: 0.06 to 35 MHz
  • Frequency entry: 1 kHz resolution
  • Measurement for: 25 / 50 / 75 and 100 Ohm systems
  • SWR measurement range: 1 to 100 in numerical modes, 1 to 10 in chart modes
  • SWR display: numerical or analog indicator
  • R and X range: 0…10000, -10000…10000 in numerical modes, 0…1000, -1000…1000 in chart modes

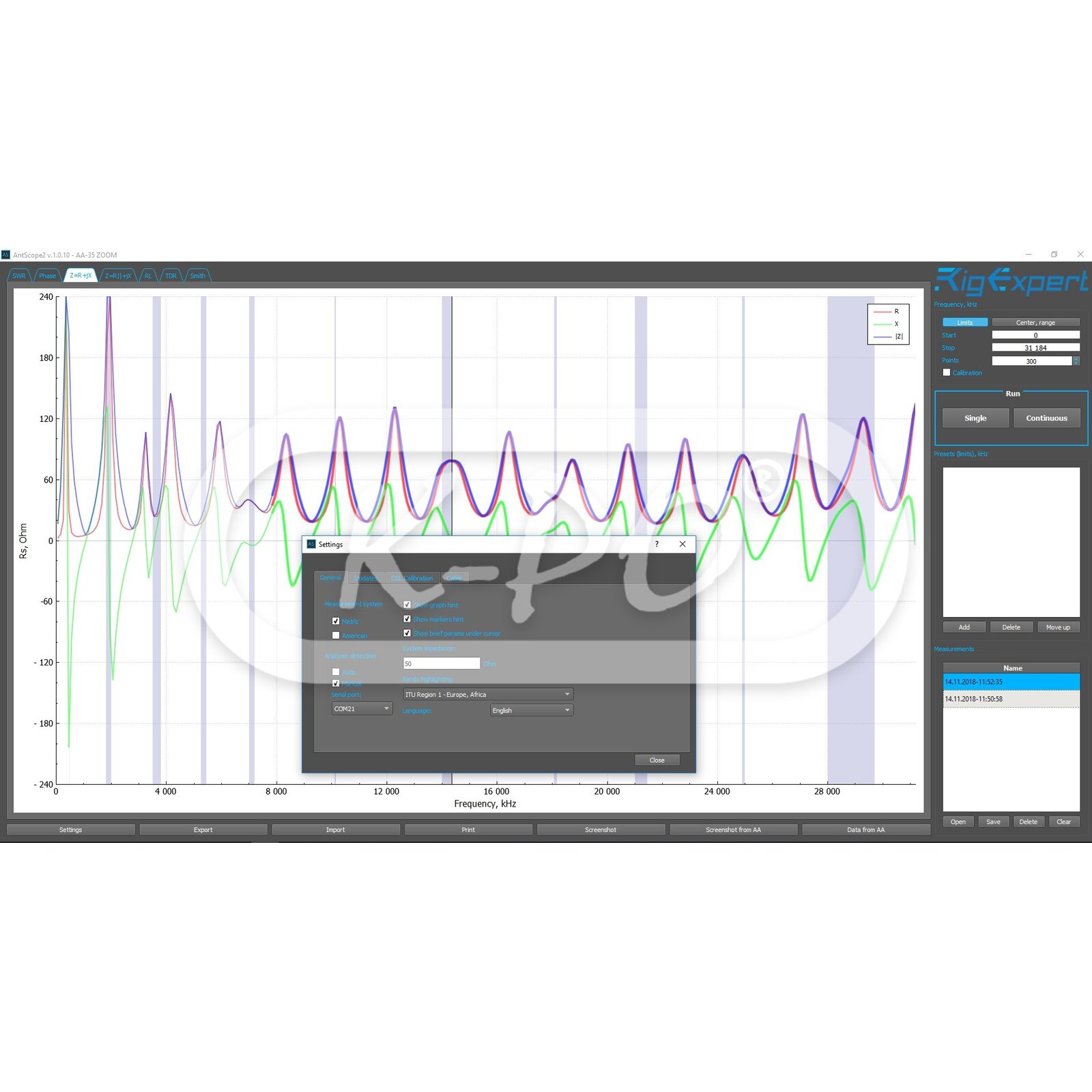

  • PC programming: Yes, with USB connector

Display modes

  • SWR: single frequencies
  • SWR: R, X, Z, L, C and phase angle at single frequency
  • SWR chart: 100 points
  • R, X chart: 100 points

RF output

  • Output signal shape: square, 0.06 to 35 MHz
  • Output power: +13 dBm (at 50 Ohm load)

Power

  • Batteries: Two 1.5V alkaline batteries, type AA
  • Battery life: Max. 4 hours of continuous measurement, max. 2 days in stand-by mode when fully charged batteries are used
  • Program mode: When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these source

Interface

  • Display: 320×240 color TFT display
  • Keypad: 6×3 keys on the water-proof keypad
  • Menu: Multilingual menus and help screens

Mechanical data

  • Input connector: UHF (PL) female for 0.06 - 35.00 MHz
  • Length: 103 mm
  • Height: 207 mm
  • Width: 37 mm
  • Weight: 310 gram
  • Working temperature: 0 to 40 °C

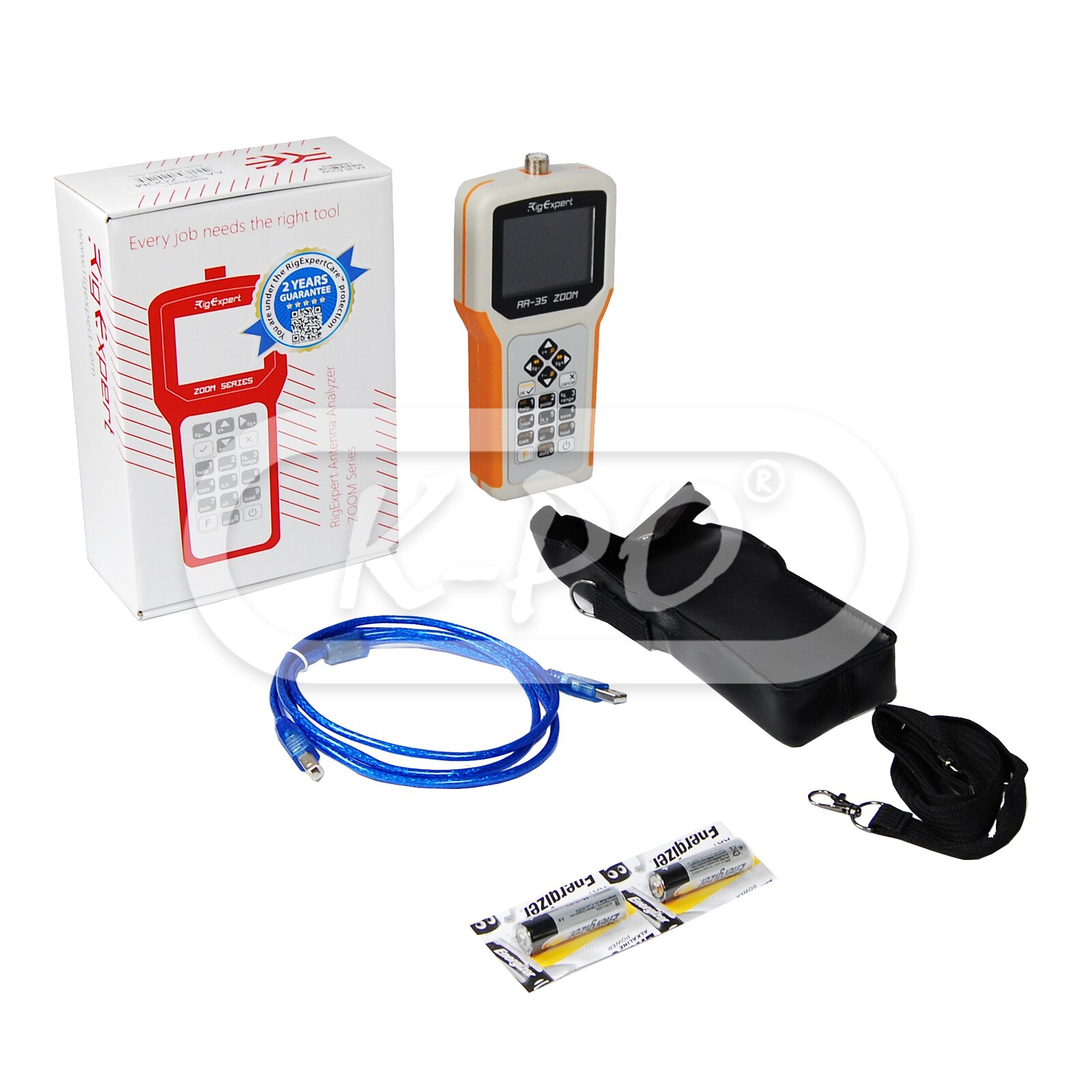

Inside the box

  • Analyzer: Yes
  • Installation manual: English
  • Battery: Yes, 2x 1.5V alkaline batteries, type AA
  • USB cable: Yes
  • Soft case: Yes
