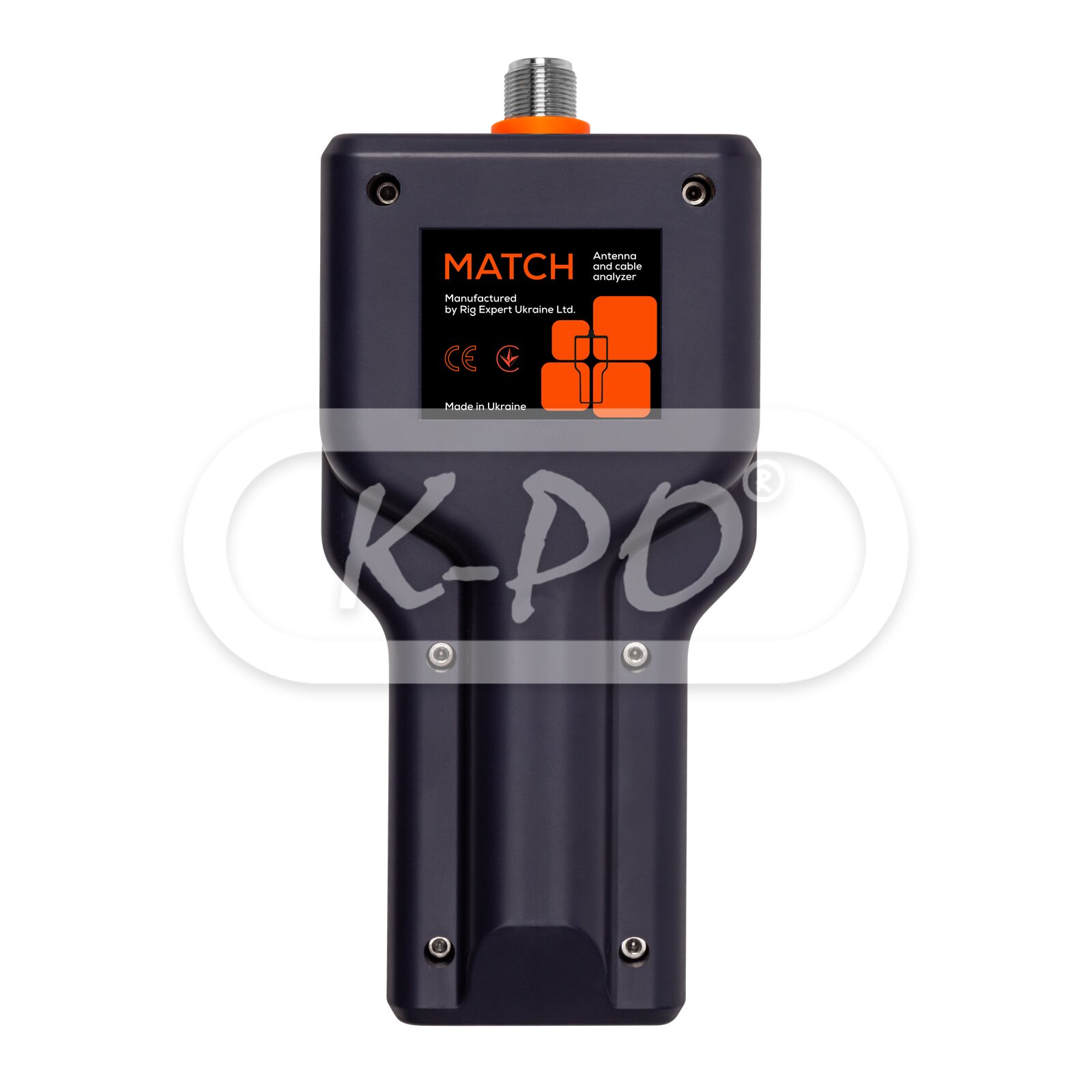

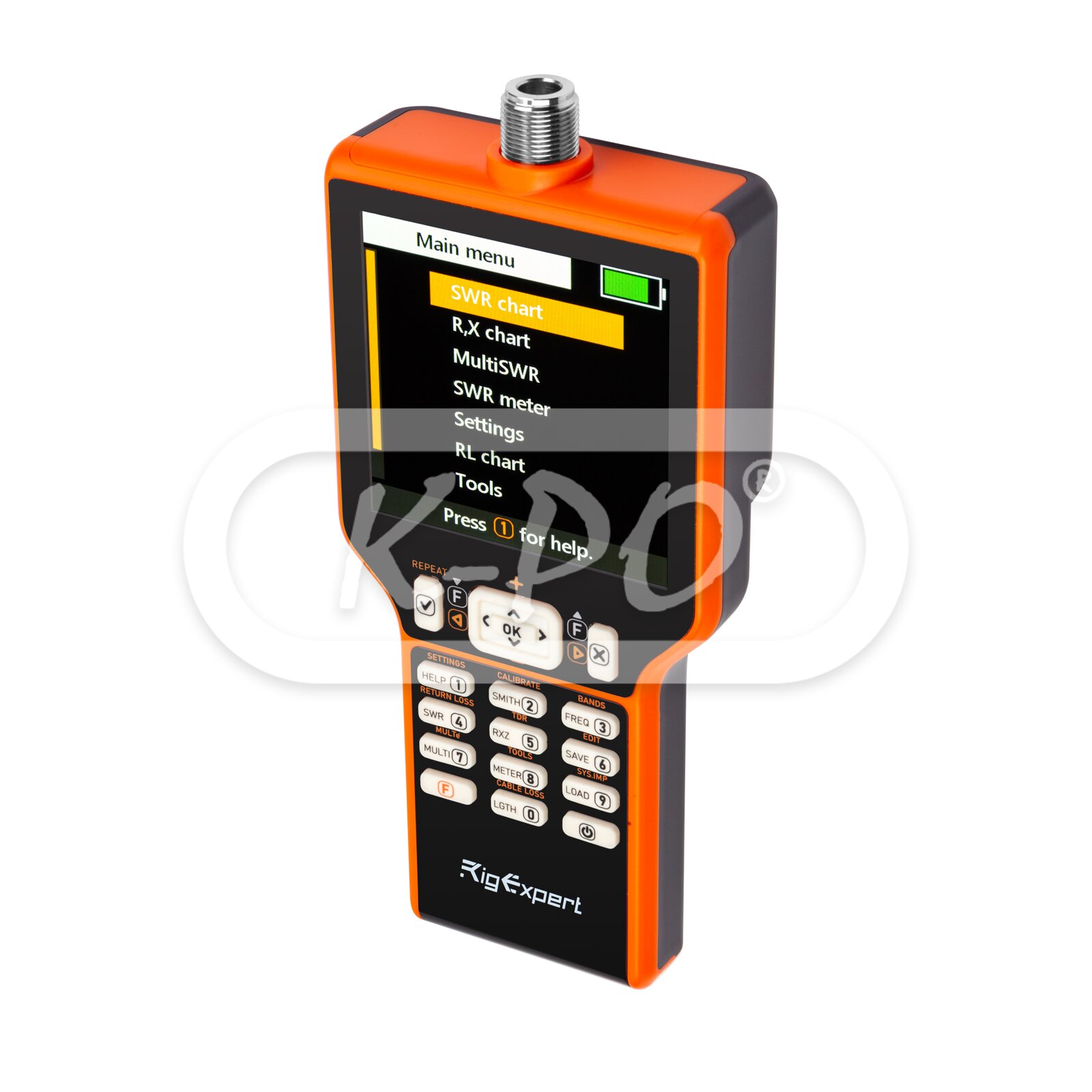

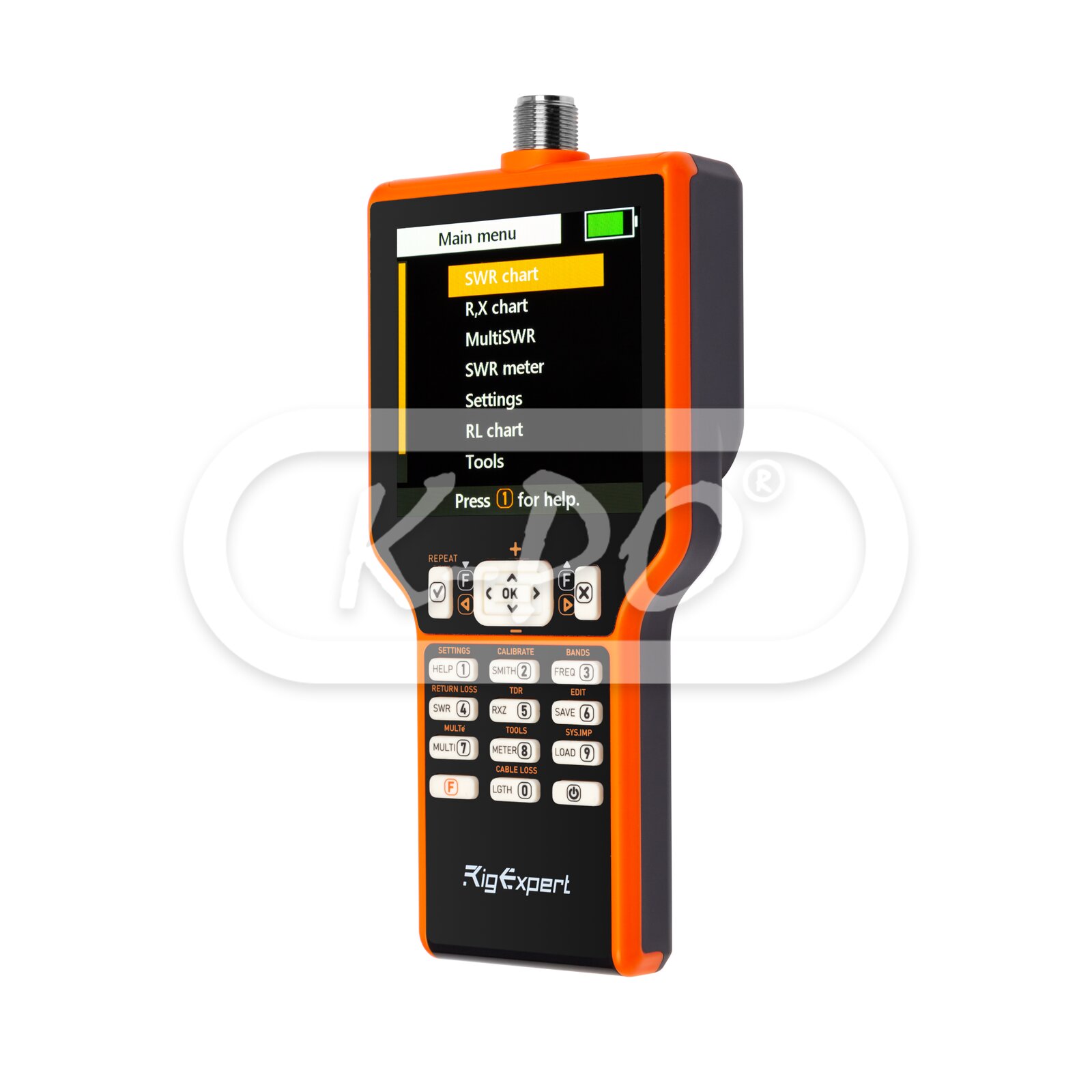

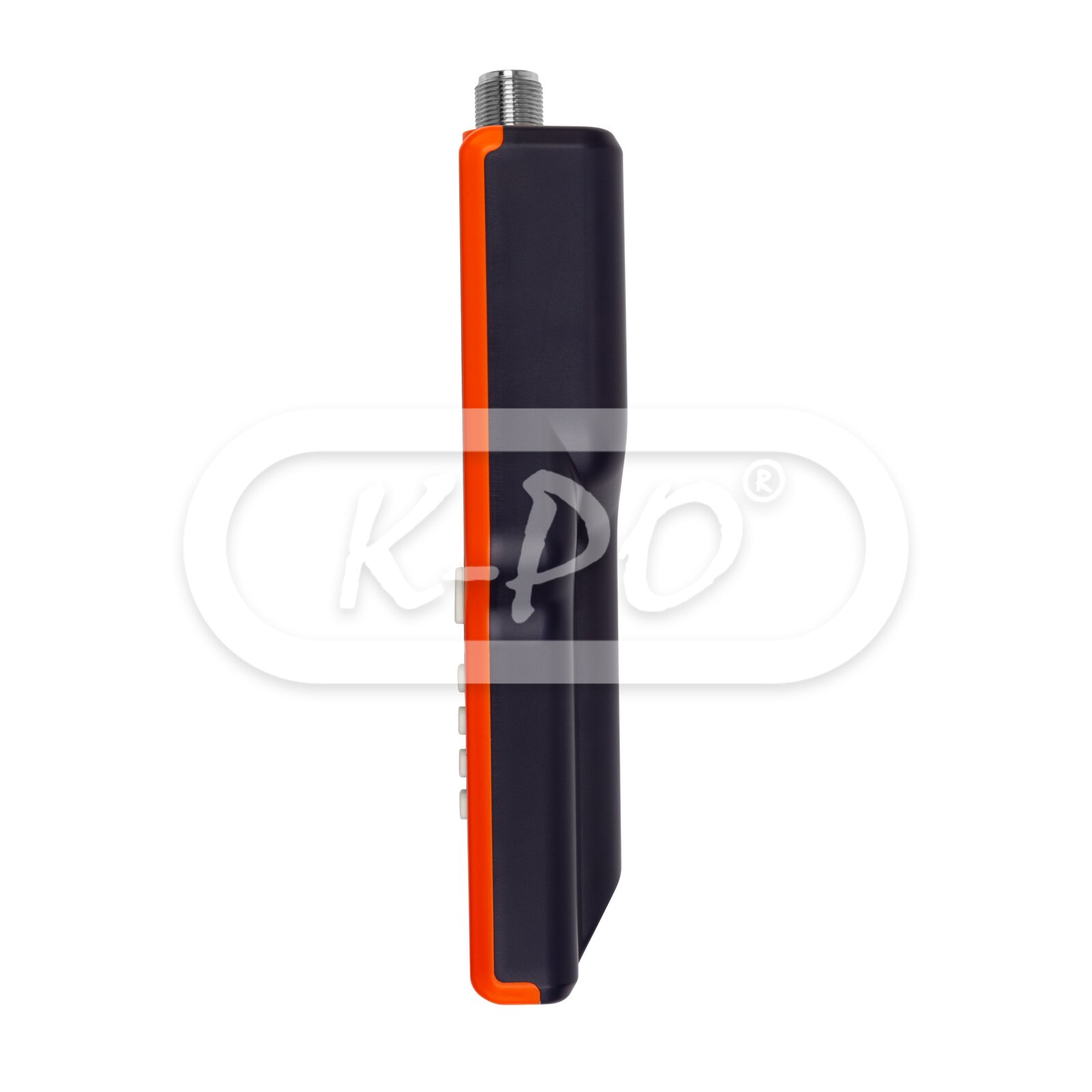

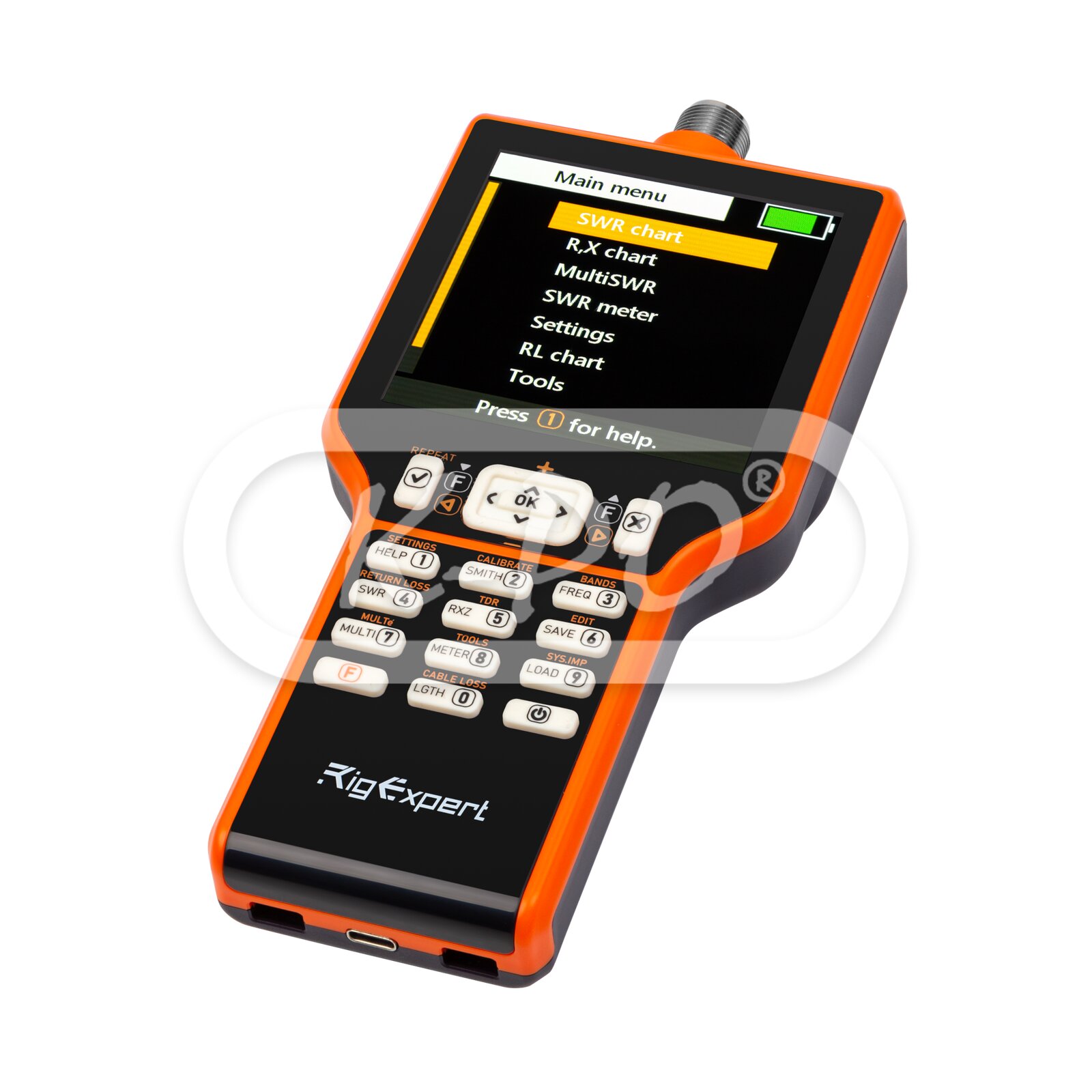

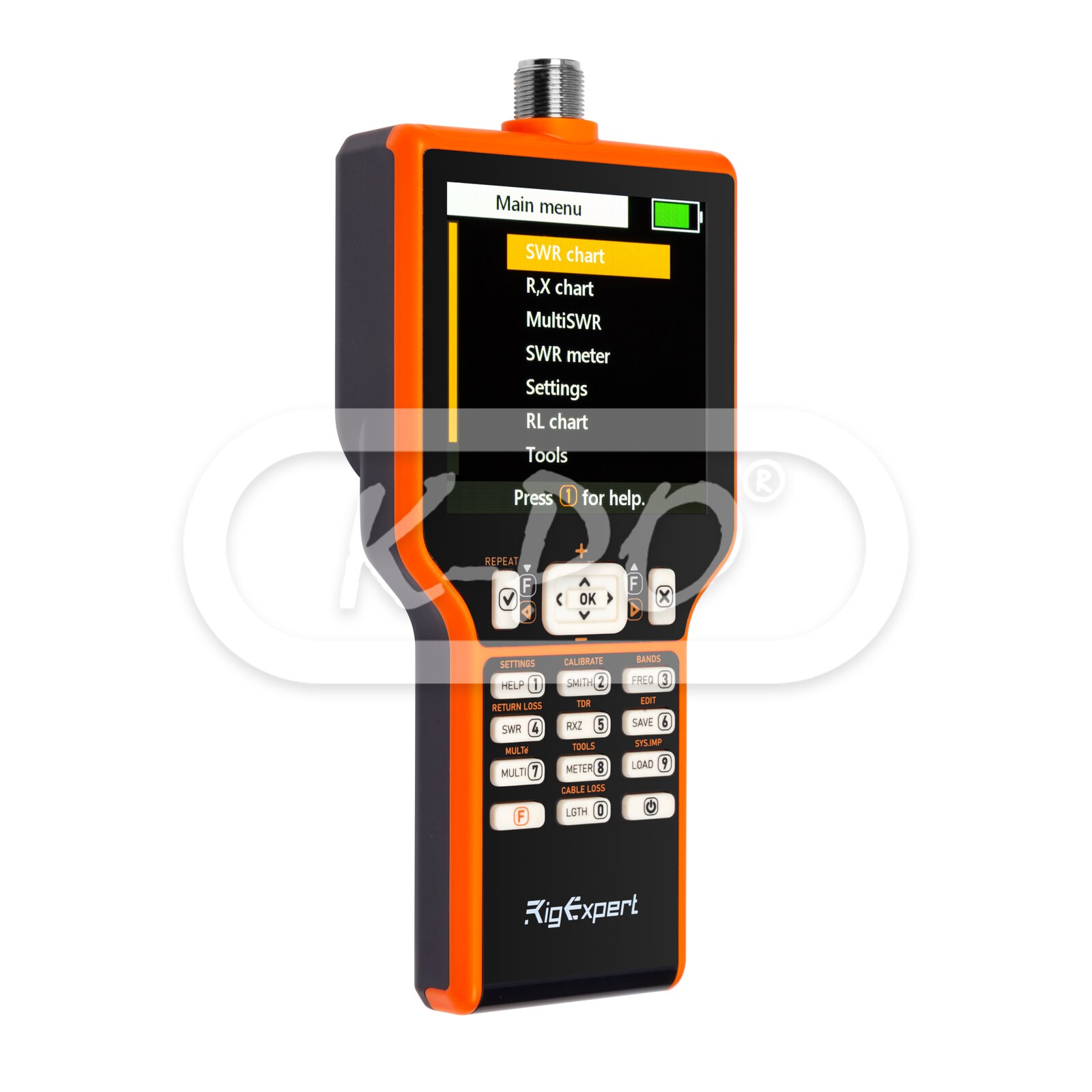

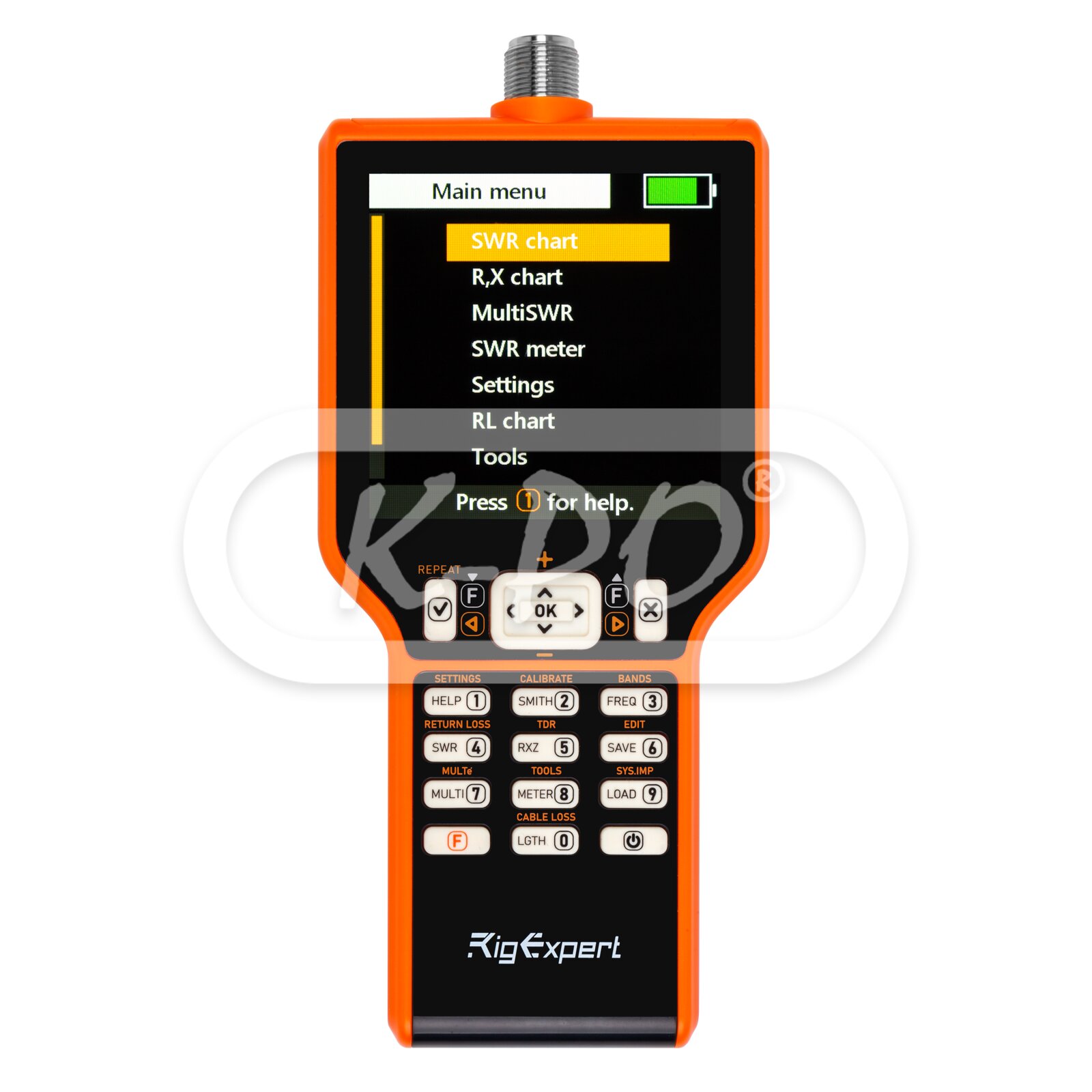

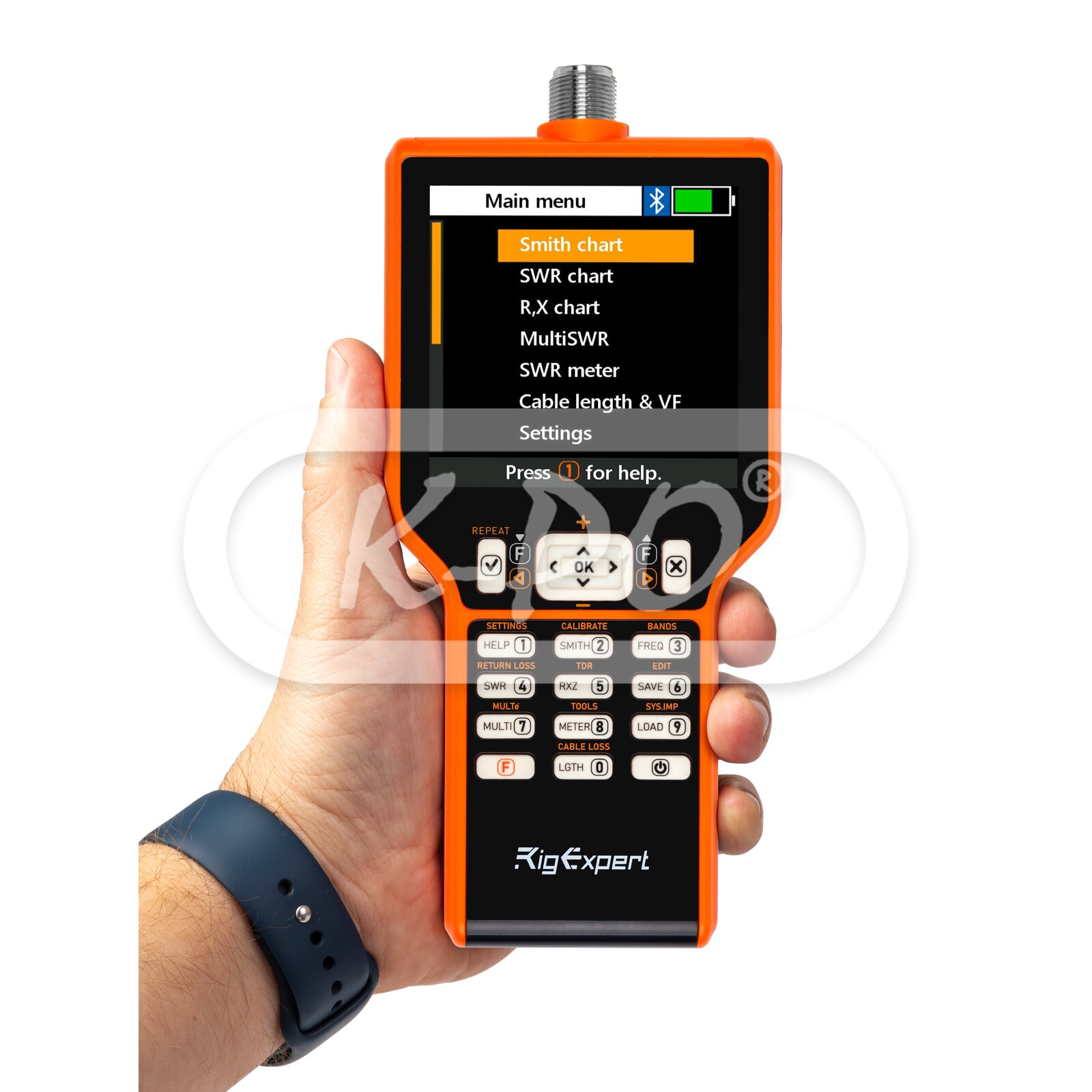

RigExpert - MATCH

Product code: 13014

The new, upgradeable Antenna and Cable Analyzer, MATCH, is set to revolutionize the field, featuring cutting-edge technology designed to grow with your needs.

Start with the powerful Base model, covering 0.1–70 MHz, and upgrade as your requirements expand with the ADVANCE or full RFE (Radio Field Engineer) license:

  • ADVANCE license: Extends coverage to 0.1–230 MHz and adds extra features (product code 34015).
  • RFE license: Extends coverage to 0.1–500 MHz, with additional advanced features. (product code 34016).

You can purchase the Base model and upgrade incrementally first to the ADVANCE license, and later to the RFE license. Alternatively, you can upgrade directly from the Base model to the full RFE license in a single step.

MATCH is the perfect tool for hobbyists and professionals alike to analyze and fine-tune antennas and cables with precision. User-friendly, versatile, and future-ready, MATCH empowers you to “Grow Your Game.”

Frequency range: 0.1 - 70 MHz (upgradeable till 500 MHz*)
Out of stock - Longer delivery time
Available from - 10-01-2025
€399.95 (330.54 excl. 21% VAT)

Features

  • Frequency range Base model: 0,1 to 70 MHz
  • Memory Slots for saving measurements: Yes
  • Jump to Extremum Value: Yes
  • Save Measurements: Yes
  • Load Measurements: Yes
  • Choosing GUI Language: Yes
  • Chosing GUI Palette: Yes
  • Choosing Battery Profile: Yes
  • Controlling Sound: Yes
  • Selecting System Impedance: Yes
  • Chosing Metric/Imperial Units: Yes
  • Choosing IARU Regions: Yes
  • Setting the Cable Velocity Factor: Yes
  • Setting Frequency Correction Factor: Yes
  • Factory Reset: Yes
  • Clearing Saved Charts: Yes
  • Table modes: R, X, Z, L, C, Loss, Phase Meter
  • Display modes: SWR Chart / RX Chart / Return Loss Chart
  • Languages: English / Ukrainian / Spanish / French / German / Portuguese / Italian
  • Tools:: Self test

Features

  • Frequency range (Advanced and (RFE license): 0,1 to 230 MHz
  • SWR2Air feature (Advanced and (RFE license): Yes
  • BLE Feature (Advanced and (RFE license): Yes
  • Chart modes (Advanced and (RFE license): Multé / MultiBand / Quick band
  • Tools (Advanced and (RFE license): Stub Tuner, / Length vs VF / Cable Loss / Cable Impedance / OSL Calibration

Features

  • Frequency range (RFE license only): 0,1 to 500 MHz
  • Chart modes (RFE license only): TDR Chart
  • Tools (RFE license only): User OSL / Calibration Profiles

Mechanical data

  • Output connector: N female connector
  • Length: 207 mm
  • Height: 37 mm
  • Width: 93 mm
  • Weight: 341 gram
  • Display: 480x480 color TFT 4.0” LCD display

Electrical data

  • Testing function: Yes Self-test
  • Output power: -10 dBm (at 50 Ohm load)
  • Operating temperature: -10…60 °C (14…140 °F)
  • Battery: Li-Ion battery ICR18650, 2600mAh
