RigExpert - Zero II

Product code: 13008
Barcode: 4820185420341

Spring Mega Sale in cooperation with RigExpert. Prices valid for our current stock only.

The RigExpert Zero II is a powerful 1 GHz VNA for embedded applications & perfect device for embedded installation. It used, for example, antenna tuners, transceivers, or power amplifiers as the core of the load-matching circuit.

ZERO II is also useful for:

  • Manufacturers of power equipment HAM radio direction.
  • Developers and manufacturers of devices requiring long-distance packet data transmission using different protocols.

It is capable on:

  • Measures up to 1GHz– Instantly returns R, X, SWR & Return Loss values.
  • Comes factory calibrated.
  • Use USB, UART, I2C, and SPI interfaces.

RigExpert Zero II is made in Ukraine.

Specifications are subject to change without notice.

Frequency range: 0.1 - 1000.00 MHz
Shipped today - Stock: 2
€79.99 (66.11 excl. 21% VAT) - €109.95

Features

  • Frequency range: 0.1 to 1000.00 MHz

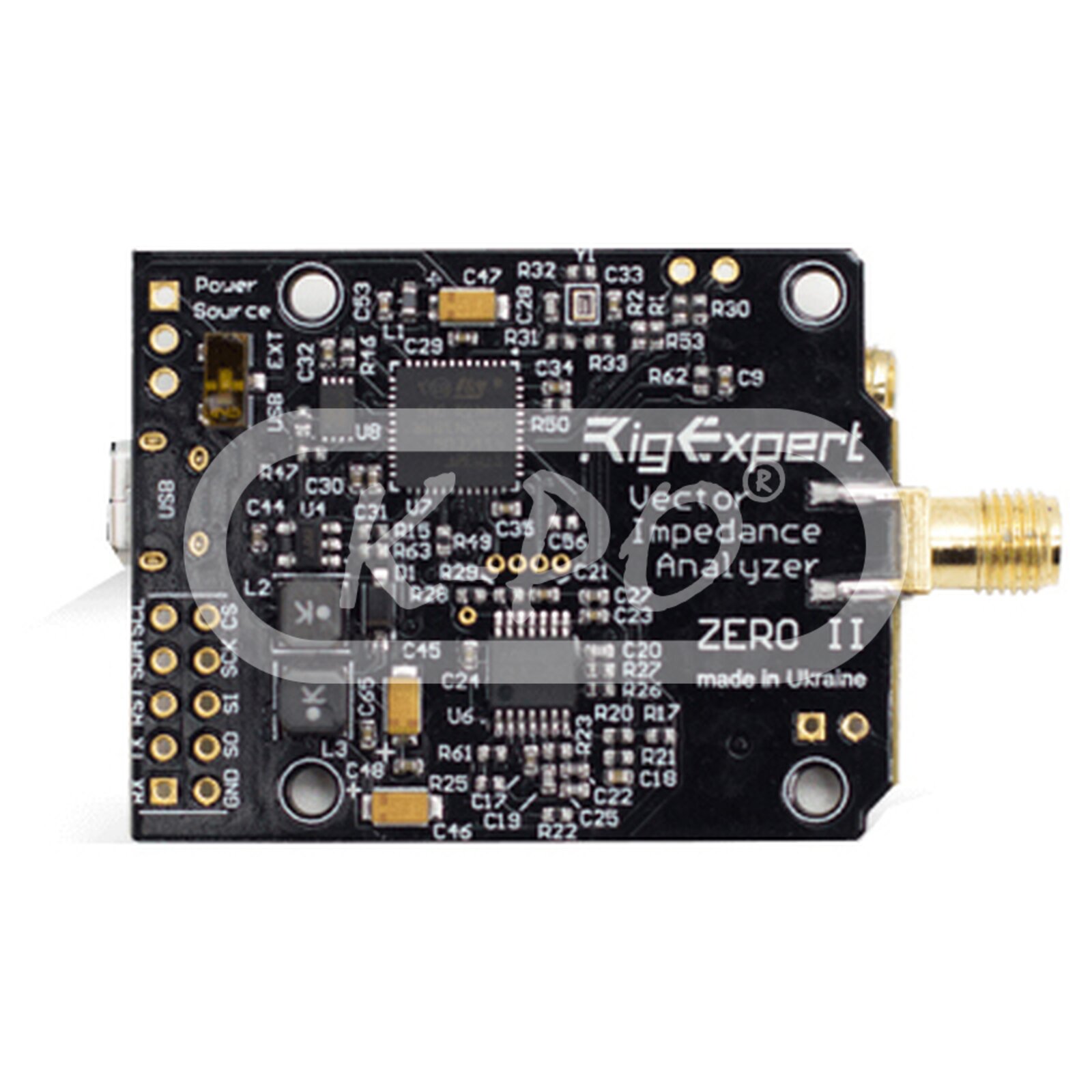

  • Housing: none, PCB only – available as a kit
  • Return values: Resistance / Reactance (signed) / SWR / Return Loss
  • Interface: USB / I2C / SPI / UART

RF output

  • Output signal shape: square, 0.1 to 1000.00 MHz
  • Output power: -10 dBm

Power

  • Power supply: USB or from 3V to 48V through power port

Mechanical data

  • Input connector: SMA female for 0.1 to 1000.00 MHz
  • Length: 30 mm
  • Height: 4 mm
  • Width: 40 mm
  • Weight: 30 gram

Inside the box

  • Analyzer: Yes
  • Installation manual: English
