RM - 35/600 low pass filter

Product code: 51535600

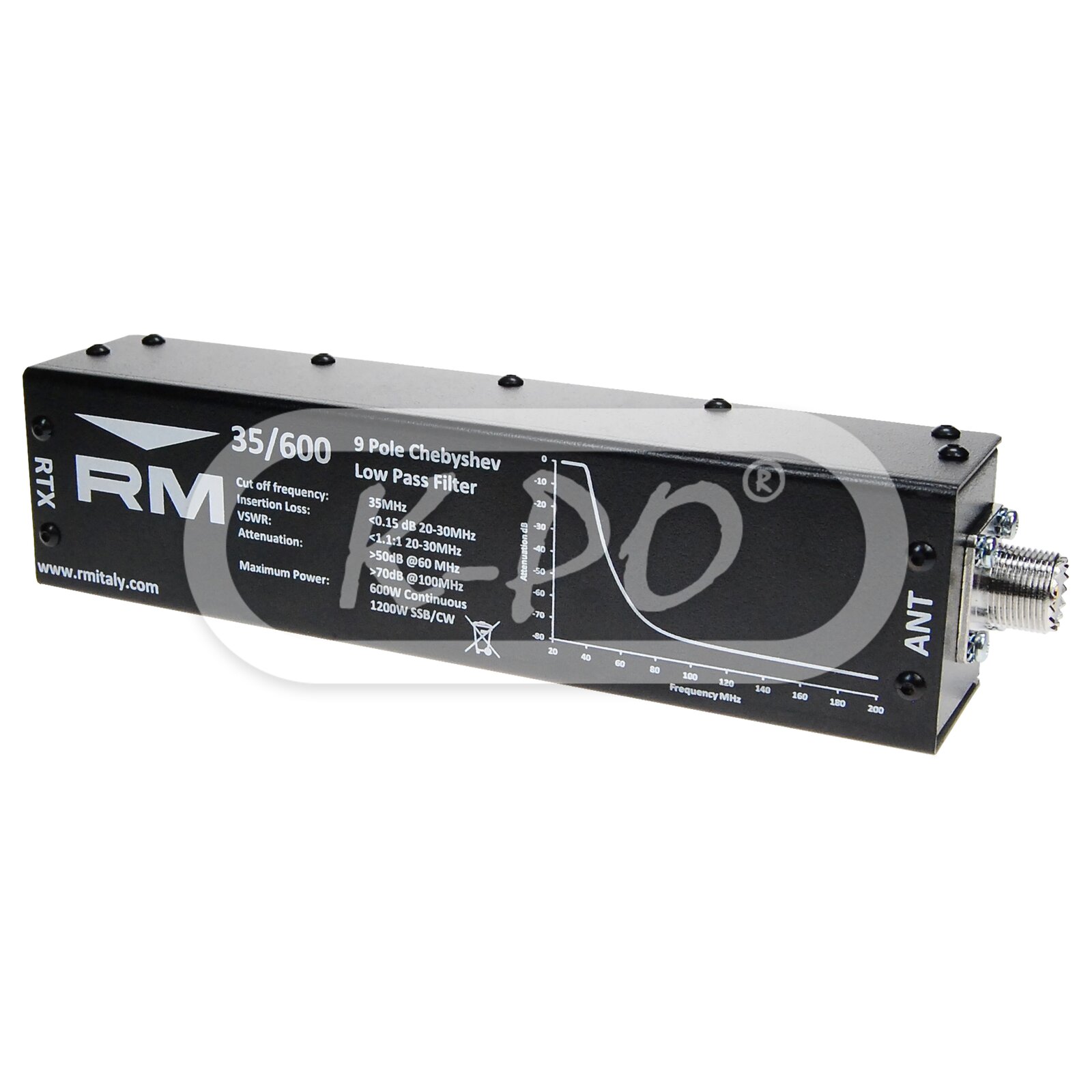

The RM 35/600 is a 9 pole Chebyshev Low Pass Filter that is designed to be used for effective harmonic attenuation when transmitting within the 24-30 MHz band. It features low insertion loss of less than 0.15 dB and a stopband attenuation of greater than 50 dB at 50 MHz. Installation is very simple, the filter should be inserted directly at the output of the radio/amplifier and its output connected to the antenna. In the case that an antenna matching network is required the AMU should be connected on the output side of the filter. The filter is labelled RTX for the input and ANT for the output., however it is actually a bidirectional network so can be used also in the opposite orientation without a problem.

Frequency range: 24-30 MHz
Out of stock - Longer delivery time
€105.95 (87.56 excl. 21% VAT)

Electrical data

  • Maximum continuous power: 600 Watts
  • Power peak: 1200 Watts
  • VSWR: <1.15:1 dB at 20-30 MHz
  • Impedance: 50 Ohm
  • Insertion loss: <0.15 dB at 20-30 MHz
  • Attenuation: >50 dB at 60 MHz / >70 dB at 100 MHz
  • Topology: 9 Pole Chebyshev Low Pass

Mechanical data

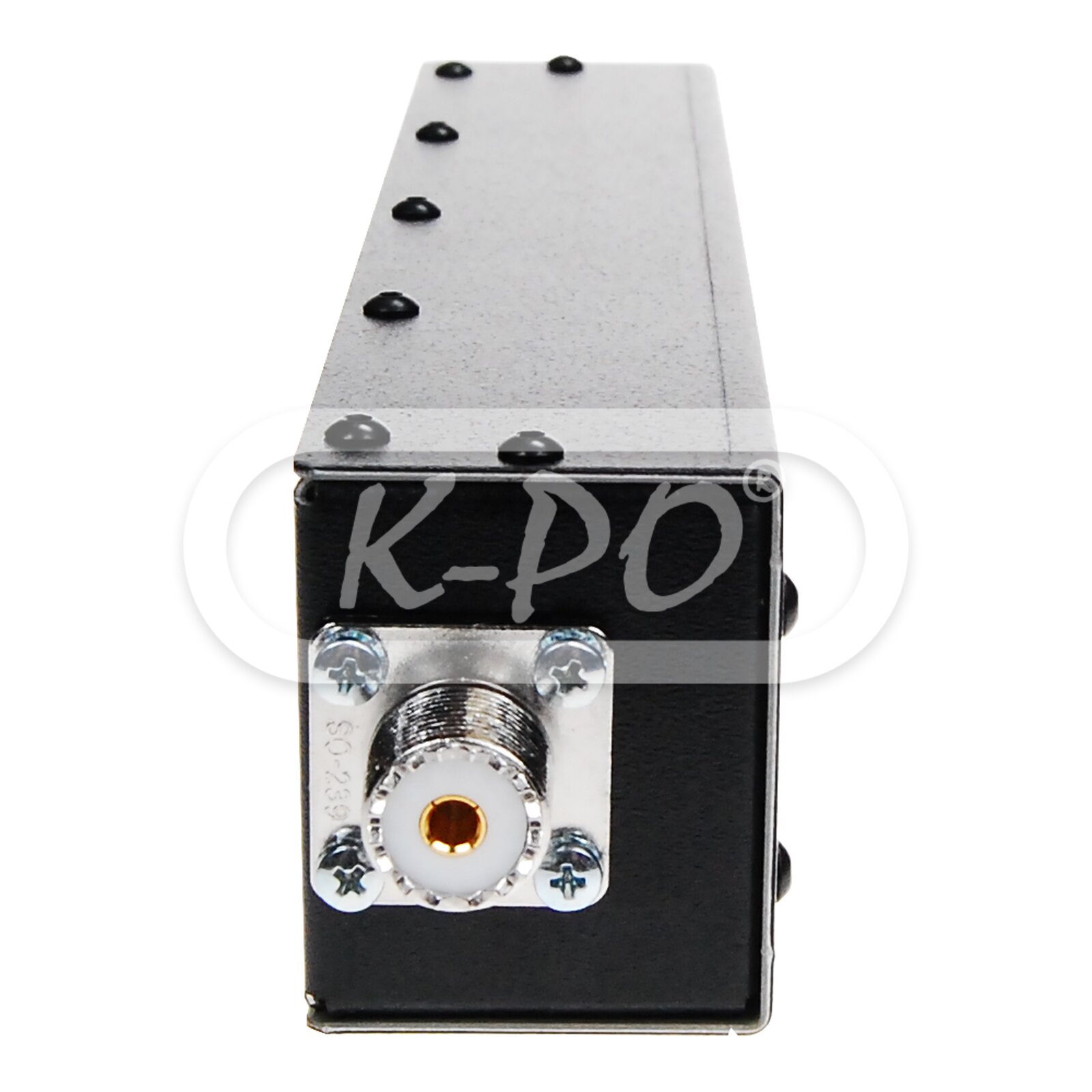

  • Connector(s) type in: UHF (PL) female

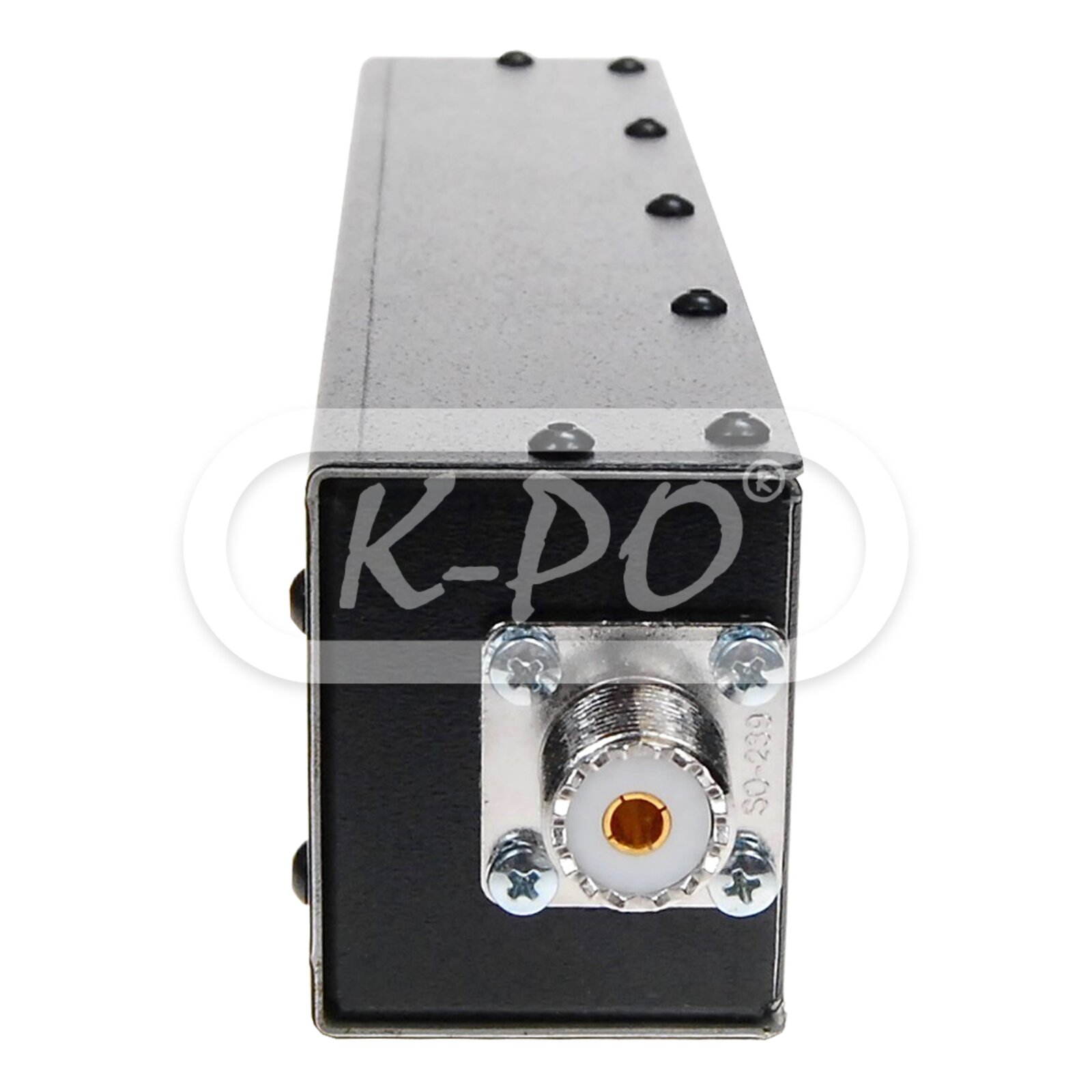

  • Connector(s) type out: UHF (PL) female
  • Length: 200 mm
  • Height: 40 mm
  • Width: 50 mm
  • Weight: 480 gram
