RM - DC power cable CAV10/3

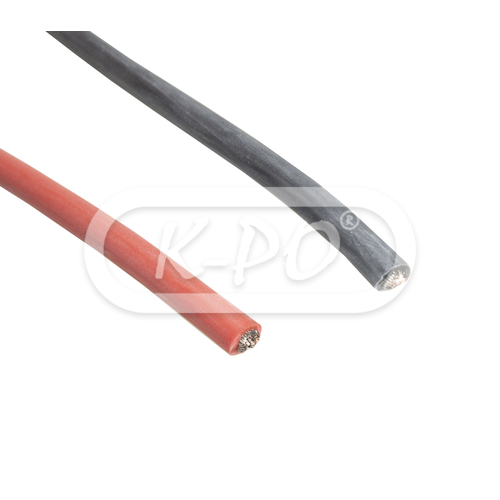

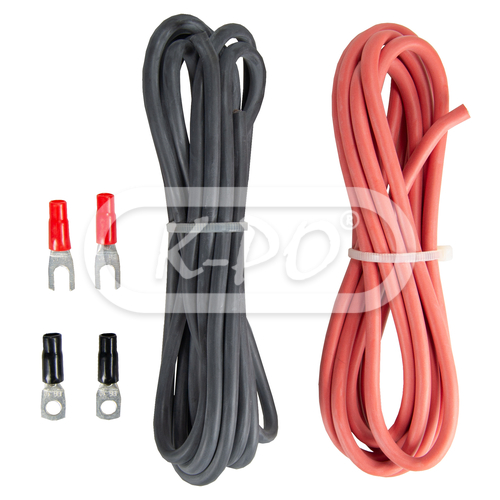

The RM DC power cable CAV10/3 kit contains a 3 meter of 10 mm² silicon
cable, eyelets and fork terminals to make a DC power cable. If the
wiring is going to be connected to a battery, we recommend using the
eyelet terminals, while on a power supply it might be more convenient to
use the fork terminals. At the ends of the cable, strip the insulation
5-7 mm and insert the stripped part side inside the terminal and crimp.
For the best connection, a suitable crimping tool should be used, insert
the terminal into the pliers utilising the correct former for the
terminal size.
For RM products the power connector
is included by the amplifier and does not require the terminal. The
cable can then be inserted into the appriopriate part of the RM
connector and blocked by tightening the screw.
