RM - KL703 RM - KL703 RM - KL703

RM - KL703

Product code: 1794
Factory code: 000000001816

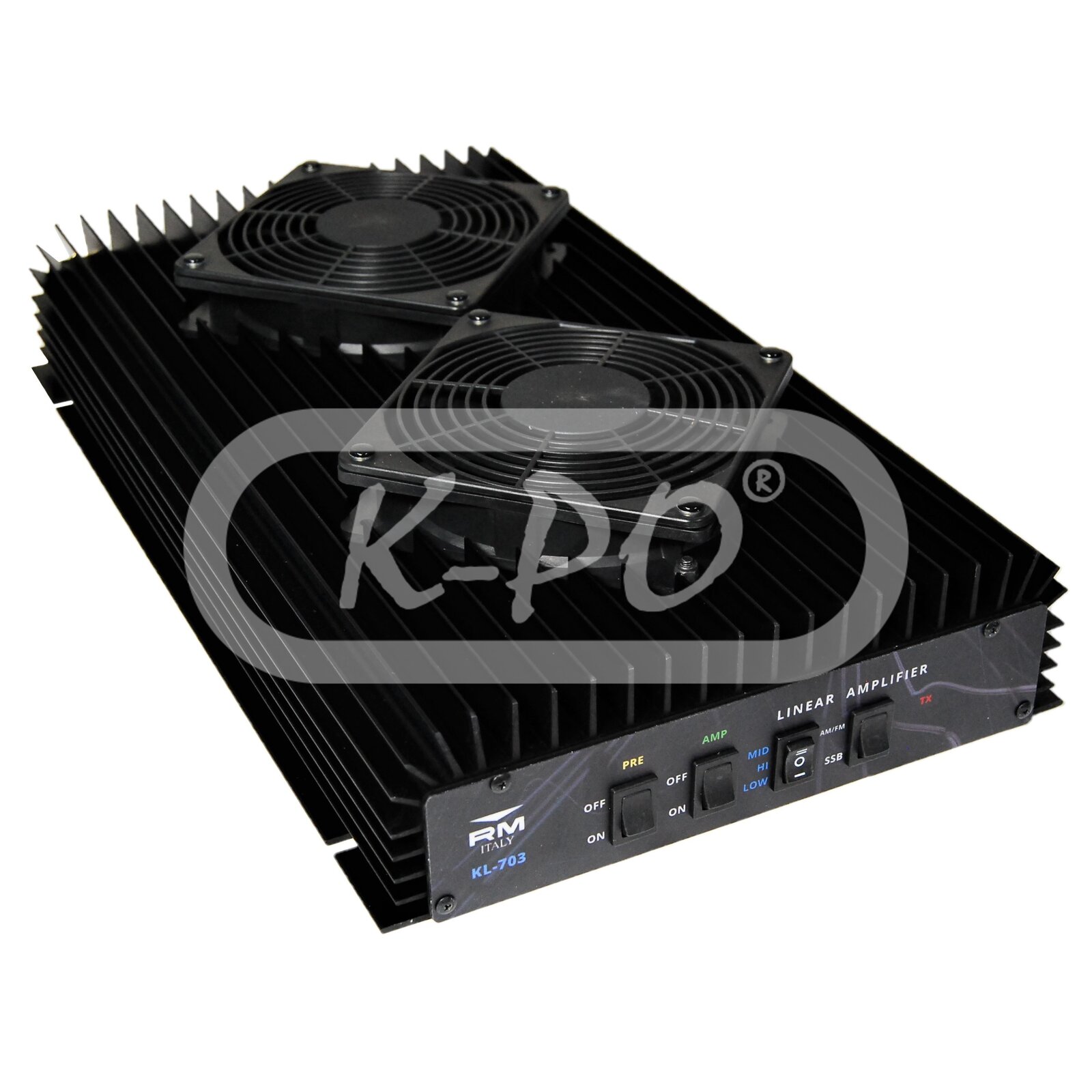

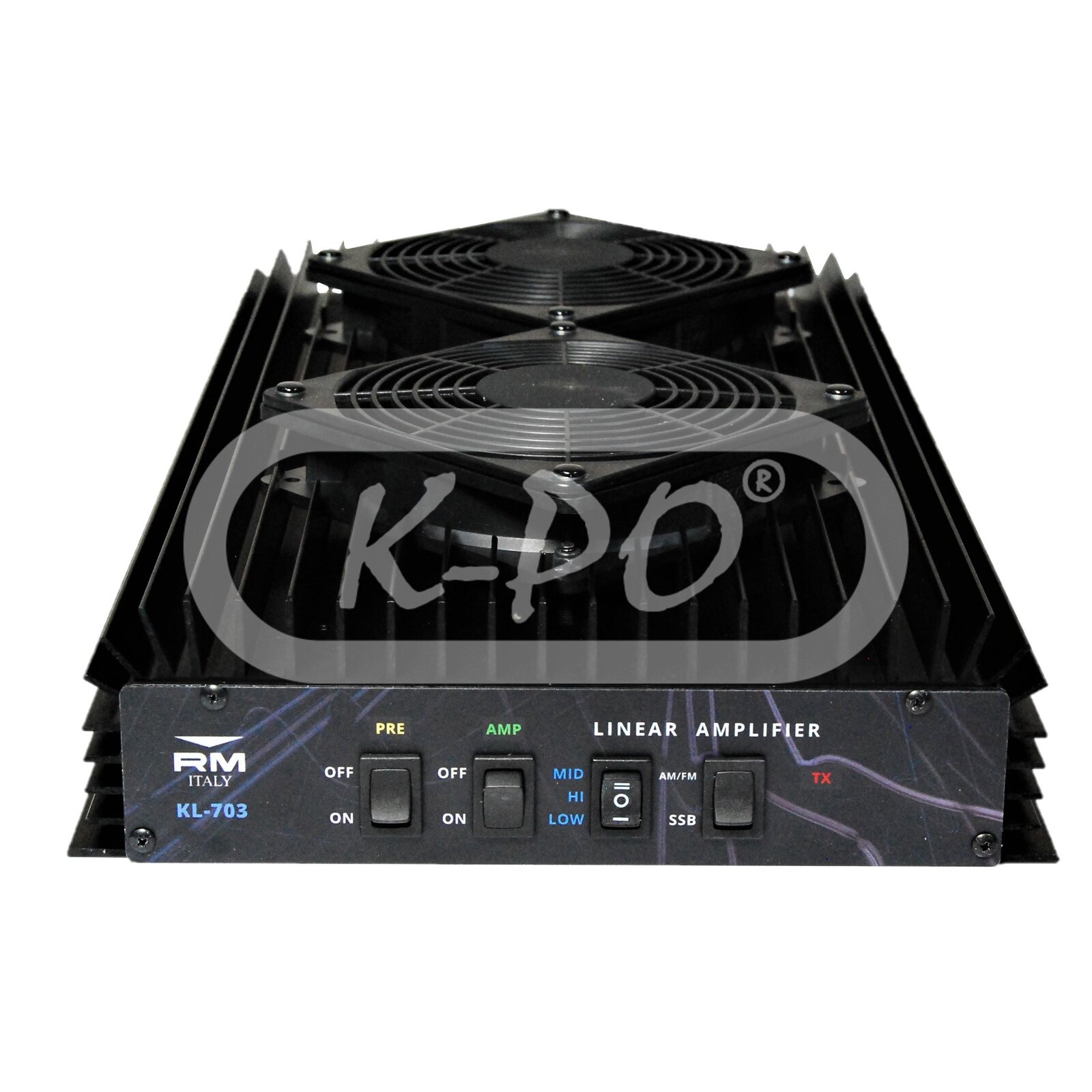

The RM KL703 'black line' is a linear amplifier with inversion polarity protection. The max. output power off the amplifier is 500 Watts AM-FM-SSB (max).

*Protection circuits are not 100% guaranteed. To prevent damage to your amplifier always check your VSWR after changing bands, no hot switching, no excessive input power etc.

Frequency range: 25-30 MHz
Out of stock - Longer delivery time
€661.95 (547.07 excl. 21% VAT)

Electrical data

  • Input power (Watts): 1-35 AM-FM-SSB-CW
  • Max output power (Watts): 500 AM-FM
  • Max output power SSB (Watts): 500 (PEP)
  • Impedance: 50 Ohm
  • Max input SWR: 1.1-1.5:1
  • Fuse: 4x 15 A (auto fuse)
  • Inversion polarity protection: Yes
  • Electronic switch: Yes
  • Pre-amplifier: Yes
  • Cooling fans: 2
  • Output power level: 3
  • Input energy/power: 50 A
  • Antenna pre-amplifier: 26 dB
  • Transistor: 16x RM3 Mosfet
  • Max output SWR: 2.5:1
  • Max bypass power (amplifier off): 50 Watts (max)

Mechanical data

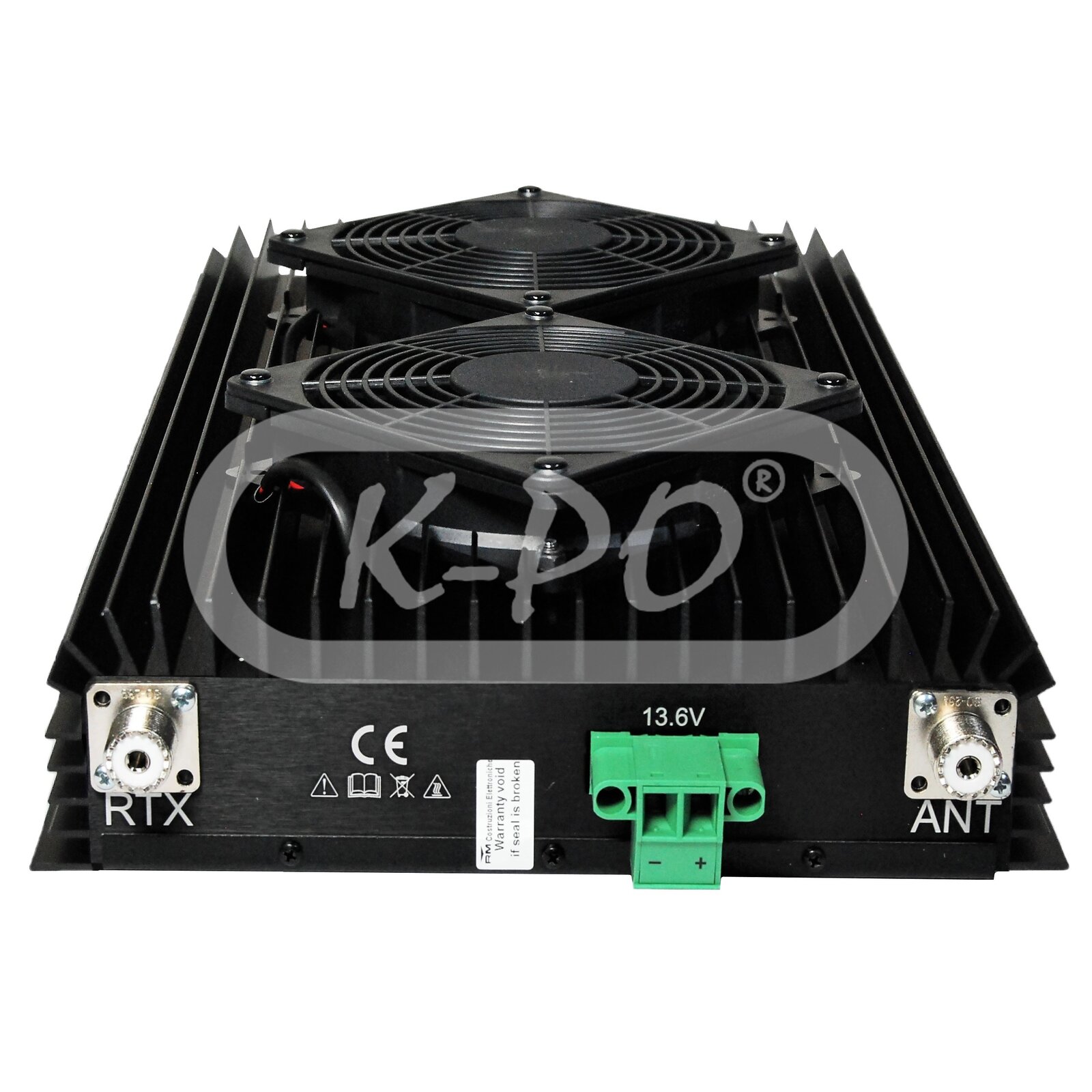

  • Input connector: UHF (PL) female
  • Output connector: UHF (PL) female
  • Length: 240 mm
  • Height: 85 mm
  • Width: 420 mm
  • Weight: 4200 gram
  • Color: Black

Inside the box

  • Amplifier: Yes
  • Installation manual: English
