Sirio - 2008

Product code: 2008

Factory code: 2100201.00

Barcode: 8056182112026

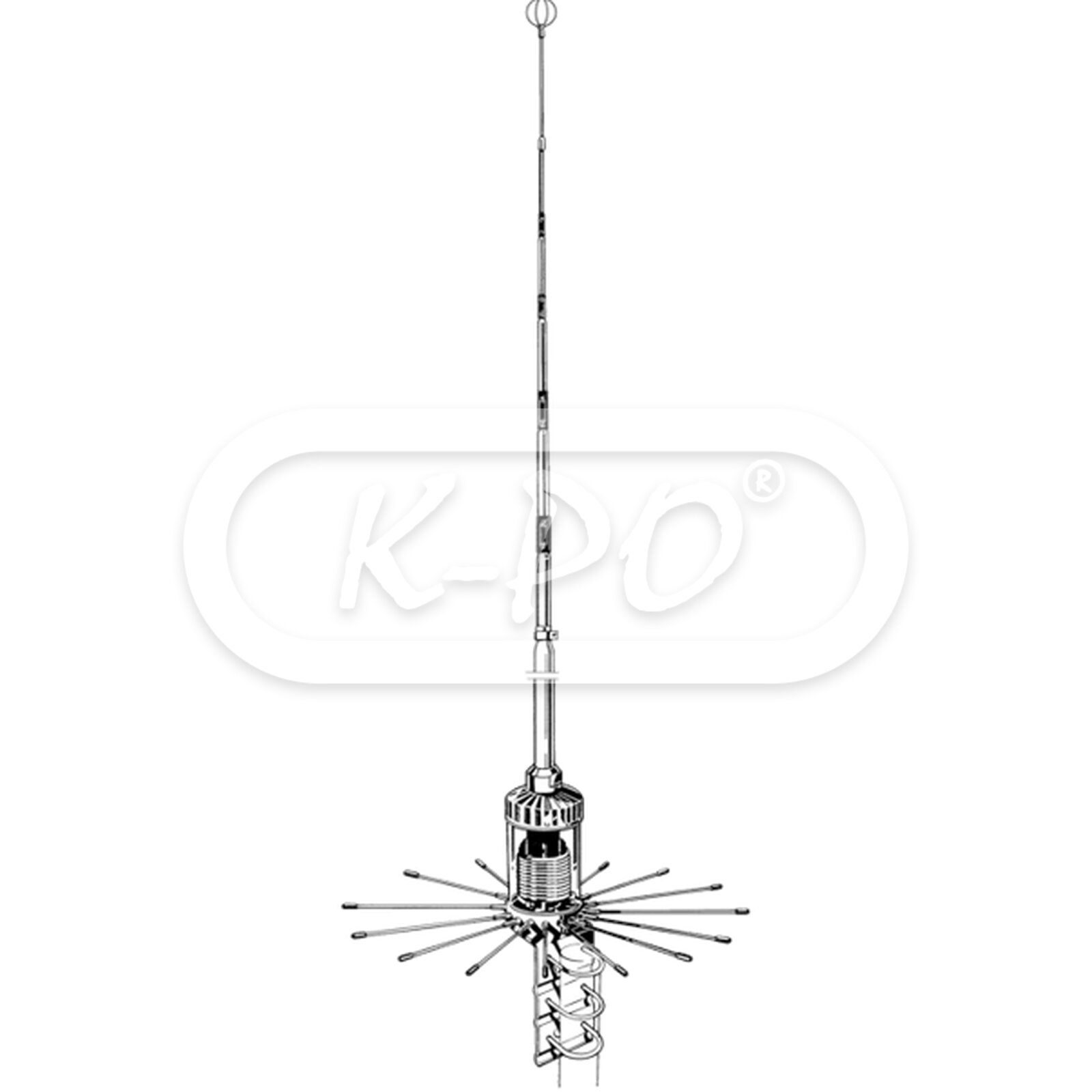

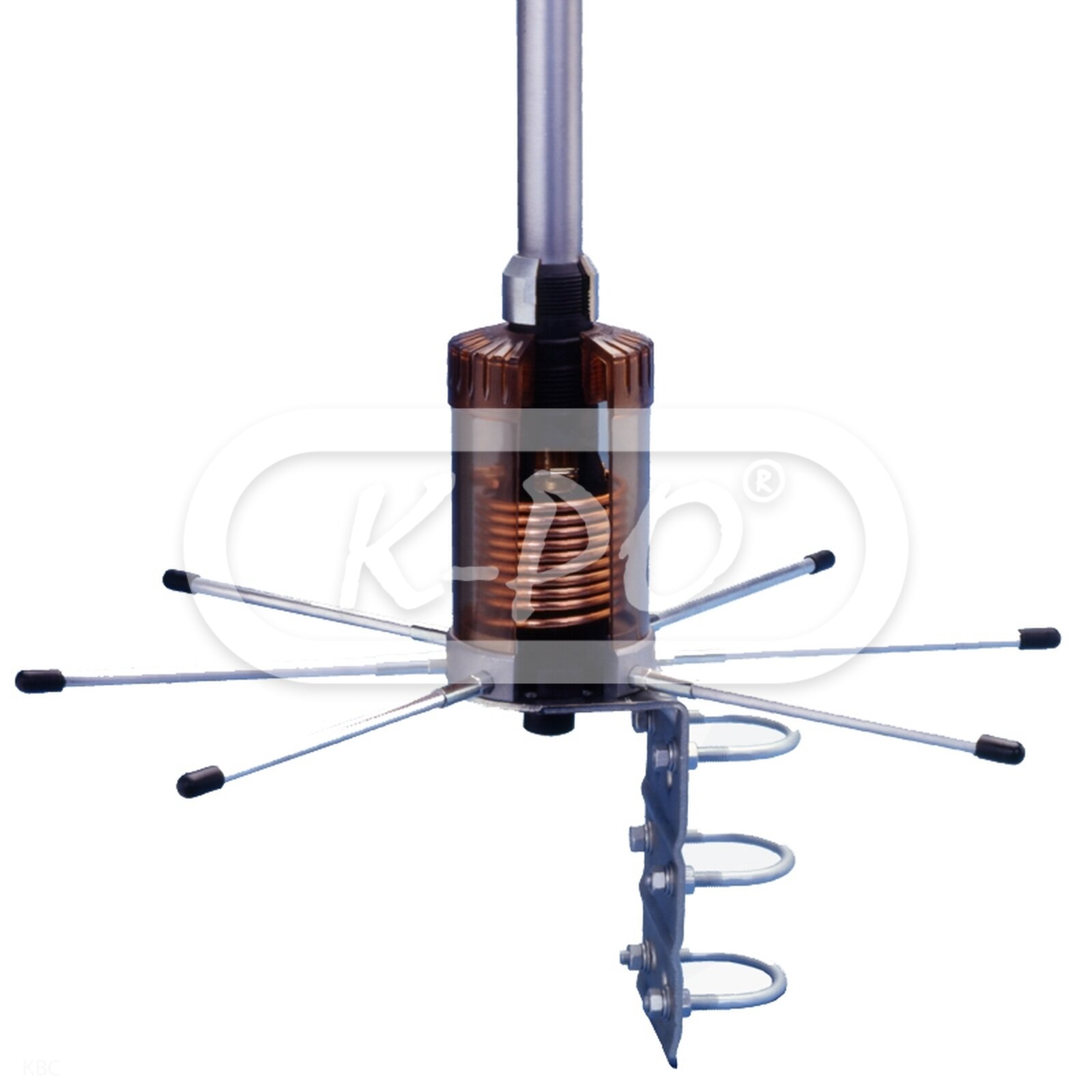

High power 5/8 CB base station antenna with transparant coil cover. Available in two versions: Sirio 2008 with 8 radials or Sirio 2016 with 16 radials.

Picture may differ from original product (number of radials).

Frequency range: 26.4 - 28.2 MHz tunable

Out of stock - Longer delivery time

€179.95 (148.72 excl. 21% VAT)

Electrical data

• Electrical type: 5/8 λ ground plane
• Gain: 1.3 dBd, 3.45 dBi
• VSWR: ≤ 1.1
• Bandwidth: 1750 kHz ≤ 2.0
• Maximum continuous power: 1000 Watts (CW)
• Power peak: 3000 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Feed system: Transformer DC-ground / base

Mechanical data

• Materials: Aluminium, copper, brass, galvanized steel, nylon
• Mast Ø: 40 - 50 mm
• Max wind resistance: 130 km/h
• Height: 6100 mm
• Weight: 5300 gram
• Mounting type: On mast
• Antenna connector: UHF-female
• Radial length: 1320 mm

Inside the box

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English, Italian

Downloads

• Datasheet: Id 042 10 09 2011 sirio 2000
