Sirio - AS 100 PL

Product code: 220900505

Factory code: 2209005.05

Barcode: 8056182112958

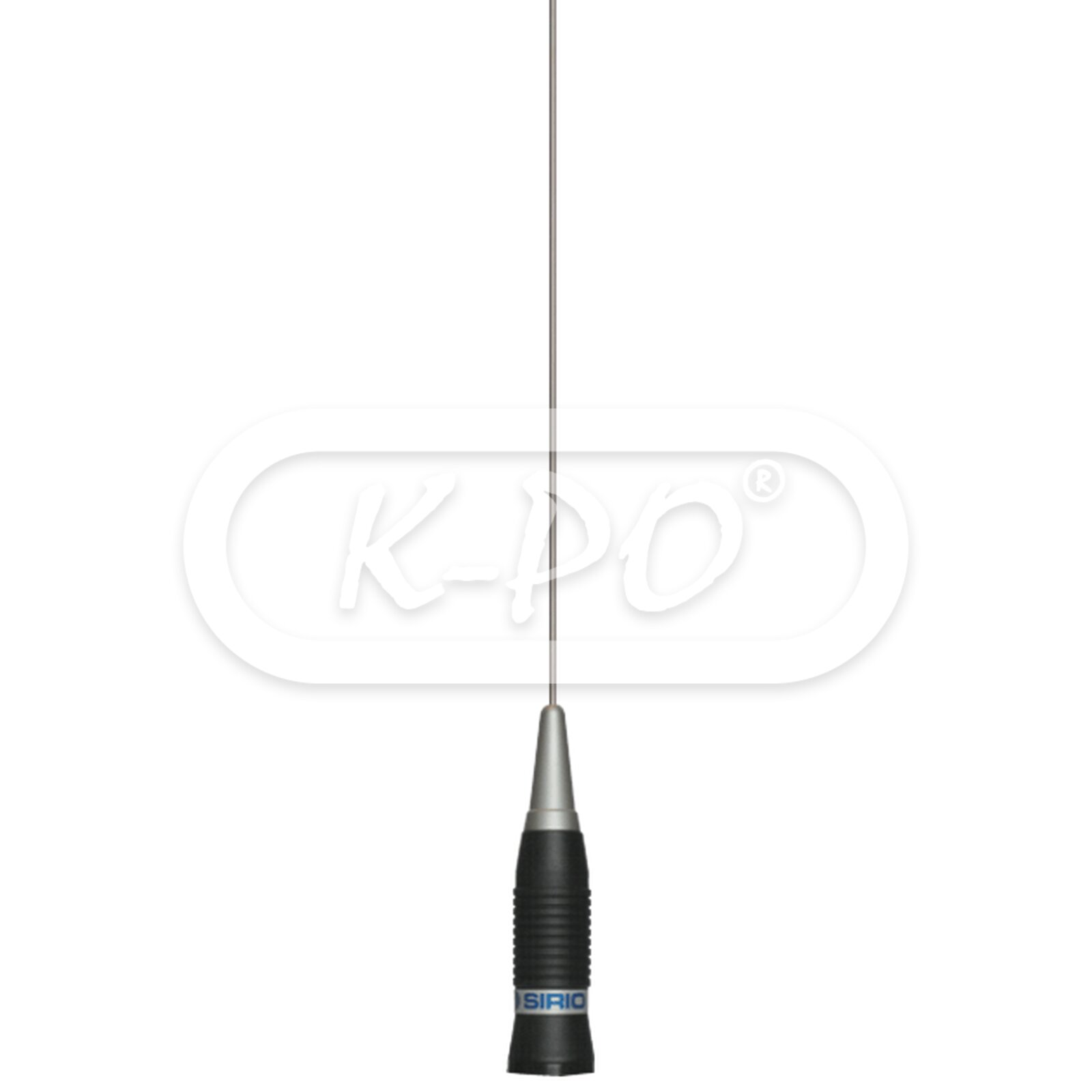

The AS 100 PL antenna is a mobile antenna with UHF (PL) connector.

Frequency range: 27 - 28.5 MHz

Out of stock - Longer delivery time

€25.95 (21.45 excl. 21% VAT)

Electrical data

• Electrical type: Base loaded
• VSWR: ≤ 1.2
• Bandwidth: 580 kHz (55 channels) ≤ 2.0
• Maximum continuous power: 100 Watts (CW)
• Power peak: 300 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Materials: Copper, brass, stainless steel 17/7 PH, nylon
• Height: 1020 mm
• Weight: 180 gram
• Mounting type: On UHF-female (PL) connector (not included)
• Antenna connector: UHF-male (PL)

Inside the box

• Antenna: Yes
• Installation manual: English, Italian

Downloads

• Datasheet: Id 008 05 06 2014 as series
