Certified European Distributor

Sirio - CX 425 N

Product code: 425
Factory code: 2102601.00
Barcode: 8056182113184

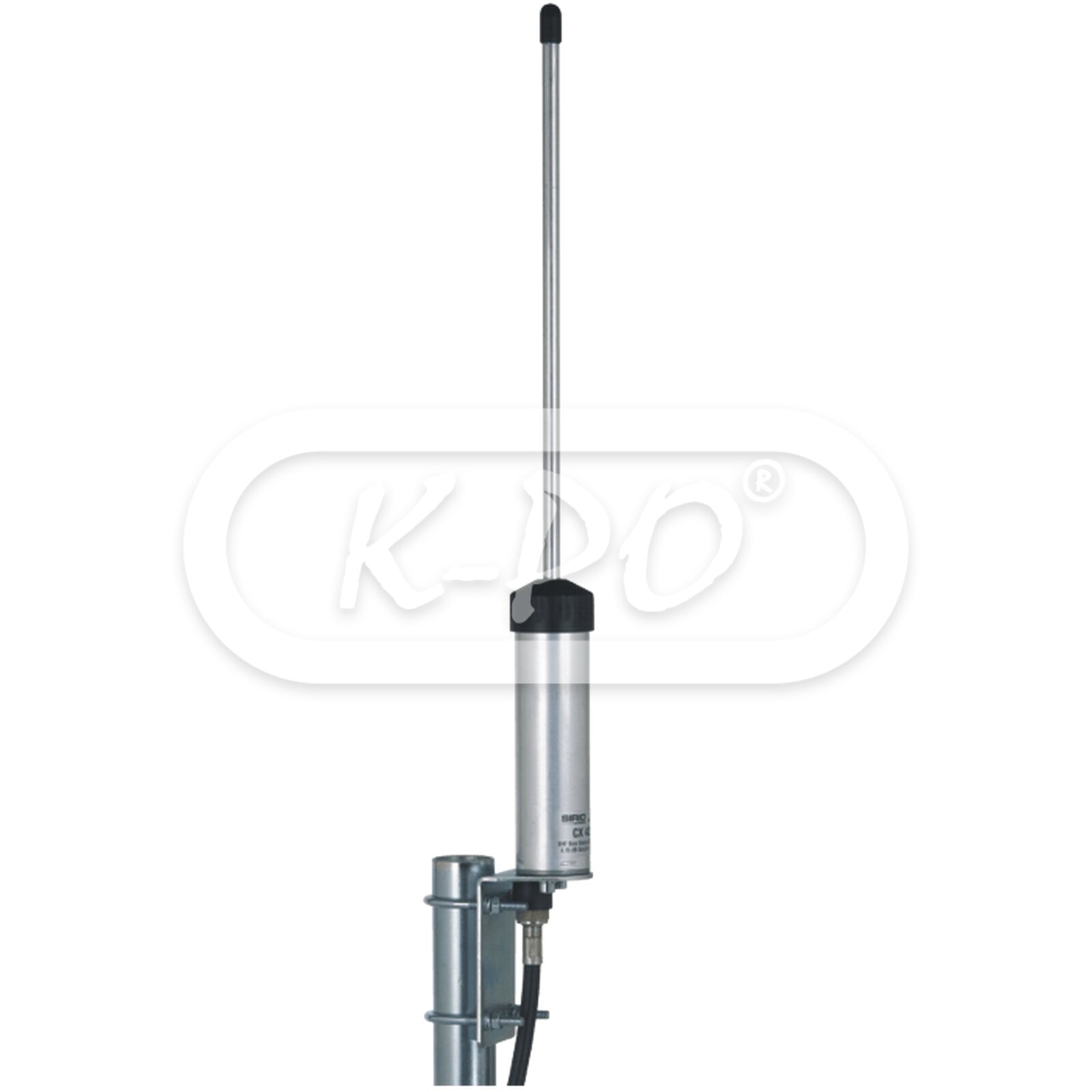

3/4 λ UHF antennas, 425 - 440 MHz, for base station service made of hi-quality materials to get the maximum efficiency and the best performance. It is completely manufactured with aluminium tubes and nylon for its great robustness and it is supplied with a solid steel bracket for an easy and safe installation everywhere. Its Gamma Match feed makes it earthed for a perfect protection against the discharges. In the mentioned range of frequencies, no adjustments are required. Simple and strong it is particularly recommended for a professional use.

Frequency range: 425 - 440 MHz
Out of stock - Longer delivery time
€43.95 (36.32 excl. 21% VAT)

Electrical data

  • Electrical type: 3/4 λ coaxial J-pole
  • Gain: 2 dBd, 4.15 dBi
  • VSWR: ≤ 1.2
  • Bandwidth: 30.7 MHz ≤ 2.0
  • Maximum continuous power: 200 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Mechanical data

  • Materials: Aluminium, brass, stainless steel, nylon
  • Mast Ø: 35 - 42 mm
  • Max wind resistance: 180 km/h
  • Height: 605 mm
  • Weight: 540 gram
  • Mounting type: On mast
  • Antenna connector: N-female

Inside the box

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: English

Downloads
