Sirio - GP 160 LB-U

Product code: 160
Factory code: 2102001.00
Barcode: 8056182113030

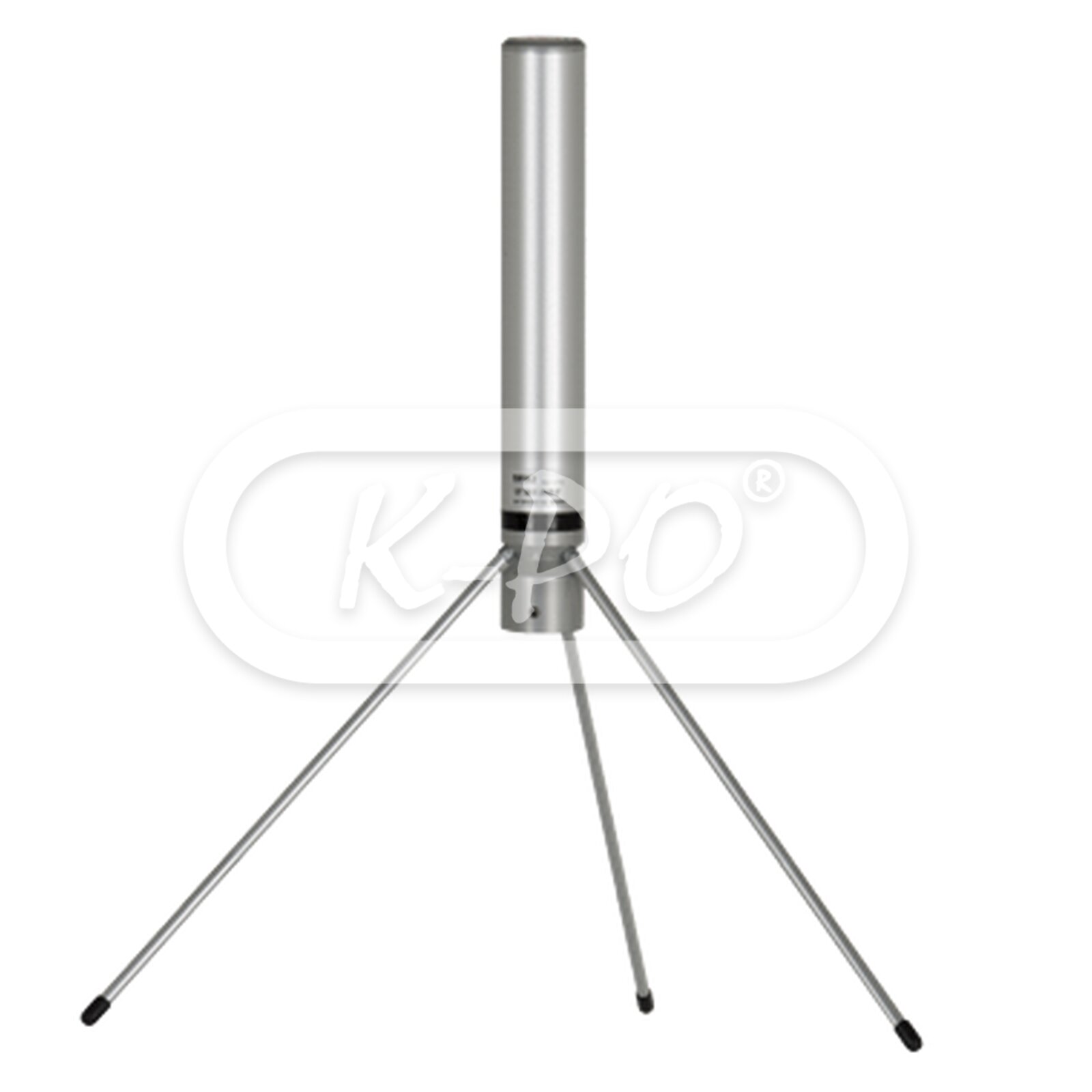

1/4 λ Ground Plane wide-band antenna, 145 - 175 MHz, for base station service. No tuning required. It is made of aluminium and high quality materials to get the best efficiency and robustness. Its radial whip is earthed to be protected against the static discharges. It's 30 MHz bandwidth makes it particularly recommended for relay station or two-party systems.

Frequency range: 145 - 175 MHz
Shipped today - Stock: 2
€94.95 (78.47 excl. 21% VAT)

Electrical data

  • Electrical type: 1/4 λ ground plane large band
  • Gain: 0 dBd, 2.15 dBi
  • VSWR: 145 - 175 MHz ≤ 2.0
  • Bandwidth: 30 MHz
  • Maximum continuous power: 1000 Watts
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Mechanical data

  • Materials: Anodized aluminium, stainless steel, nylon
  • Mast Ø: 36 - 40 mm
  • Max wind resistance: 160 km/h
  • Height: 700 mm
  • Weight: 1150 gram
  • Mounting type: On mast
  • Antenna connector: UHF-female

Inside the box

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: English
