Sirio - GP 87-108 LB-N

Product code: 210580100

Factory code: 2105801.00/N

Barcode: 8056182113436

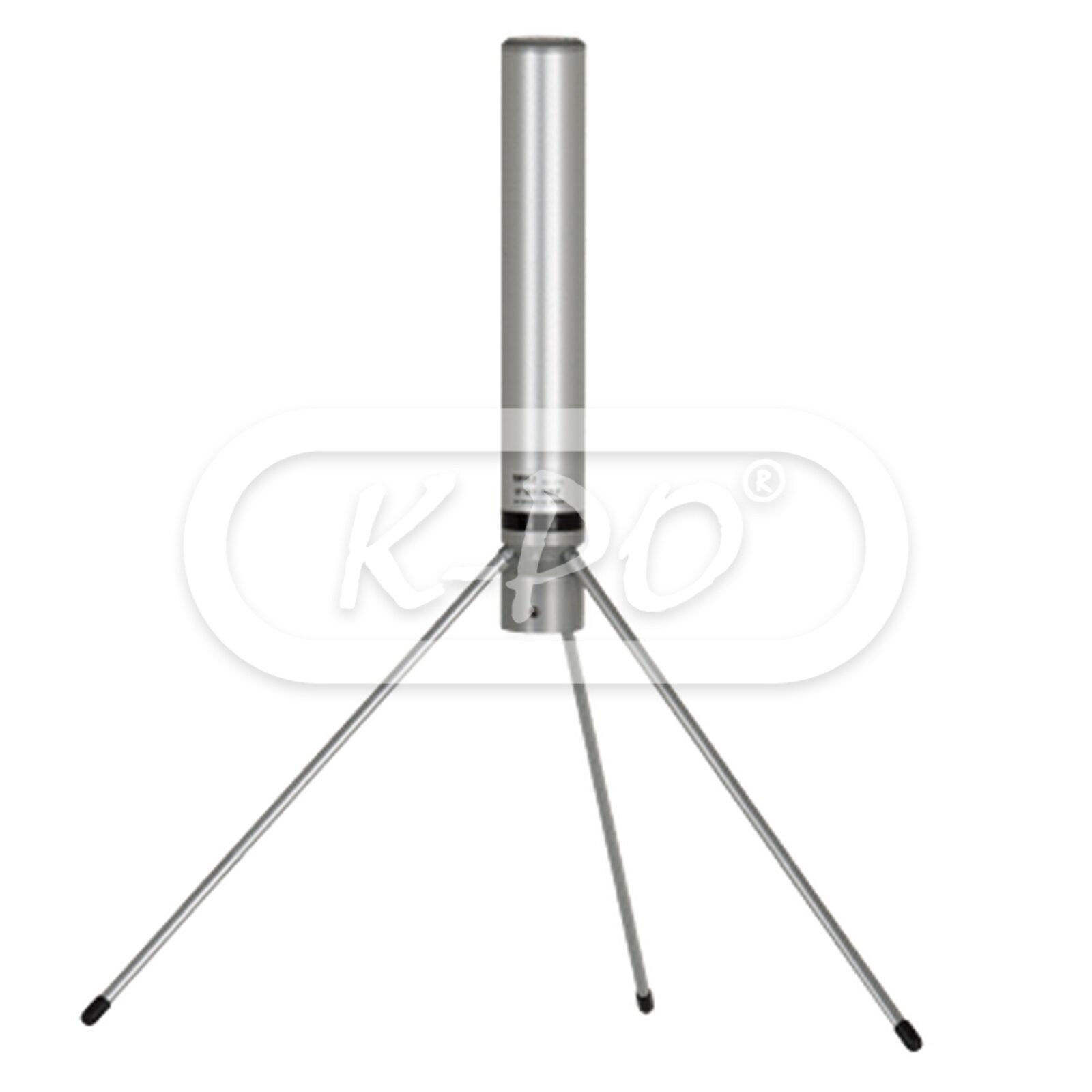

1/4 λ Ground Plane wide-band antenna, 87 - 108 MHz, for base station service. It is made of aluminium and hiqh quality materials to get the best efficiency and robustness. Its radial whip is earthed to be protected against the static discharges. GP 87-108 LB is developed for FM radio, 3 meter band.

Frequency range: 87 - 108 MHz

Out of stock - Longer delivery time

€109.95 (90.87 excl. 21% VAT)

Electrical data

• Electrical type: 1/4 λ folded ground plane
• Gain: 0 dBd, 2.15 dBi
• VSWR: See the user manual under product downloads
• Bandwidth: See the user manual under product downloads
• Maximum continuous power: 1000 Watts
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Materials: Anodized aluminium, stainless steel, nylon
• Mast Ø: 36 - 40 mm
• Max wind resistance: 160 km/h
• Height: 1190 mm
• Weight: 1500 gram
• Mounting type: On mast
• Antenna connector: N-female

Inside the box

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English

Downloads

• Datasheet: Id 124 064
