Sirio - GPA 27-45

Product code: 21008010
Factory code: 2100801.00
Barcode: 8056182113078

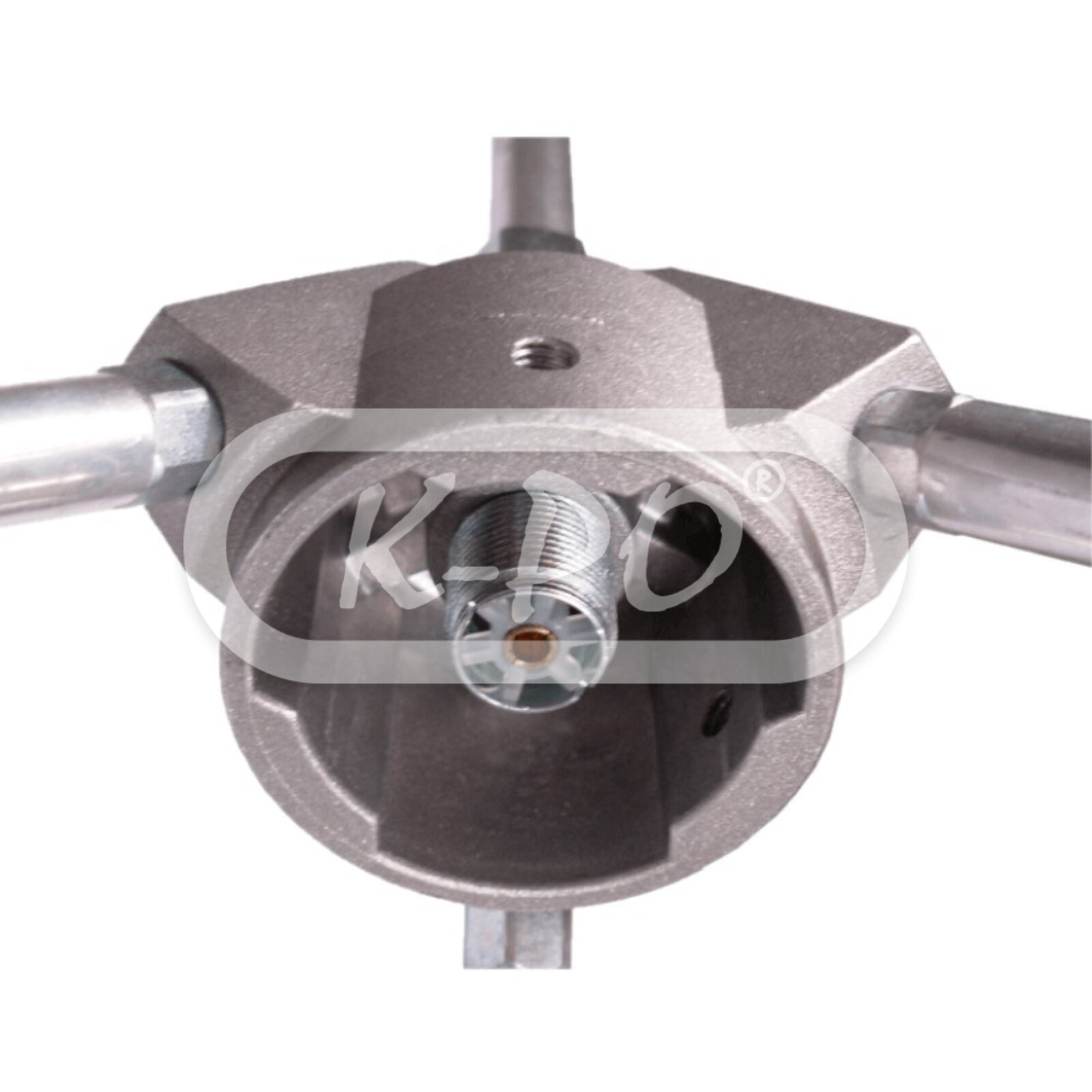

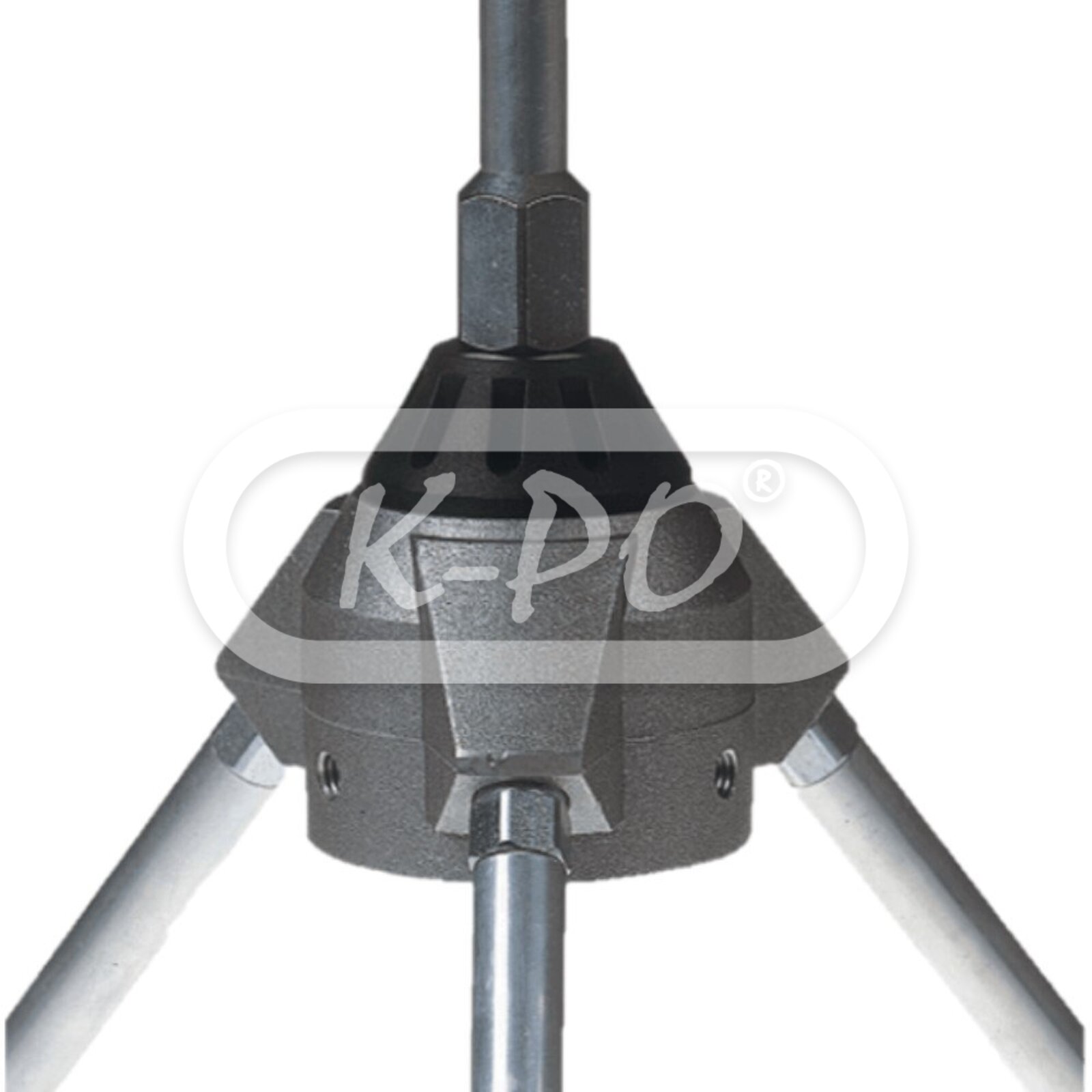

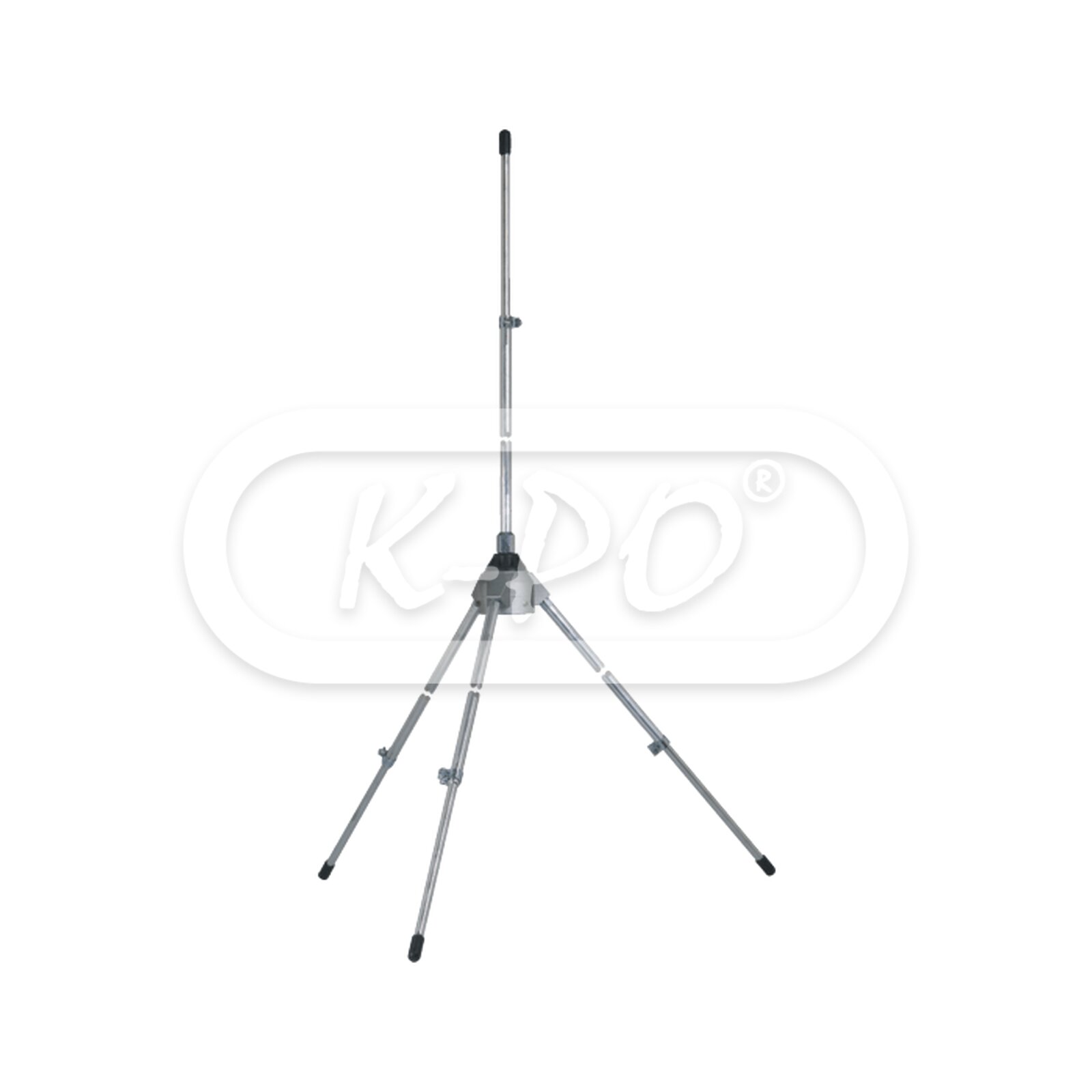

1/4 λ ground plane antenna for base station service working on 27-45 MHz by means of the tuning diagram enclosed. It is entirely made of non-corrosive aluminium and assembled on a strong die-cast base which allows an easy and safe installation assuring very good performances.

Frequency range: 27 - 45 MHz tunable
Out of stock - Longer delivery time
€53.95 (44.59 excl. 21% VAT)

Electrical data

  • Electrical type: 1/4 λ ground plane
  • Gain: 0 dBd – 2.15 dBi
  • VSWR: ≤ 1.2
  • Bandwidth: 2.5 MHz ≤ 2.0
  • Power peak: 1000 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Mechanical data

  • Materials: Aluminium, chromed brass, nylon, stainless steel
  • Mast Ø: 35 - 40 mm
  • Max wind resistance: 130 km/h
  • Height: 4730 mm
  • Weight: 1250 gram
  • Mounting type: On mast
  • Antenna connector: UHF-female
  • Radial length: 2680 mm

Inside the box

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: English, Italian
