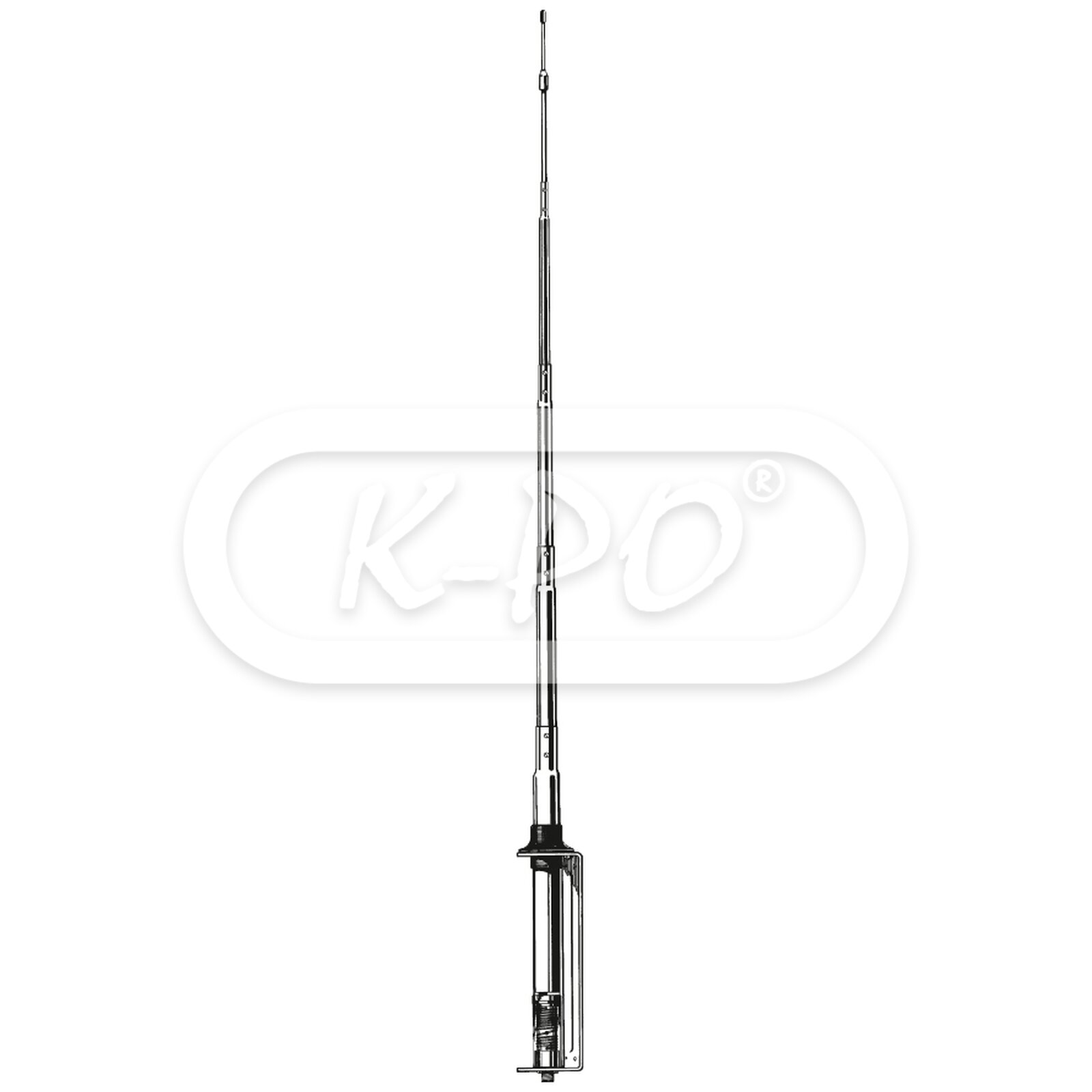

Sirio - GPV 1/2 (GPS 1/2 ECO)

Product code: 2055

Factory code: 2100401.00/ECO

Barcode: 8056182115799

Economic version of the Sirio GPS 1/2. Same performances but without the anti-static top and without the plastic sleeves. Comes in a PE poly-bag packaging instead of a carton box.

Frequency range: 26.4 - 29.0 MHz tunable

Out of stock - Longer delivery time

€69.95 (57.81 excl. 21% VAT)

Electrical data

• Electrical type: 1/2 λ end feed dipole
• Gain: 0 dBd, 2.15 dBi
• VSWR: ≤ 1.3
• Bandwidth: 1600 kHz ≤ 2.0
• Maximum continuous power: 250 Watts (CW)
• Power peak: 750 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical

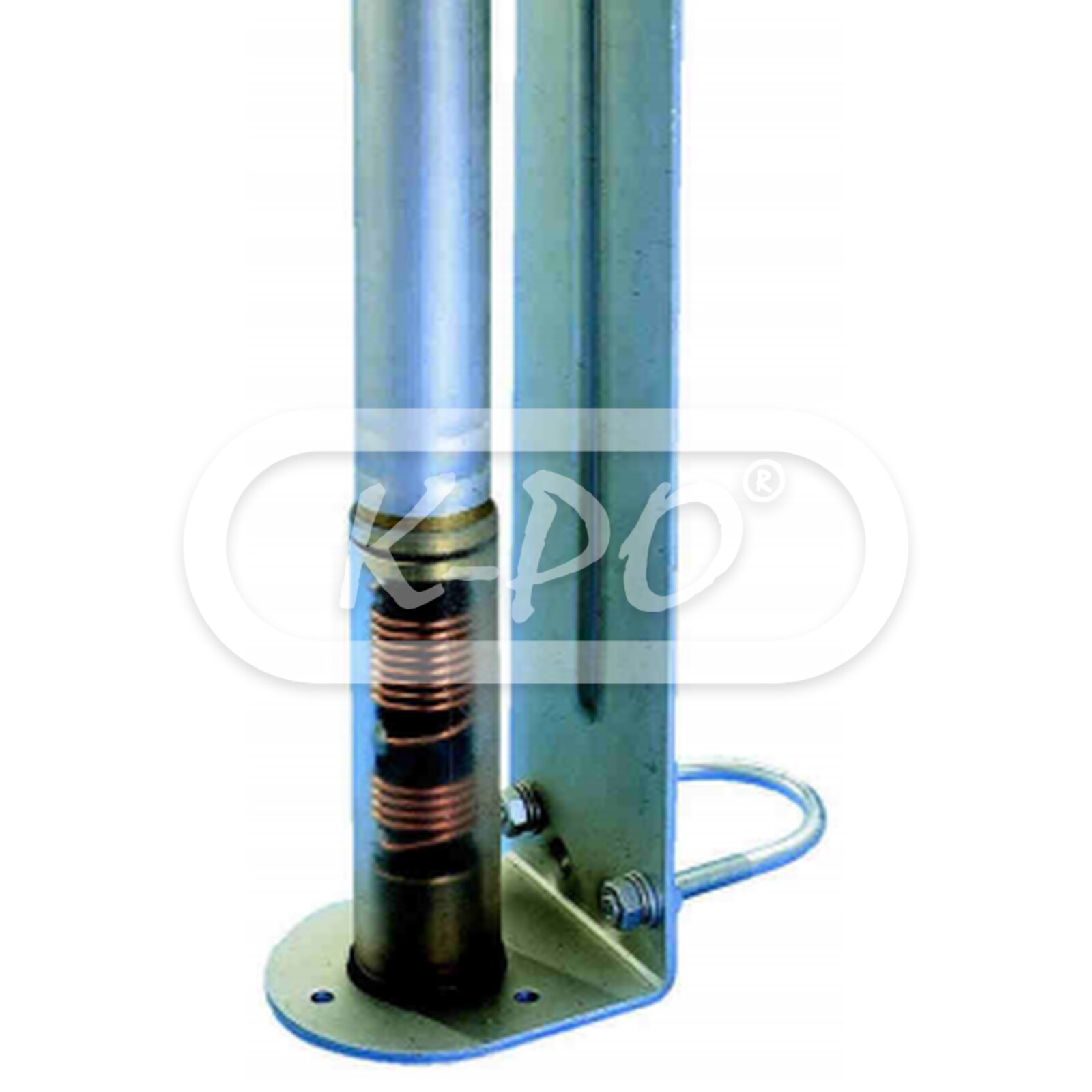

• Feed system: Transformer DC-ground / base

Mechanical data

• Materials: Aluminium, copper, galvanized steel, nylon
• Mast Ø: 35 - 42 mm
• Max wind resistance: 130 km/h
• Height: 5950 mm
• Weight: 2100 gram
• Mounting type: On mast
• Antenna connector: UHF-female

Inside the box

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English, Italian
