Sirio - Hi-Power 4000 PL

Product code: 204000

Factory code: 2202505.05

Barcode: 8056182114051

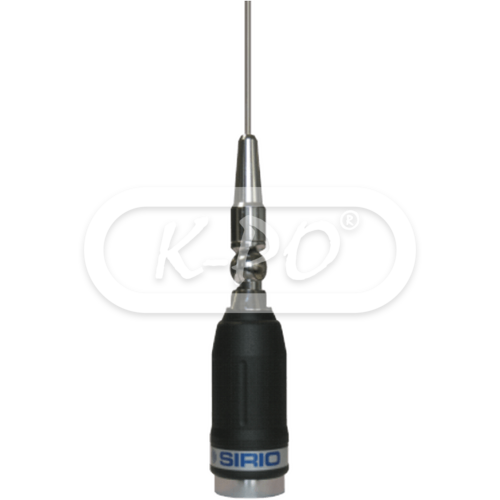

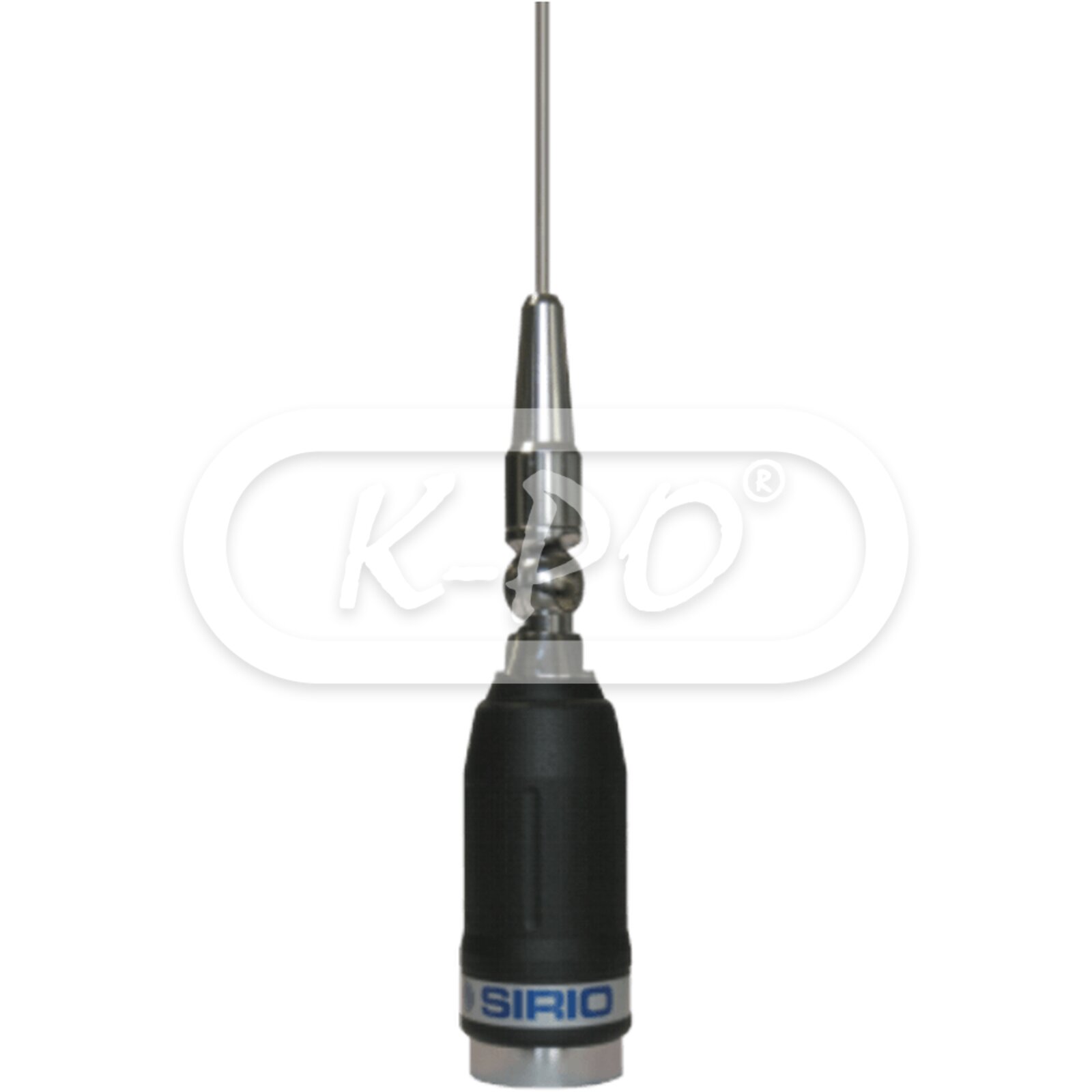

The Sirio Hi-Power series are one of the most popular high power antennas. Easy installation and with anti-theft safety key.

Frequency range: 27 - 30 MHz

Out of stock - Longer delivery time

€47.95 (39.63 excl. 21% VAT)

Electrical data

• Electrical type: Base loaded
• VSWR: ≤ 1.2
• Bandwidth: 2580 kHz (230 channels) ≤ 2.0
• Maximum continuous power: 600 Watts (CW)
• Power peak: 1800 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Materials: Copper, brass, stainless steel 17/7 PH, nylon
• Height: 2030 mm
• Weight: 450 gram
• Mounting type: On UHF-female (PL) connector (not included)
• Antenna connector: UHF-male (PL)

Inside the box

• Antenna: Yes
• Installation manual: English, Italian

Downloads

• Datasheet: Id 089 19 11 2015 hi powerseries
