Sirio - HP 2070 H

Product code: 992003

Factory code: 2210405.05

Barcode: 8056182110299

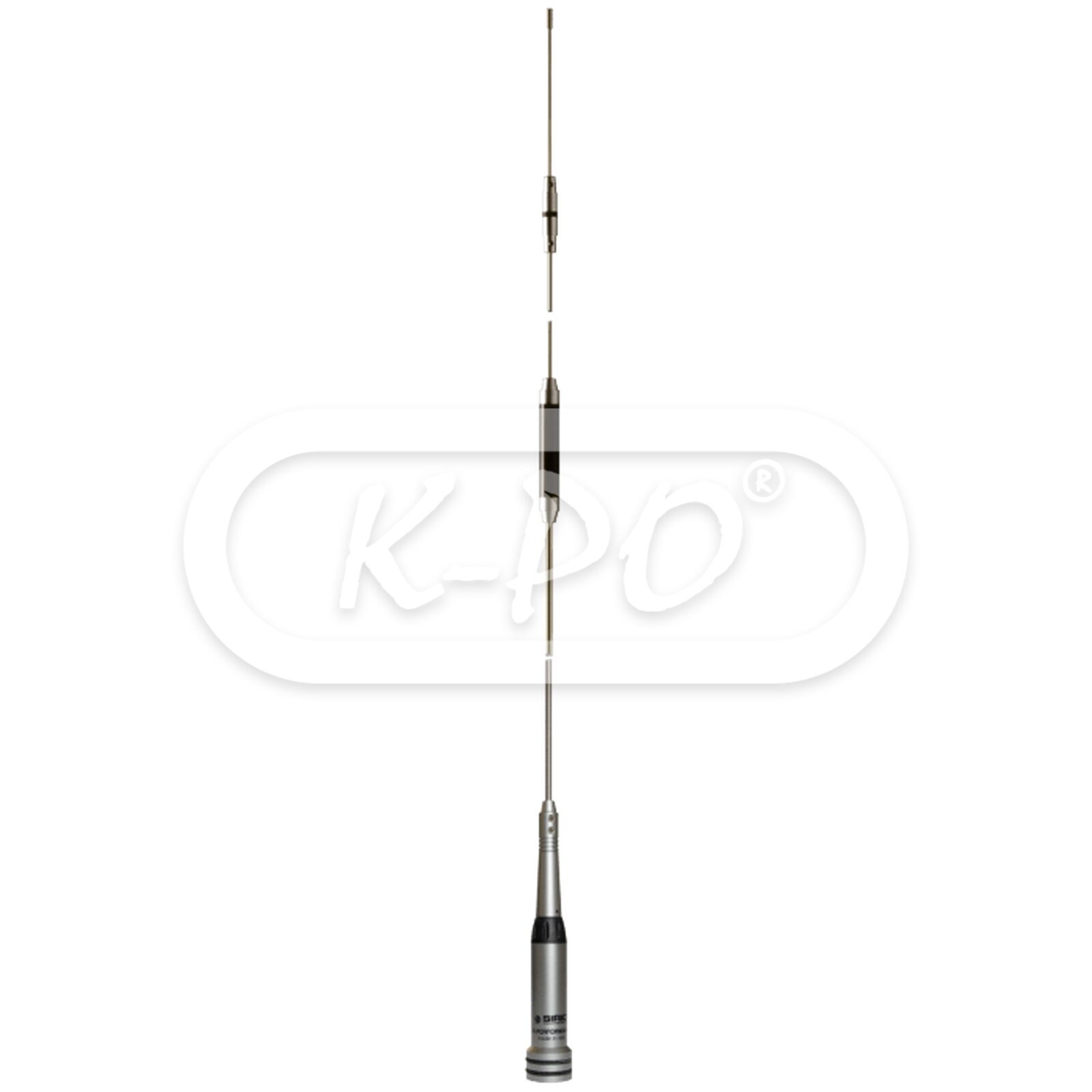

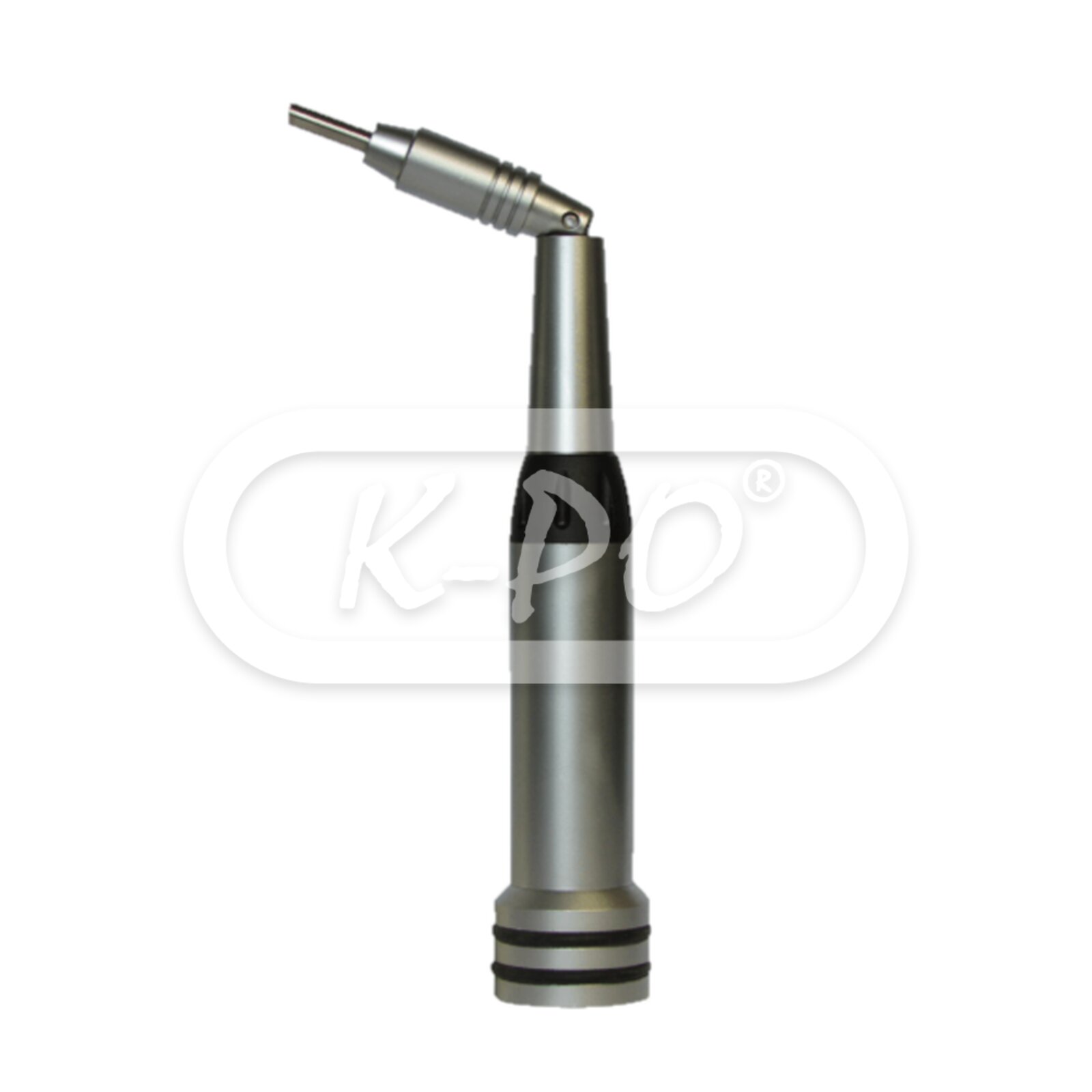

Dual-band vehicular antenna working on 142 - 148 / 430 - 440 MHz. The very best materials have been used to guarantee the maximum strength and the best performance. The whip, made of 17/7 PH stainless steel, has an inclination system that allows the 90 tilting without using keys or tools. Also a particular attention has been paid to the UHF male connector with a gold plated center pin, PTFE insulator and silicone rubber gasket for a perfect waterproofing.

Frequency range: 142 - 148 / 430 - 440 MHz

Out of stock - Longer delivery time

€57.95 (47.89 excl. 21% VAT)

Electrical data

• Electrical type: 142 - 148 MHz: 1/2 λ / 430 - 440 MHz: 2 x 5/8 λ Colinear
• Gain: 142 - 148 MHz: 0.7 dB / 430 - 440 MHz: 4.4 dB
• VSWR: ≤ 1.2 on center frequency, on both bands
• Maximum continuous power: 142 - 148 MHz: 150 Watts (CW) / 430 - 440 MHz: 100 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Materials: Chromed brass, stainless steel 17/7 PH, nylon
• Height: 1080 mm
• Weight: 330 gram
• Mounting type: On UHF-female (PL) connector (not included)
• Antenna connector: UHF-male (PL)

Inside the box

• Antenna: Yes
• Installation manual: English

Downloads

• Datasheet: Id 104 18 06 2015 hp2070
