Sirio - IN-GLASS 918 FME

Product code: 2215902

Factory code: 2215902/4FME

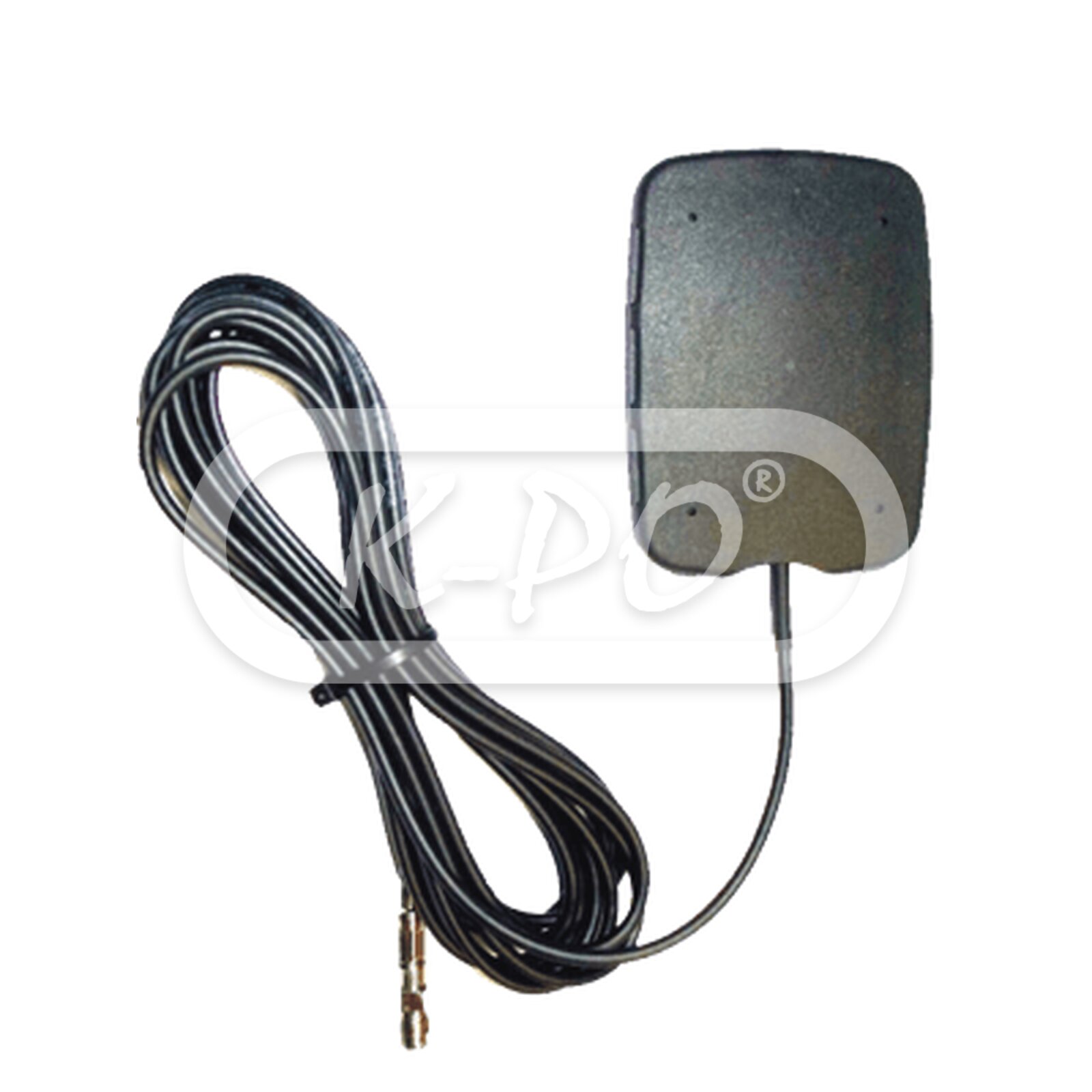

GSM dual-band indoor antenna conceived for inside on-glass installation. The radiant element (patent pending) is made on PCB in Microstrip technology protected by a thermoplastic material. IN-GLASS 918 is supplied with a 3M VHB adhesive tape for a permanent fitting on glass, plastic, wall and other surfaces (except metallic parts). With 4 meter RG-174 cable and FME-female connector.

Frequency range: 868 - 960 MHz / 1.71 - 1.88 GHz / 1.85 - 1.99 GHz / 1.92 - 2.17 GHz

Shipped today

€20.95 (17.31 excl. 21% VAT)

Electrical data

• Electrical type: On-glass indoor
• Gain: 0 dBd, 2.14 dBi all bands
• VSWR: See the product manual under downloads
• Maximum continuous power: 10 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 4 meter / RG 174

Mechanical data

• Materials: Copper, thermoplastic UV stabilized, PCB
• Length: 77 mm
• Height: 10 mm
• Width: 57 mm
• Weight: 70 gram
• Mounting type: On glass and other surfaces
• Antenna connector: FME female (on cable end)

Inside the box

• Antenna: Yes
• Radio connector: FME-female
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English

Downloads

• Datasheet: Id 284 02 03 2017 REVISIONATO 25 06 2018
