Sirio - LPA 380

Product code: 380430

Factory code: 2219003/380

Barcode: 8056182115621

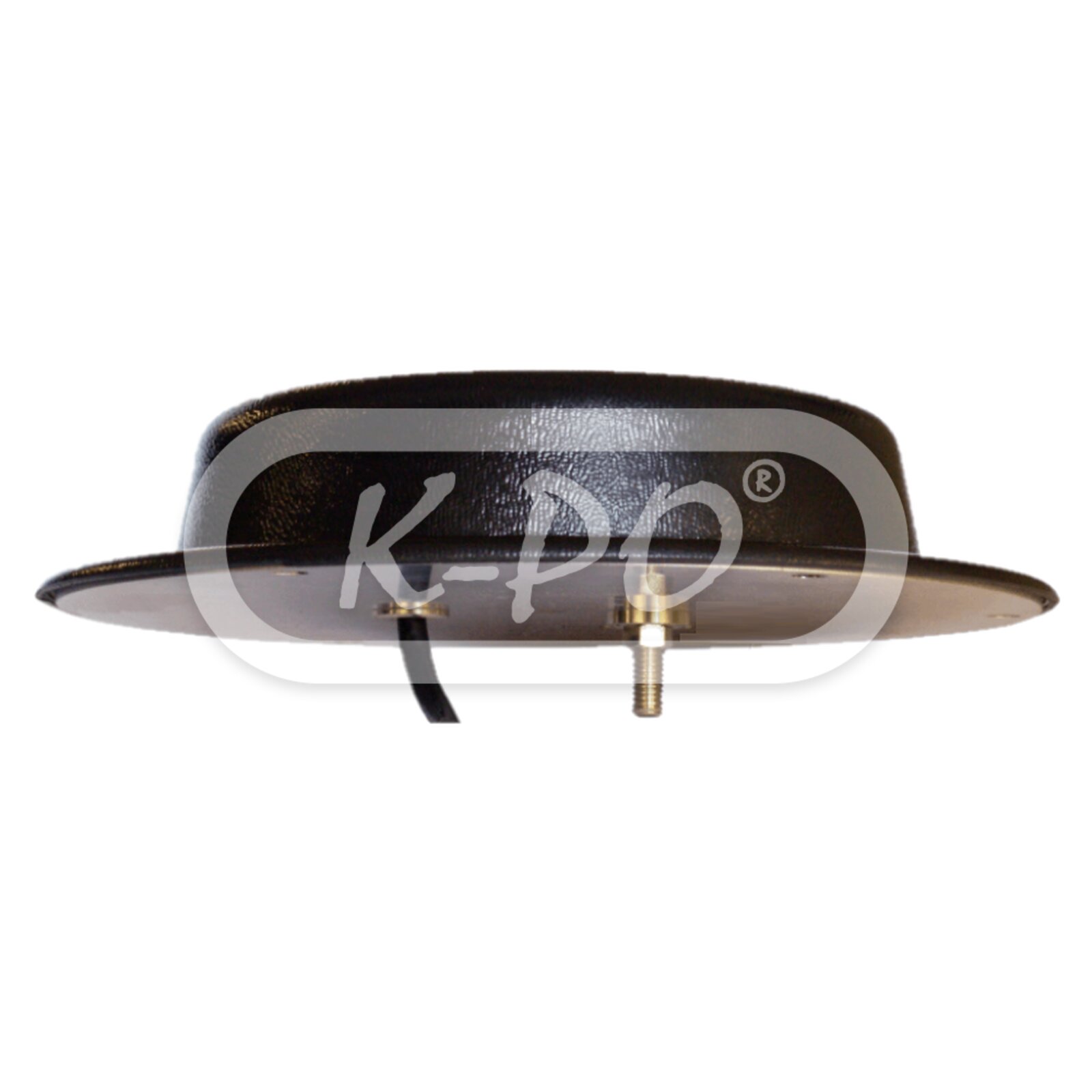

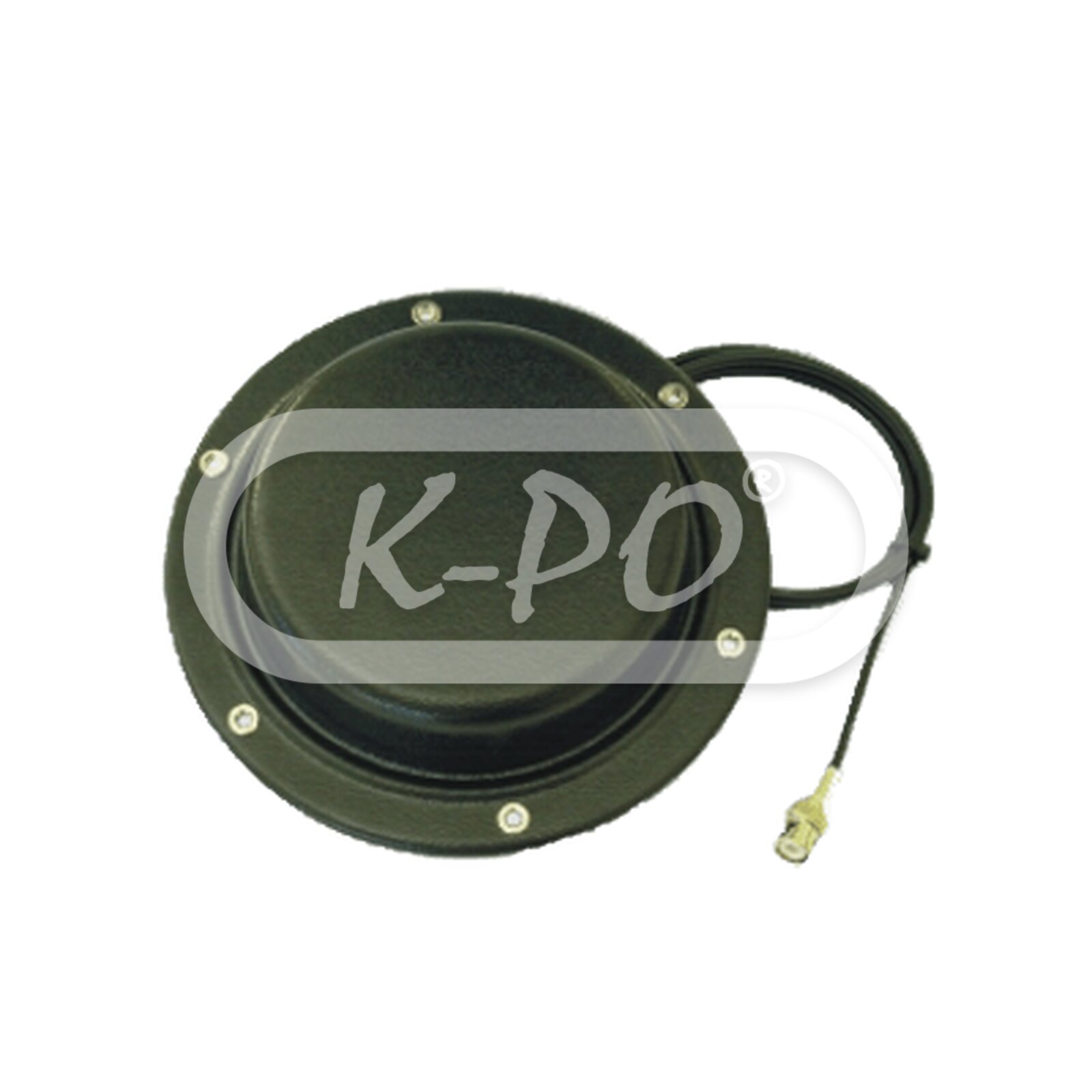

Low profile mobile antennas for UHF band, 380 - 430 MHz, designed for use on vehicles operating under severe height limitations such as buses, trains, trams, etc.

This antenna is suitable for ceiling mount installation too.The radome is weatherproof to ensure long life. Radiation is omni-directional and the antenna is vertically polarized.

Frequency range: 380 - 430 MHz tunable

Shipped next business day - Stock: 1

€79.94 (66.07 excl. 21% VAT)

Electrical data

• Electrical type: Low profile dipole
• Gain: 2 dBi
• VSWR: ≤ 1.5
• Bandwidth: 9.5 MHz ≤ 2.0
• Maximum continuous power: 100 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 1 meter / RG 58

Mechanical data

• Materials: Aluminium, brass, thermoplastic UV stabilized
• Height: 36 mm
• Weight: 400 gram
• Mounting type: Thru-holes
• Diameter antenna Ø: 183 mm

Inside the box

• Antenna: Yes
• Radio connector: BNC-male
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English

Downloads

• Datasheet: Id 391 13 06 2007 LPA Series
