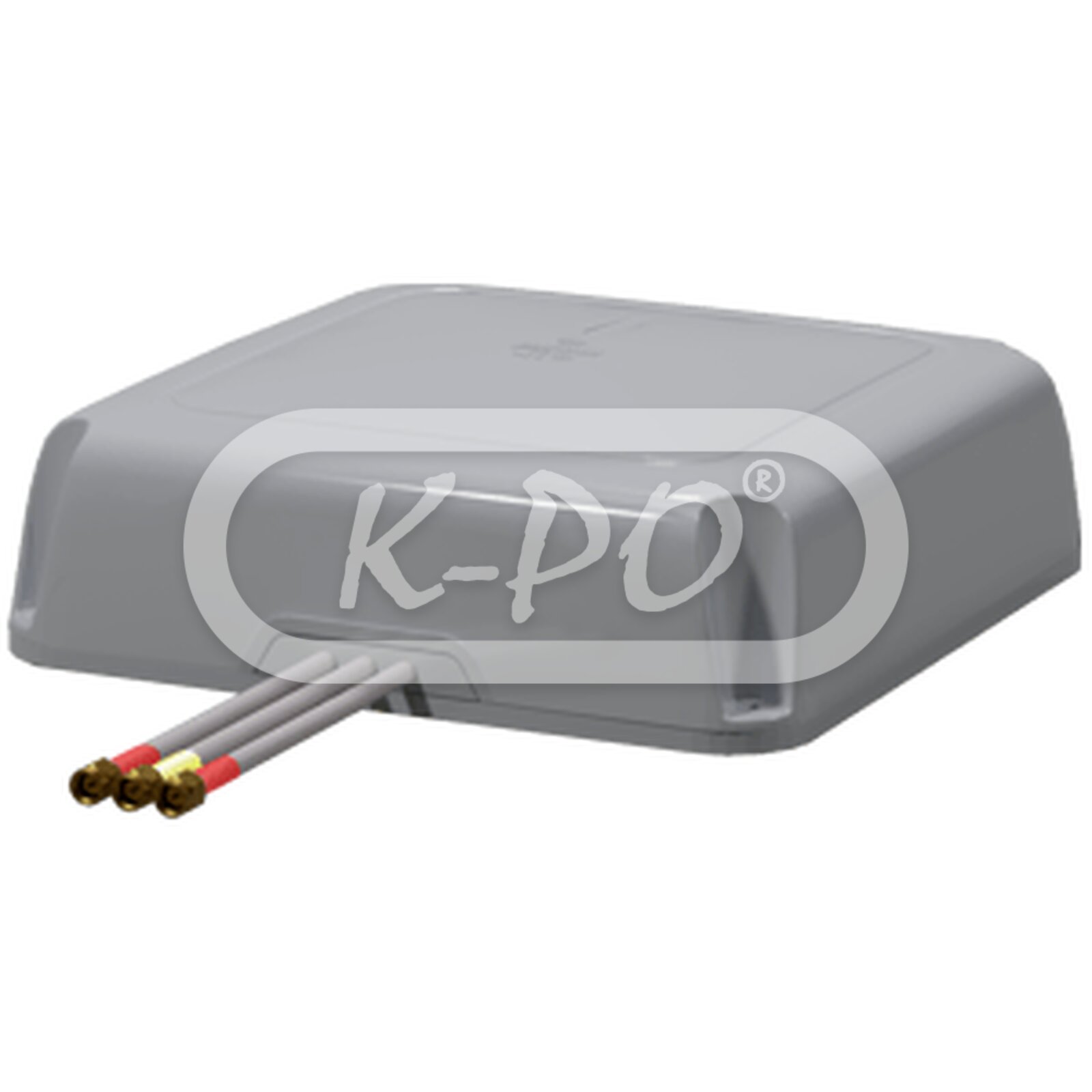

Sirio - LPA 5G WLAN MiMo

Product code: 22192032

Factory code: 219203/2SMA

Low profile antenna for use on vehicles and ceiling installation:

• 5G MiMo 2x multi systems (2G-GSM, 3G-UMTS, 4G-LTE, 5G,LTE 700, ISM/LoRa, tc) W-LAN Dual Band (2.4-2.485 GHz & 5.15-6 GHz) 5G MiMo

• 2x Protection from static discharges DC-Ground
• Functioning With or Without Ground Plane
• High Antenna Efficiency
• Side Cable Outlet
• Completely sealed and waterproof

Frequency range: 698-960 MHz / 1.71-3.80 GHz / 2.4-2.485 GHz / 5.15-6.00 GHz

Out of stock - Longer delivery time

€125.95 (104.09 excl. 21% VAT)

Electrical data

• Electrical type: Wide Band Low Profile
• Gain: 698-960 MHz: 3 dBi / 1.71-3.8 GHz: 7 dBi / 2.4-2.485 GHz: 3 dBi / 5.15-6.00 GHz: 7 dBi
• Maximum continuous power: 10 Watts
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 3x 200 cm (6.56 ft) / White low loss
• Operating temperature: -30℃ to +70℃

Mechanical data

• Materials: Brass, Thermoplastic UV stabilized, PCB
• Length: 200 mm
• Height: 200 mm
• Width: 62 mm
• Weight: 400 gram

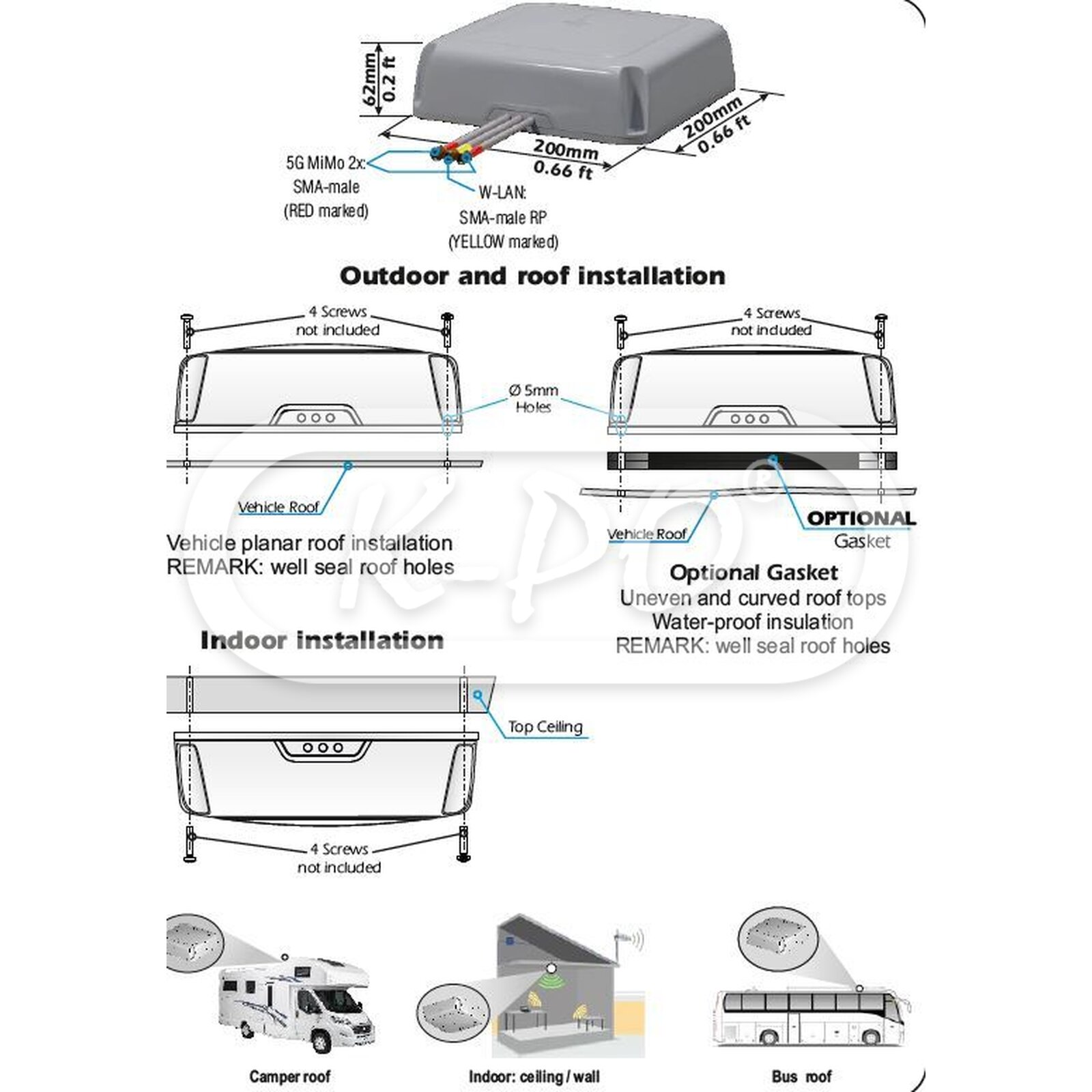

• Mounting type: On Vehicle Roof, Thru-Holes, Ceiling
• Waterproof index: IP65

Inside the box

• Antenna: Yes
• Radio connector: 2 x SMA-male, SMA-male Reverse polarity
• Installation manual: English

Downloads

• Datasheet: Id 482 LPA 5 GW lan 15 06 2022
