Sirio - MGA 55-550 S

Product code: 220590528

Factory code: 2205905.28

Barcode: 8056182114341

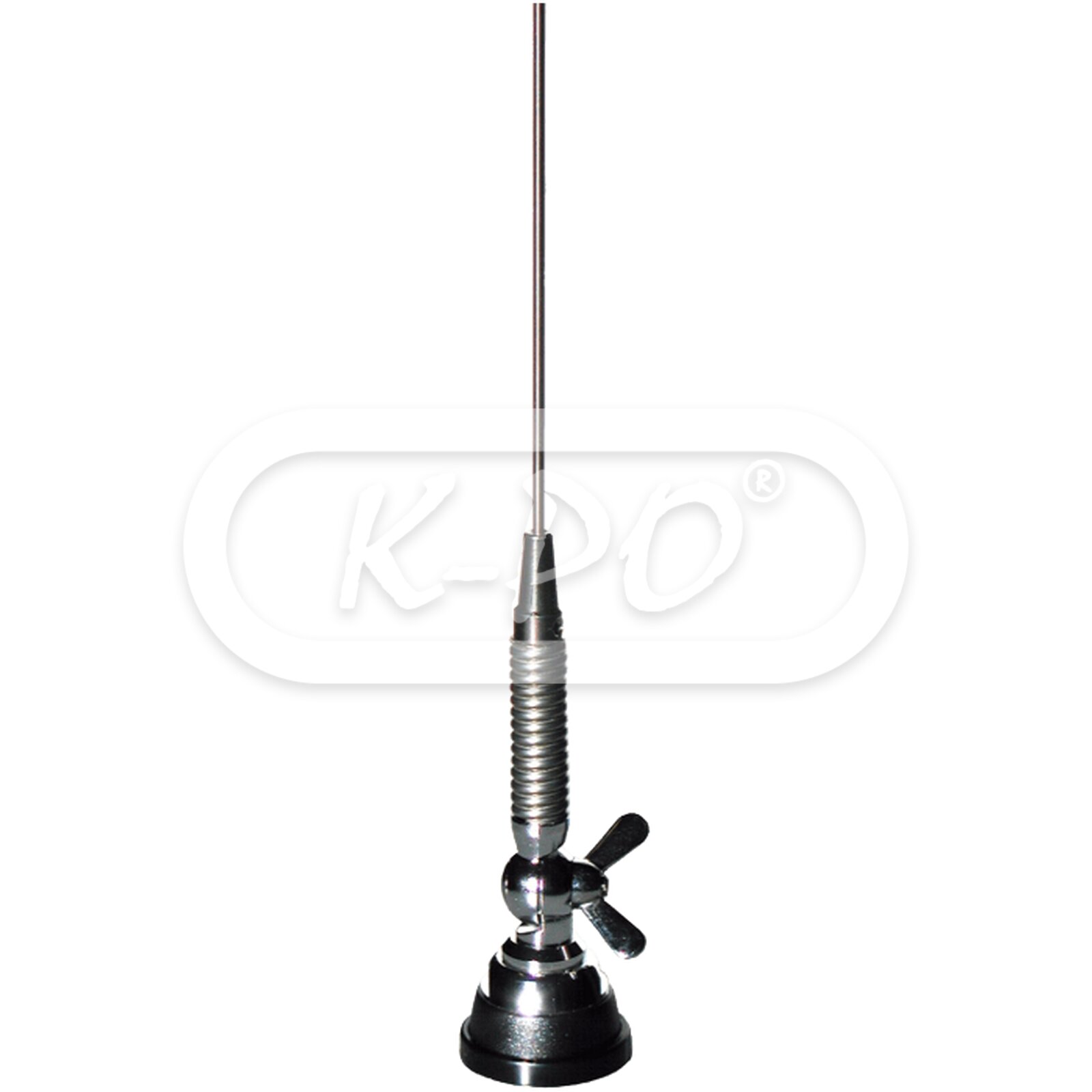

1/4 λ mobile antenna covering the frequency range of 55 - 300 MHz. Tuning on frequency by using the enclosed cutting diagram. MGA series is made of 17/7 PH stainless steel rod and stainless steel spring. Can be used for VHF and UHF mobile radios, taxi radios and other applications.

Frequency range: 55 - 300 MHz tunable by cutting

Out of stock - Longer delivery time

€32.95 (27.23 excl. 21% VAT)

Electrical data

• Electrical type: 1/4 λ
• VSWR: See the product manual under downloads
• Bandwidth: See the product manual under downloads
• Maximum continuous power: 100 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 5 meter / RG 58

Mechanical data

• Materials: Chromed brass, stainless steel 17/7 PH, nylon
• Height: 1400 mm, height depending on frequency
• Weight: 420 gram

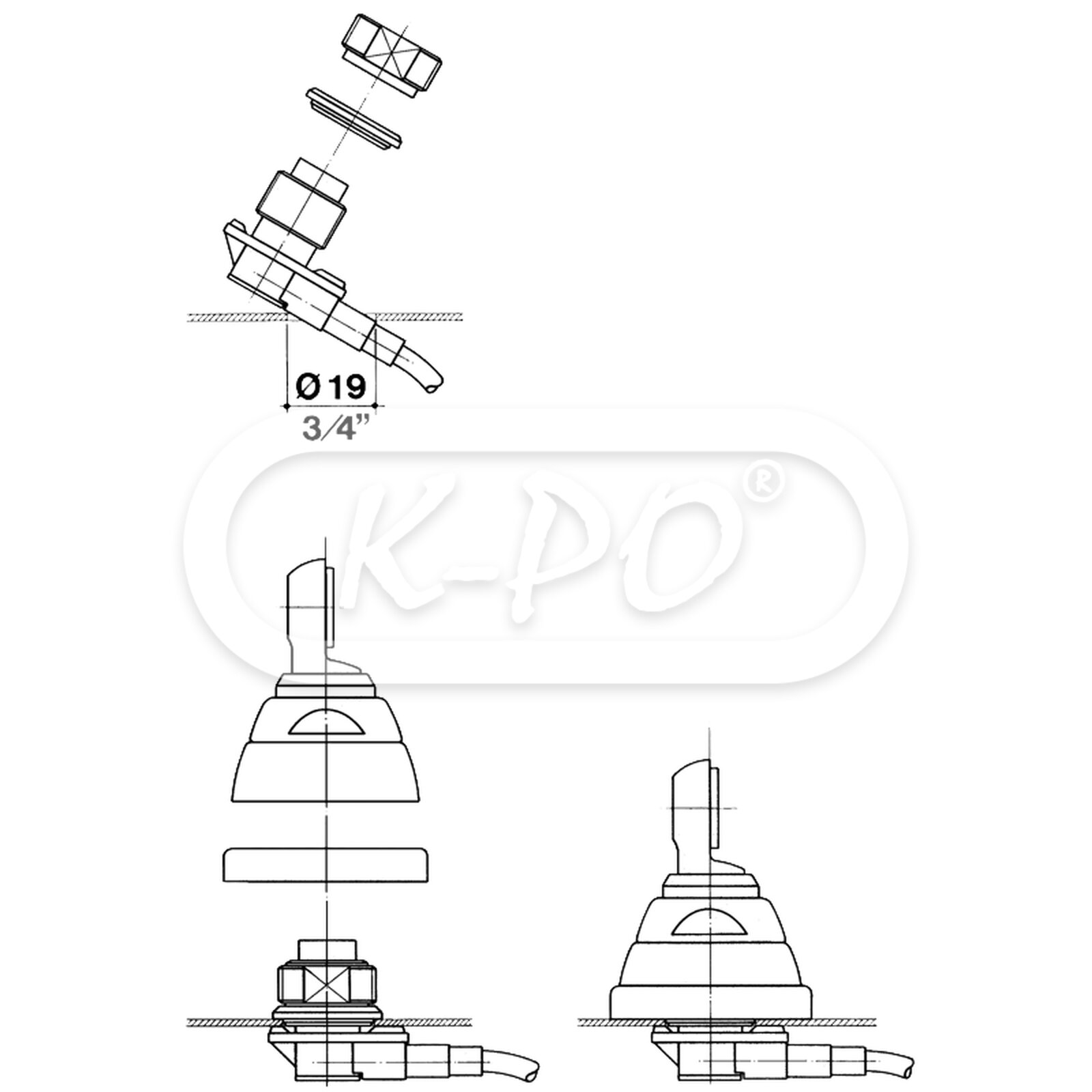

• Mounting type: Thru-hole

Inside the box

• Antenna: Yes
• Radio connector: Not included, optional
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English

Downloads

• Datasheet: Id 376
