Sirio - Monsoon

Product code: 210060100

Factory code: 2100601.00

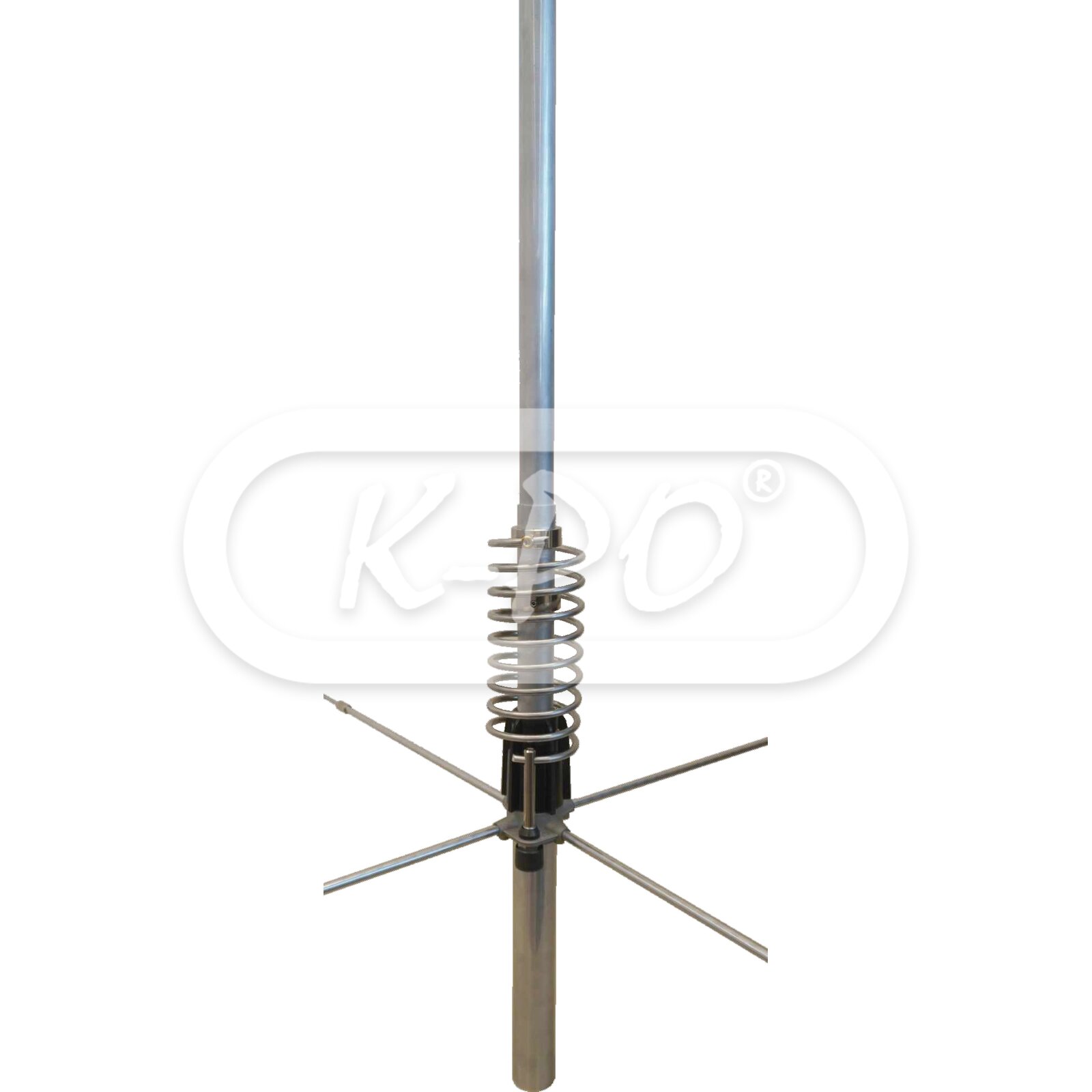

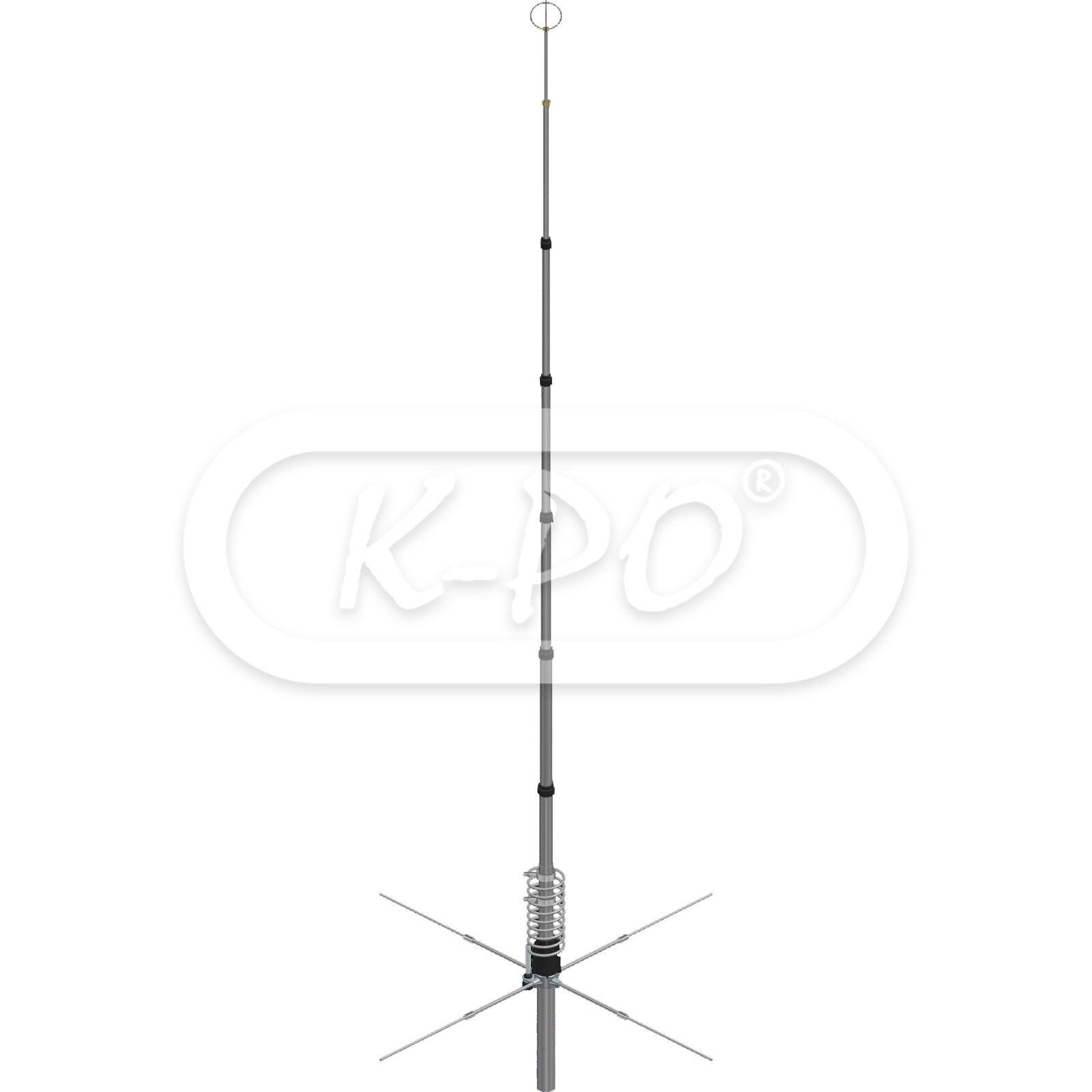

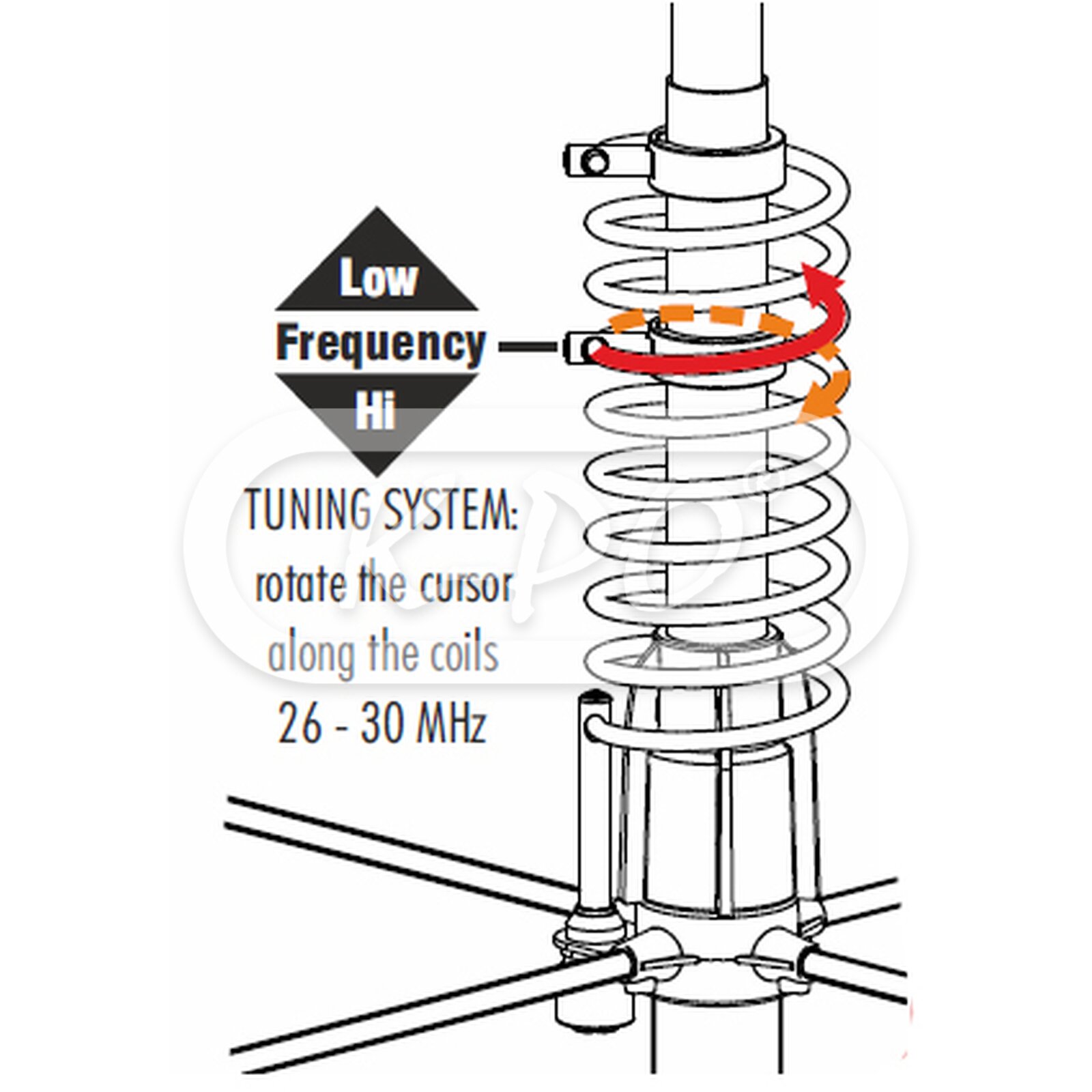

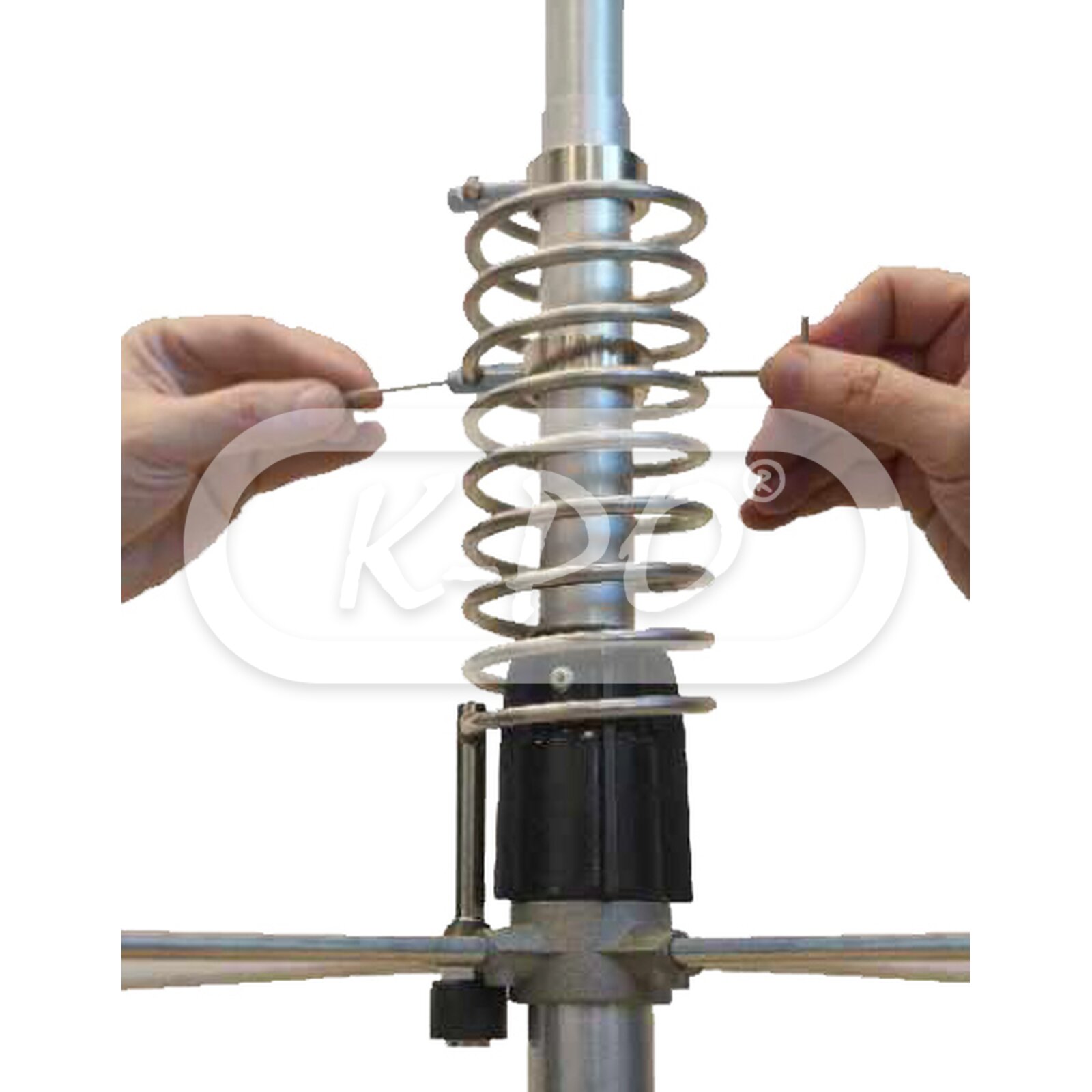

The Sirio Monsoon is a new 10-11 meter base station antenna with a bottom tuning system, tunable between 26-30 MHz.

Big coil made of a Ø 6 mm aluminium wire, AWG-3. Similar strong PC insulator with reinforcement fins as the New Tornado 2024.

High power handling 1000 Watts (CW) continuous and 3000 Watts (CW) short time. Including the well-known top anti-static cage. Low radiation angle for excellent DX.

Frequency range: 26 - 30 MHz tunable

Shipped next business day

€129.95 (107.4 excl. 21% VAT)

Electrical data

• Electrical type: 5/8 λ ground plane
• Gain: 1.2 dBd, 3.35 dBi
• VSWR: ≤ 1.2 @ 27.2 MHz
• Bandwidth: 1400 kHz ≤ 2.0
• Maximum continuous power: 1000 Watts (CW)
• Power peak: 3000 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Materials: Aluminium, brass, galvanized steel, thermoplastic UV stabilized
• Mast Ø: 35 - 42 mm
• Max wind resistance: 130 km/h
• Height: 7180 mm
• Weight: 3000 gram
• Mounting type: On mast
• Antenna connector: UHF-female
• Radial length: 2000 mm

Inside the box

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English, Italian

Downloads

• Datasheet: Sirio Monsoon 2024
