Sirio - New Delta 27-95

Product code: 2203315

Factory code: 2203315.01

Barcode: 8056182114082

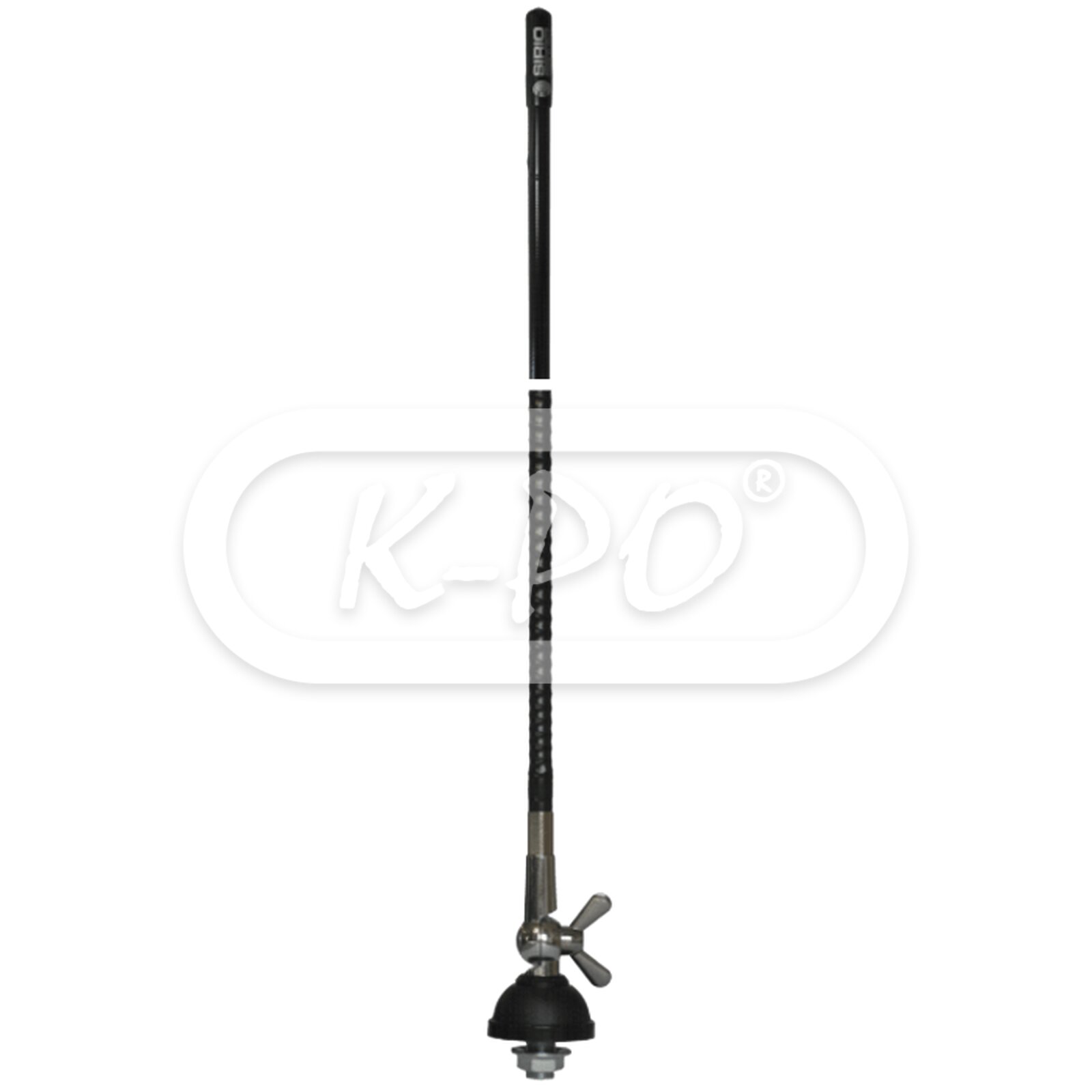

The New Delta 27-95 is a wide bandwidth CB antenna conceived for vehicular use. Thanks to it's new double pitch helical coiling, it has been improved to get a wider bandwidth and an excellent SWR. The New Delta 27-95 is also supplied with a new tuning system placed on the top of the radiator for an easy tuning and flexible installation.

Frequency range: 26.7 - 27.3 MHz

Shipped next business day - Stock: 9

€29.95 (24.75 excl. 21% VAT)

Electrical data

• Electrical type: Helical loaded
• VSWR: ≤ 1.2
• Bandwidth: 900 kHz (80 channels) ≤ 2.0
• Maximum continuous power: 35 Watts (CW)
• Power peak: 100 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes

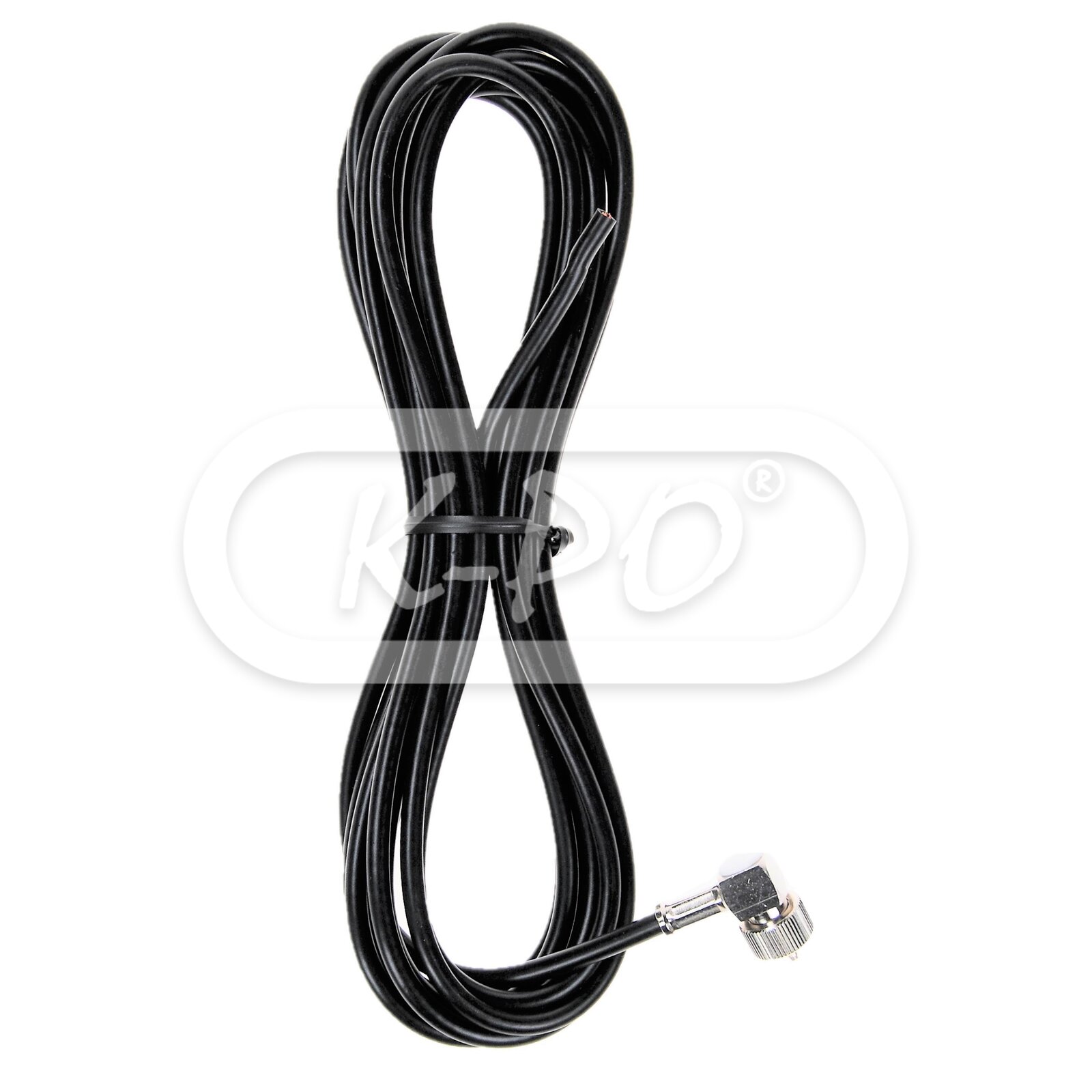

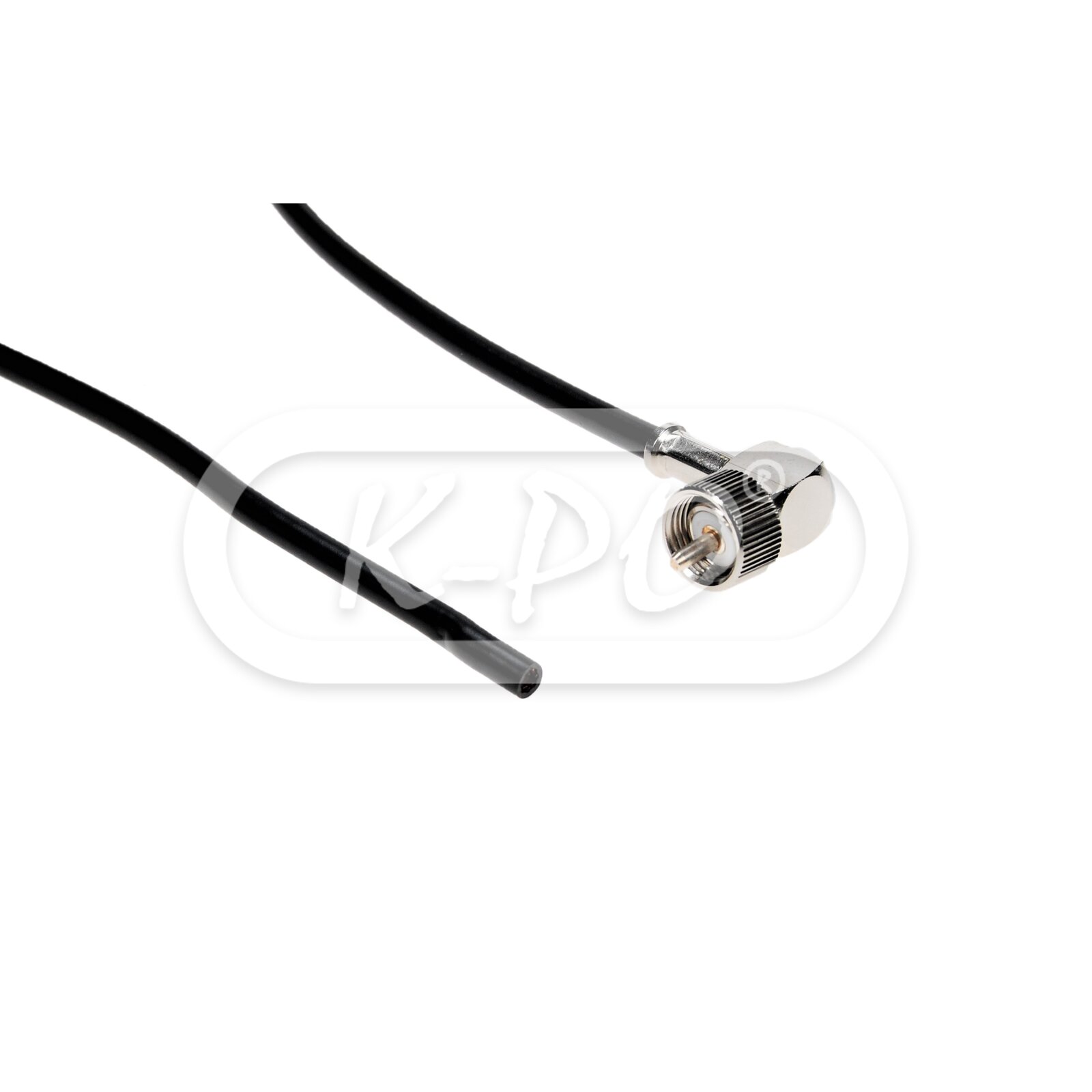

• Cable length: 4 meter / RG 58

Mechanical data

• Materials: Copper, brass, stainless steel, fiberglass
• Height: 950 mm
• Weight: 390 gram
• Mounting type: Thru-hole

Inside the box

• Antenna: Yes
• Radio connector: Not included, optional

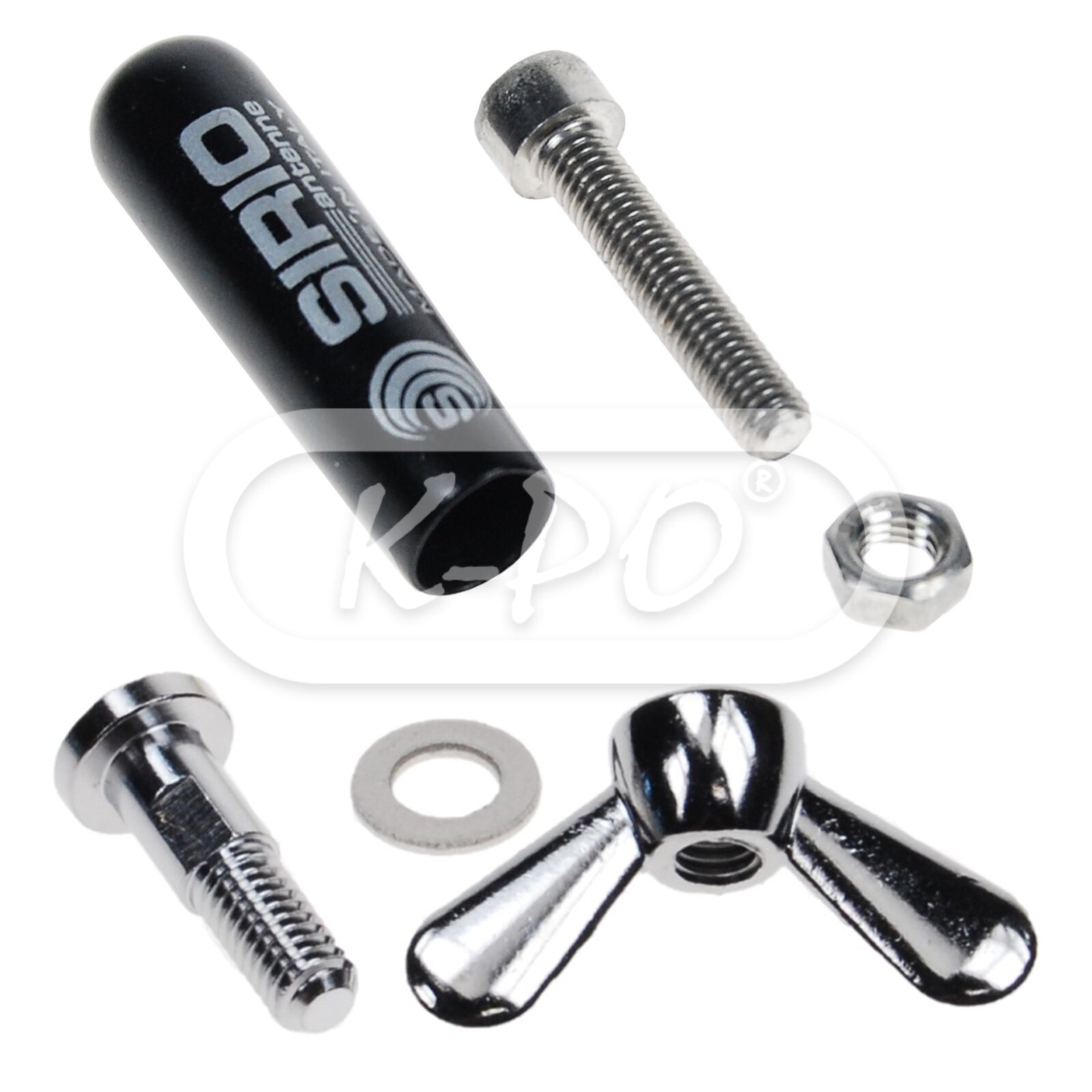

• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English, Italian

Downloads

• Datasheet: Id 158 24 09 2009 new delta 27
