Sirio - New Delta 27-M-95 FME

Product code: 220341501

Factory code: 2203415.01/FME

Barcode: 8718375102800

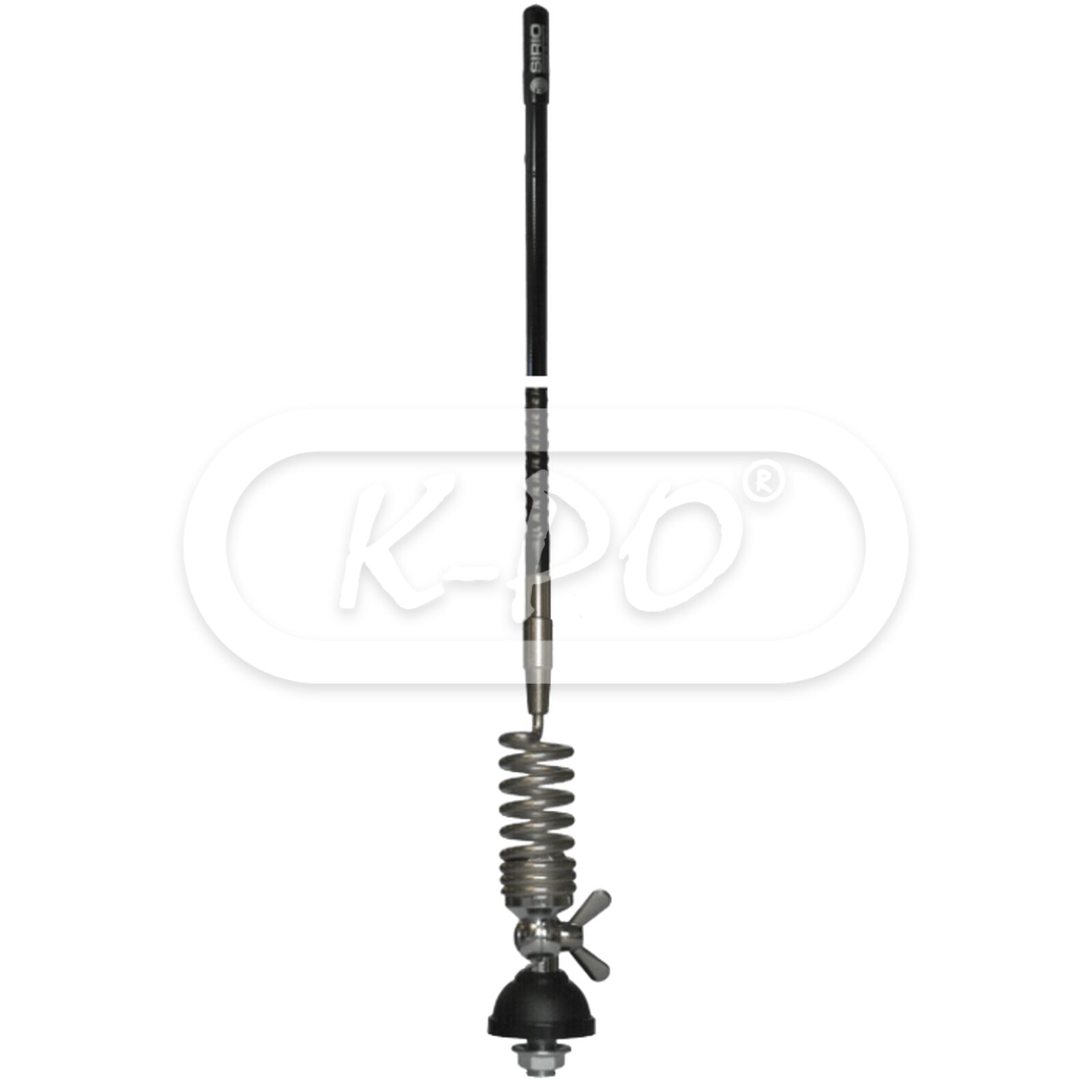

The New Delta 27 M 95 is a wide bandwidth CB antenna conceived for vehicular use. Thanks to it's new double pitch helical coiling, it has been improved to get a wider bandwidth and an excellent SWR. The New Delta 27 M 95 is also supplied with a new tuning system placed on the top of the radiator for an easy tuning and flexible installation.

On the FME female connector you can easily connect an optional and matching PL 259 connector, for example product code 30002.

Frequency range: 26.7 - 27.3 MHz

Shipped next business day

€42.94 (35.49 excl. 21% VAT)

Electrical data

• Electrical type: Helical loaded
• VSWR: ≤ 1.2
• Bandwidth: 900 kHz (80 channels) ≤ 2.0
• Maximum continuous power: 35 Watts (CW)
• Power peak: 100 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes

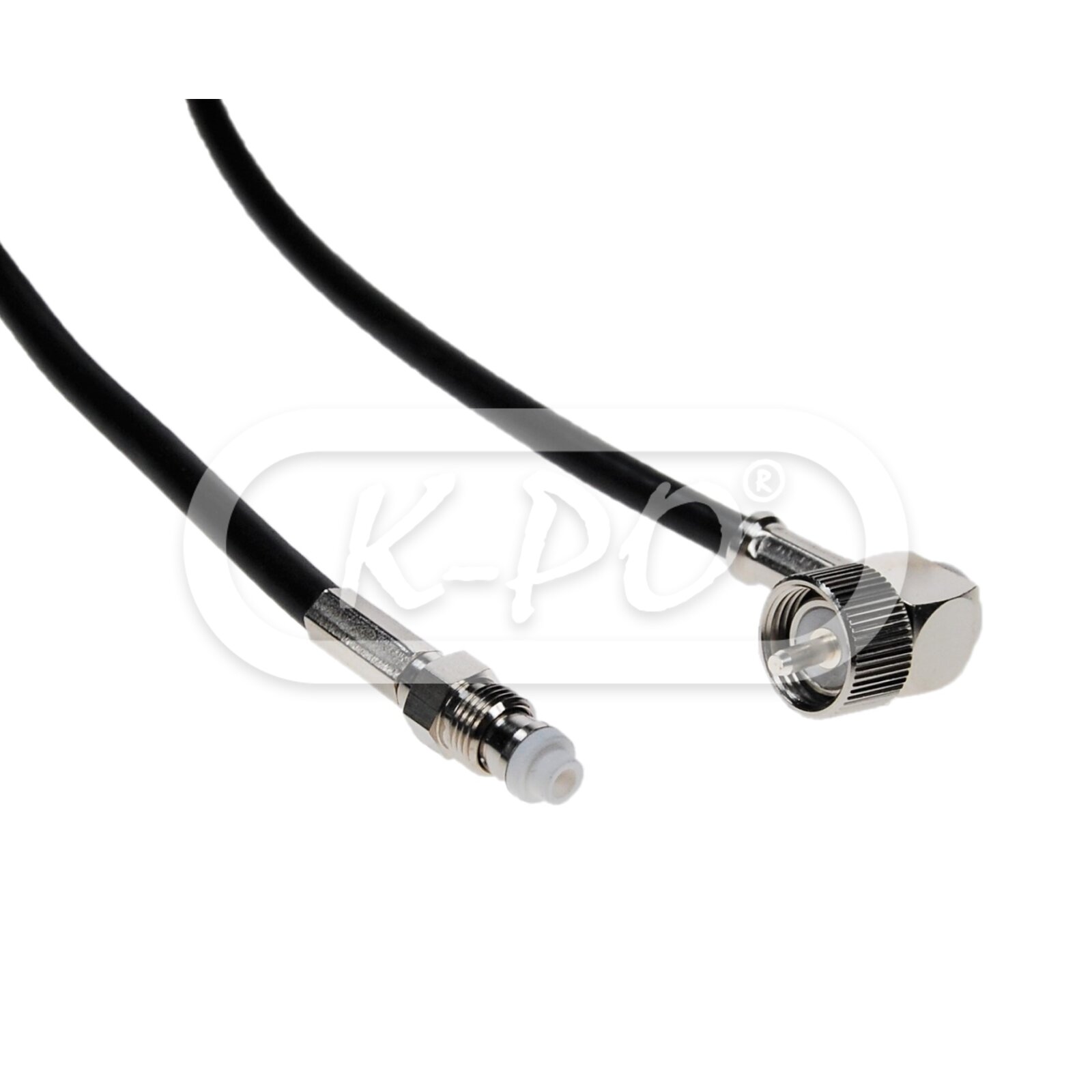

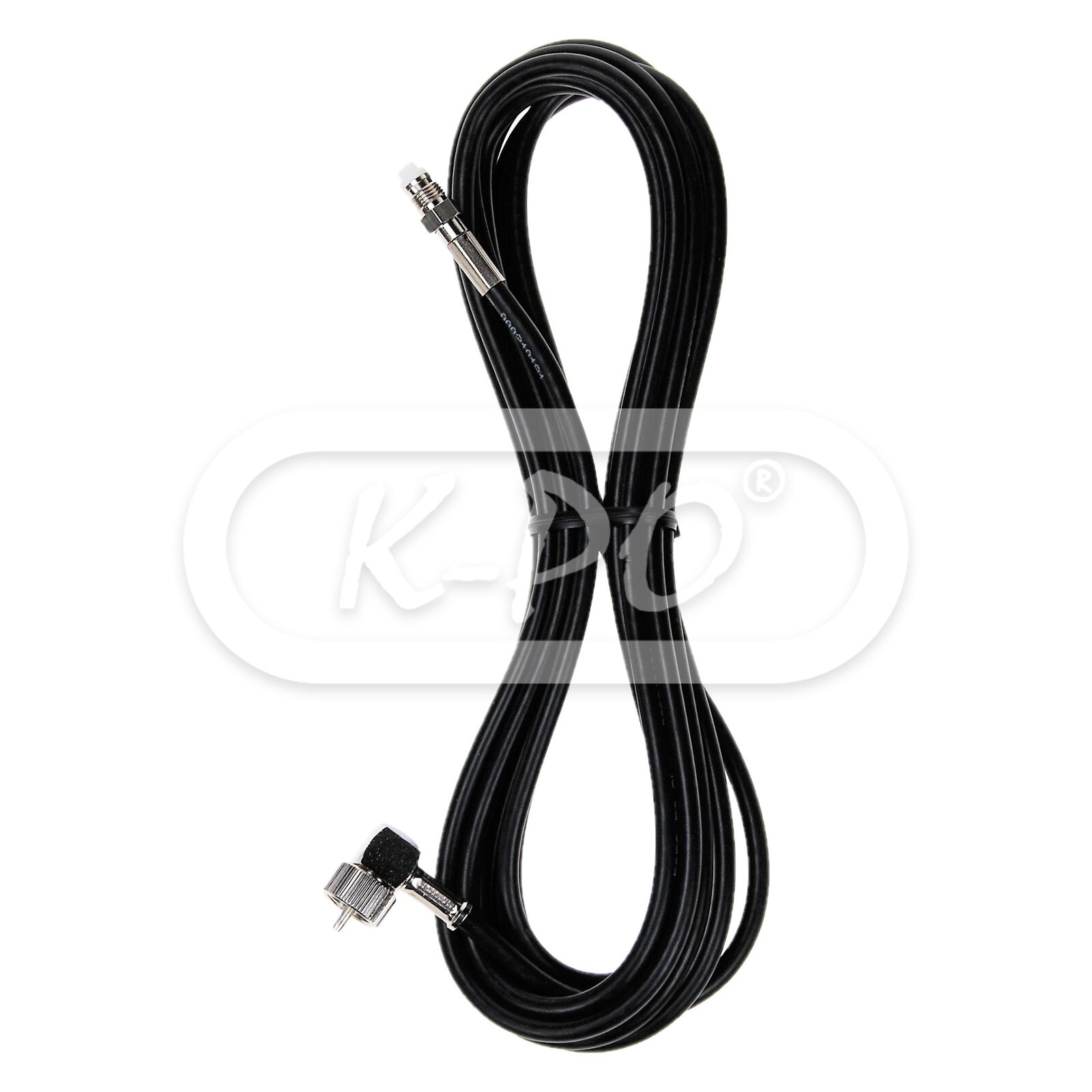

• Cable length: 4 meter / RG 58

Mechanical data

• Materials: Copper, brass, stainless steel, fiberglass
• Height: 950 mm
• Weight: 500 gram
• Mounting type: Thru-hole
• Antenna connector: FME female (on cable end)

Inside the box

• Antenna: Yes
• Radio connector: Not included, optional

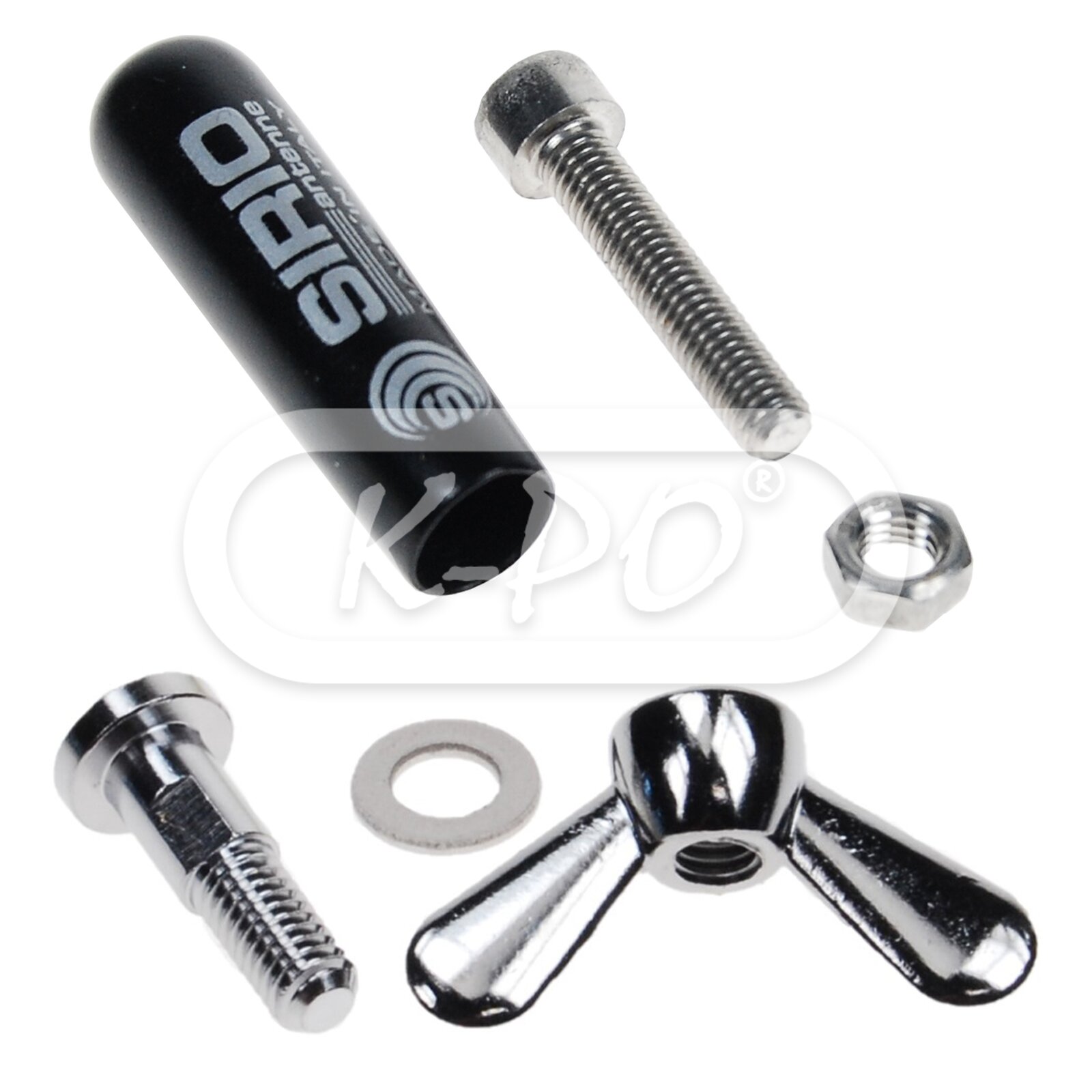

• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English, Italian

Downloads

• Datasheet: Id 158 24 09 2009 new delta 27
