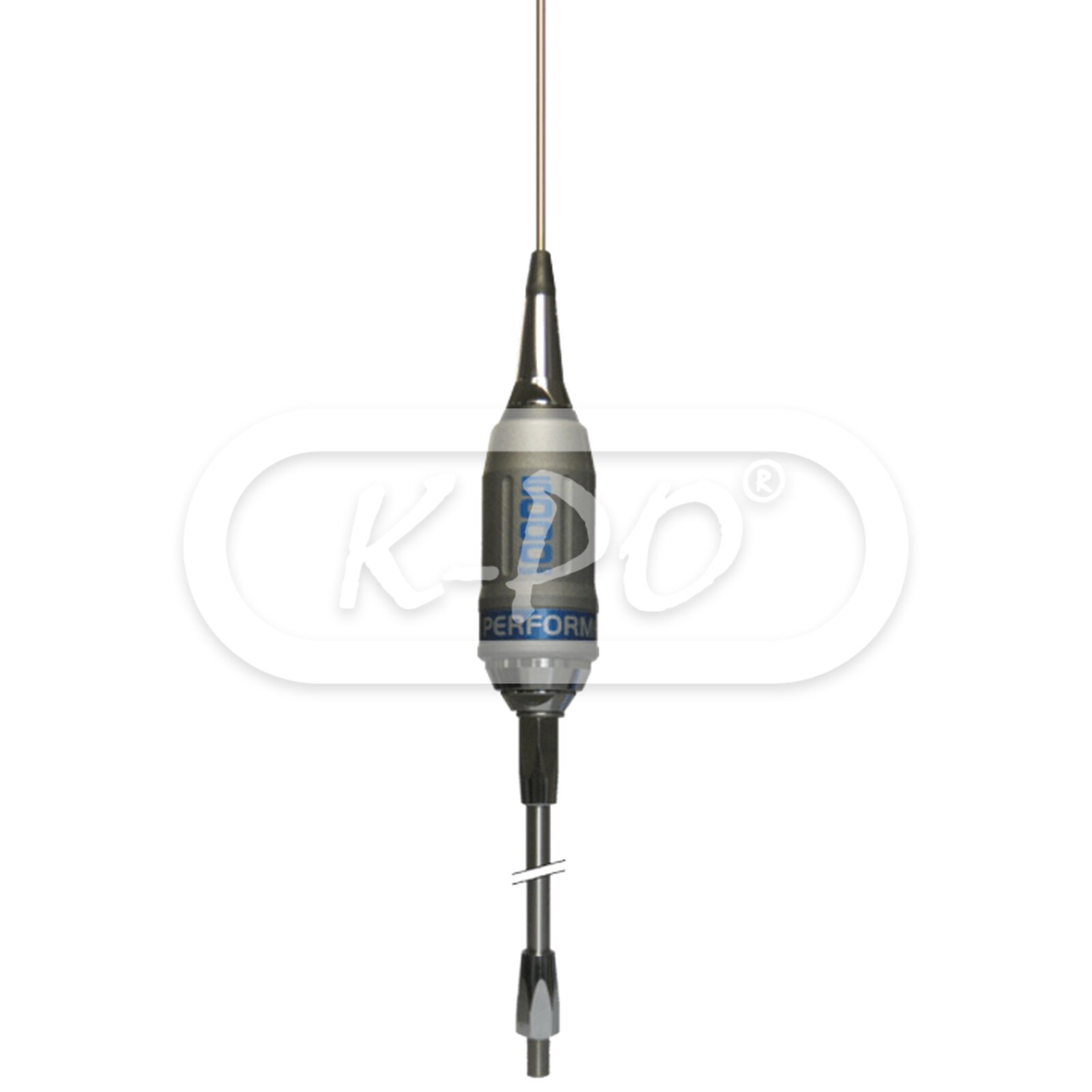

Sirio - Performer 5000 3/8

Product code: 241850503

Factory code: 2418505.03

Barcode: 8056182115027

200 mm stainless steel shaft. High power vehicular antenna working on 27 MHz or 10 meter band. Low loss coil, 2.5 mm copper wire.

Frequency range: 27 - 30 MHz

Note - Discontinued

€ -- (Discontinued)

Electrical data

• Electrical type: Centre loaded
• VSWR: ≤ 1.2
• Bandwidth: 2600 kHz (230 channels) ≤ 2.0
• Maximum continuous power: 1500 Watts (CW)
• Power peak: 5000 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Materials: Copper, chromed brass, stainless steel 17/7 PH, thermoplastic UV
• Height: 2080 mm
• Weight: 480 gram
• Mounting type: On 3/8 female (stud) mount

Inside the box

• Antenna: Yes
• Installation manual: English, Italian

Downloads

• Datasheet: Id 452 22 05 2017 bull trucker 3 8
