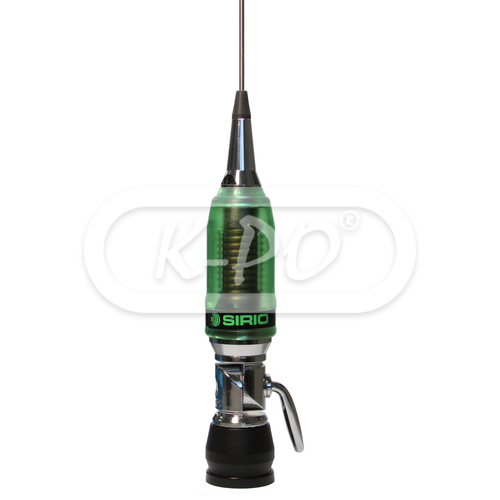

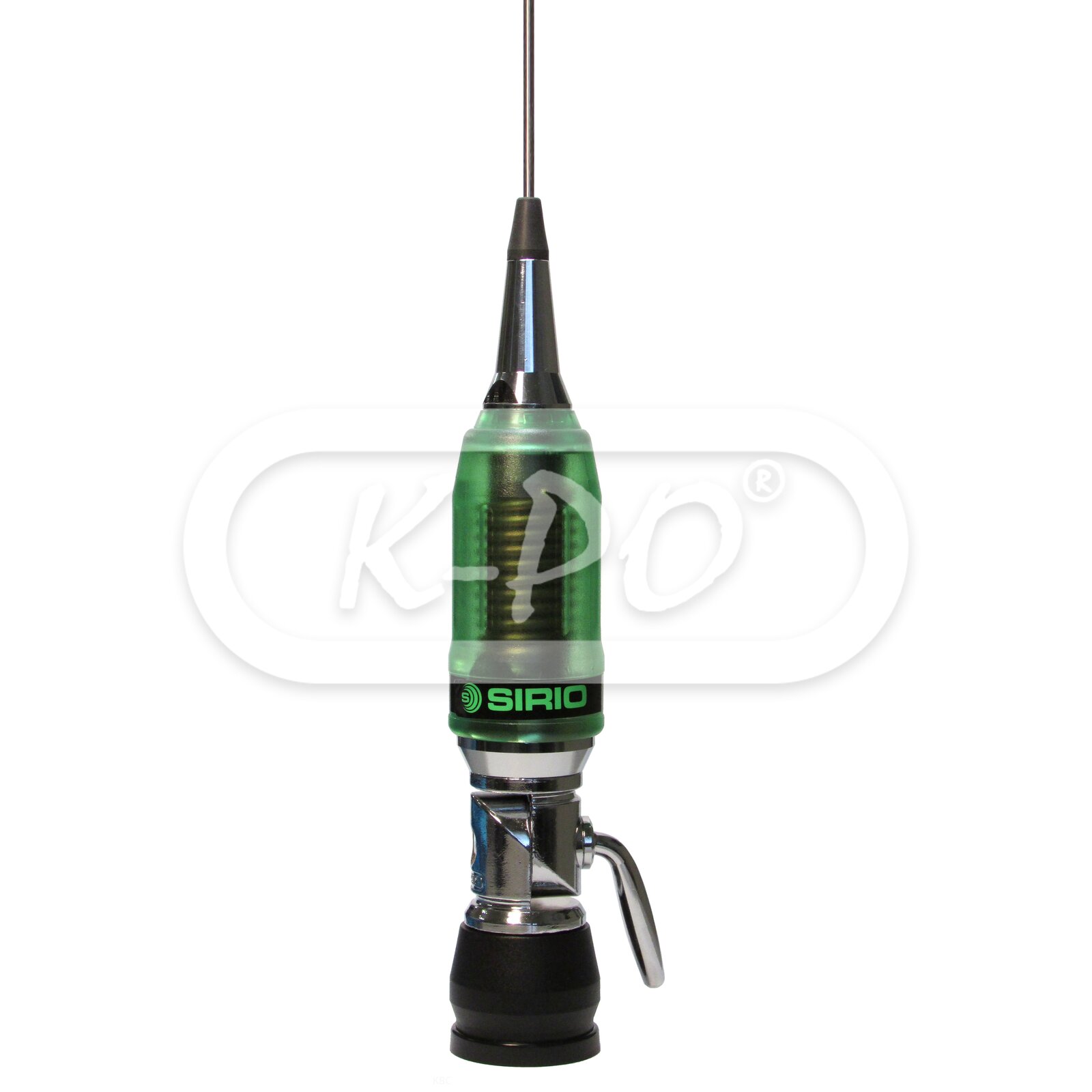

Sirio - Performer 5000 LED

Product code: 2005001

Factory code: 2218505.50/LED

Barcode: 8056182110329

Unique LED PCB that light up when transmitting. High power vehicular antenna working on 27 MHz or 10 meter band. Low loss coil, 2.5 mm copper wire.

Frequency range: 27 - 30 MHz

Shipped today

€65.95 (54.5 excl. 21% VAT)

Electrical data

• Electrical type: Base loaded
• VSWR: ≤ 1.2
• Bandwidth: 2300 kHz (200 channels) ≤ 2.0
• Maximum continuous power: 600 Watts (CW) with the supplied RG 58 cable
• Power peak: 600 Watts (CW) with the supplied RG 58 cable
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 4 meter / RG 58

Mechanical data

• Materials: Copper, chromed brass, stainless steel 17/7 PH, thermoplastic UV
• Height: 1965 mm
• Weight: 650 gram
• Mounting type: Thru-hole

Inside the box

• Antenna: Yes
• Radio connector: Not included, optional
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English, Italian

Downloads

• Datasheet: Id 440 03 02 2016 p 5000 led
