Sirio - SCO-2.4-6 N-f

Product code: 2130220

Factory code: 2130220.00

Barcode: 8056182112002

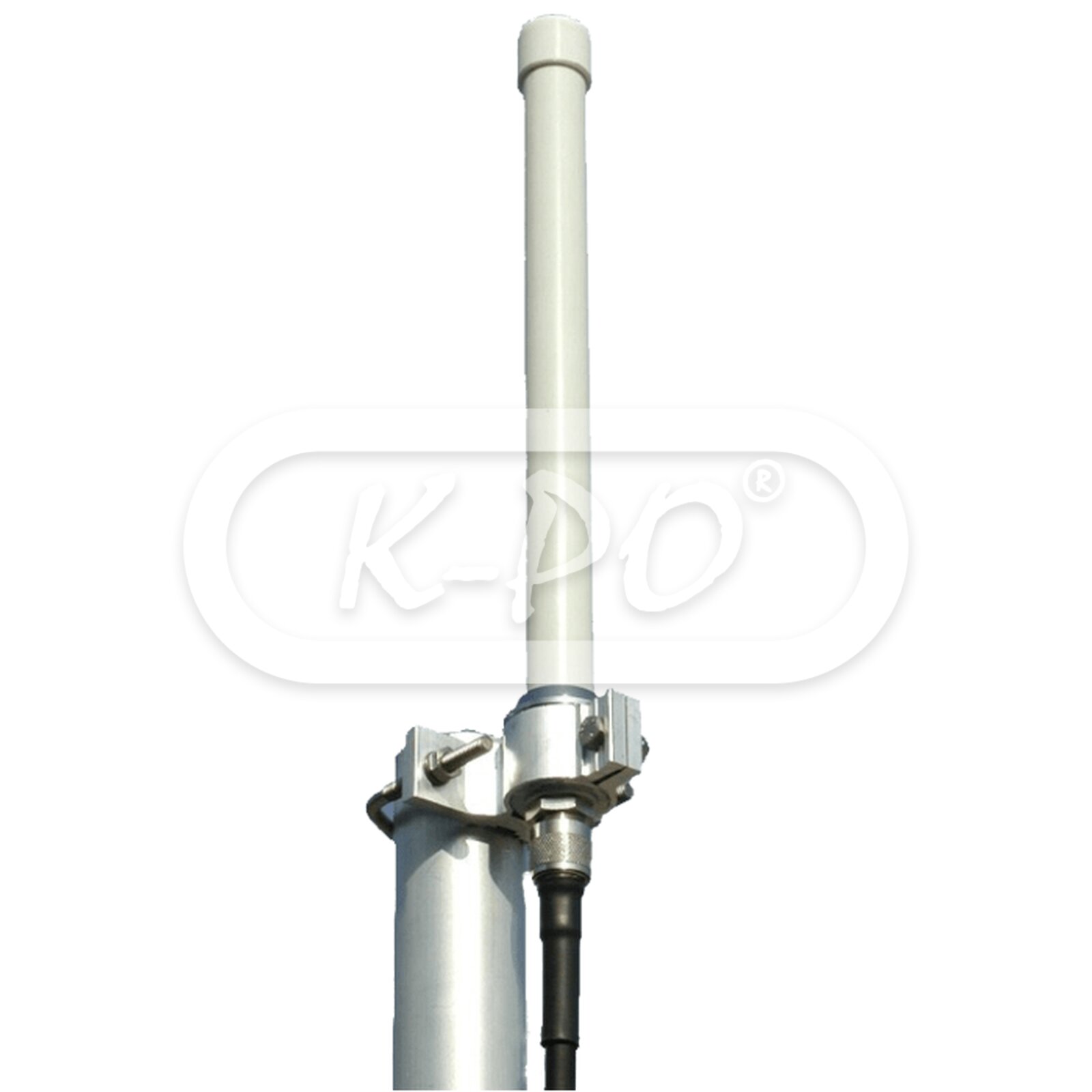

Base station antenna working on 2.3 - 2.5 GHz conceived for W-LAN systems. The radiant element is made of PTFE PCB to guarantee high power and low losses and it is protected by a fiberglass tube. It is supplied with an aluminium bracket for an easy installation on the mast. No tuning required.

Frequency range: 2.3 - 2.5 GHz

Shipped today

€56.95 (47.07 excl. 21% VAT)

Electrical data

• Electrical type: 3x 1/2 λ colinear
• Gain: 3.9 dBd, 6 dBi
• VSWR: ≤ 1.5
• Maximum continuous power: 20 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Materials: Aluminium, chromed brass, fiberglass, PCB
• Mast Ø: 35 - 54 mm
• Max wind resistance: 200 km/h
• Height: 325 mm
• Weight: 350 gram
• Mounting type: On mast
• Antenna connector: N-female, gold plated central pin

Inside the box

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English

Downloads

• Datasheet: Id 368 25 09 2019
