Certified European Distributor

Sirio - SCO-868-4 Cable

Product code: 211162080
Factory code: 2111620.80
Barcode: 8056182113603

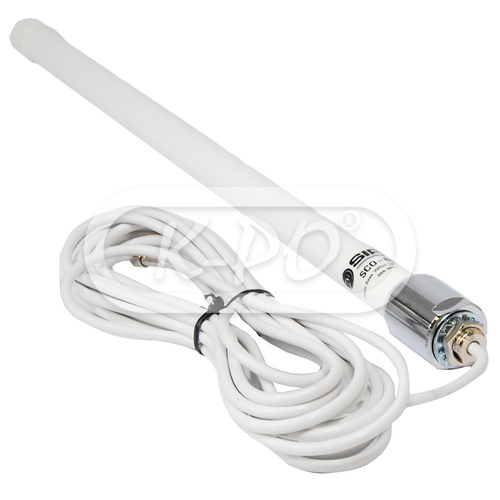

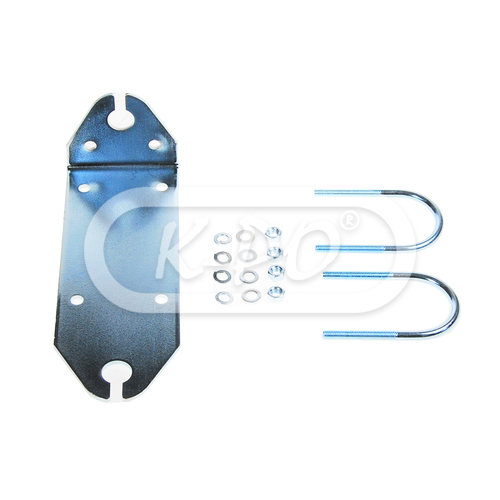

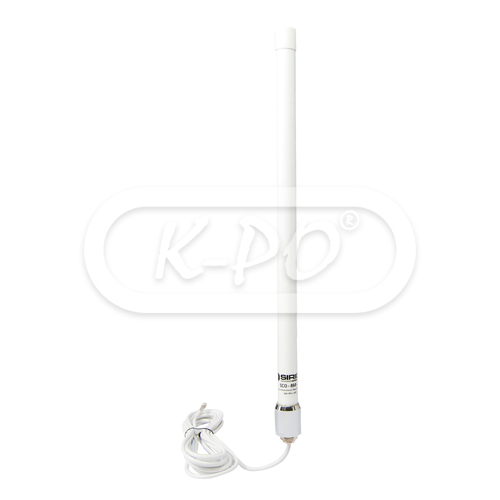

New - Base station antennas conceived for ISM/LoRa system working on 868 - 870 MHz, no tuning required. Can be used for cryptomining (Helium Miner) too. The radiant colinear dipoles are made of PCB and protected by a fiberglass tube. With 5 meter low loss cable and SMA-male connector. Including the Sirio M3 bracket for wall or mast mount

Frequency range: 868 - 870 MHz
Shipped next business day - Stock: 1
€55.76 (46.08 excl. 21% VAT) - €61.95

Electrical data

  • Electrical type: Colinear
  • Gain: 2.2 dBd, 4.3 dBi
  • VSWR: ≤ 1.5
  • Maximum continuous power: 20 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical
  • Cable: Yes
  • Cable length: 5 meter / White low loss

Mechanical data

  • Materials: Chromed brass, galvanized steel, fiberglass, PCB
  • Mast Ø: 35 - 42 mm
  • Max wind resistance: 120 km/h
  • Height: 500 mm
  • Weight: 490 gram
  • Mounting type: On mast, on wall, thru hole

Inside the box

  • Antenna: Yes
  • Mounting parts: Yes
  • Antenna cable: Yes
  • Installation manual: English
