Sirio - Signal Keeper

Product code: 200037

Factory code: 2101301.00

Barcode: 8056182112774

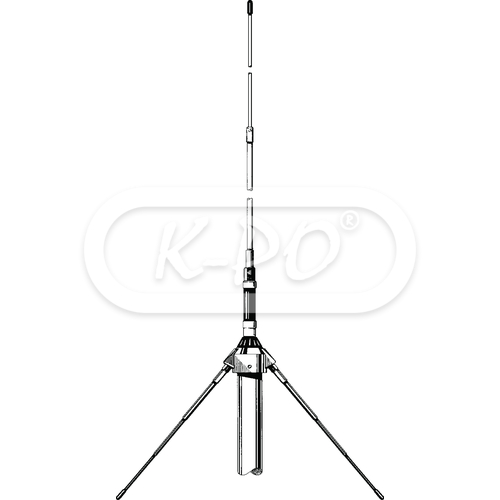

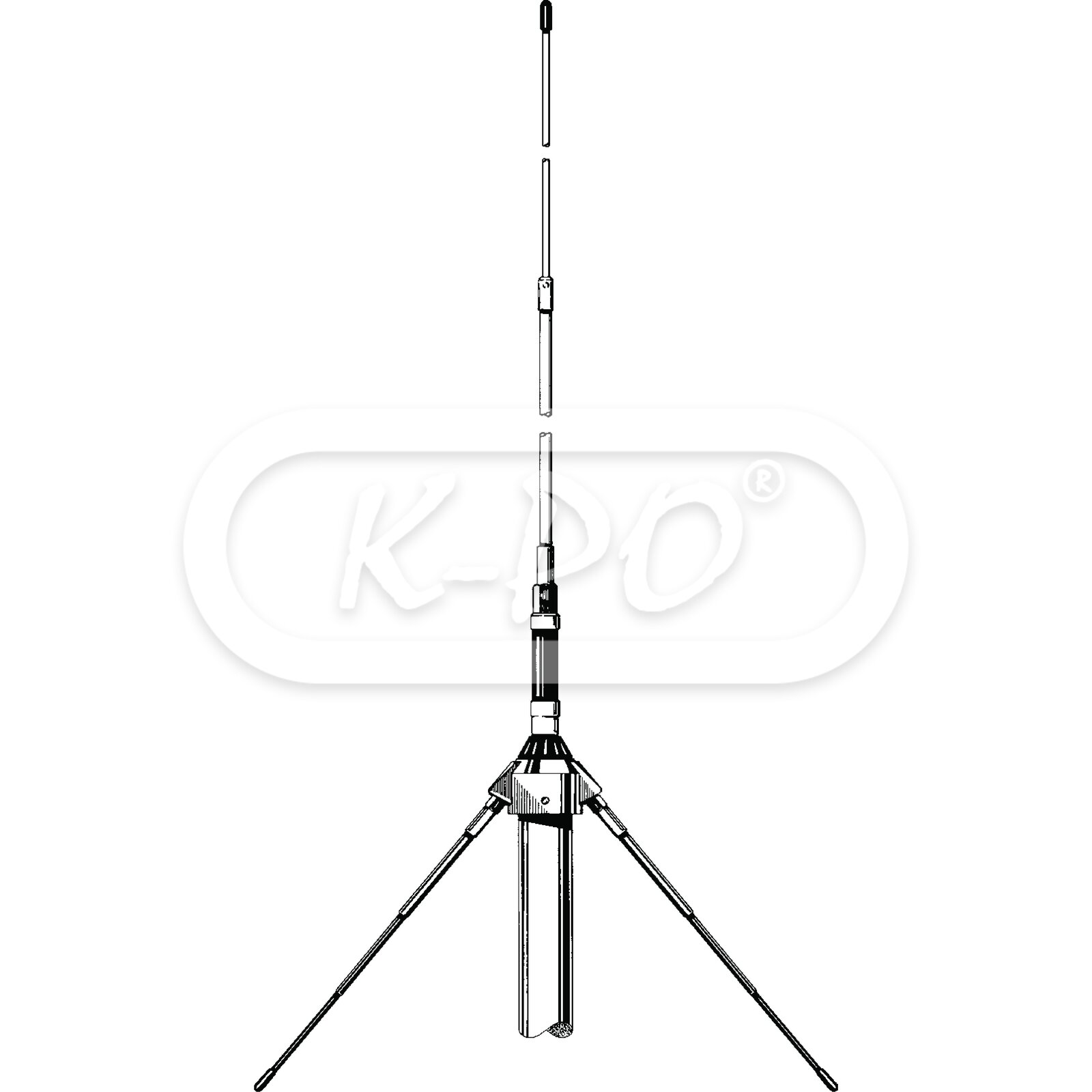

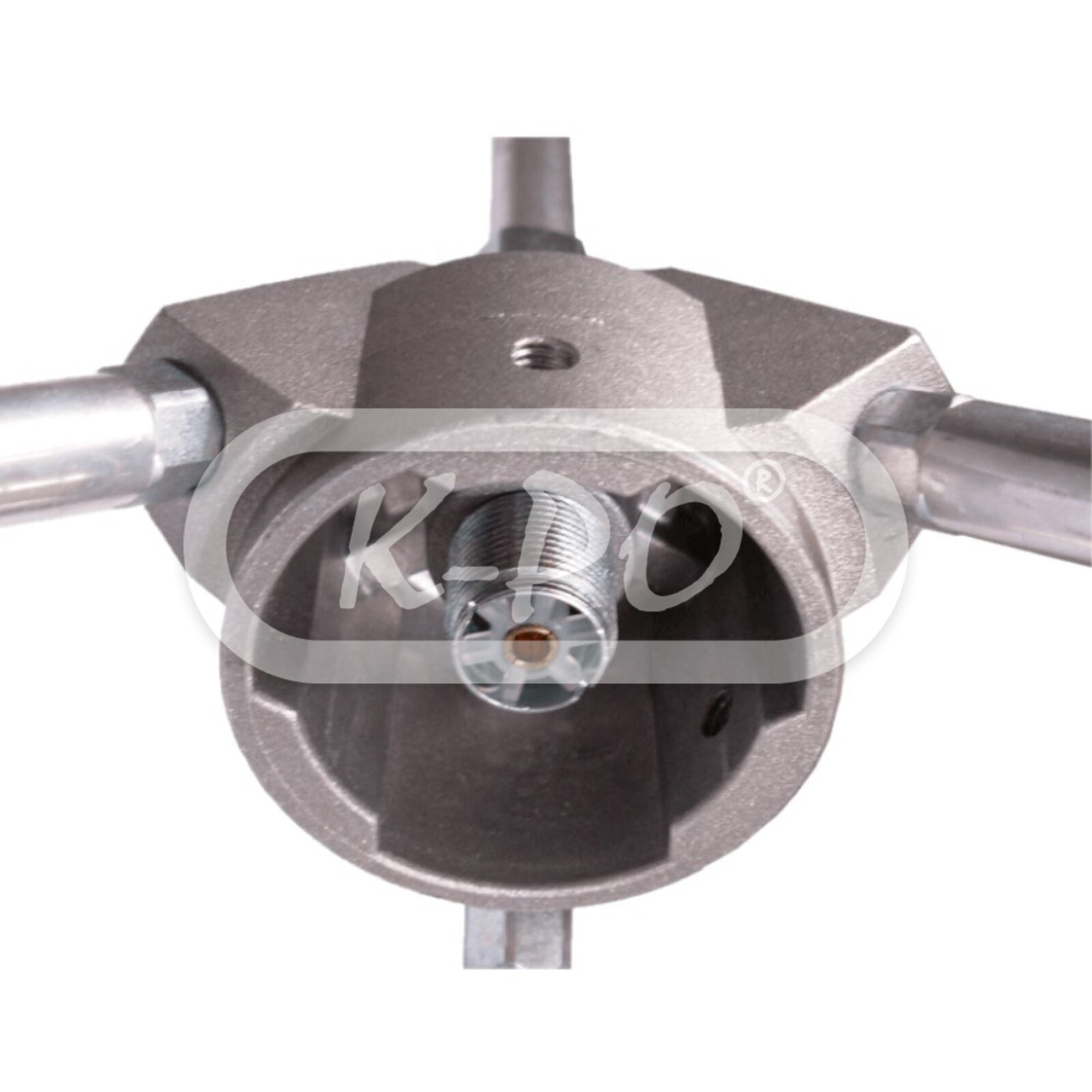

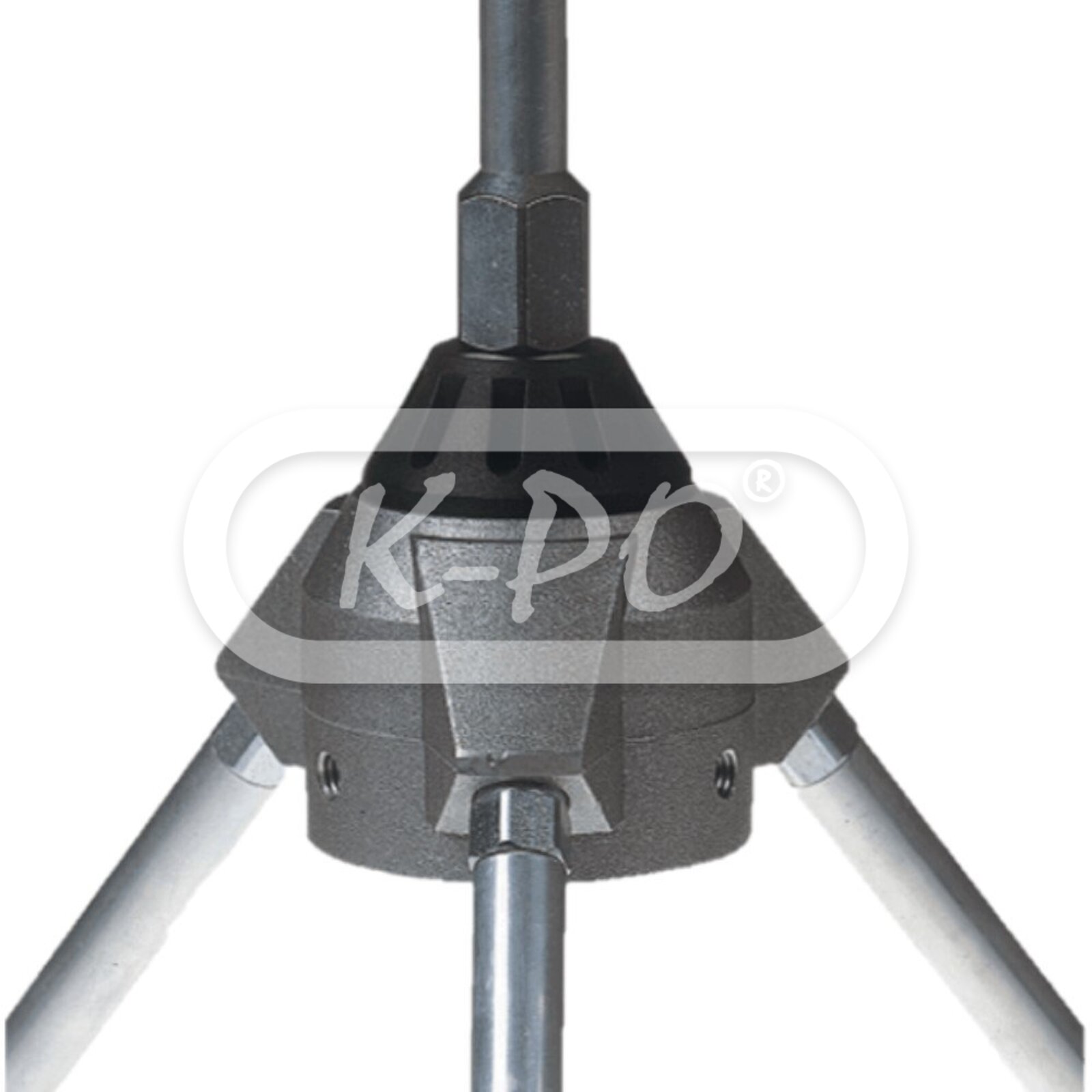

1/4 λ base loaded ground plane base antenna for CB and 10 meter band use. It is entirely made of non-corrosive aluminium and assembled on a strong die-cast base which allows an easy and safe installation assuring very good performances.

Frequency range: 26 - 28 MHz (no tuning required)

Out of stock - Longer delivery time

€69.95 (57.81 excl. 21% VAT)

Electrical data

• Electrical type: 1/4 λ base loaded ground plane
• Gain: 0 dBd, 2.15 dBi
• VSWR: ≤ 1.2
• Bandwidth: 850 kHz ≤ 2.0
• Maximum continuous power: 100 Watts (CW)
• Power peak: 300 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Feed system: Direct / center

Mechanical data

• Materials: Aluminium, chromed brass, stainless steel, nylon, zamak
• Mast Ø: 35 - 40 mm
• Max wind resistance: 130 km/h
• Height: 2370 mm
• Weight: 640 gram
• Mounting type: On mast
• Antenna connector: UHF-female

Inside the box

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English, Italian

Downloads

• Datasheet: Signal keeper
