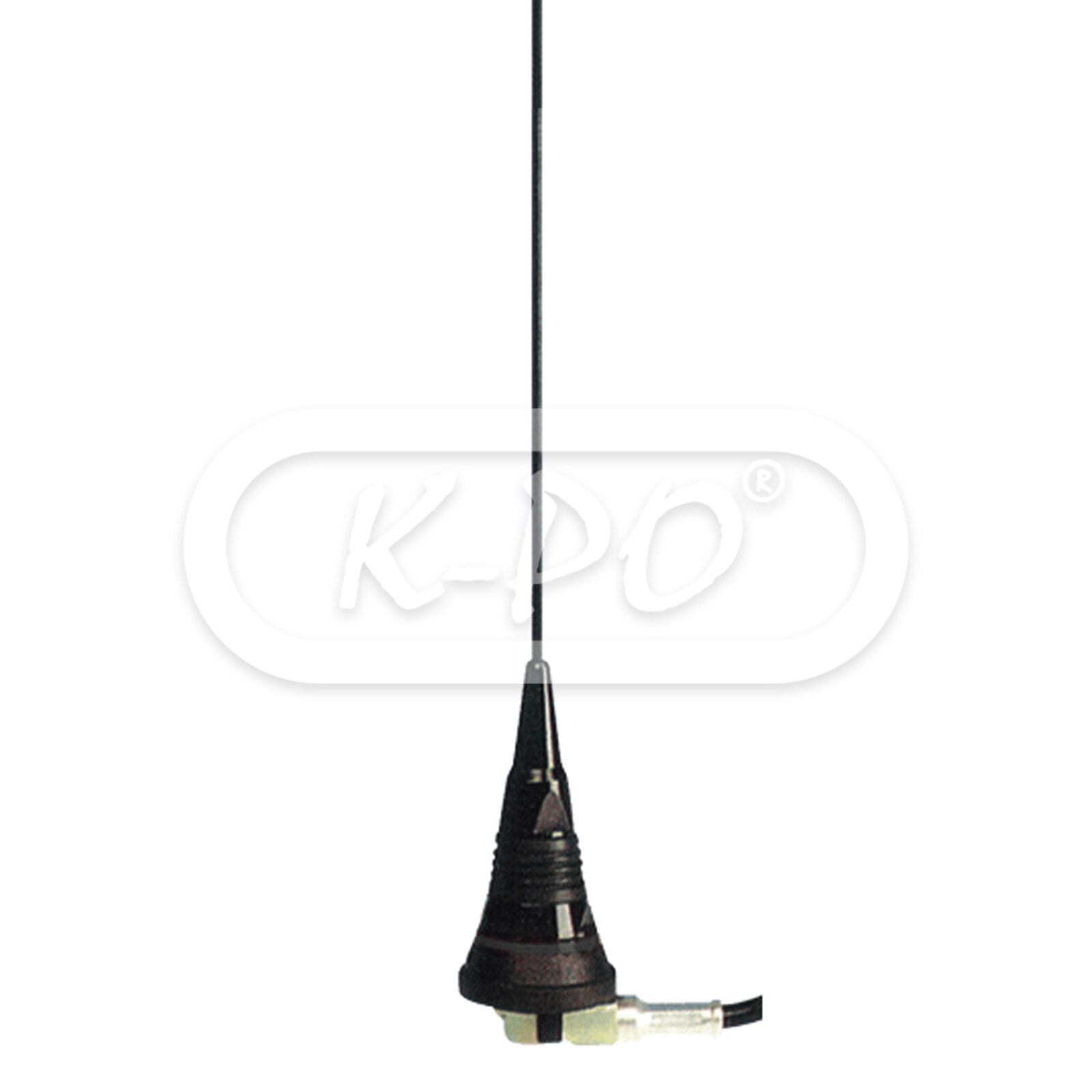

Sirio - SKB 108-960 ML

Product code: 220970648

Factory code: 2209706.48

Barcode: 8056182114525

1/4 λ mobile antenna covering the frequency range of 108 - 960 MHz. Tuning on frequency by using the enclosed cutting diagram. It is made of 17/7 PH stainless steel and supplied with “ML” (Micro Line) mount of small dimensions.

Frequency range: 108 - 960 MHz tunable by cutting

Shipped today - Stock: 3

€27.95 (23.1 excl. 21% VAT)

Electrical data

• Electrical type: 1/4 λ
• VSWR: See the product manual under downloads
• Bandwidth: See the product manual under downloads
• Maximum continuous power: 108 - 550 MHz: 100 Watts (CW) / 550 - 960 MHz: 30 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 5 meter / RG 58

Mechanical data

• Materials: Chromed brass, stainless steel 17/7 PH, nylon
• Height: 700 mm, height depending on frequency
• Weight: 280 gram
• Mounting type: Thru-hole

Inside the box

• Antenna: Yes
• Radio connector: Not included, optional
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English

Downloads

• Datasheet: Id 378 15 06 2006 SKB 108
