Sirio - SM 48/140 S

Sirio - SM 48/140 S

Product code: 2205024
Factory code: 2205024.28
Barcode: 8056182114211

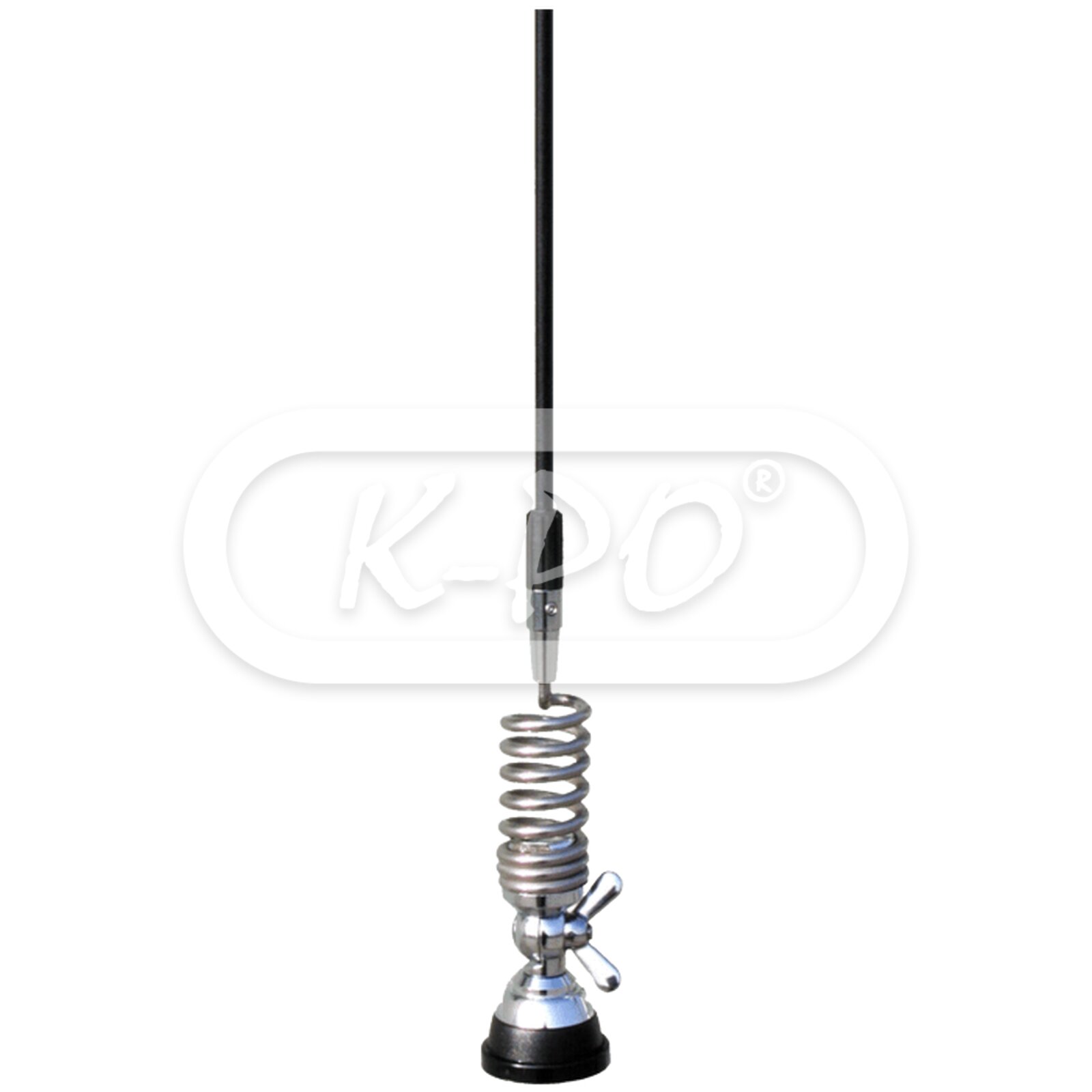

Tunable dual band VHF vehicular antennas working on 6 meter band (47.5 - 60.5 MHz) and 2 meter band (140 - 175 MHz). SM series are made of tapered black fiberglass whip. Supplied with a strong stainless steel spring.

Frequency range: 47.5 - 60.5 / 140 - 175 MHz tunable
Out of stock - Longer delivery time
€38.95 (32.19 excl. 21% VAT)

Electrical data

  • Electrical type: 47.5 - 60.5 MHz: 1/4 λ / 140 - 175 MHz: 5/8 λ
  • Gain: 47.5 - 60.5 MHz: 0 dB / 140 - 175 MHz: 2 dB
  • VSWR: ≤ 1.3 at tuned frequency, on both bands
  • Maximum continuous power: 100 Watts
  • Impedance: 50 Ohm
  • Polarization: Linear vertical
  • Cable: Yes
  • Cable length: 5 meter / RG 58

Mechanical data

  • Materials: Chromed brass, stainless steel 17/7 PH, fiberglass, nylon
  • Height: 1340 mm
  • Weight: 550 gram

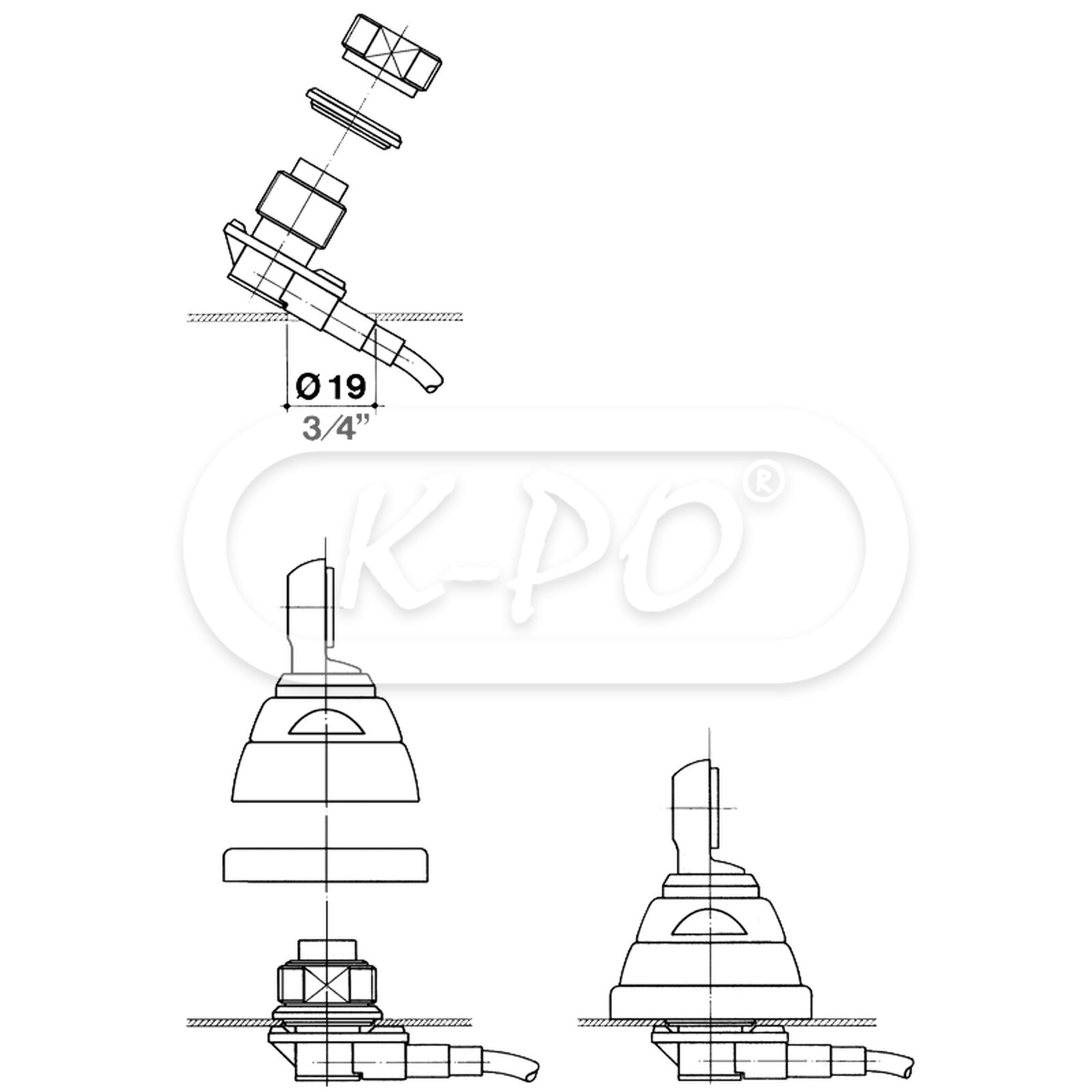

  • Mounting type: Thru-hole

Inside the box

  • Antenna: Yes
  • Radio connector: Not included, optional
  • Mounting parts: Yes
  • Antenna cable: Yes
  • Installation manual: English
