Sirio - SPB-918-10 Cable

Product code: 211020300

Factory code: 2110203.00

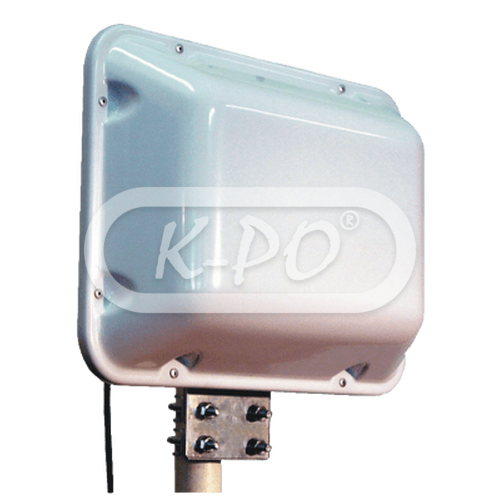

Multi-band base station antenna working on 880-960 and 1.7-2.17 GHz conceived for GSM 900& 1800, PCS 1.9GHz, DECT and UMTS systems. The radiant element is made on a PCB and it is protected by a UV-stabilized radome to get the best performance for long periods of time. It is supplied with an aluminium bracket for an easy installation on the mast. No tuning required.

Frequency range: 880 - 960 MHz / 1.71 - 2.17 GHz

Shipped next business day - Stock: 2

€65.95 (54.5 excl. 21% VAT)

Electrical data

• Electrical type: Panel
• Gain: 900 MHz: 7.3 dBd, 9.4 dBi / 1.8 GHz: 6.6 dBd, 8.7 dBi
• VSWR: 900 MHz ≤ 1.6 / 1.17 - 2.02 GHz ≤ 1.5 / 2.02 - 2.17 GHz ≤ 2.0
• Maximum continuous power: 20 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 30 cm / RG 58

Mechanical data

• Materials: Aluminium, thermoplastic UV stabilized, PCB
• Mast Ø: 25 - 42 mm
• Max wind resistance: 160 km/h
• Length: 305 mm
• Height: 230 mm
• Width: 65 mm (without bracket)
• Weight: 1100 gram
• Mounting type: On mast

Inside the box

• Antenna: Yes
• Radio connector: SMA-male
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English

Downloads

• Datasheet: Id 297 21 07 2003
