Sirio - SPH-1.5-6-17 Cable

Product code: 2130003

Factory code: 2130003.00

Barcode: 8056182110336

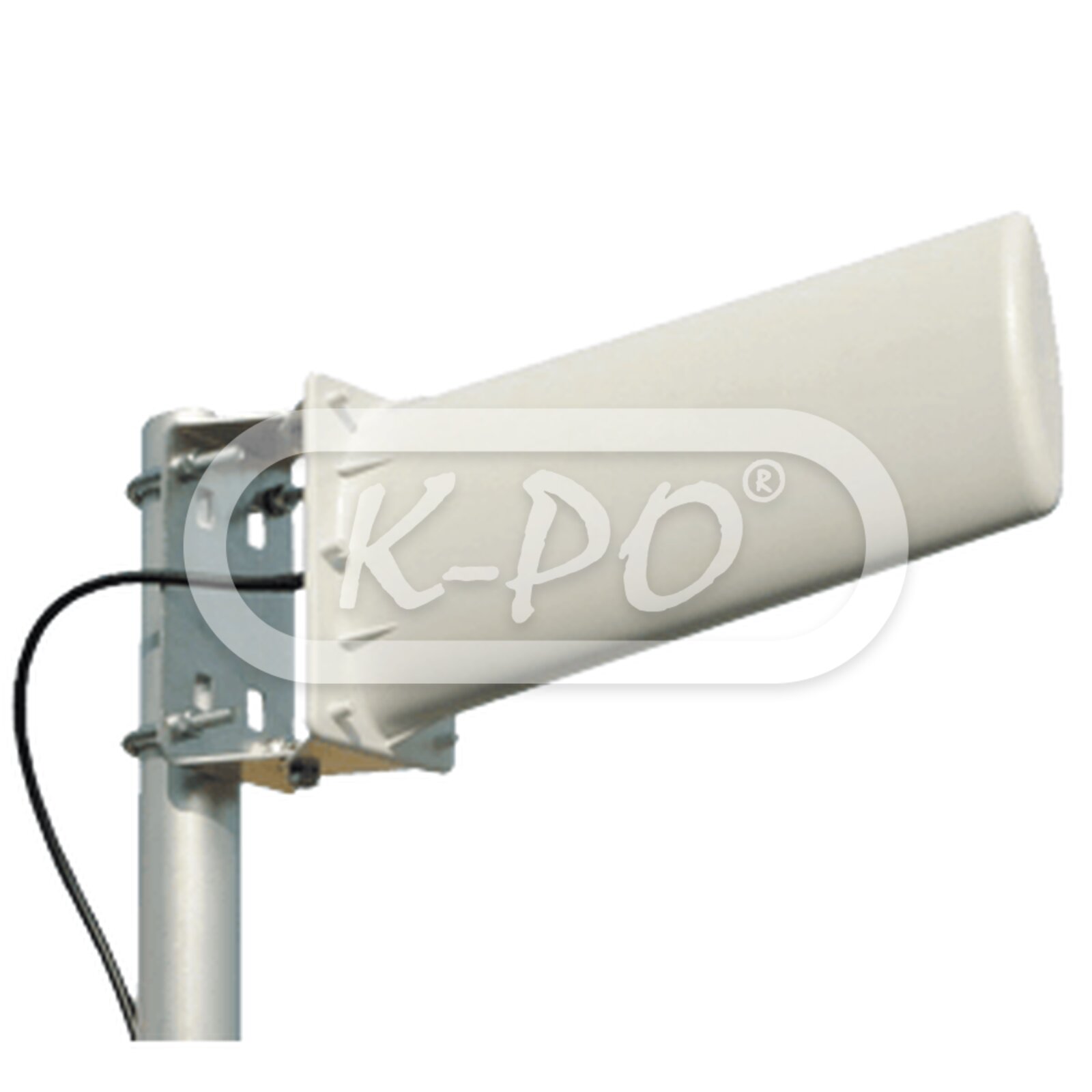

High-gain and extremely wide band directional base station antenna suitable for all systems between 1.5 and 6 GHz, ie GSM 1.8 GHz, DCS 1.9GHz, DECT, UMTS, WLAN 2.4GHz, WLAN 5GHz, WiMAX 2.5GHz and WiMAX 3.5GHz systems. The radiant element is made of PTFE PCB to guarantee high power and low losses. The radiator is protected by a UV-stabilized radome to get the best performance for long periods of time. It is supplied with an adjustable aluminium bracket that allows the best installation flexibility. No tuning required.

Frequency range: 1.5 - 6 GHz

Out of stock - Longer delivery time

€75.95 (62.77 excl. 21% VAT)

Electrical data

• Electrical type: Wide Band PCB
• Gain: 17 dBi, see the product manual under downloads
• VSWR: ≤ 1.5, see the product manual under downloads
• Maximum continuous power: 1.5 - 4 GHz: 15 Watts (CW) / 4 - 6 GHz: 10 Watts
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Materials: Aluminium, stainless steel, thermoplastic UV stabilized, PCB
• Mast Ø: 25 - 42 mm
• Max wind resistance: 180 km/h
• Length: 345 mm
• Height: 135 mm
• Width: 73 mm
• Weight: 450 gram
• Mounting type: On mast, on wall

Inside the box

• Antenna: Yes
• Radio connector: SMA-female
• Mounting parts: Yes
• Installation manual: English

Downloads

• Datasheet: Id 410 08 05 2012 sph
