Sirio - SPO 1090-6

Product code: 213332000

Factory code: 2133320.00

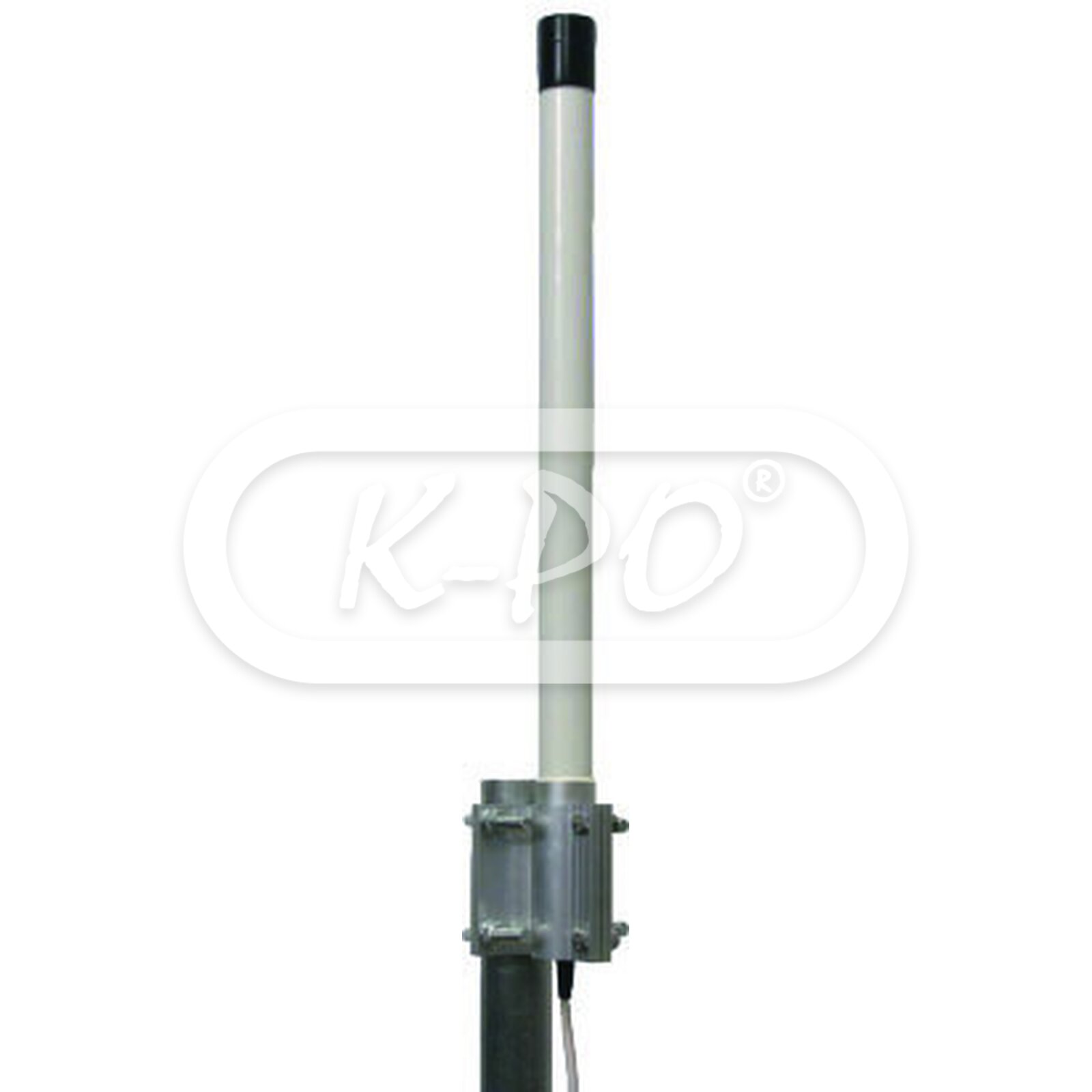

The Sirio SPO 1090-6 is a base antenna that can be used for 1090 MHz
ADS-B flight data reception systems. Strong 55 mm fiberglass tube with
an aluminium bracket for an easy installation on the mast. N-female, gold plated central pin, connector.

Frequency range: 1090 MHz

Shipped next business day

€59.96 (49.55 excl. 21% VAT)

Electrical data

• Electrical type: Dipole
• Gain: 3.85 dBd, 6 dBi
• VSWR: ≤ 1.5
• Maximum continuous power: 20 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Radiation (H-plane): 360° Omnidirectional
• Radiation (E-plane): Beamwidth @ -3dB = 24°
• Radiation angle deg.: 0°

Mechanical data

• Materials: Anodized aluminium, brass, stainless steel, fiberglass, EPDM rubber, copper
• Mast Ø: 35 - 52 mm
• Max wind resistance: 150 km/h
• Height: 690 mm
• Weight: 390 gram
• Mounting type: On mast
• Antenna connector: N-female
• Operating temperature: -40°C to + 80°C

Inside the box

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English

Downloads

• Datasheet: DATA: SPO 1090 6
