Sirio - SPO 440-8

Product code: 2115320440

Factory code: 2115320/440

Barcode: 8056182113917

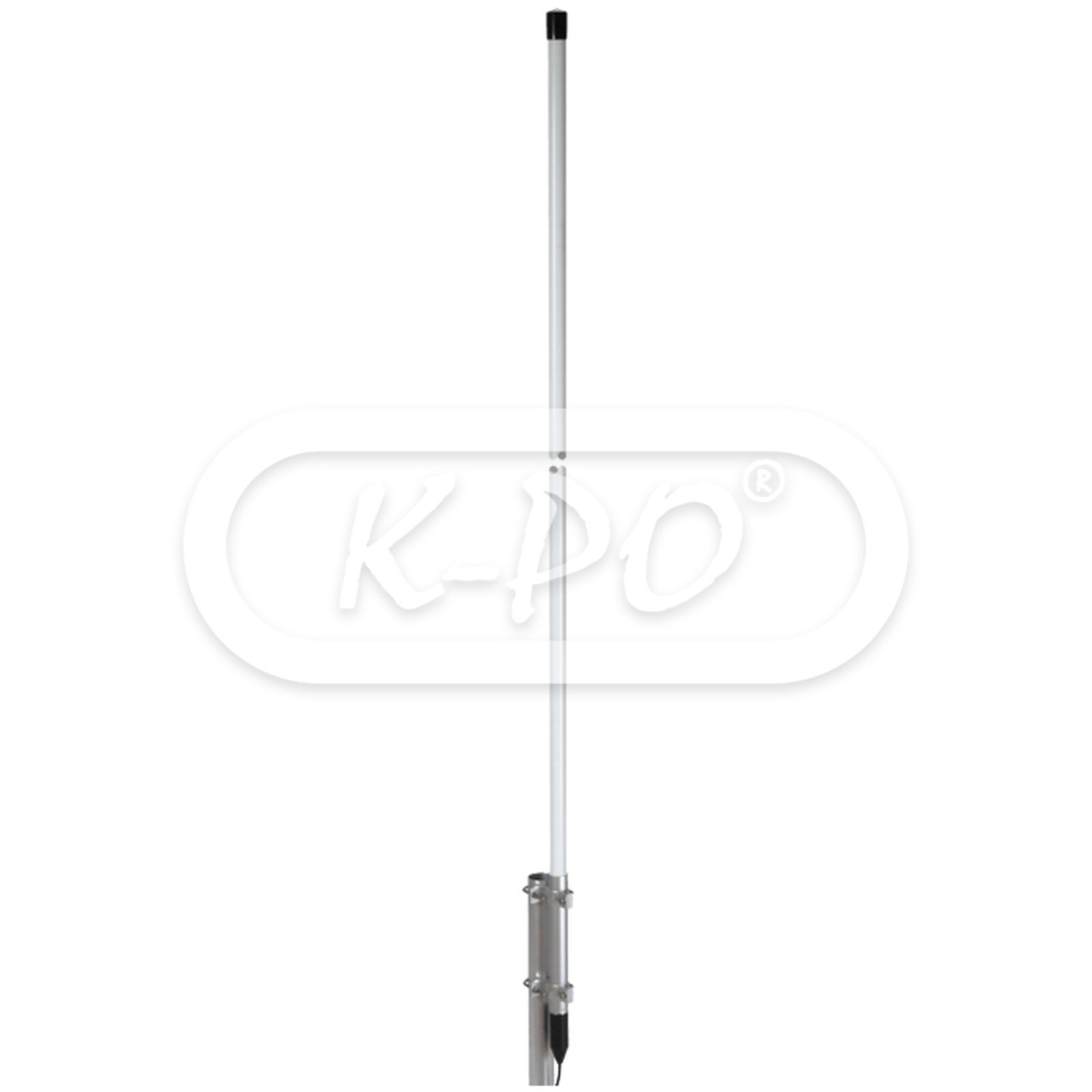

New series of wide band omni-directional base station antennas for UHF band, 440 - 470 MHz. The fiberglass protection random and the anodized aluminium parts guarantee robustness and long life to all the SPO-antennas series. They are supplied with two strong extruded aluminium brackets and stainless steel hardware for a good installation on the mast.

We can not ship this product, shipping cost on request.

Frequency range: 440 - 470 MHz

Note - Price on request

€ -- (Price on request)

Electrical data

• Electrical type: Colinear
• Gain: 6 dBd, 8.15 dB
• VSWR: ≤ 1.5
• Maximum continuous power: 75 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Materials: Anodized aluminium, brass, stainless steel, fiberglass, EPDM rubber
• Mast Ø: 35 - 54 mm
• Max wind resistance: 150 km/h
• Height: 2590 mm
• Weight: 1850 gram
• Mounting type: On mast
• Antenna connector: N-female

Inside the box

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English

Downloads

• Datasheet: Id 386 30 07 2009
