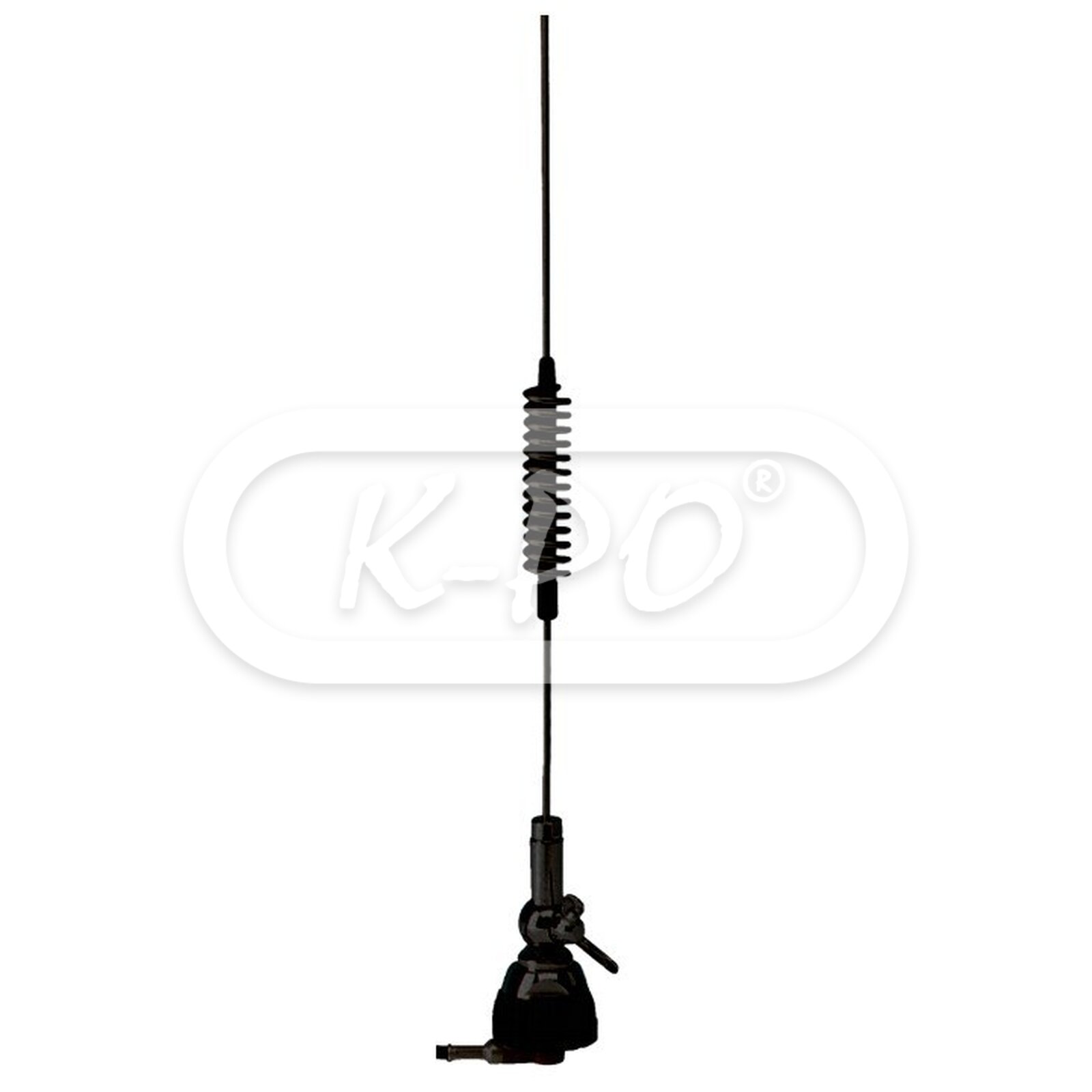

Sirio - SU 370-490 SL black

Product code: 220550633

Factory code: 2205506.33

Barcode: 8056182114327

UHF colinear antennas for mobile service covering the full band 368 - 490 MHz by cutting. The spring radiator is available in 17/7 PH stainless steel or black chromed with a nylon reinforce to get the maximum strength and flexibility.

Frequency range: 365 - 490 MHz tunable

Out of stock - Longer delivery time

€38.95 (32.19 excl. 21% VAT)

Electrical data

• Electrical type: 1/4 λ + 1/2 λ Colinear
• Gain: 3.5 dB ref. to a λ/4 whip (5.6 dBi)
• VSWR: ≤ 1.2
• Bandwidth: ≥ 20 MHz @ SWR ≤ 1.5
• Maximum continuous power: 100 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 5 meter / RG 58

Mechanical data

• Materials: Chromed brass, stainless steel 17/7 PH, nylon
• Height: 745 mm
• Weight: 420 gram

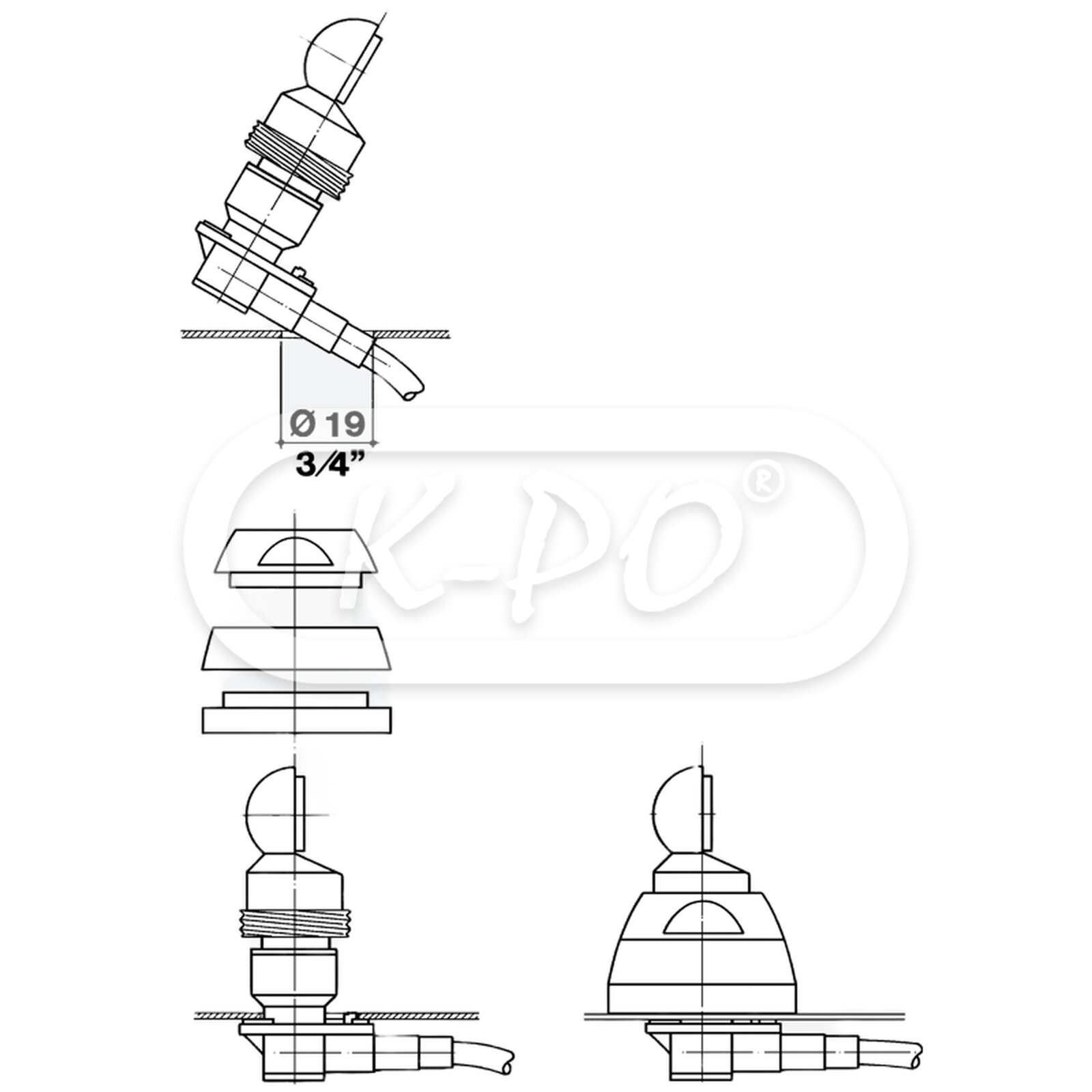

• Mounting type: Thru-hole

Inside the box

• Antenna: Yes
• Radio connector: Not included, optional
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English

Downloads

• Datasheet: Id 120 su 370 490 web
