Sirio - T-27

Product code: 200106

Factory code: 2201015.01

Barcode: 8056182113924

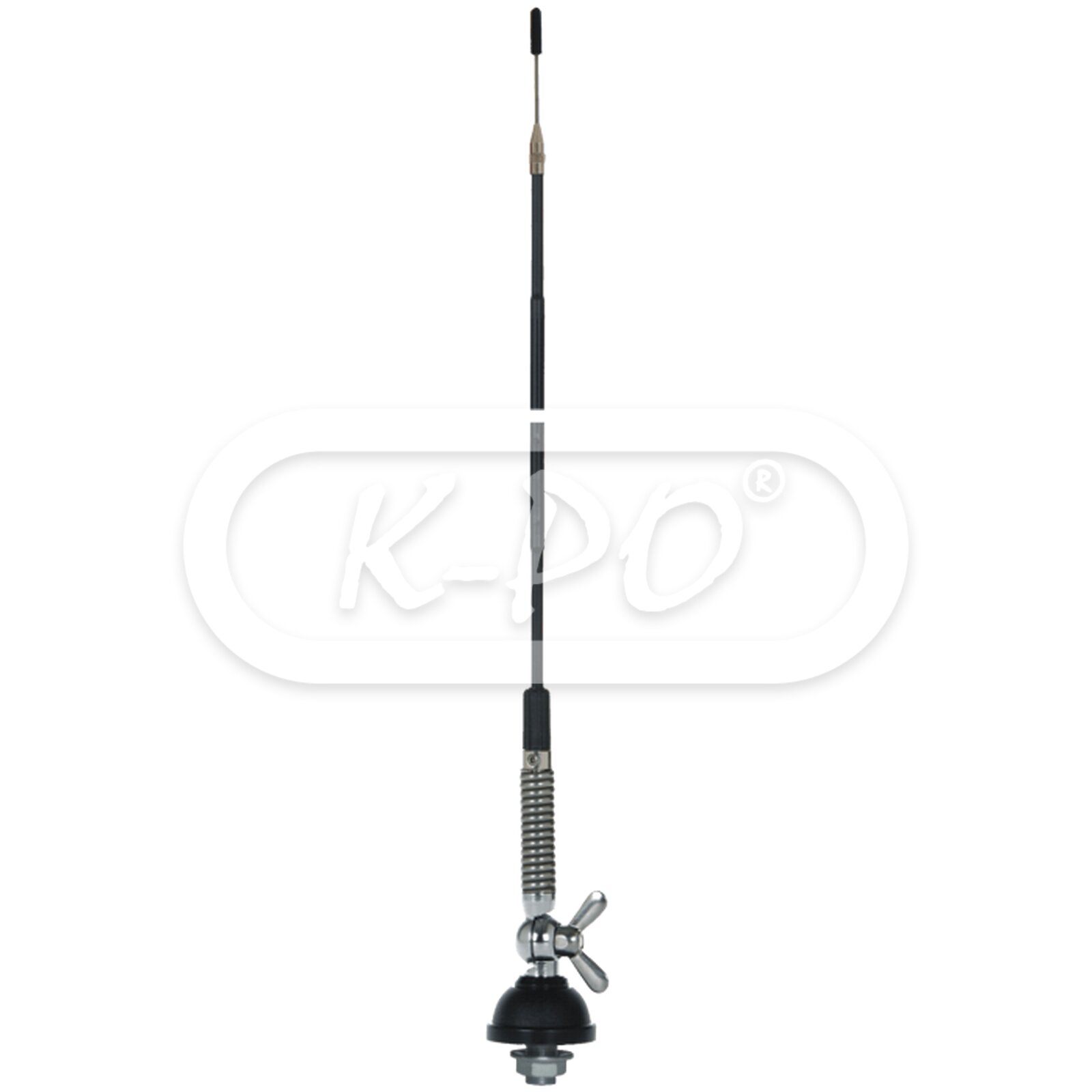

Mobile antenna particularly suitable for truck roof and agricultural machine installation. The radiator is of glass fibre and its spring is of stainless steel, tiltable for 180 degrees and tunable top whip.

Frequency range: 26.5 - 28.5 MHz

Shipped next business day

€29.95 (24.75 excl. 21% VAT)

Electrical data

• Electrical type: Central loaded
• VSWR: ≤ 1.2
• Bandwidth: 440 kHz (40 channels) ≤ 2.0
• Maximum continuous power: 20 Watts (CW)
• Power peak: 100 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable length: 4 meter / RG 58

Mechanical data

• Materials: Copper, stainless steel, fiberglass
• Height: 555 mm
• Weight: 330 gram
• Mounting type: Thru-hole

Inside the box

• Antenna: Yes
• Radio connector: Not included, optional
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English, Italian

Downloads

• Datasheet: Id 152 02 07 2008 1 T 27
