Sirio - T3 27

Product code: 200139

Factory code: 2207015.01

Barcode: 8056182112378

One of the most used antennas on trucks and agricultural machines. Tunable top screw to fine-tune the antenna, with a protective rubber cap.

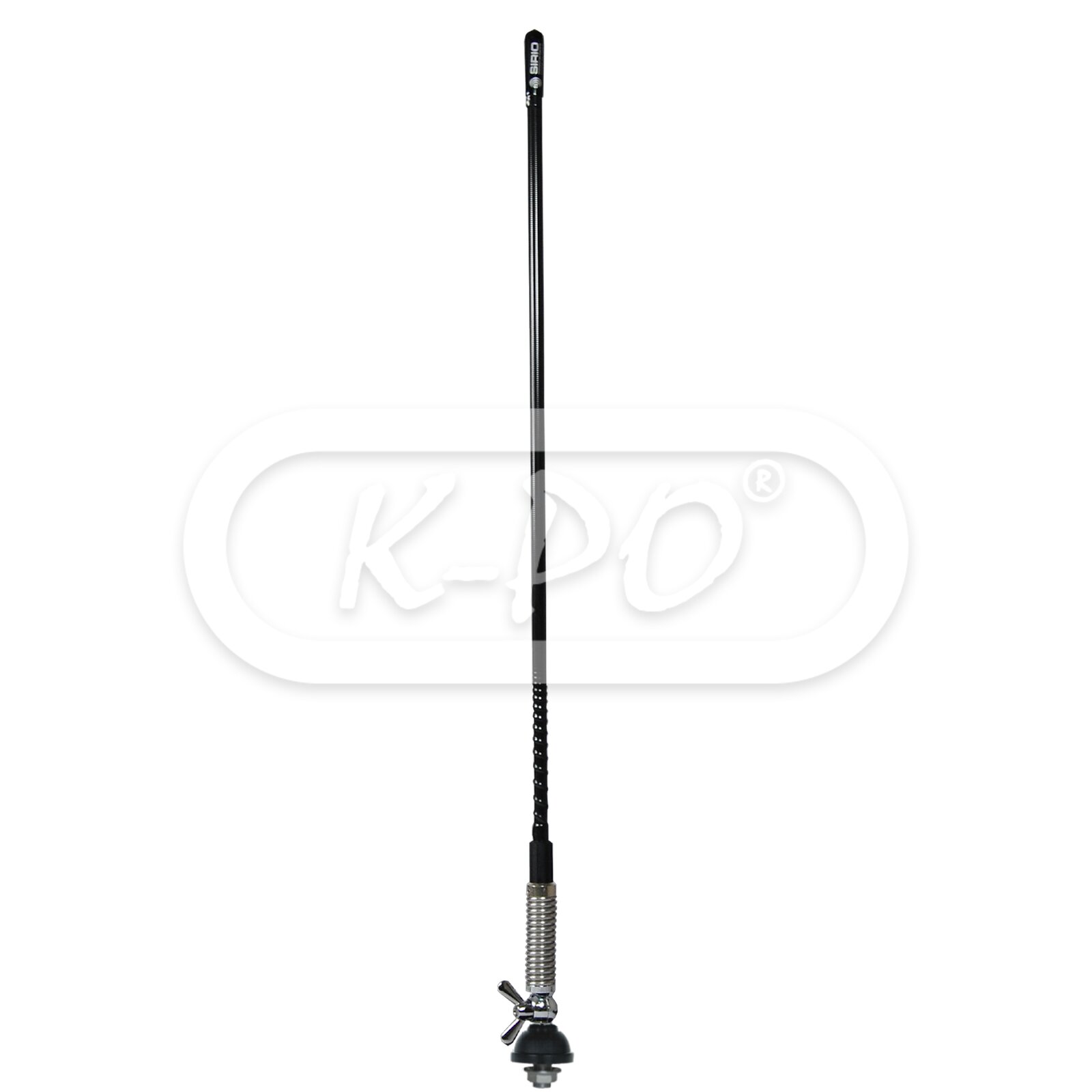

Note: when the situation allows we recommend to use the new, improved and longer Sirio T4 series. Which will give a better performance in most situations.

Frequency range: 26.9 - 27.5 MHz

Shipped today

€32.95 (27.23 excl. 21% VAT)

Electrical data

• Electrical type: Logarithmic loaded
• VSWR: ≤ 1.2
• Bandwidth: 700 kHz (65 channels) ≤ 2.0
• Maximum continuous power: 20 Watts (CW)
• Power peak: 100 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes

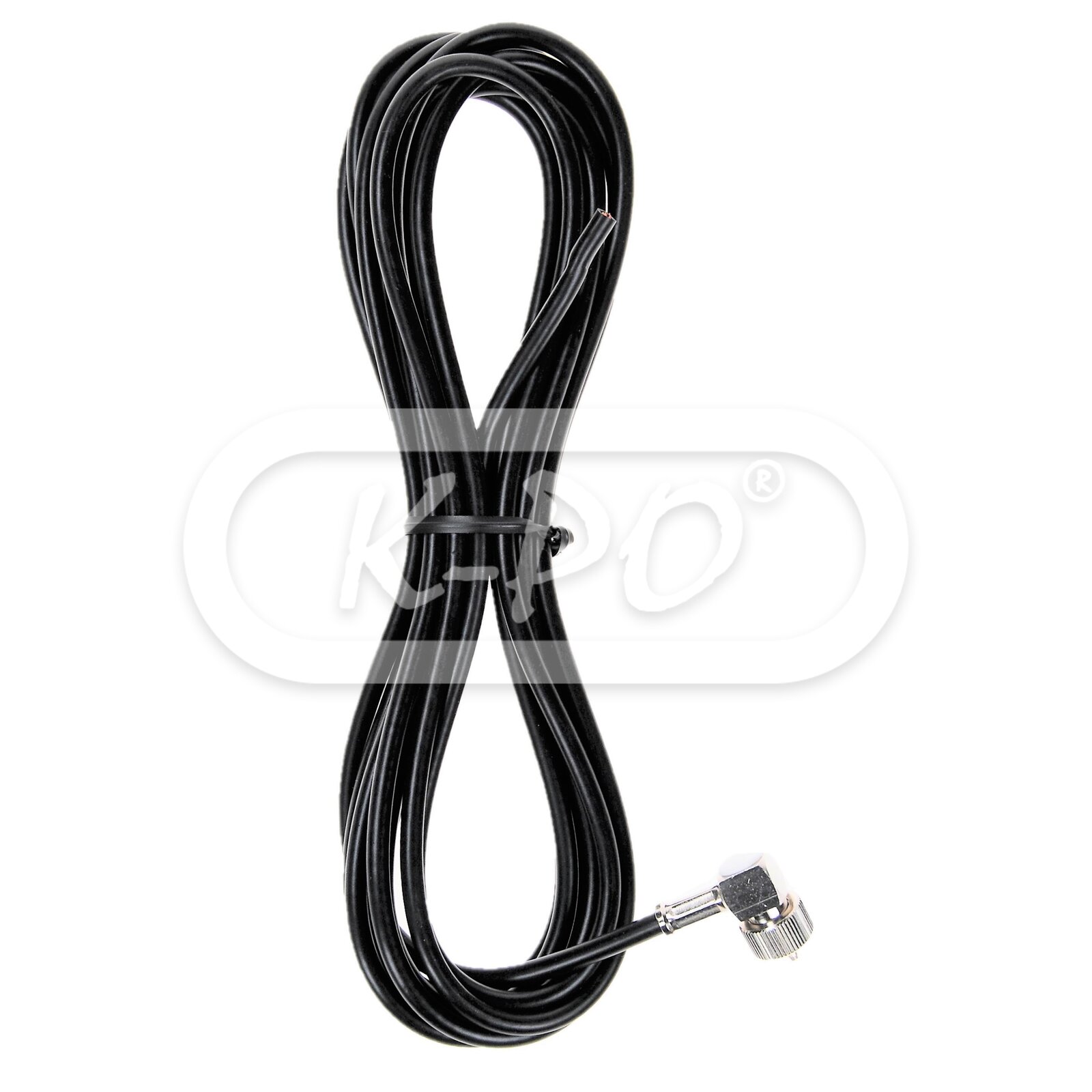

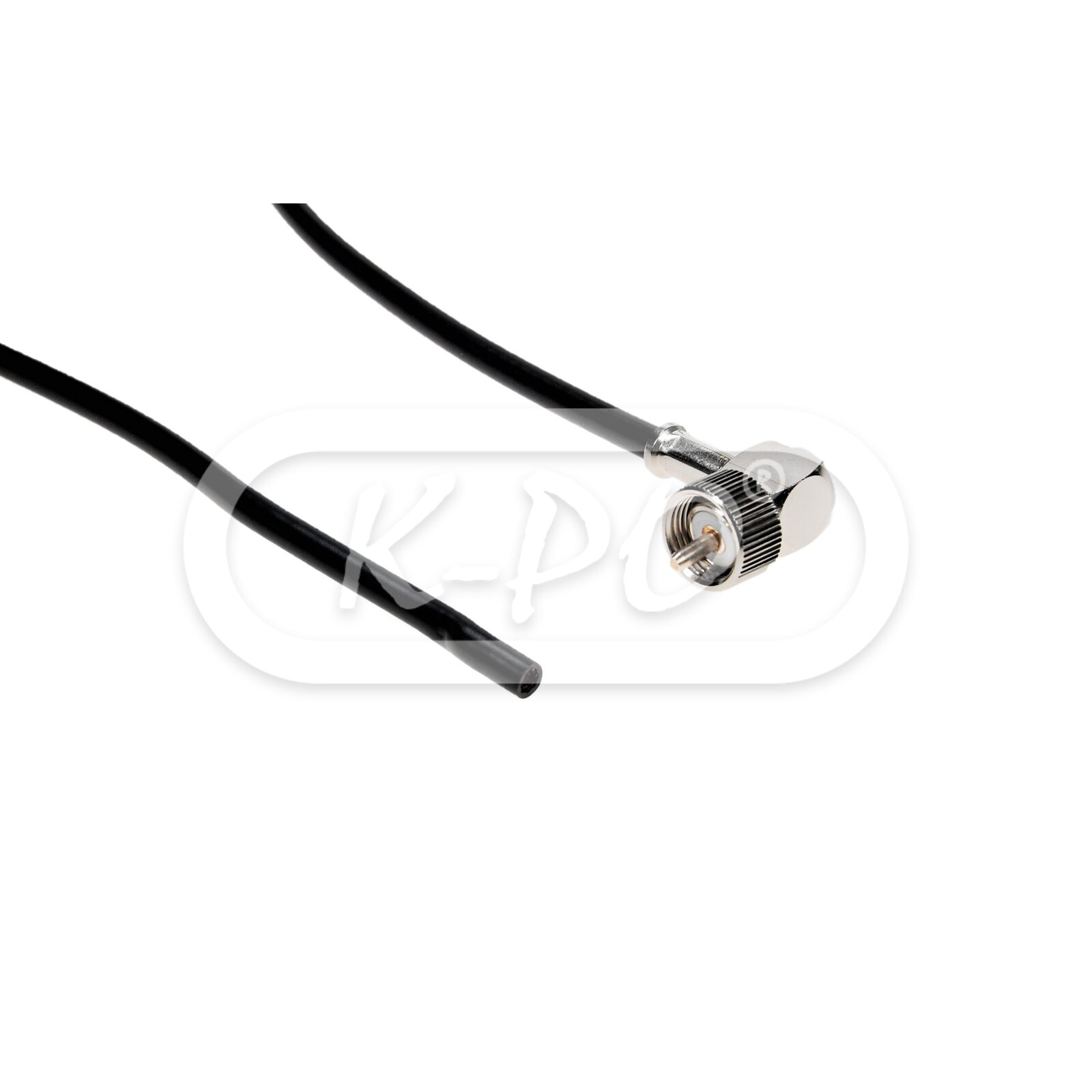

• Cable length: 4 meter / RG 58

Mechanical data

• Materials: Brass, stainless steel, nylon
• Height: 620 mm
• Weight: 400 gram
• Mounting type: Thru-hole

Inside the box

• Antenna: Yes
• Radio connector: Not included, optional

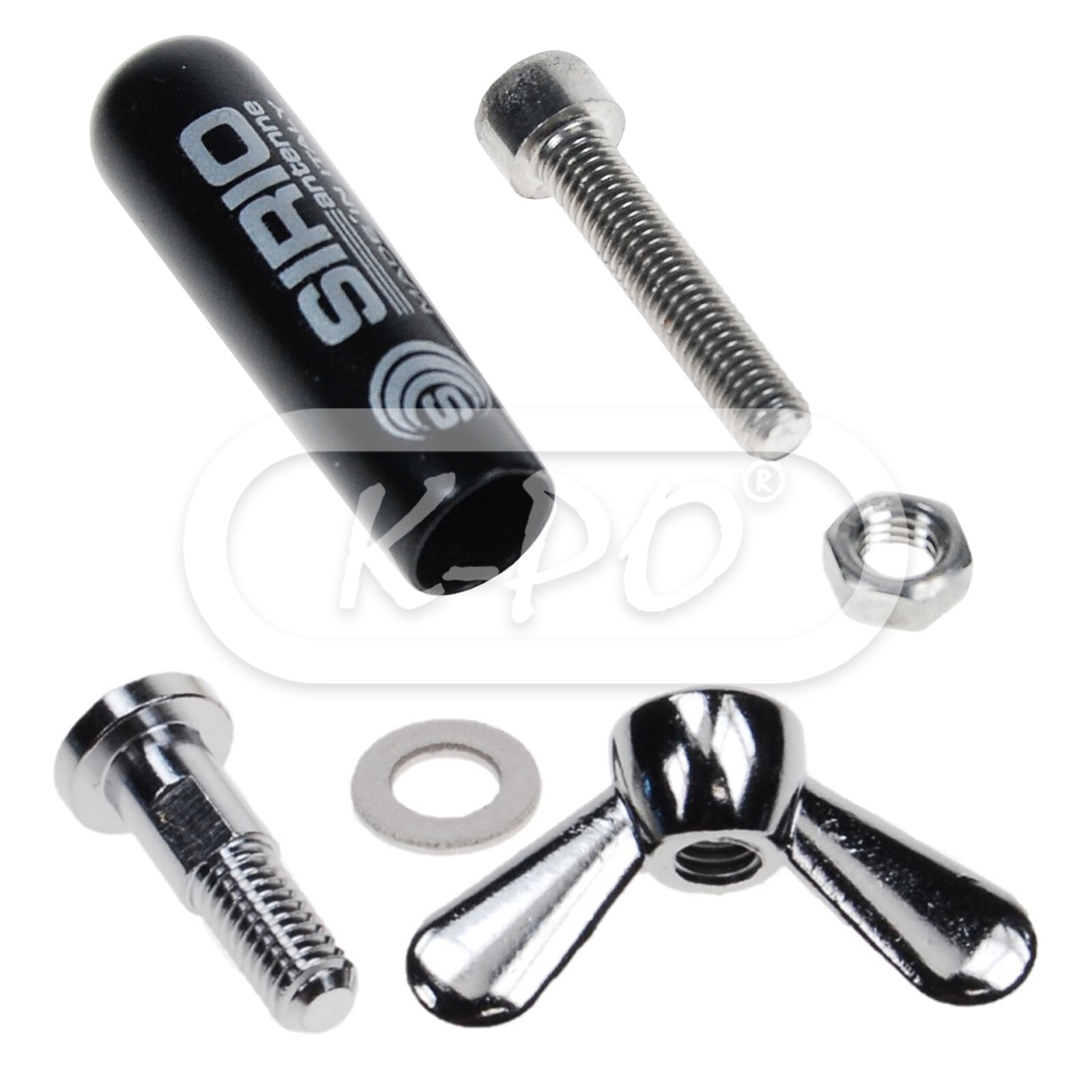

• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English, Italian

Downloads

• Datasheet: Id 152 02 07 2008 t series
