Sirio - T4 27 MAG Sirio - T4 27 MAG Sirio - T4 27 MAG

Sirio - T4 27 MAG

Product code: 7100027
Factory code: 7100027
Barcode: 8718375103081

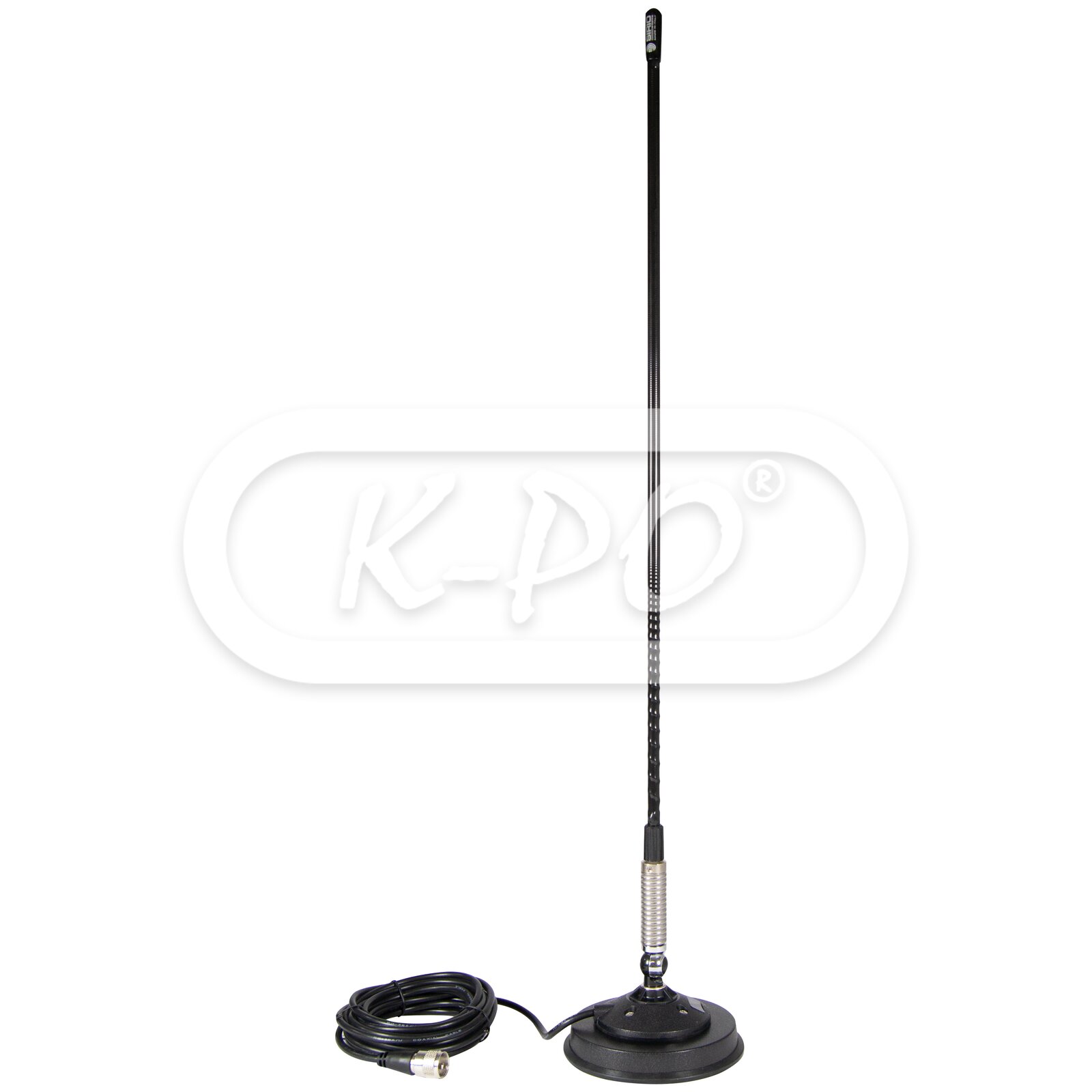

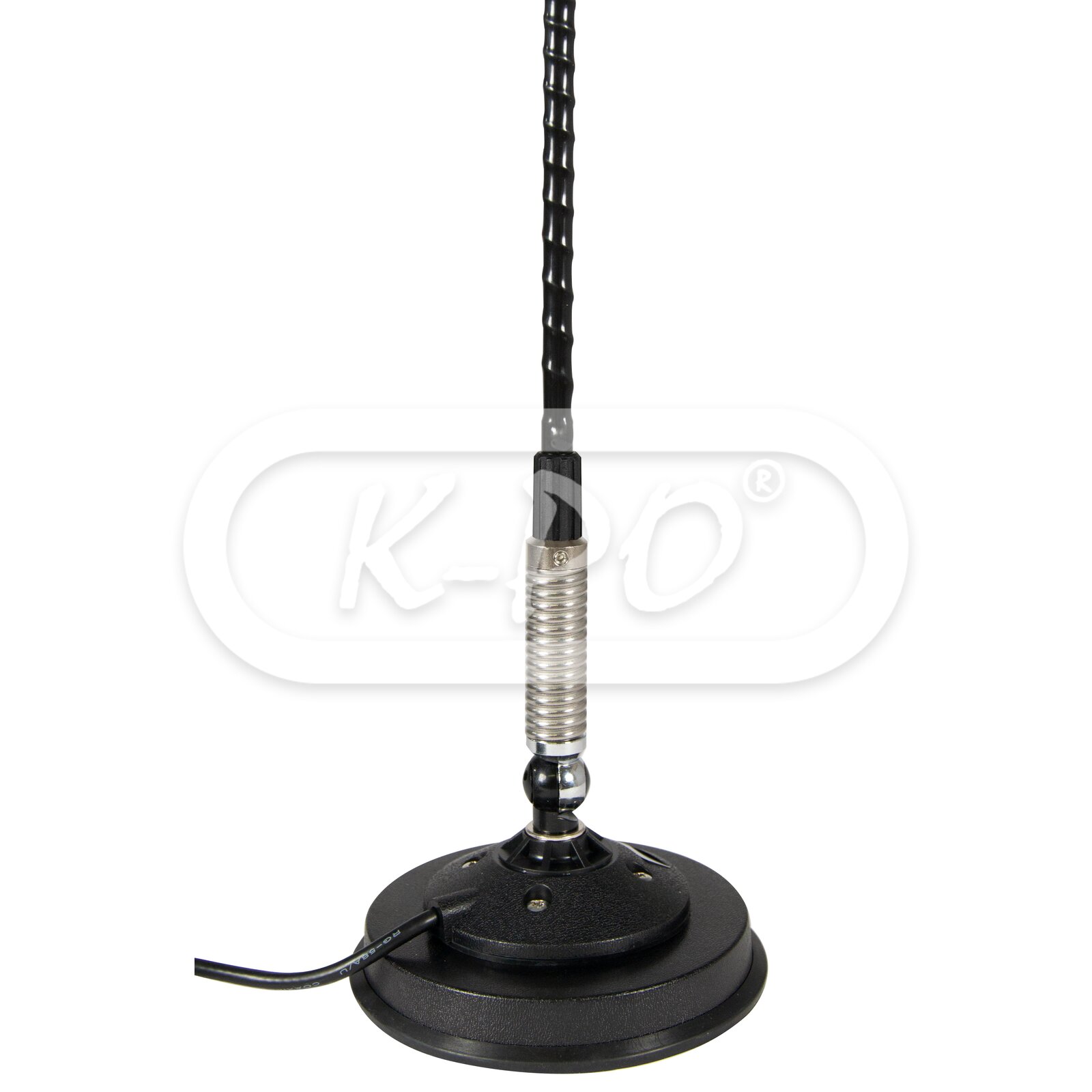

The Sirio T4 27 MAG is an antenna set with the popular Sirio T4 whip and the strong K-PO 125 magnet. The Sirio T4 is the improved and longer version of the Sirio T3 series. The T4 will give a better performance in most situations.

One of the most used antennas on trucks and agricultural machines. Tunable top screw with protective rubber cap.

Frequency range: 26.9 - 27.5 MHz
Shipped next business day - Stock: 6
€46.95 (38.8 excl. 21% VAT)

Electrical data

  • Electrical type: Logarithmic loaded
  • VSWR: ≤ 1.2
  • Bandwidth: 700 kHz (65 channels) ≤ 2.0
  • Maximum continuous power: 20 Watts (CW)
  • Power peak: 100 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical
  • Cable: Yes
  • Cable length: 4.4 meter / RG 58

Mechanical data (antenna)

  • Materials: Brass, stainless steel, nylon
  • Height: 735 mm
  • Weight: 200 gram

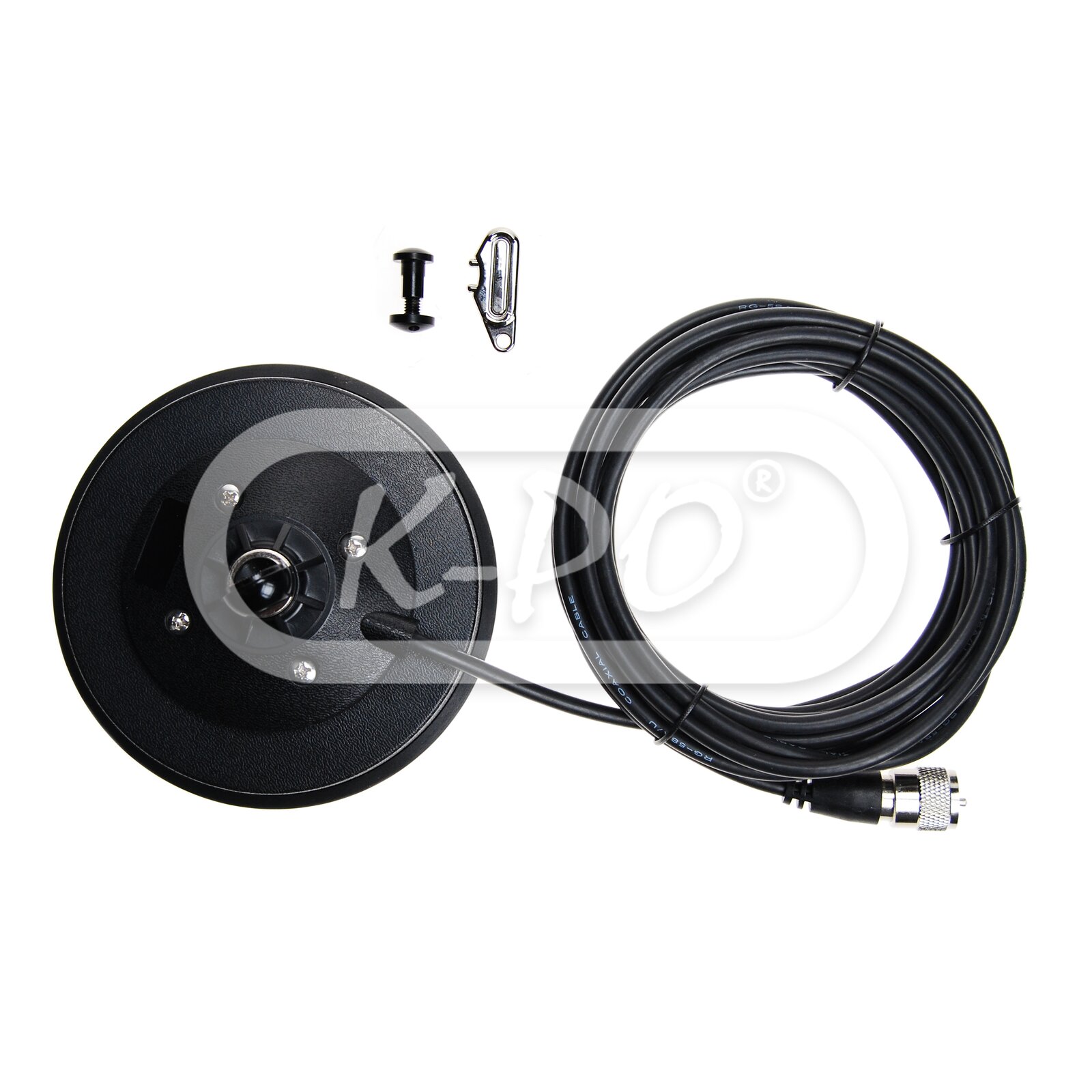

Mechanical data (magnet)

  • Cable length: 4.4 meter
  • Cable type: RG 58A/U
  • Weight: 1025 gram
  • Diameter magnet: 125 mm

Inside the box

  • Antenna: Yes
  • Radio connector: UHF-male (PL)
  • Mounting parts: Yes
  • Antenna cable: Yes
  • Installation manual: English, Italian
