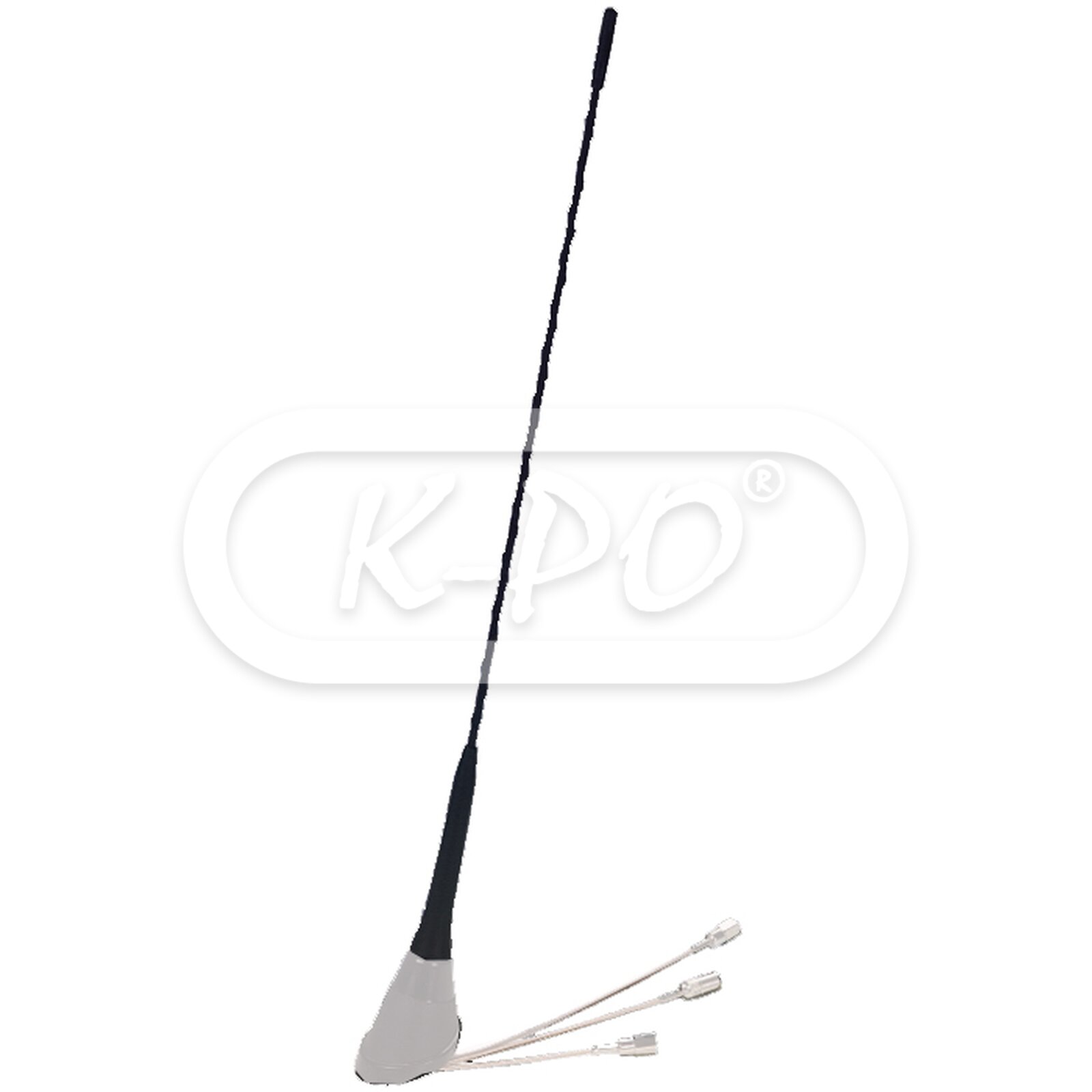

Sirio - Triflex whip

Product code: 2416215

Replacement whip for the Sirio Triflex. Whip only, without accessories.

Frequency range: CB (TX/RX): 26.8 - 27.6 MHz / AM (RX): 150 KHz -1.6 MHz / FM (RX): 87.5 - 108 MHz / GSM 900 (TX/RX): 890 - 915 MHz, (RX) 925 - 960 MHz

Shipped next business day - Stock: 8

€18.95 (15.66 excl. 21% VAT)

Electrical data

• Electrical type: CB: 1/4 λ central loaded / AM-FM: 1/4 λ helical loaded / GSM: 1/4 λ
• VSWR: ≤ 1.2
• Bandwidth: CB: 440 kHz (40 channels) ≤ 2.0 / GSM 900: 100 MHz ≤ 2.0
• Maximum continuous power: CB: 10 Watts (CW) / GSM 900: 20 Watts (CW)
• Impedance: CB, GSM 900: 50 Ohm / AM-FM: 150 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: CB: 215 mm, RG 316, FME male / AM-FM: 165 mm, RG 316, M10x0.75 male / GSM 900: 120 mm, RG 316, FME male

Mechanical data

• Materials: Aluminium, copper, chromed brass, nylon
• Height: 500 mm
• Weight: 120 gram

Inside the box

• Antenna: Yes

Downloads

• Datasheet: Id 267 teriflex 07 05 2012
