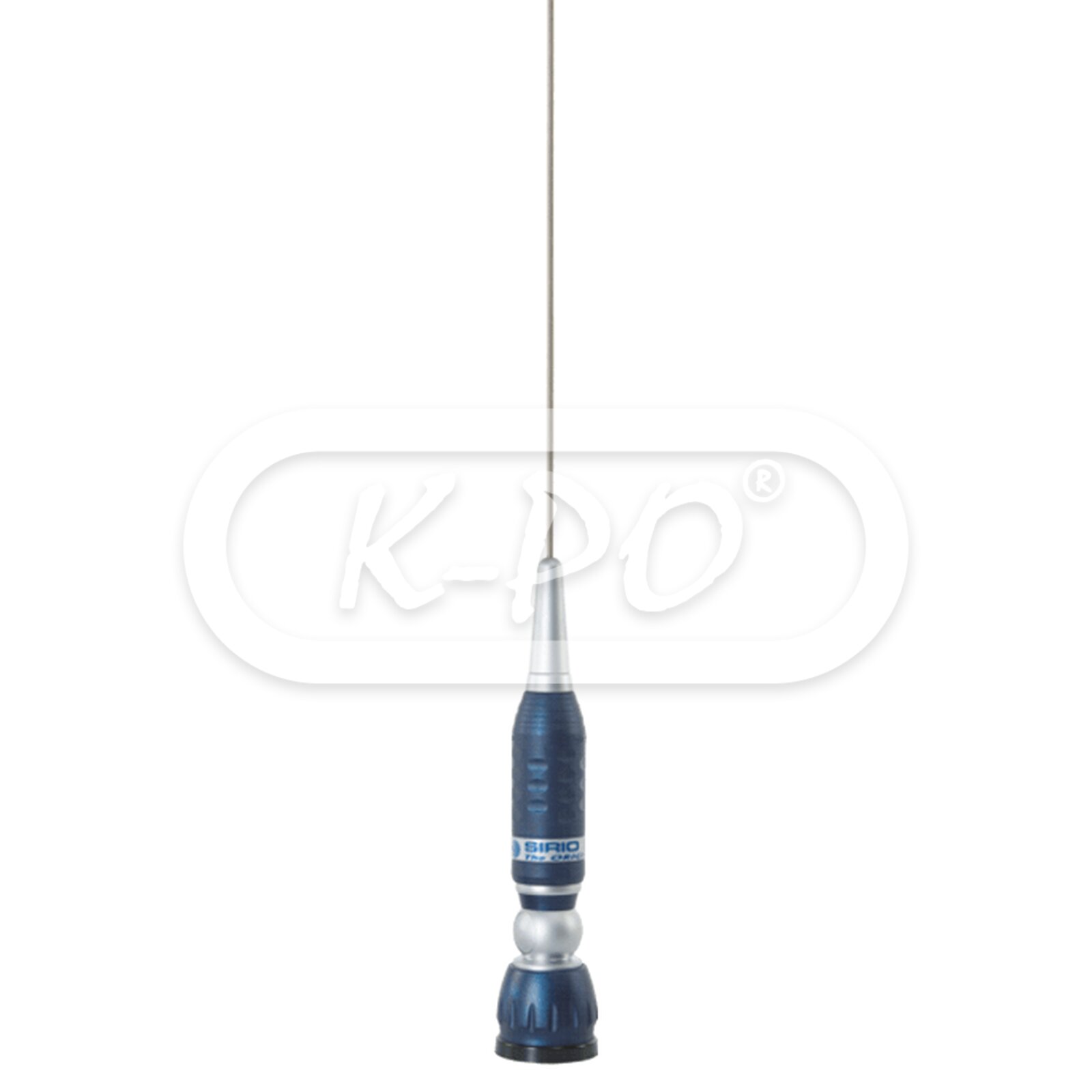

Sirio - Turbo 1000

Product code: 200129

Factory code: 2202005.40

Barcode: 8056182110039

One of the best high power antenna series in the market. Easy adjustable system to put the antenna in an angle.

Frequency range: 27 - 28.5 MHz

Out of stock - Longer delivery time

€53.95 (44.59 excl. 21% VAT)

Electrical data

• Electrical type: Base loaded
• VSWR: ≤ 1.2
• Bandwidth: 600 kHz (60 channels) ≤ 2.0
• Maximum continuous power: 200 Watts (CW)
• Power peak: 1000 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 4 meter / RG 58

Mechanical data

• Materials: Copper, brass, stainless steel 17/7 PH, nylon
• Height: 1150 mm
• Weight: 580 gram

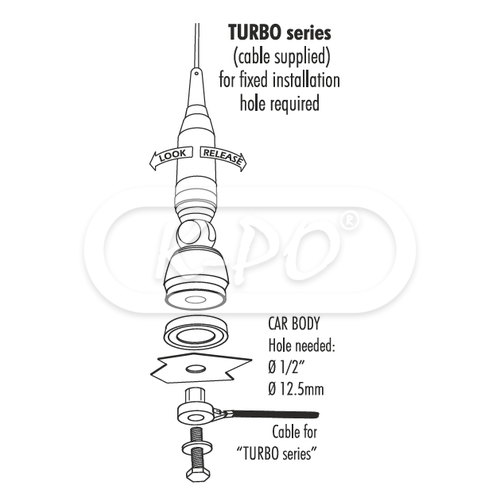

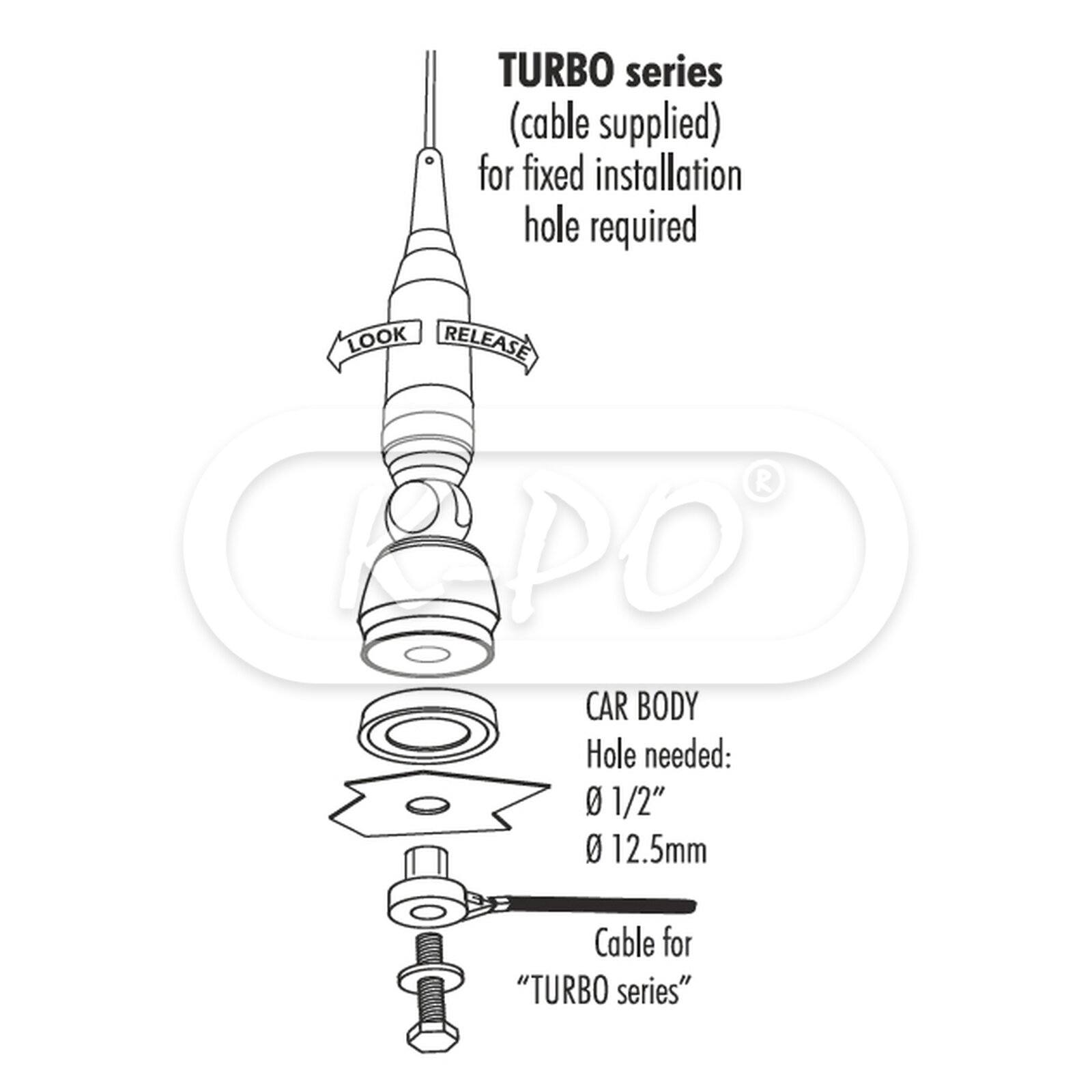

• Mounting type: Thru-hole

Inside the box

• Antenna: Yes
• Radio connector: Not included, optional
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English, Italian

Downloads

• Datasheet: Id 398 20 11 2019 turbo serie web
