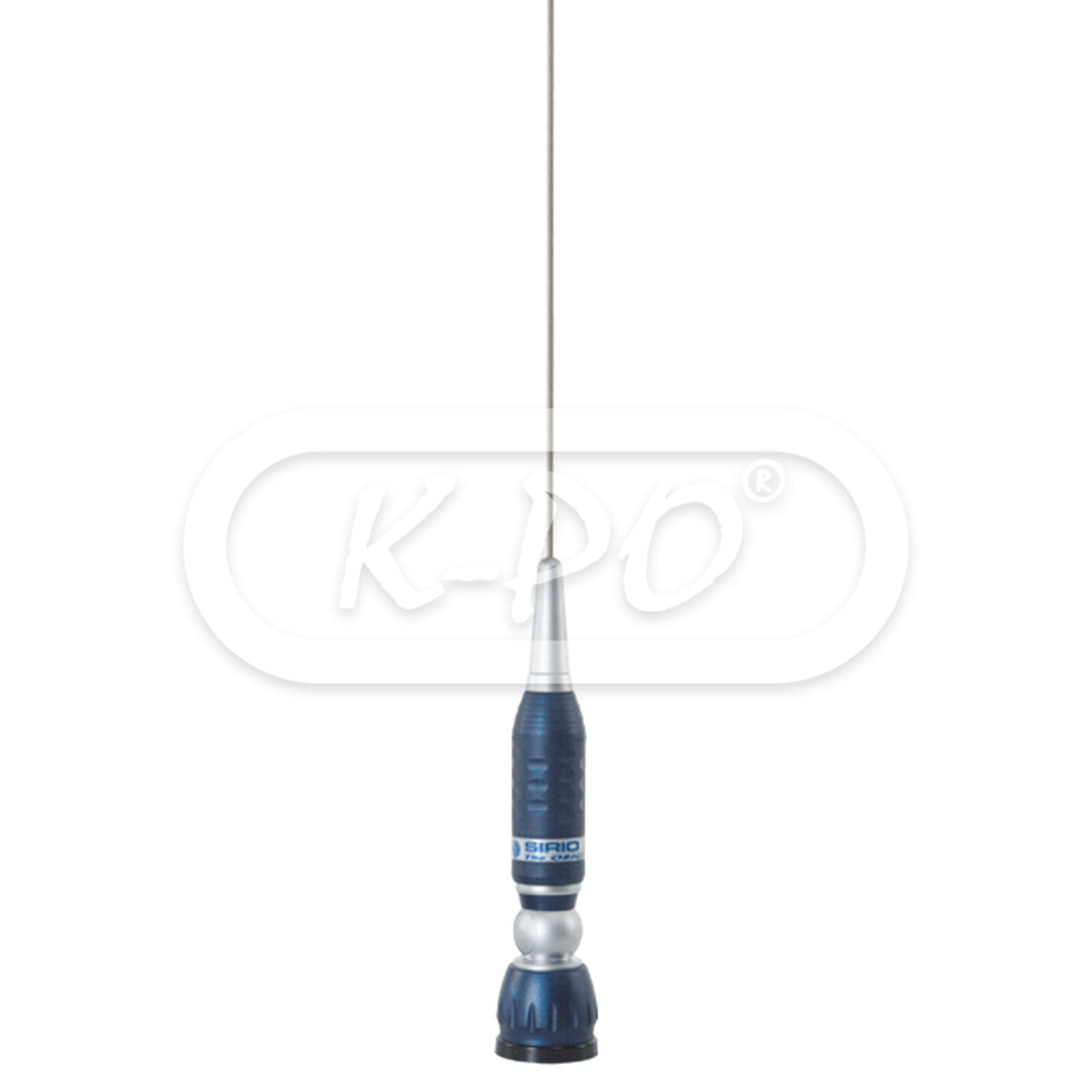

Sirio - Turbo 3000 FME

Product code: 200162

Factory code: 2202405.40/FME

One of the best high power antenna series in the market. Easy adjustable system to put the antenna in an angle.

With FME female connector on the cable end for an easy installation of an optional and matching PL 259 connector, for example product code 30002.

Frequency range: 27 - 28.5 MHz

Out of stock - Longer delivery time

€59.94 (49.54 excl. 21% VAT)

Electrical data

• Electrical type: Base loaded
• VSWR: ≤ 1.2
• Bandwidth: 1600 kHz (140 channels) ≤ 2.0
• Maximum continuous power: 200 Watts (CW)
• Power peak: 1000 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes

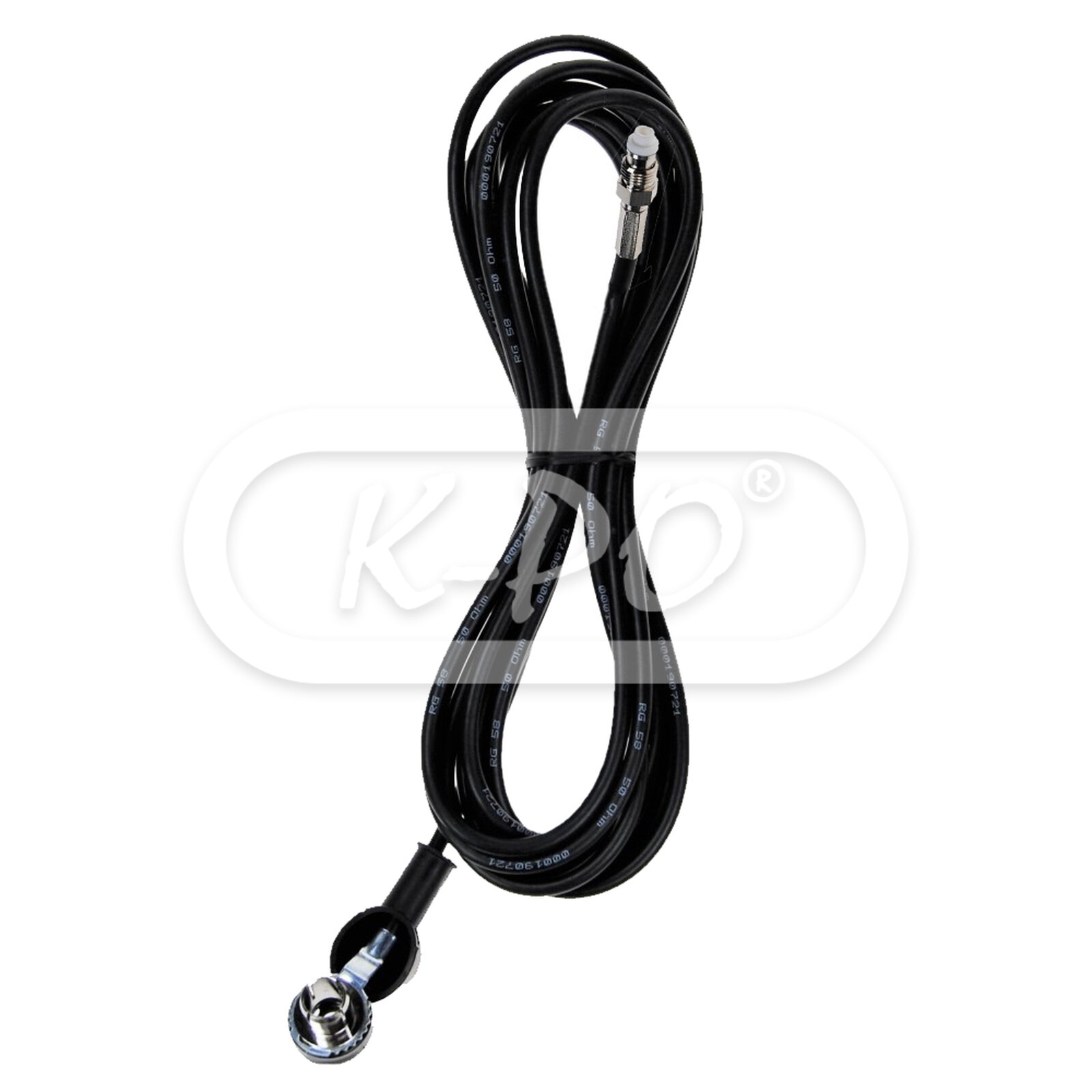

• Cable length: 4 meter / RG 58

Mechanical data

• Materials: Copper, brass, stainless steel 17/7 PH, nylon
• Height: 1710 mm
• Weight: 580 gram

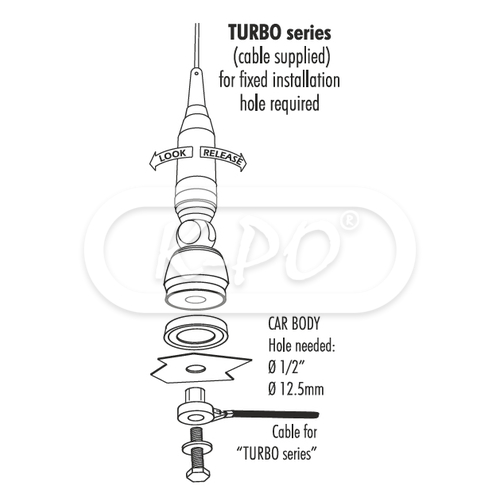

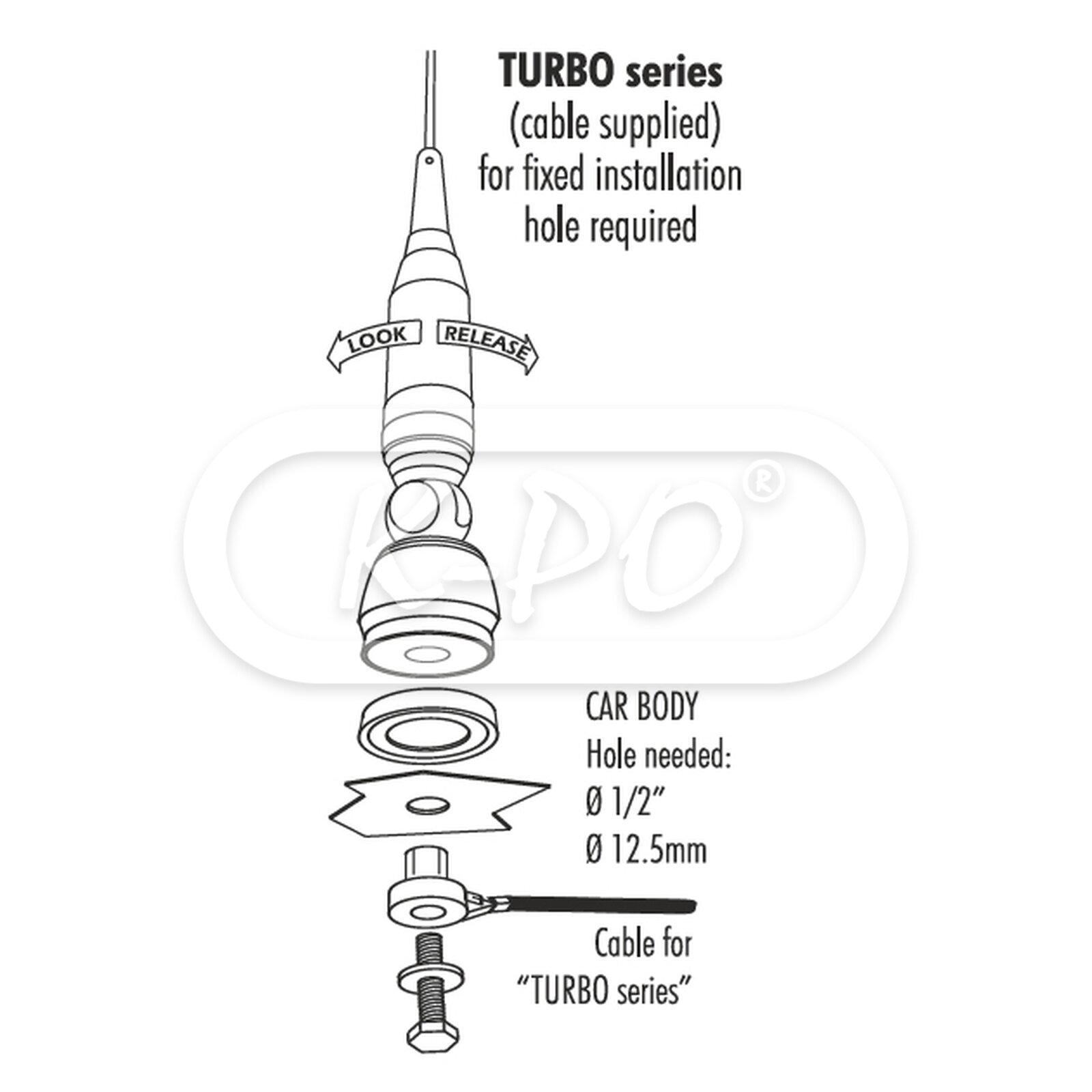

• Mounting type: Thru-hole

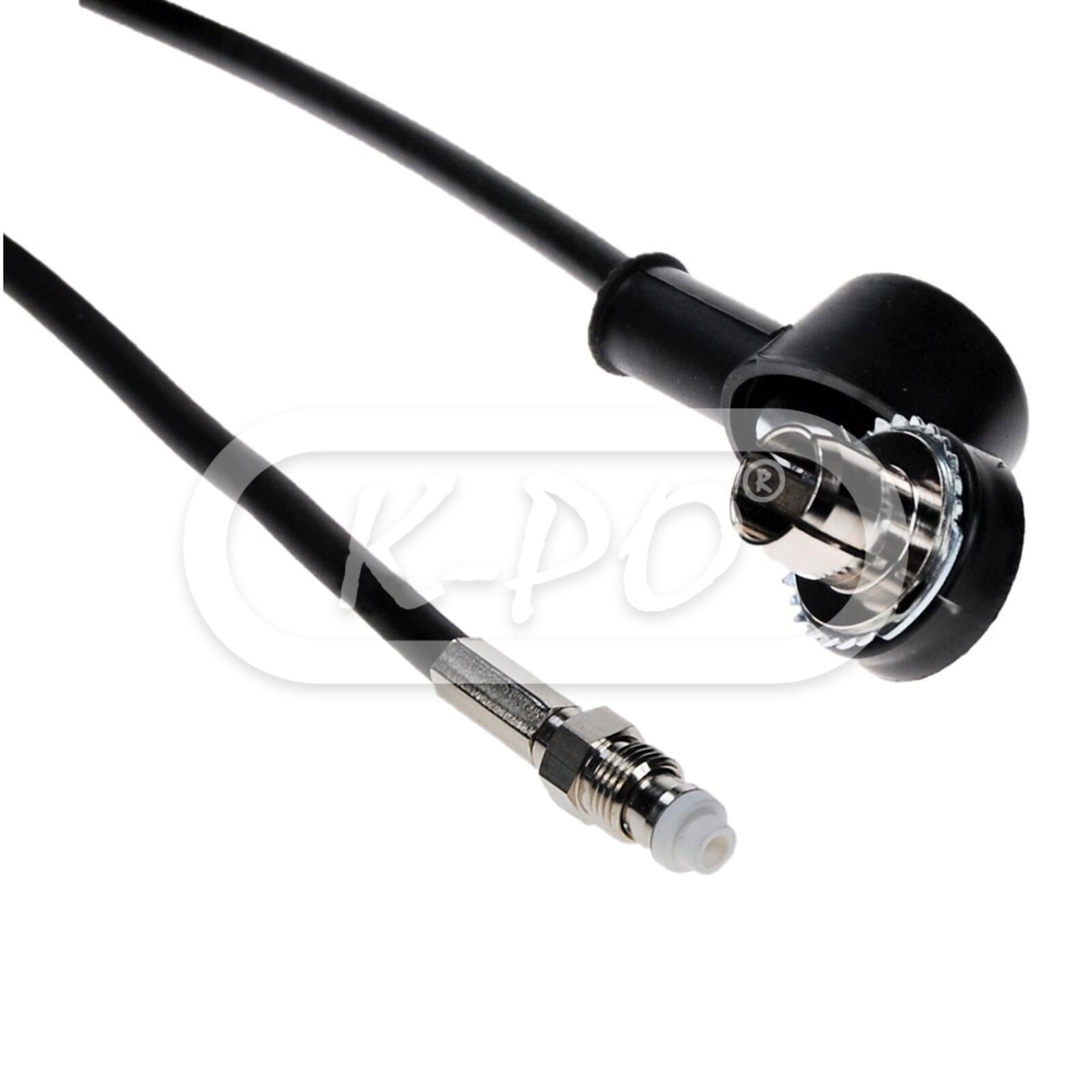

• Antenna connector: FME female (on cable end)

Inside the box

• Antenna: Yes
• Radio connector: Not included, optional
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English, Italian

Downloads

• Datasheet: Id 398 20 11 2019 turbo serie web
