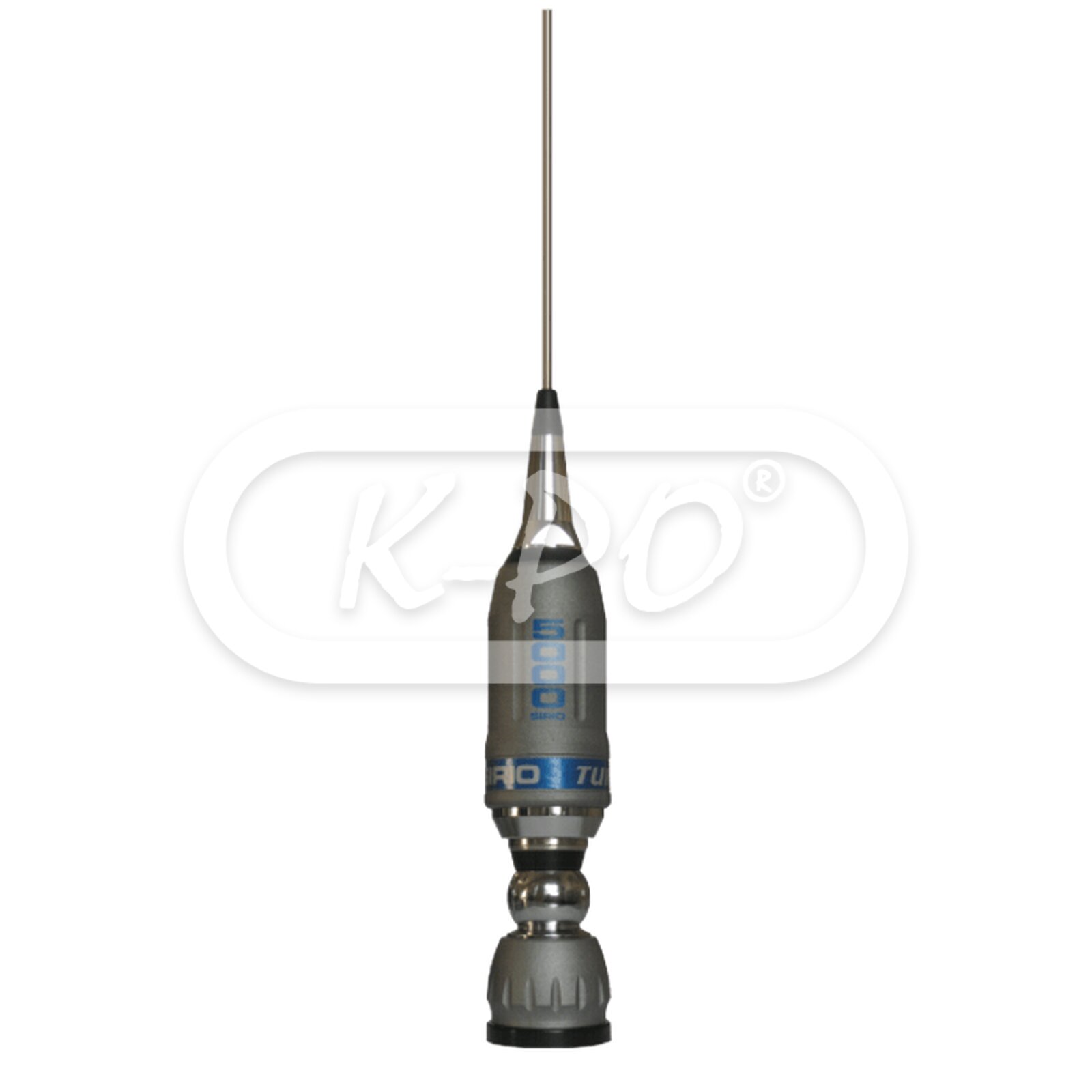

Sirio - Turbo 5000

Product code: 220220540

Factory code: 2202205.40

Barcode: 8056182112330

One of the best alternatives for the discontinued Sirtel Santiago 1200. High power vehicular antenna working on 27 MHz or 10 meter band. Low loss coil, 2.5 mm copper wire.

Frequency range: 27 - 30 MHz

Shipped today

€69.95 (57.81 excl. 21% VAT)

Electrical data

• Electrical type: Base loaded
• VSWR: ≤ 1.2
• Bandwidth: 2300 kHz (200 channels) ≤ 2.0
• Maximum continuous power: 600 Watts (CW) with the supplied RG 58 cable
• Power peak: 600 Watts (CW) with the supplied RG 58 cable
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 4 meter / RG 58

Mechanical data

• Materials: Copper, chromed brass, stainless steel 17/7 PH, thermoplastic UV
• Height: 1965 mm
• Weight: 650 gram

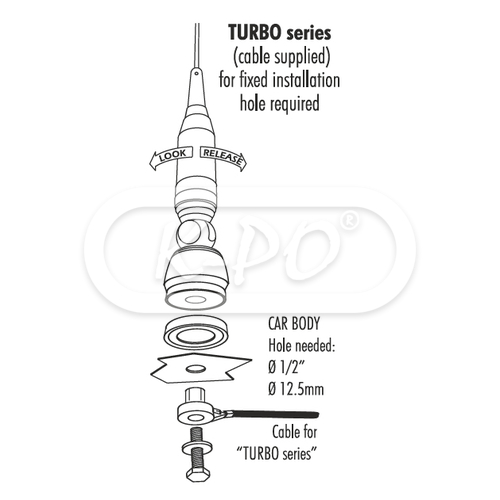

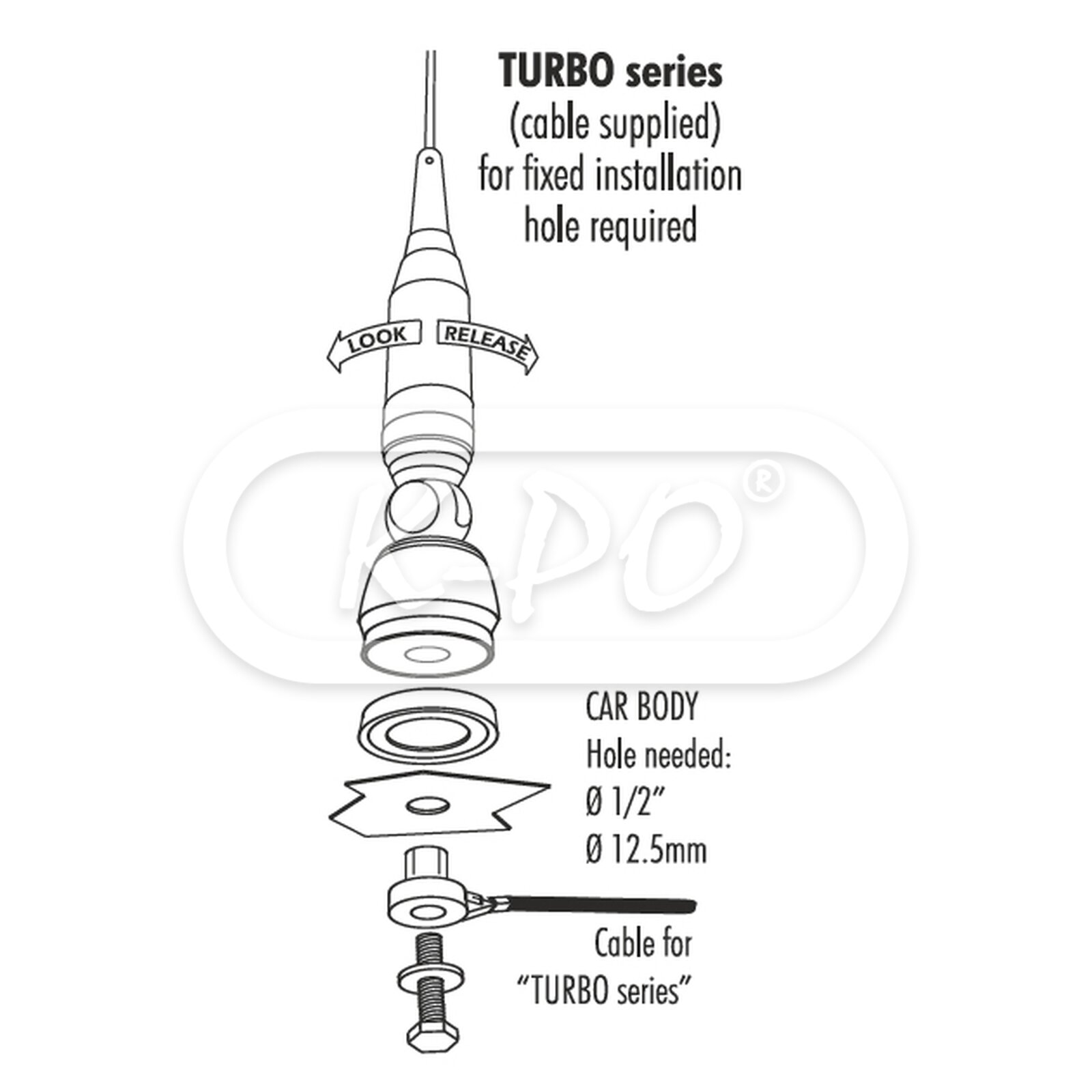

• Mounting type: Thru-hole

Inside the box

• Antenna: Yes
• Radio connector: Not included, optional
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English, Italian

Downloads

• Datasheet: Id 371 05 06 2014 series 5000
