Sirio - Turbo 5000 PL

Product code: 220220543

Factory code: 2202205.43

Barcode: 8056182112347

One of the best alternatives for the discontinued Sirtel Santiago 1200. High power vehicular antenna working on 27 MHz or 10 meter band. Low loss coil, 2.5 mm copper wire.

Frequency range: 27 - 30 MHz

Out of stock - Longer delivery time

€65.95 (54.5 excl. 21% VAT)

Electrical data

• Electrical type: Base loaded
• VSWR: ≤ 1.2
• Bandwidth: 2300 kHz (200 channels) ≤ 2.0
• Maximum continuous power: 1500 Watts (CW)
• Power peak: 5000 Watts (CW) / duty cycle, 5 seconds on, 5 seconds off
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Materials: Copper, chromed brass, stainless steel 17/7 PH, thermoplastic UV
• Height: 1965 mm
• Weight: 650 gram

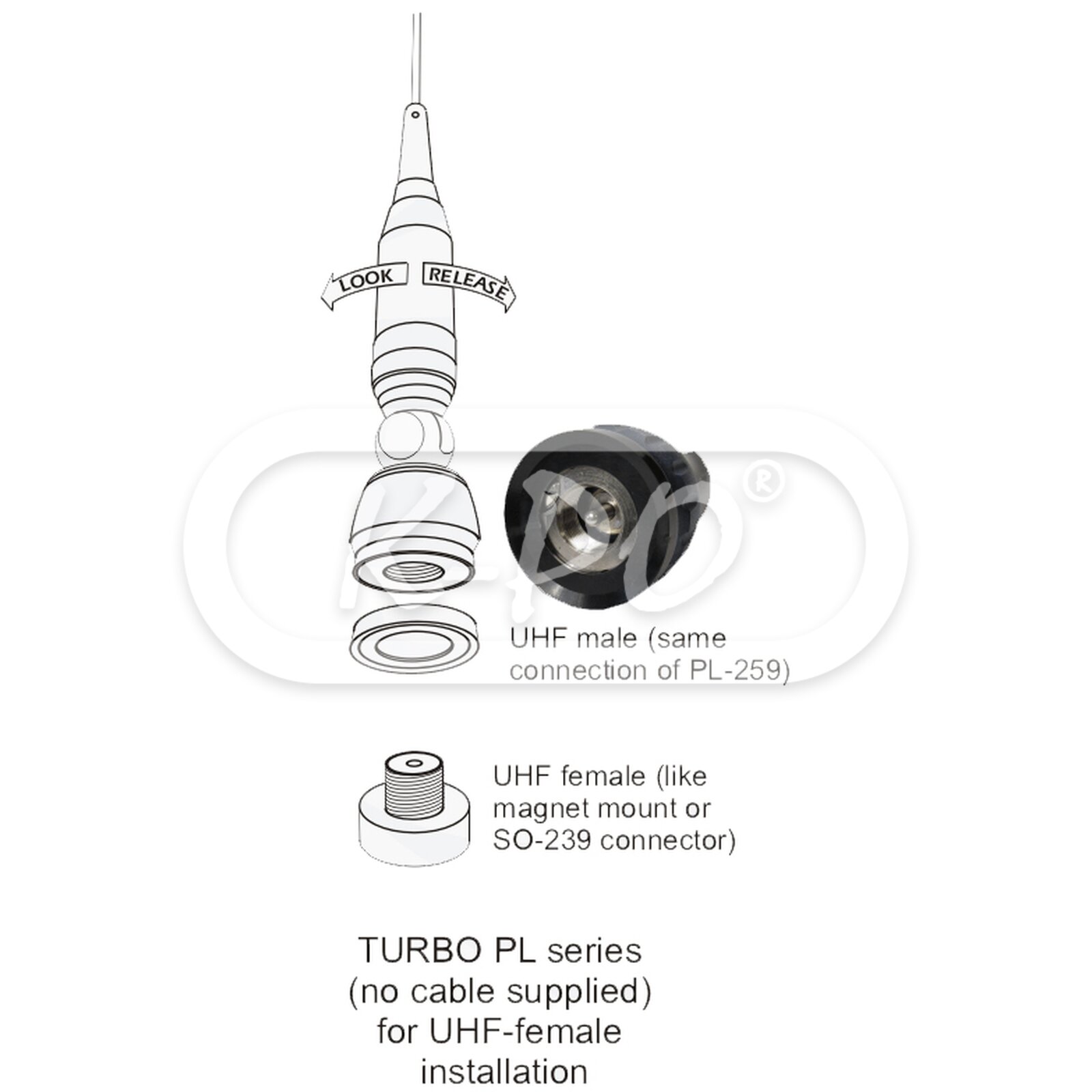

• Mounting type: On UHF-female (PL) connector (not included)
• Antenna connector: UHF-male (PL)

Inside the box

• Antenna: Yes
• Installation manual: English, Italian

Downloads

• Datasheet: Id 371 05 06 2014 series 5000
