Sirio - WY 108-3N

Product code: 2113501108

Factory code: 2113501/108

Barcode: 8056182113658

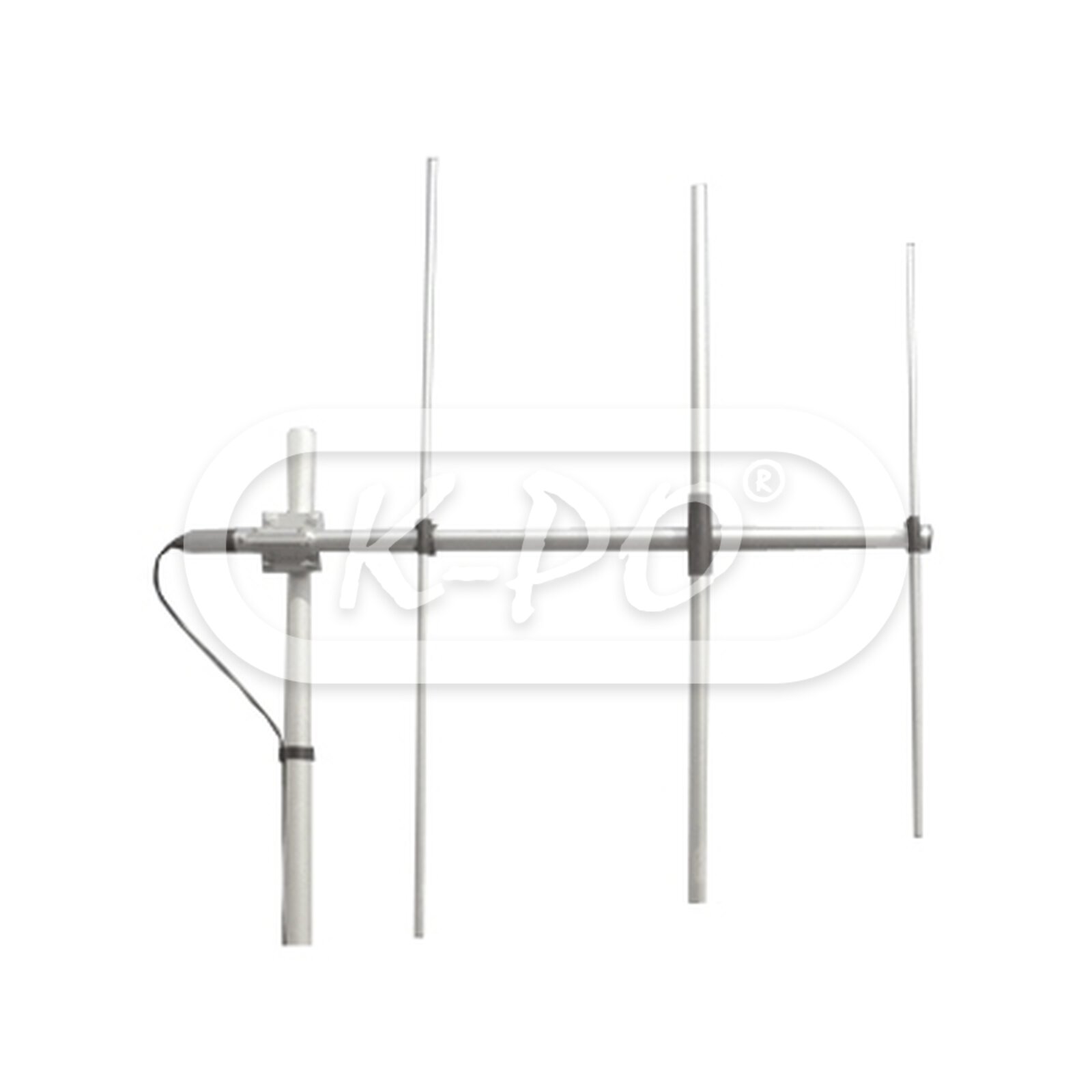

Directional base station antenna using an innovative feed system conceived and applied to have high symmetrical radiation pattern in both (E and H). It's completely computer designed to get high performances and a wide bandwidth, no tuning required. All aluminium parts are protected by anodized treatment, hardware are of stainless steel or zinc plated steel, mounting bracket is of extruded aluminium for the best strength. The connector is placed in rear position for an easily acces and protected by a black rubber cap suitable for 5-7 mm cables. To increase the antenna gain please install it in vertical stacked array. Developed for the aeronautic band service.

Frequency range: 108 - 137 MHz

Shipped today

€139.95 (115.66 excl. 21% VAT)

Electrical data

• Electrical type: 3 elements Yagi
• Gain: 4.85 dBd, 7 dBi
• VSWR: 108 - 118 MHz: ≤ 1.5 / 118 - 137 MHz ≤ 2.0 (see product manual)
• Maximum continuous power: 200 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical / Linear horizontal /

Mechanical data

• Materials: Anodized aluminium, chromed brass, thermoplastic UV stabilized, EPDM rubber
• Mast Ø: 35 - 52 mm
• Max wind resistance: 160 km/h
• Height: 1400 mm
• Width: 910 mm
• Weight: 1860 gram
• Mounting type: On mast
• Antenna connector: N-female
• Boom diameter Ø: 32 mm
• Dipole diameter Ø: 24 mm
• Element diameter Ø: 12 mm
• Tuning radius: 1000 mm

Inside the box

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English

Downloads

• Datasheet: Id 458 27 04 2018 wy108 3n
