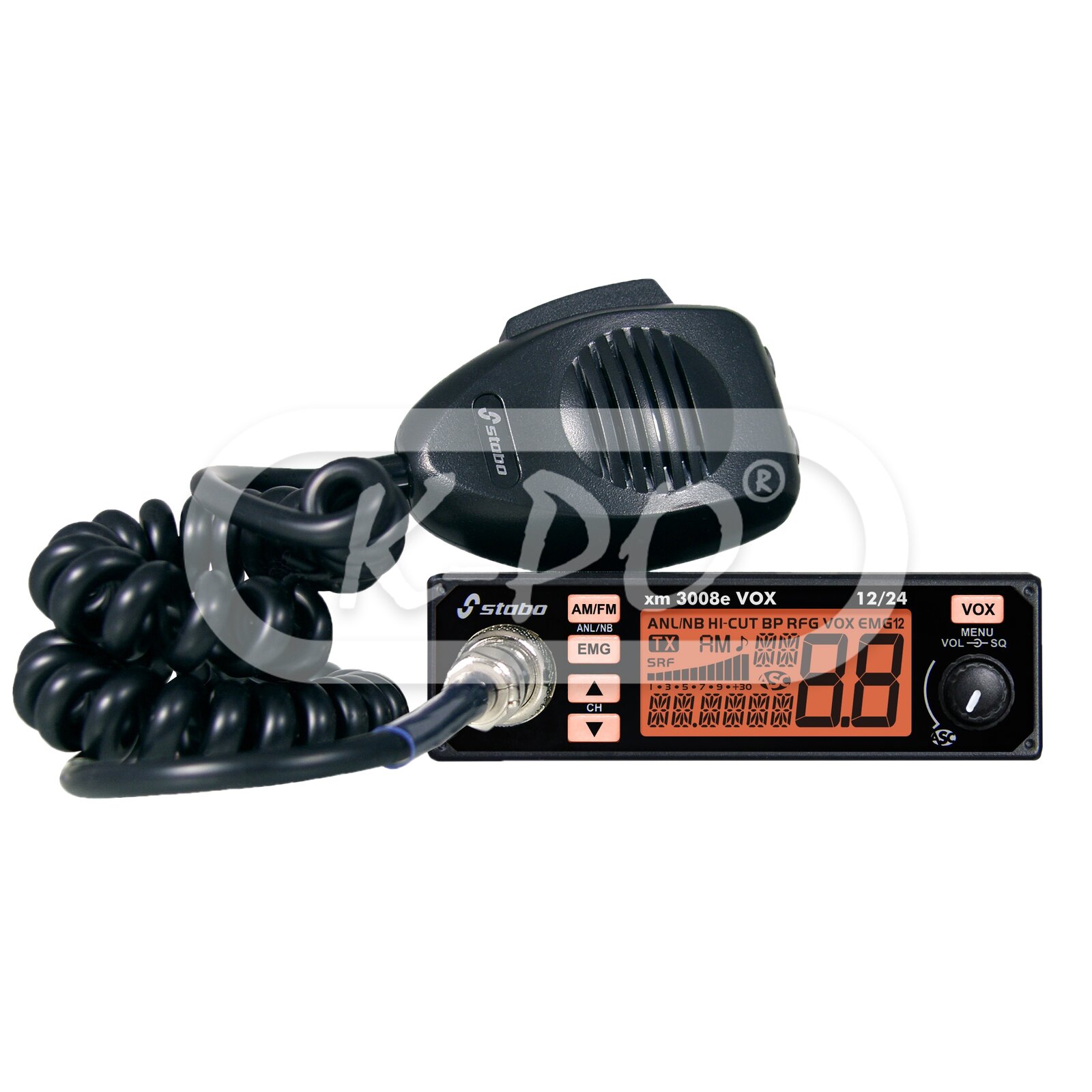

Stabo - XM 3008E VOX

Product code: 30119

Factory code: 30119

Barcode: 4010384301194

The Stabo XM 3008E VOX is a mobile CB radio device and can be used on 12 and 24 Volt. The XM 3008E has an adjustable VOX function (5 levels) that makes it possible to communicate handsfree with theoptional Stabo VOX microphone.

Frequency range: 26.965 - 27.405 MHz

Shipped today - Stock: 7

€259.94 (214.83 excl. 21% VAT)

Features

• Modulation: AM / FM
• Multi-bands: Yes
• Output power: 4 Watt
• Channels: 40 AM / FM
• Display type: LCD display
• Display colors: Green / Orange / Purple / Blue / Cyaan / Yellow / Clear Blue
• VOX Function: Yes
• Noise blanker: Yes
• Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /
• Emergency channel: Yes
• Scan function: Yes
• External speaker socket: Yes
• S-meter: Yes
• RF gain: Yes
• TOT (time out timer): Yes
• External VOX socket: Yes
• Roger Beep: Yes

Electrical data

• Voltage: 13,8 Volt / 24 Volt /
• Operating temperature: -10° to +55° C

Transmitter

• Audio frequency response: 300 Hz - 3 kHz
• Microphone sensitivity: <3 mV
• Frequency allowance: ± 600 Hz
• Drain: 13.2 Volt: 2 A max / 24 Volt: 2 A max

Receiver

• AM sensitivity: ≤ -107 dBm 20 dB SINAD
• FM sensitivity: ≤ -107 dBm 20 dB SINAD
• Frequency response: 300 Hz - 3 kHz
• Adjacent channel selectivity: 60 dB
• Maximum audio power: 2 Watt
• Internal speaker: 8 Ohm
• Squelch sensitivity: min. 0.2 μV
• Image rejection: 70 dB
• Drain: 300 mA nominal / 750 mA max.

Mechanical data

• Length: 165 mm
• Height: 35 mm
• Width: 115 mm
• Weight: 600 gram
• Antenna connector: UHF (PL) female (SO-239)
• Mike connector: 6 pin connector

Inside the box

• Transceiver: 1 pcs
• Microphone: 1 pcs
• Fixing screws: 1 set
• Mounting bracket: 1 pcs
• Power lead: 1 pcs
• User Manual: English, German, French, Polish,

Downloads

• Datasheet: User manual stabo xm3008e VOX DE EN FR PL
